Product Details - Trek Powerfly 5 625w Gen 4 Emtb Bike 2024 Power Surge/mercury - One Off

Our Last remaining good stock Bike Size XSmall

eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated in two boxes.

Minimum personal assembly is required.

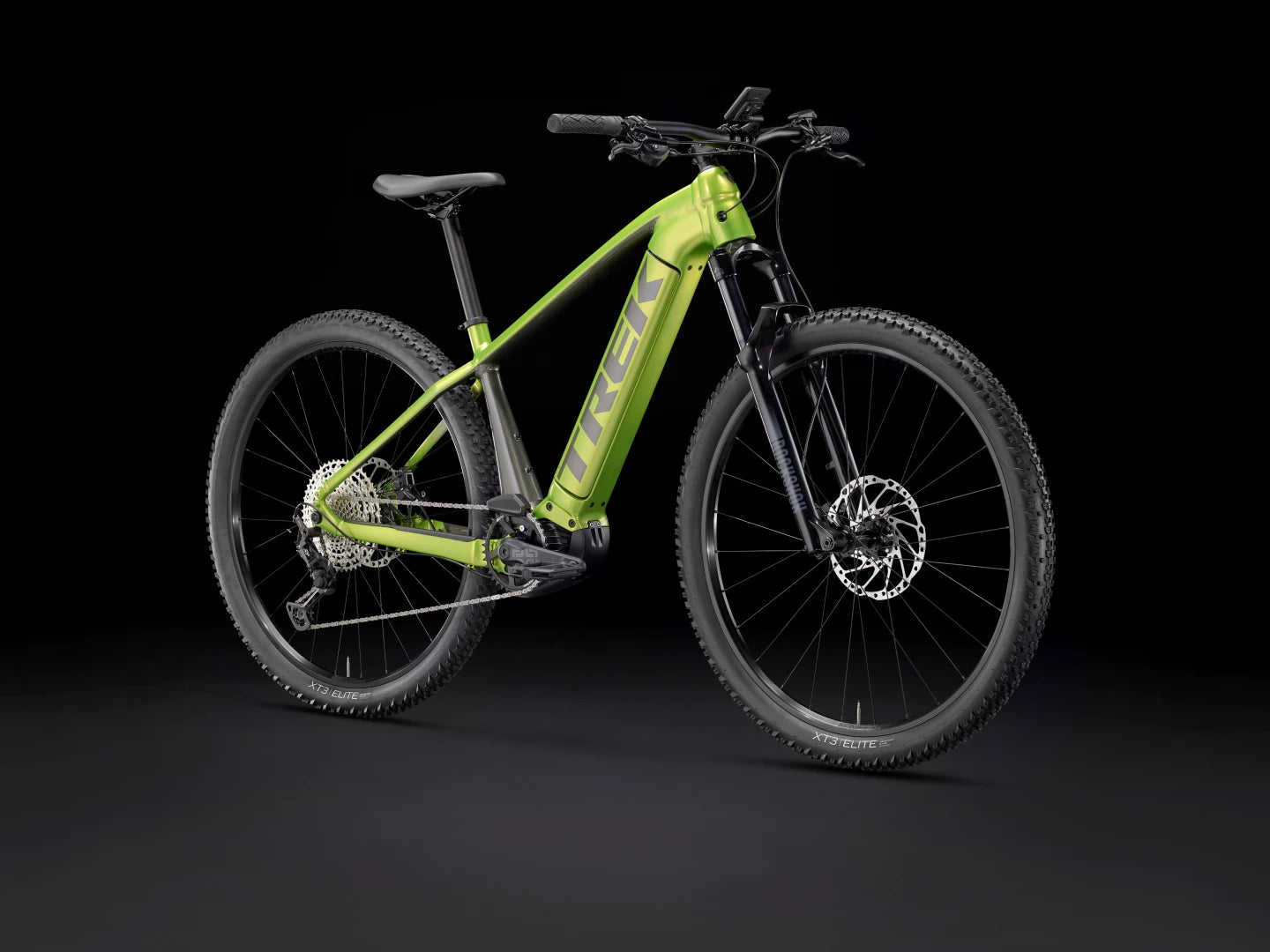

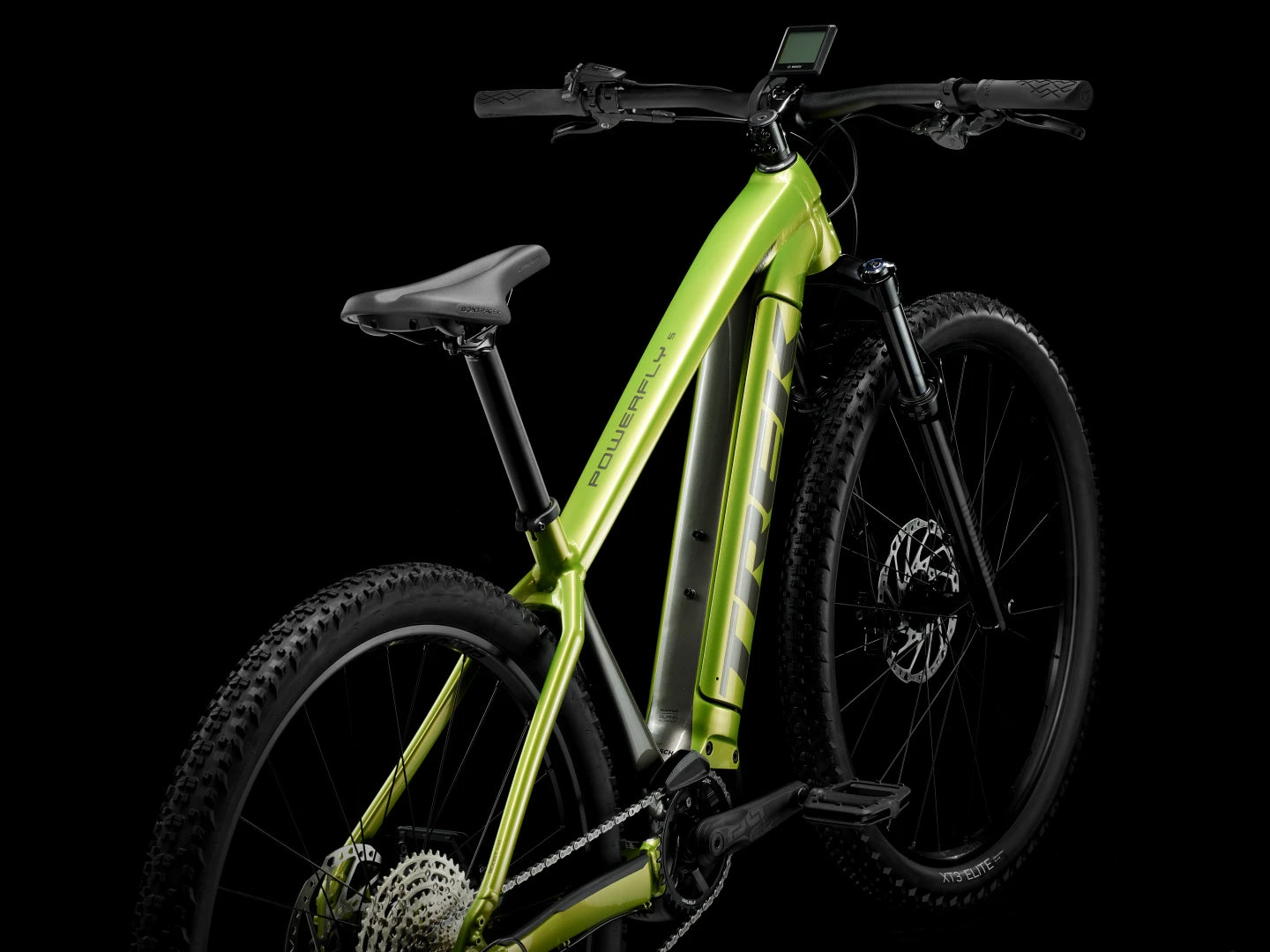

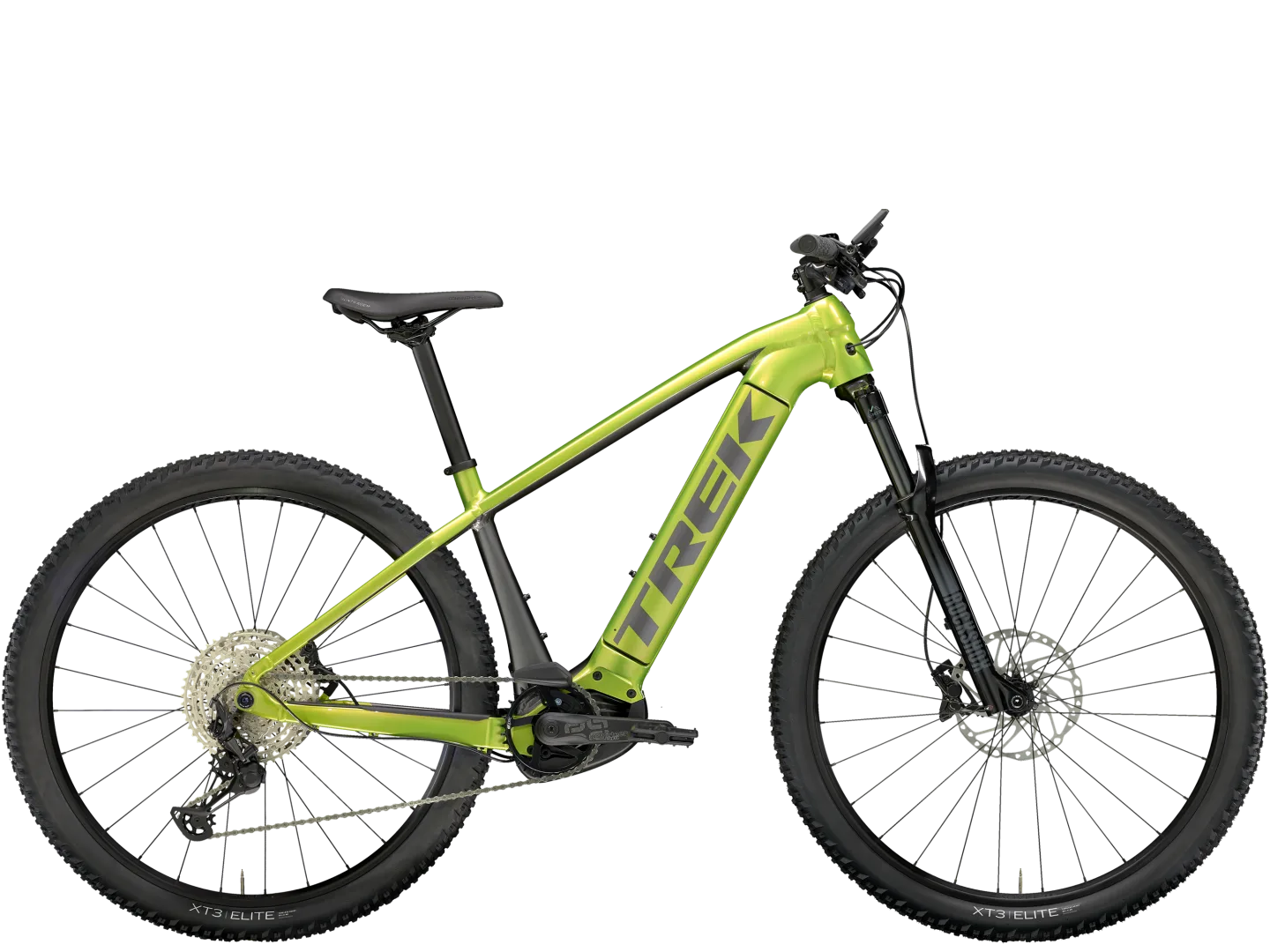

The Powerfly 5 is a highly capable electric mountain bike that balances performance and price.

It pairs a high-end Bosch e-MTB smart system drive unit with durable mountain bike components built to stand up to the trail. Plus, it features Trek's user-friendly Removable Integrated Battery (RIB) system that fully encases the battery in the frame, yet doesn't require tools for removal. This bike is versatile, capable and ready for adventure.

Key Features Trek Powerfly 5 625W Gen 4 eMTB Bike 2024

  • 250W Bosch Performance Line CX Motor: The most reliable pedal-assist motor in the e-bike industry, capable of sustaining speeds up to 25 km/h.
  • Hydraulic Disc Brakes: Reliable braking performance to keep you in control, whatever the weather.
  • Shimano XT Drivetrain: For reliable shifting performance, with a range of gears to tackle the hills.

Full Specification

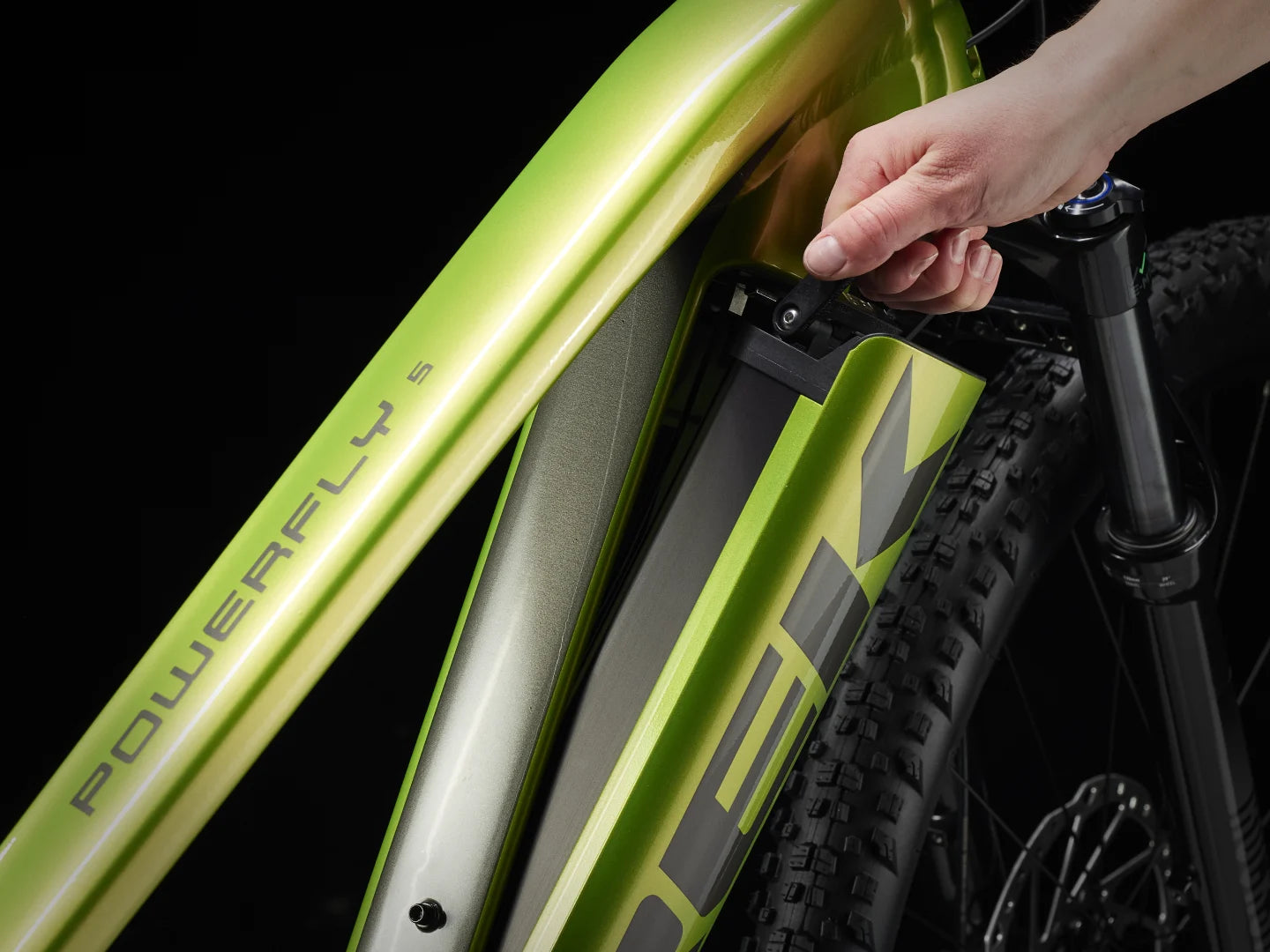

  • Frame: Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle

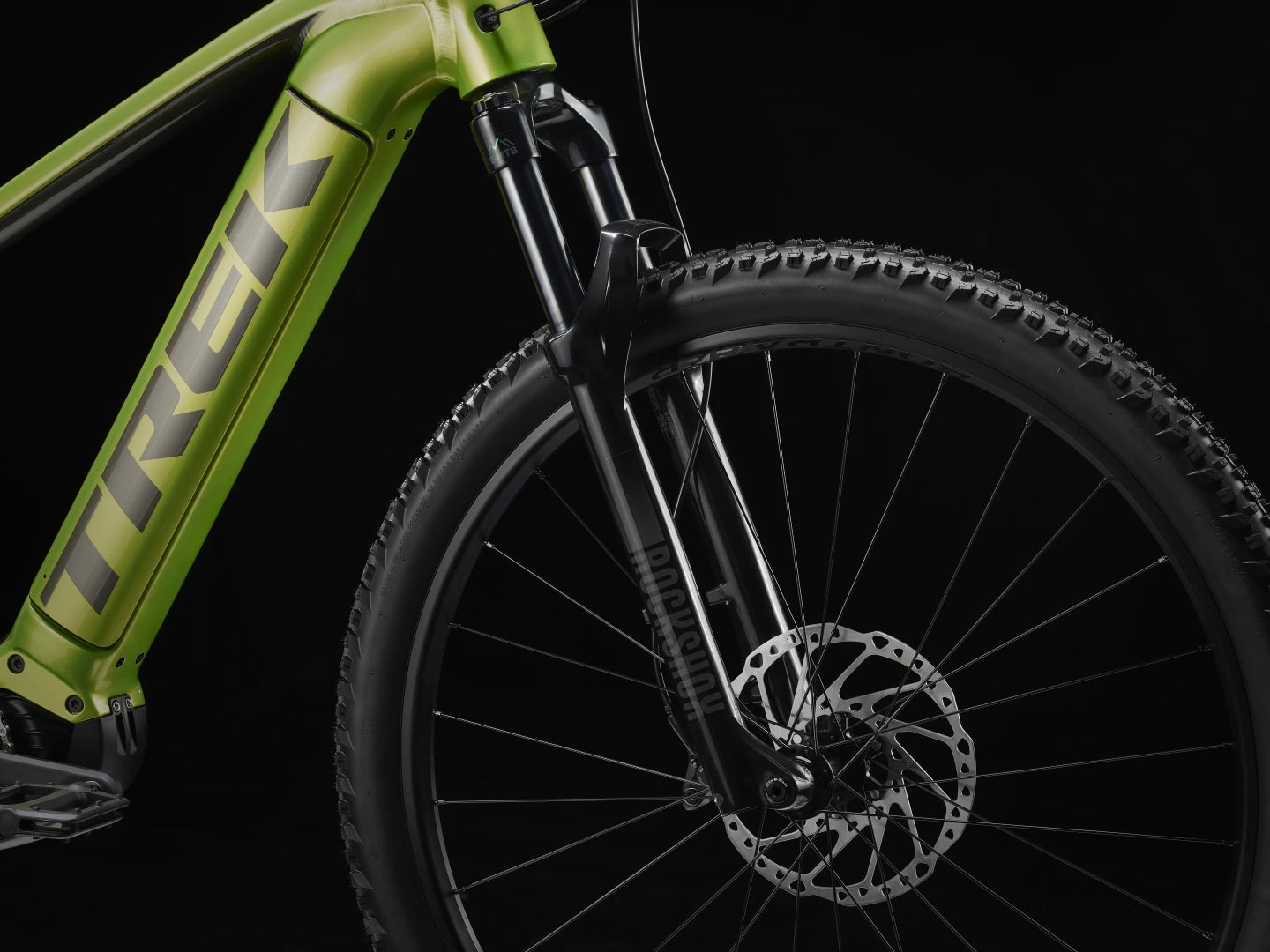

  • Fork: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 - 42 mm offset, Boost110, 15 mm Maxle Stealth, 80 - 120 mm travel

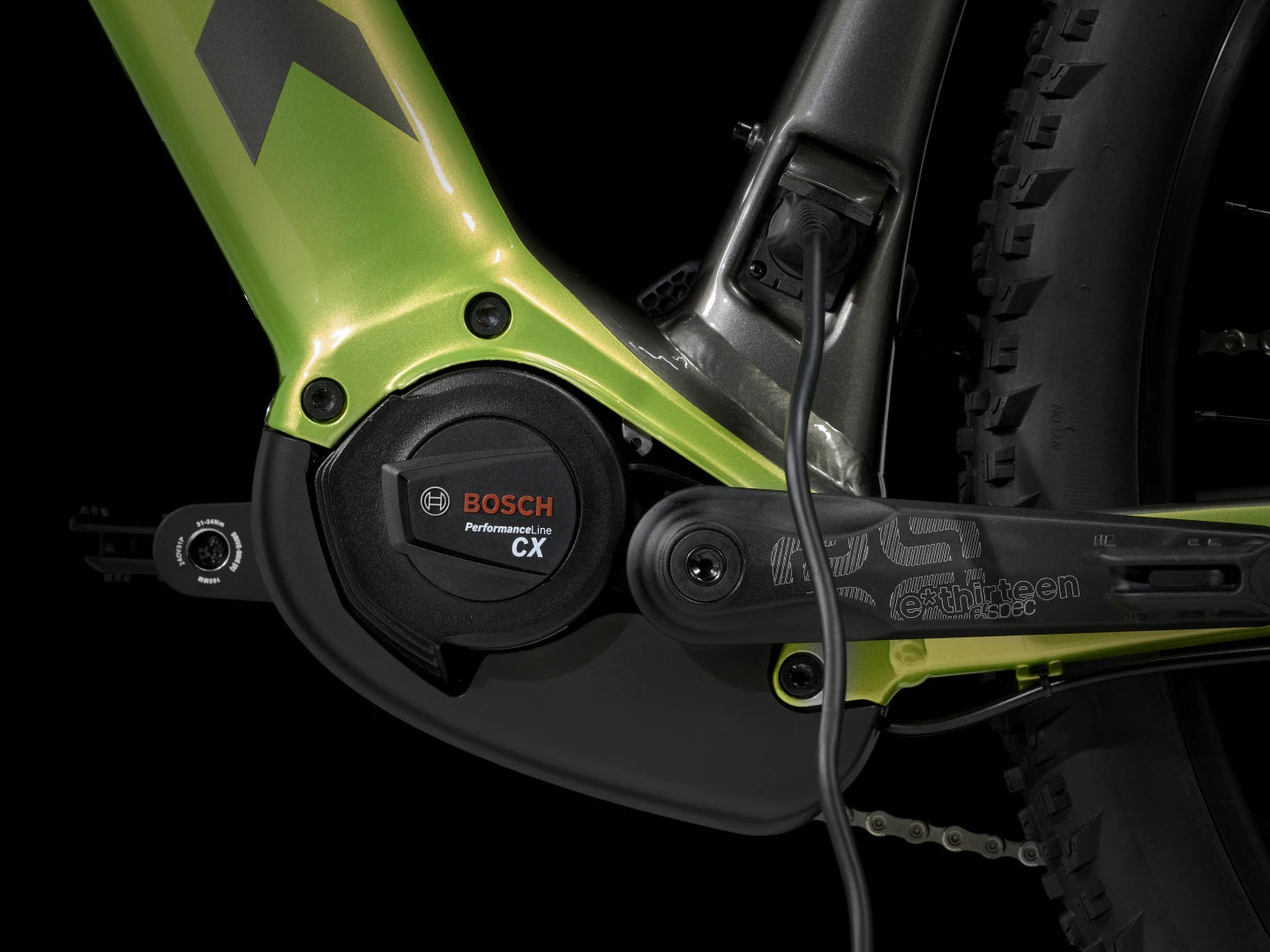

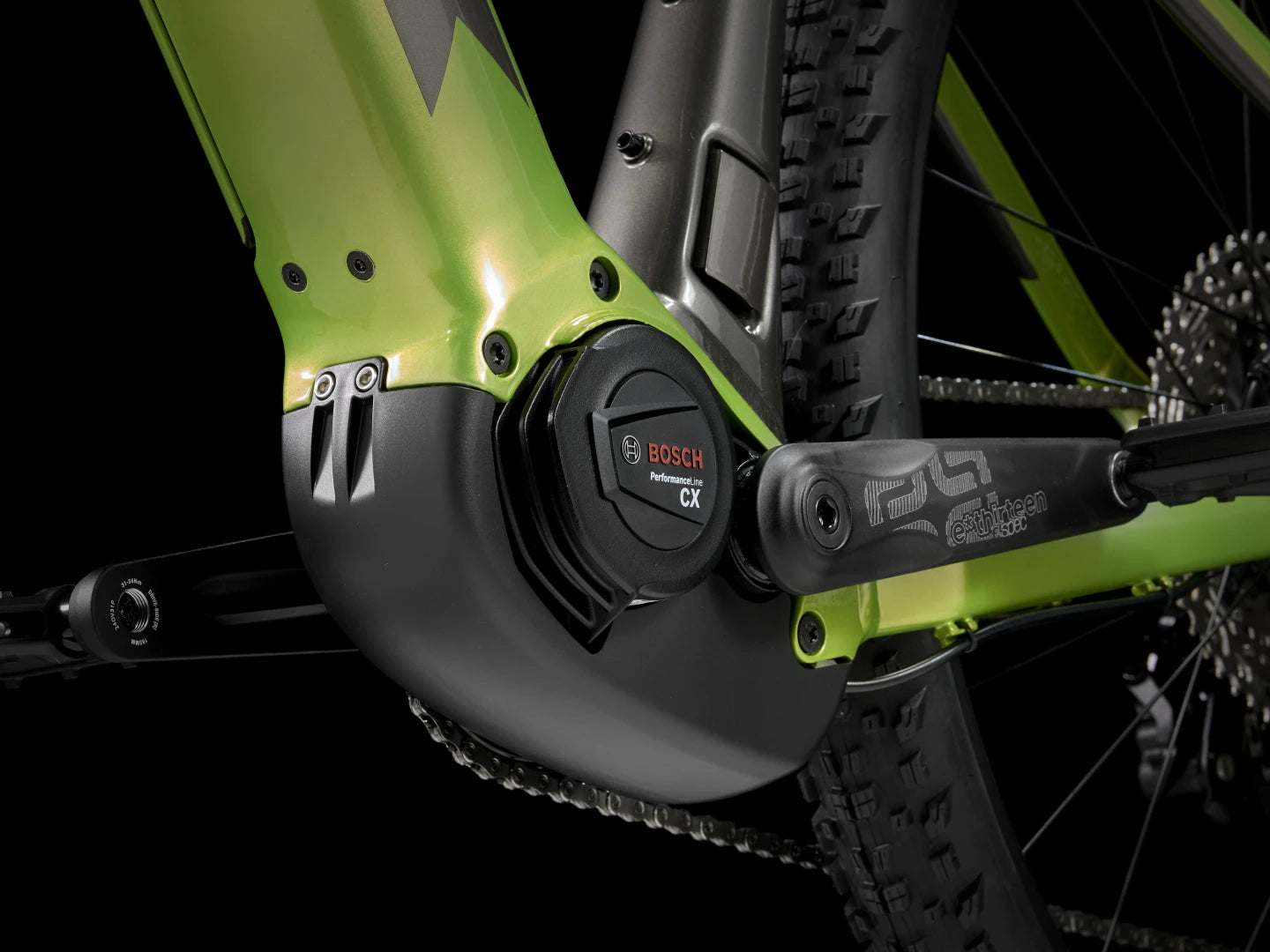

  • Motor: Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

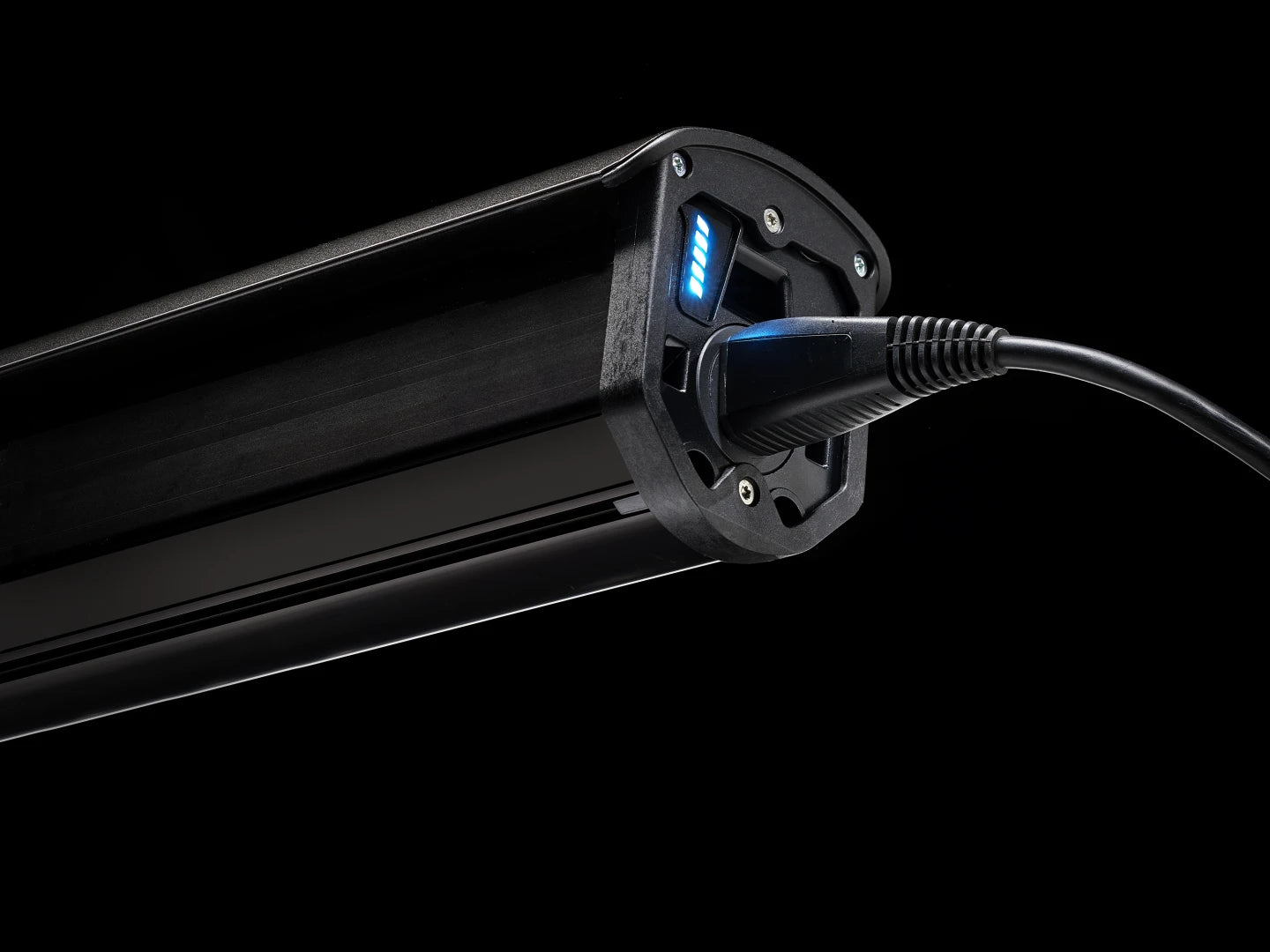

  • Battery: Bosch PowerTube 625Wh, smart system

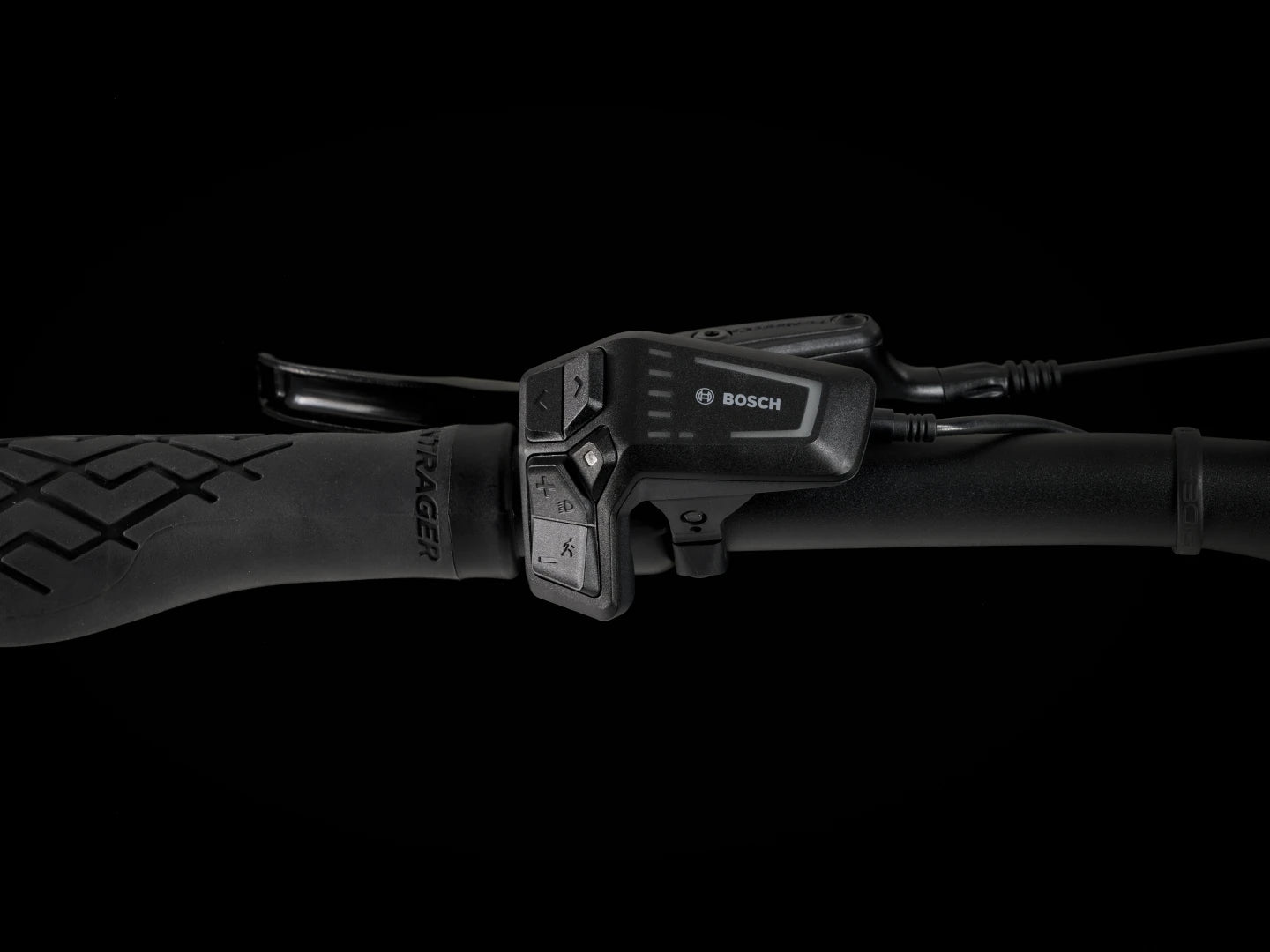

  • Controller: Bosch Intuvia 100, smart system
  • Charger: Bosch standard 4A, 230V, smart system
  • Gear Shifters: Shimano Deore M6100, 12-speed
  • Chainset: E*thirteen E*spec Plus, 165 mm length
  • Rear Cassette: Shimano Deore M6100, 10-51, 12-speed
  • Chain: Shimano Deore M6100, 12-speed
  • Front Derailleur: N/A

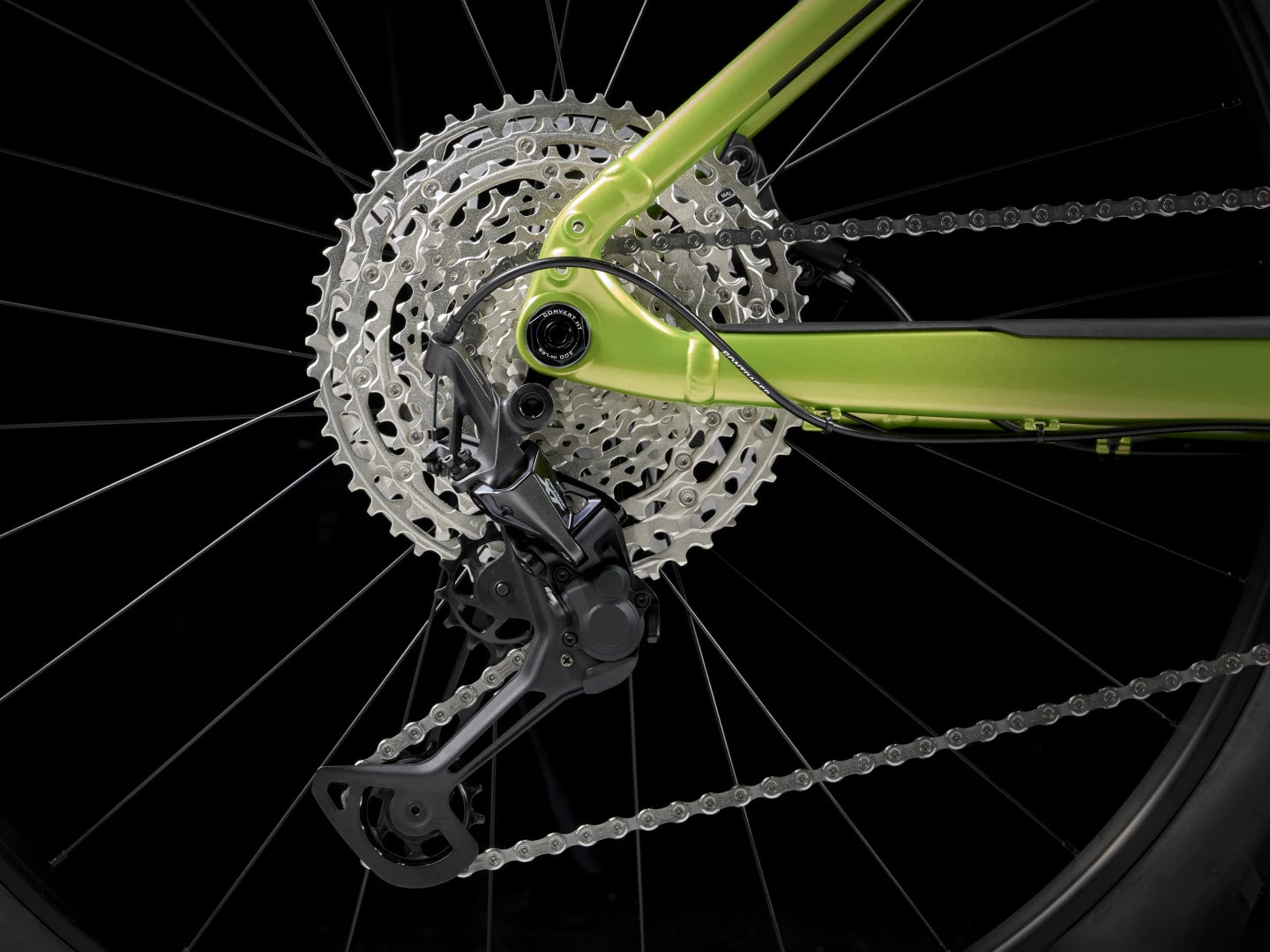

  • Rear Derailleur: Shimano XT M8100, long cage
  • Bottom Bracket: N/A
  • Pedals: VP-536 nylon platform
  • Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
  • Front Hub: Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
  • Rear Hub: Shimano TC500 alloy, CentreLock, 148x12 mm thru axle

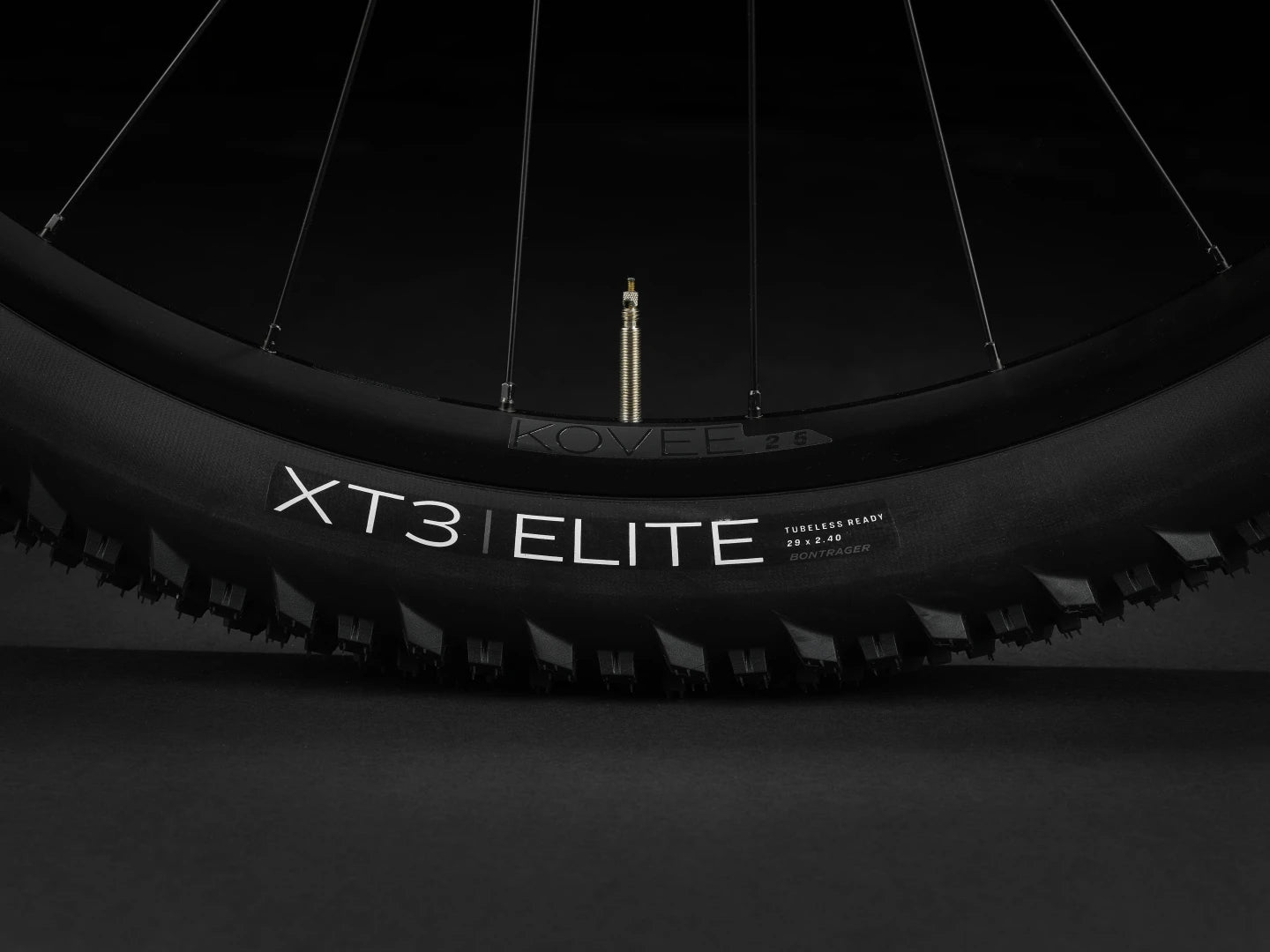

  • Tyres: Bontrager XR3 Comp, wire bead, 30 tpi, 27.5 - 29x2.30"
  • Brakes: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper, or Tektro HD-M745 4-piston hydraulic disc
  • Handlebars: Bontrager alloy, 31.8 mm, 15 mm rise, 720 - 750 mm width
  • Handlebar Grips: Bontrager XR Endurance Comp, lock-on
  • Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
  • Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 - 70 mm length
  • Saddle: Bontrager Commuter Comp
  • Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, 330 - 400 mm length
  • Extras: N/A
  • Weight: M - 23.70 kg / 52.25 lbs (with tubes)

 We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.




Size Guide

Trek Powerfly Sizing Chart Size Guide

How we Build & Pack Your Bike

Aftercare

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!

Read our full advice

If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
