eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated.

Minimum personal assembly is required.

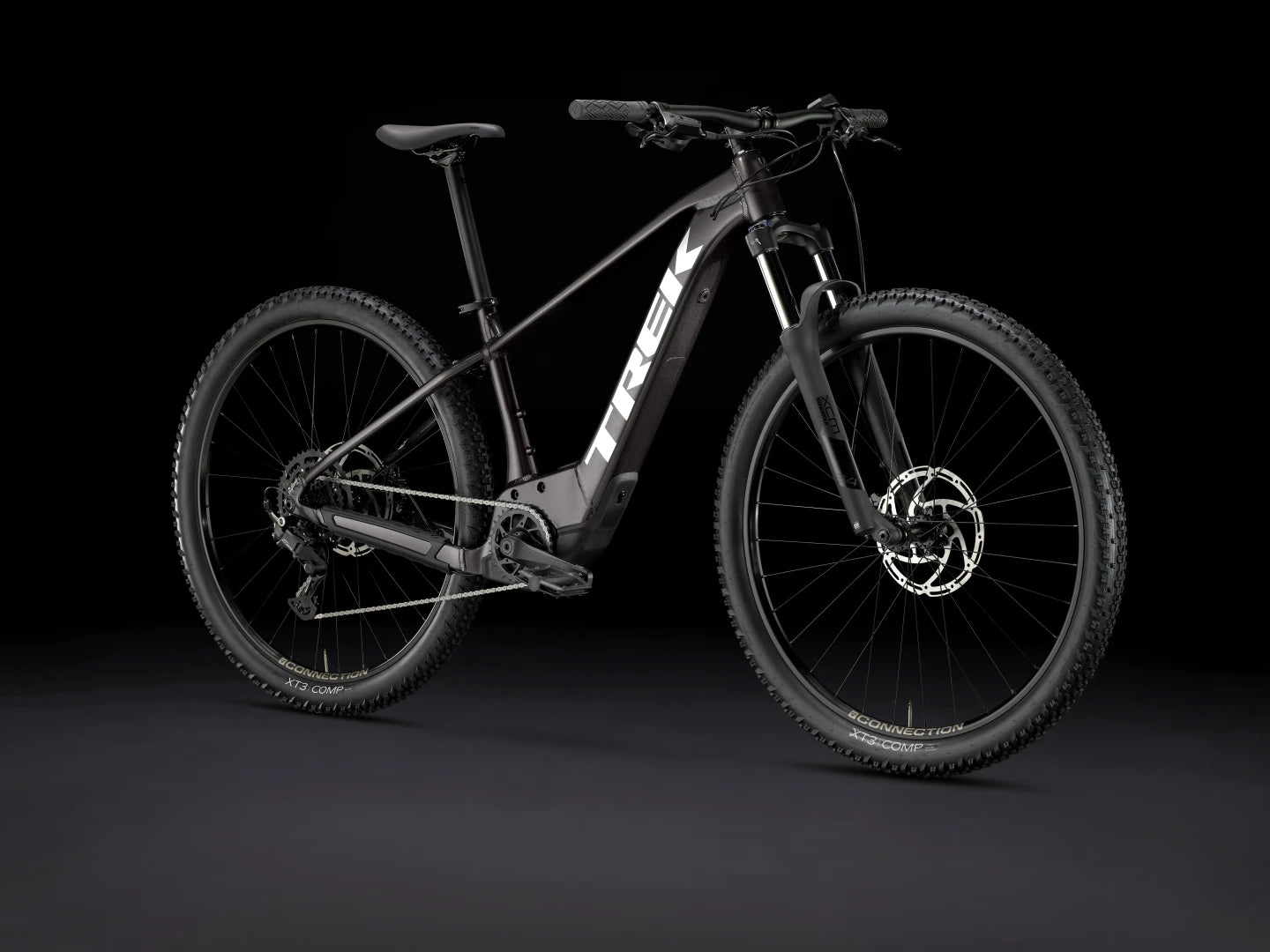

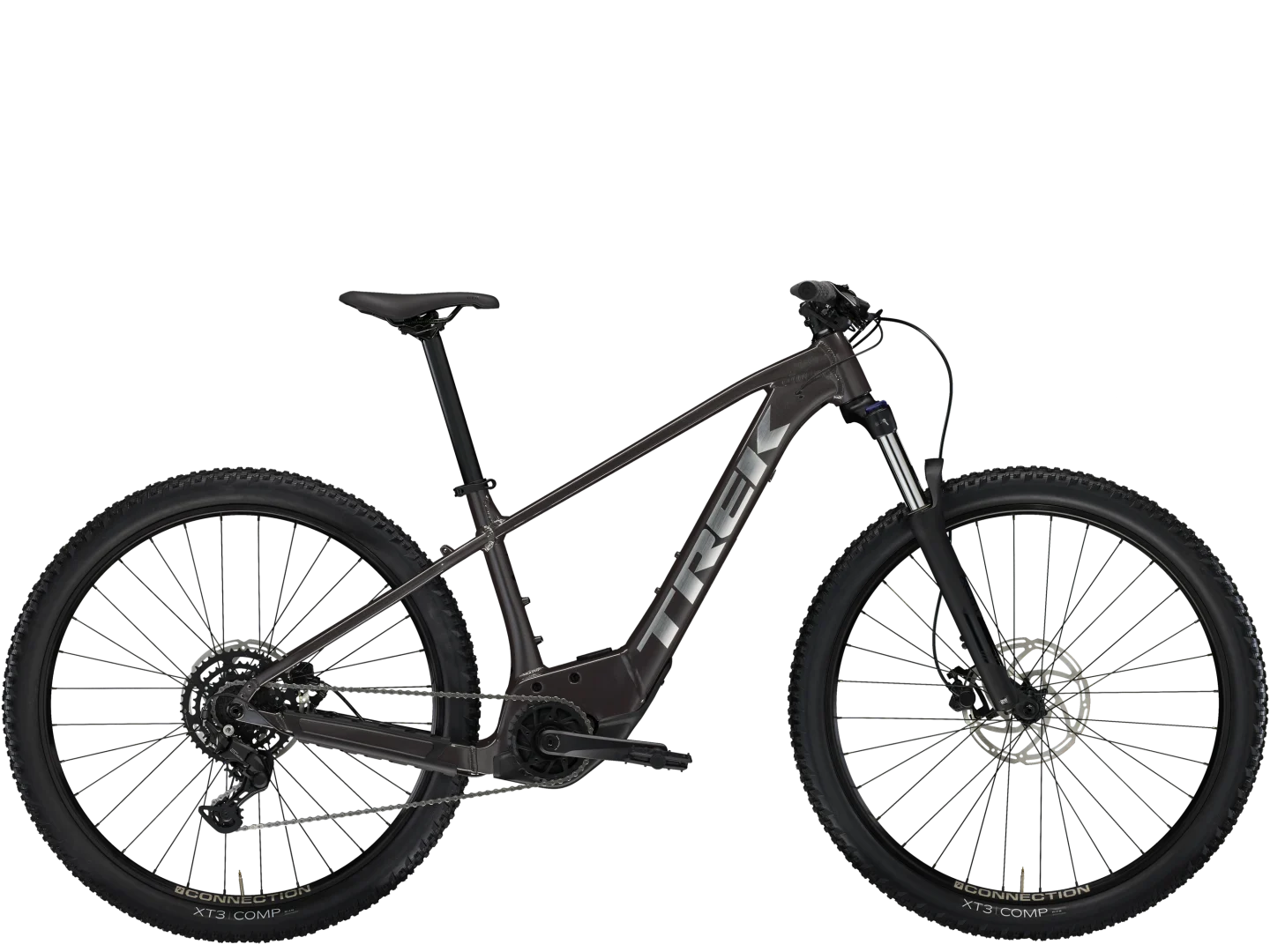

The Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120 mm suspension fork soaks up rocks, roots and pot holes on your ride, while the 9-speed Shimano CUES is durable and reliable for wherever you roll.

Features

• Bosch Active Line Plus Motor: With AUTO mode adaptive motor support which recognises speed reductions and adjusts assistance automatically
• 120 mm suspension: Keeps your ride feeling smooth through bumps, roots and rough stuff.
• Shimano CUES 9 Speed Drivetrain: Performs well, even under load.

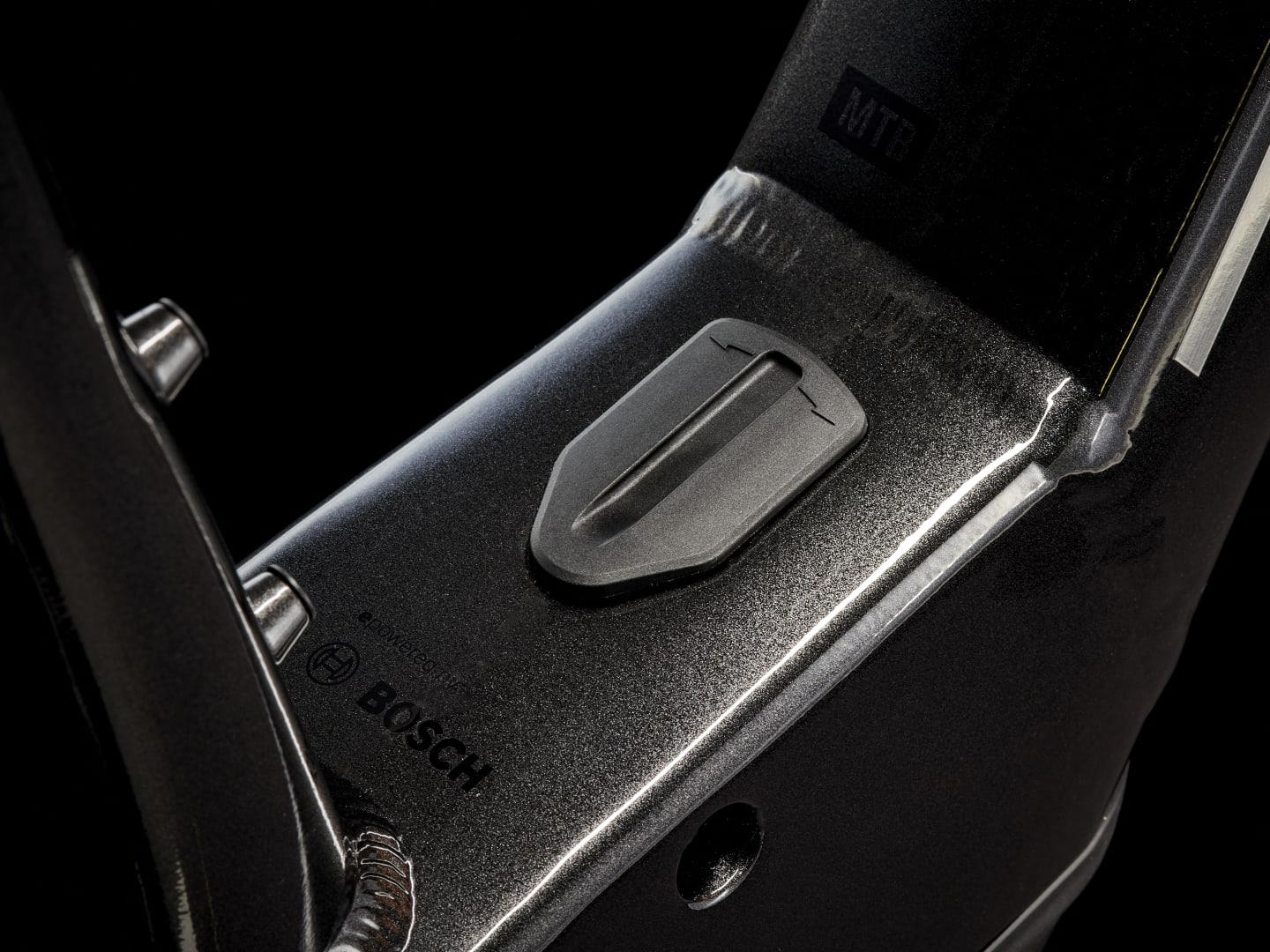

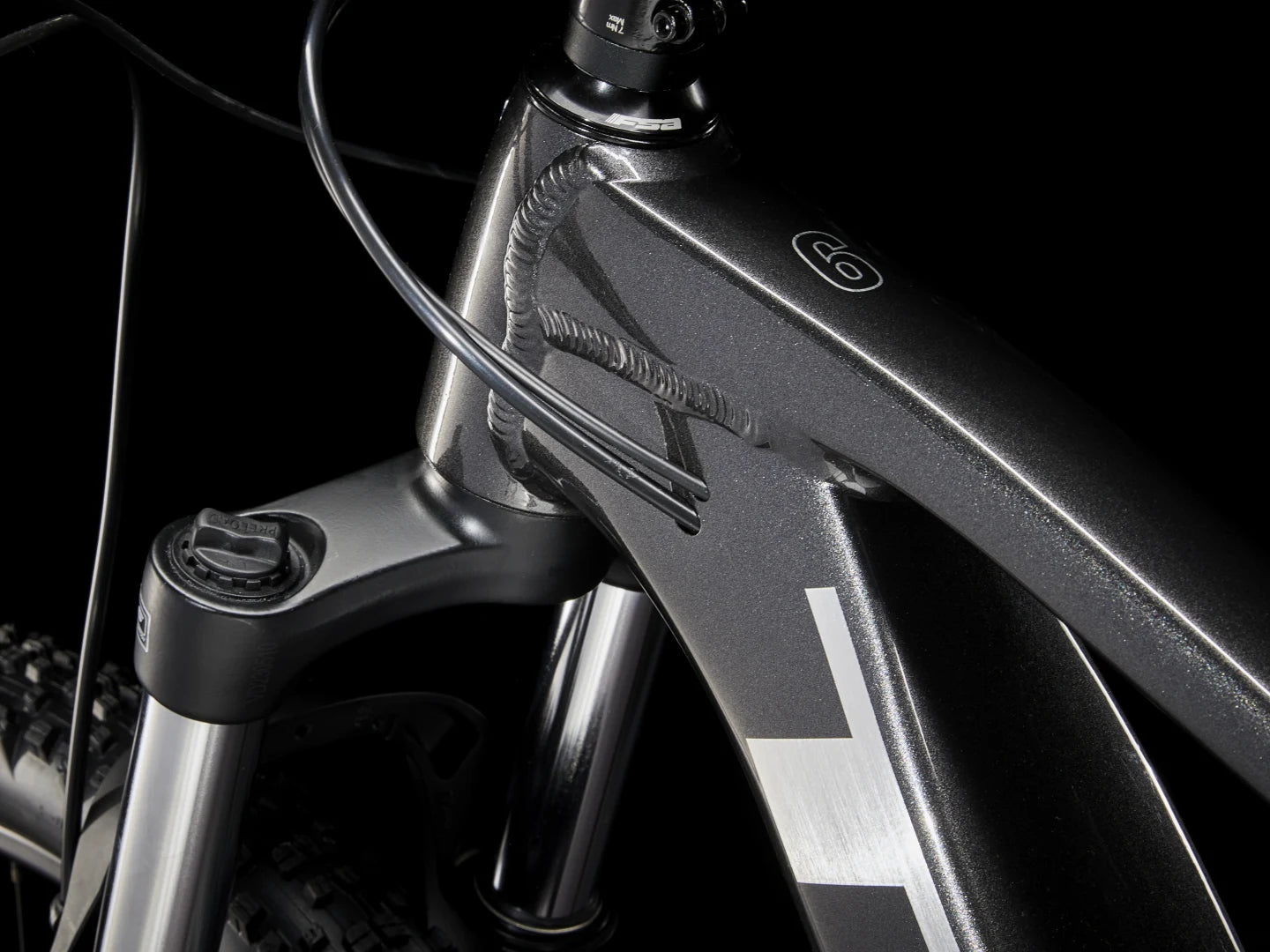

• Frame: Alpha Platinum Aluminium (curved top tube on XS model), tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle

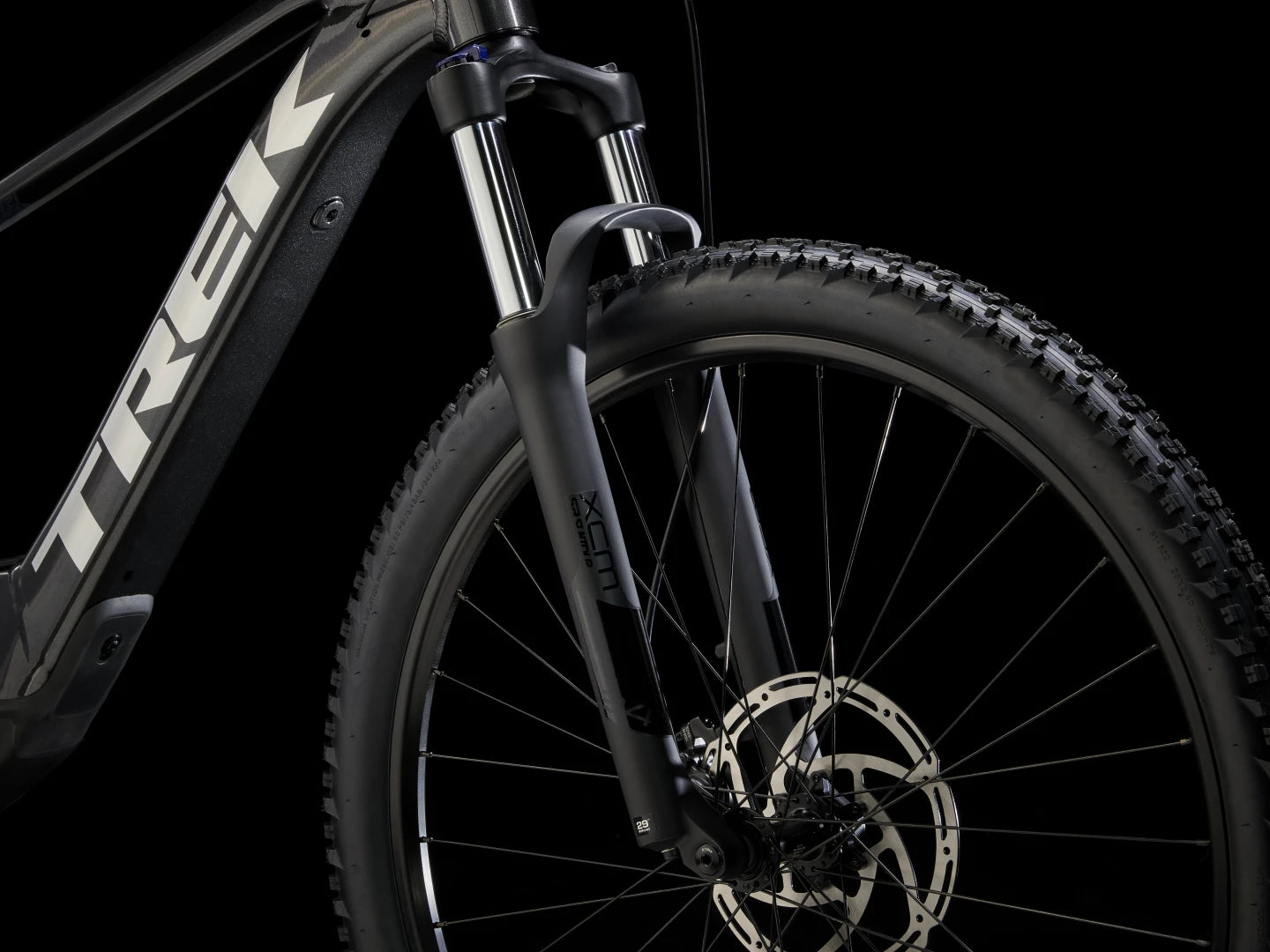

• Fork: SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 100 - 120 mm travel

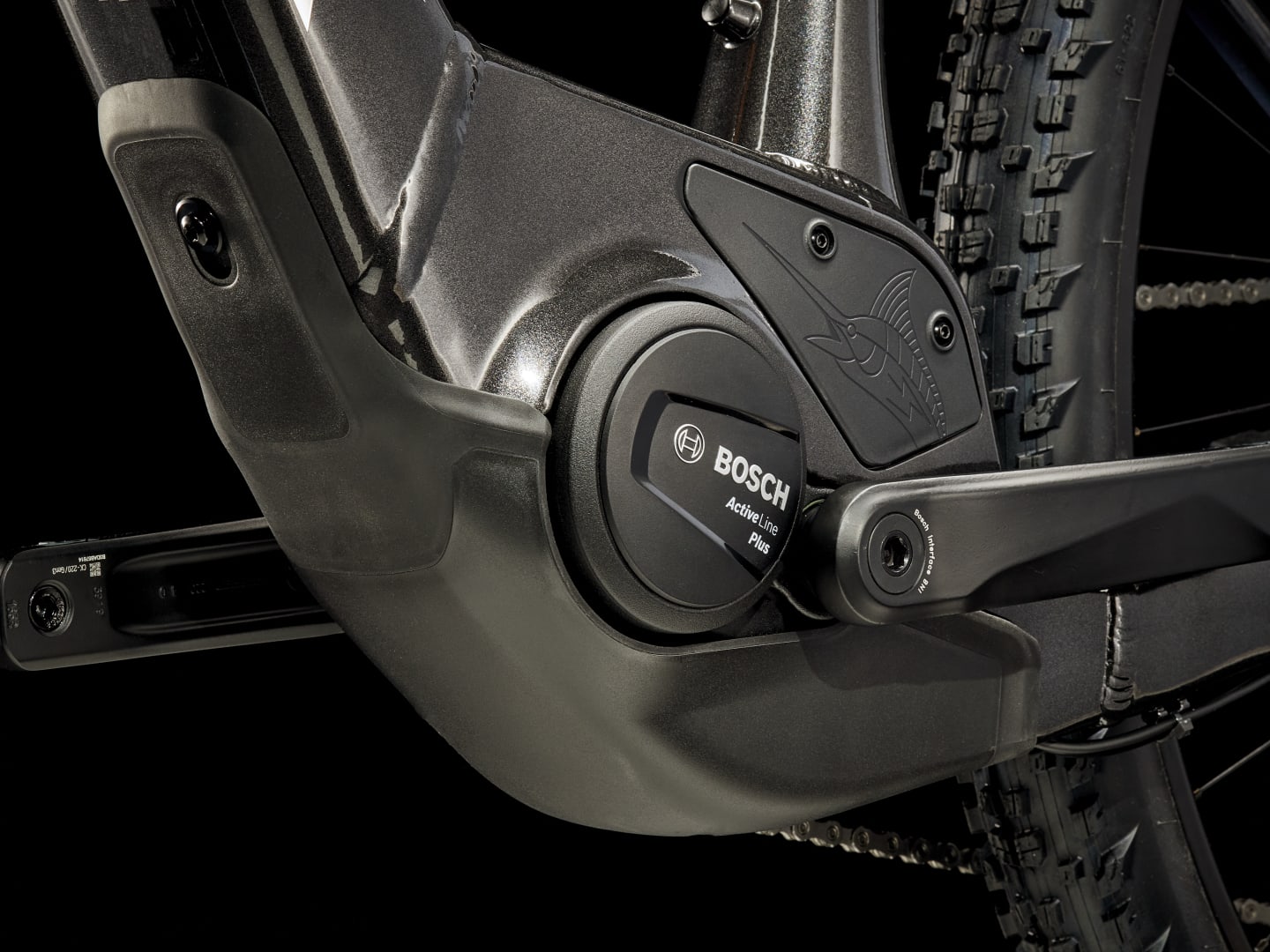

• Motor: Bosch Active Line Plus
• Battery: Bosch CompactTube 400 Wh

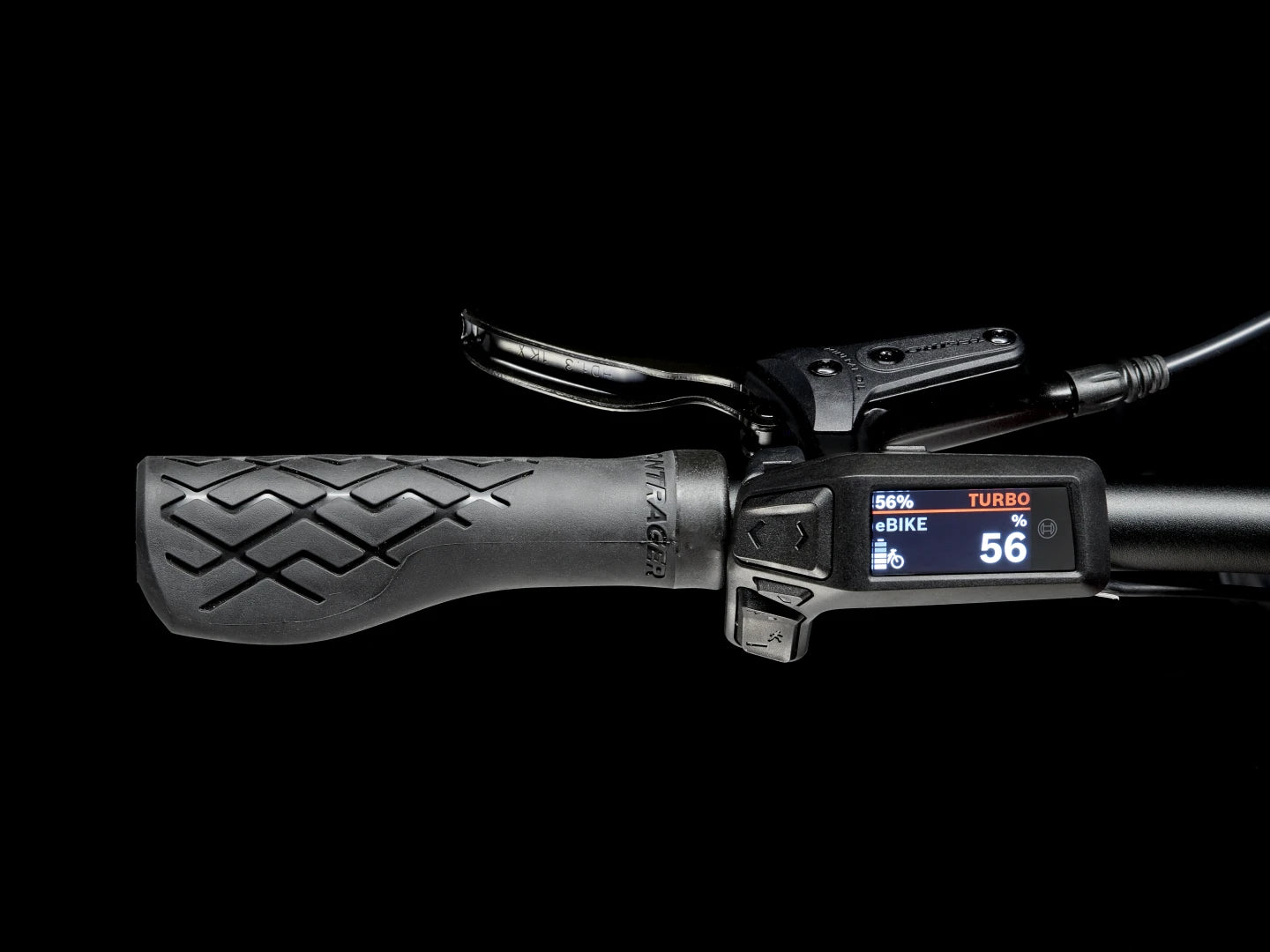

• Controller: Bosch Purion 200

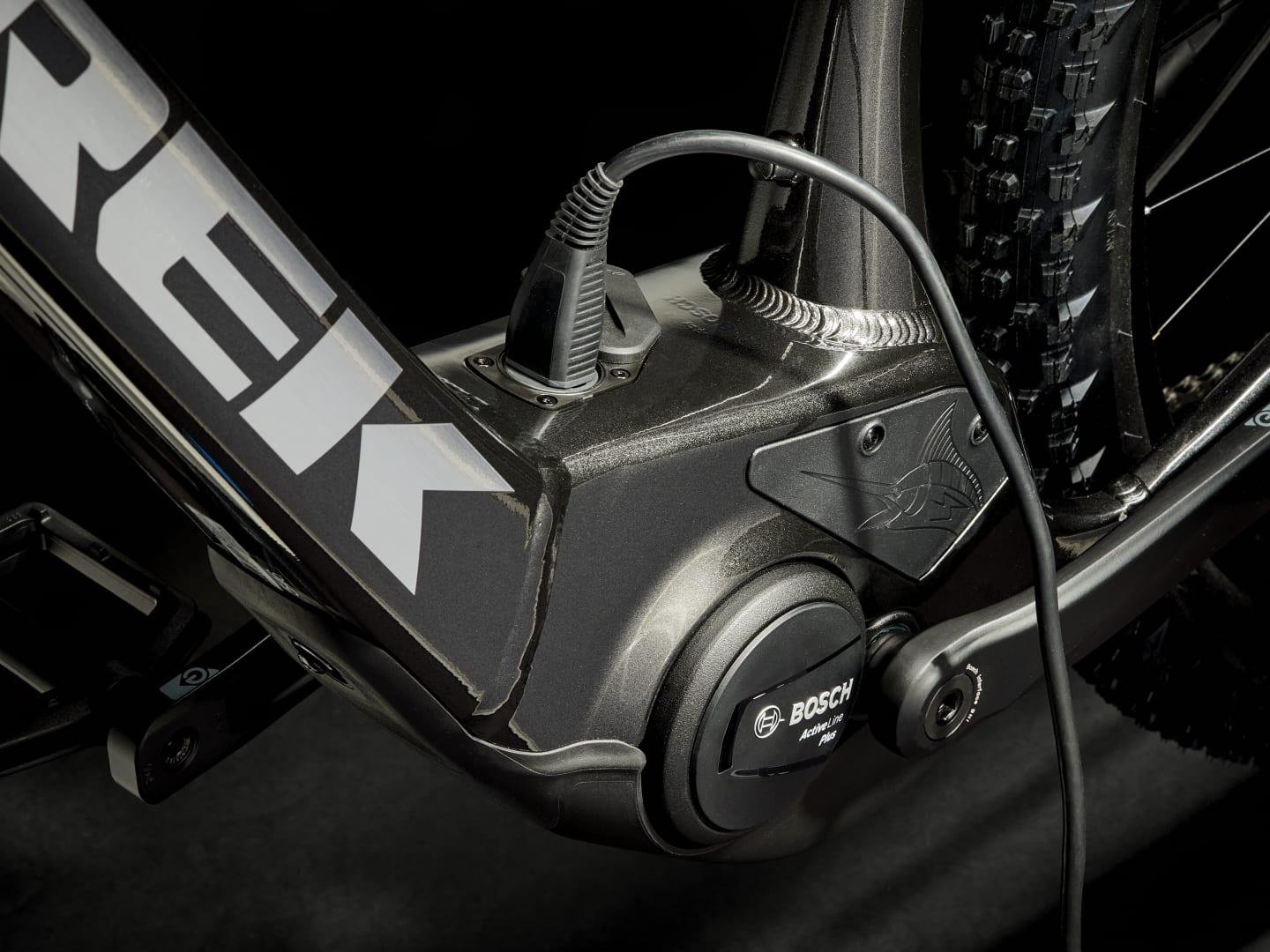

• Charger: Bosch standard 2A, 230V, smart system
• Gear Shifters: Shimano U4000, 9-speed
• Chainset: FSA CK-220, 165 mm length
• Chainrings: 32T
• Rear Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
• Chain: Shimano LG500, 9/10/11-speed
• Front Derailleur: N/A

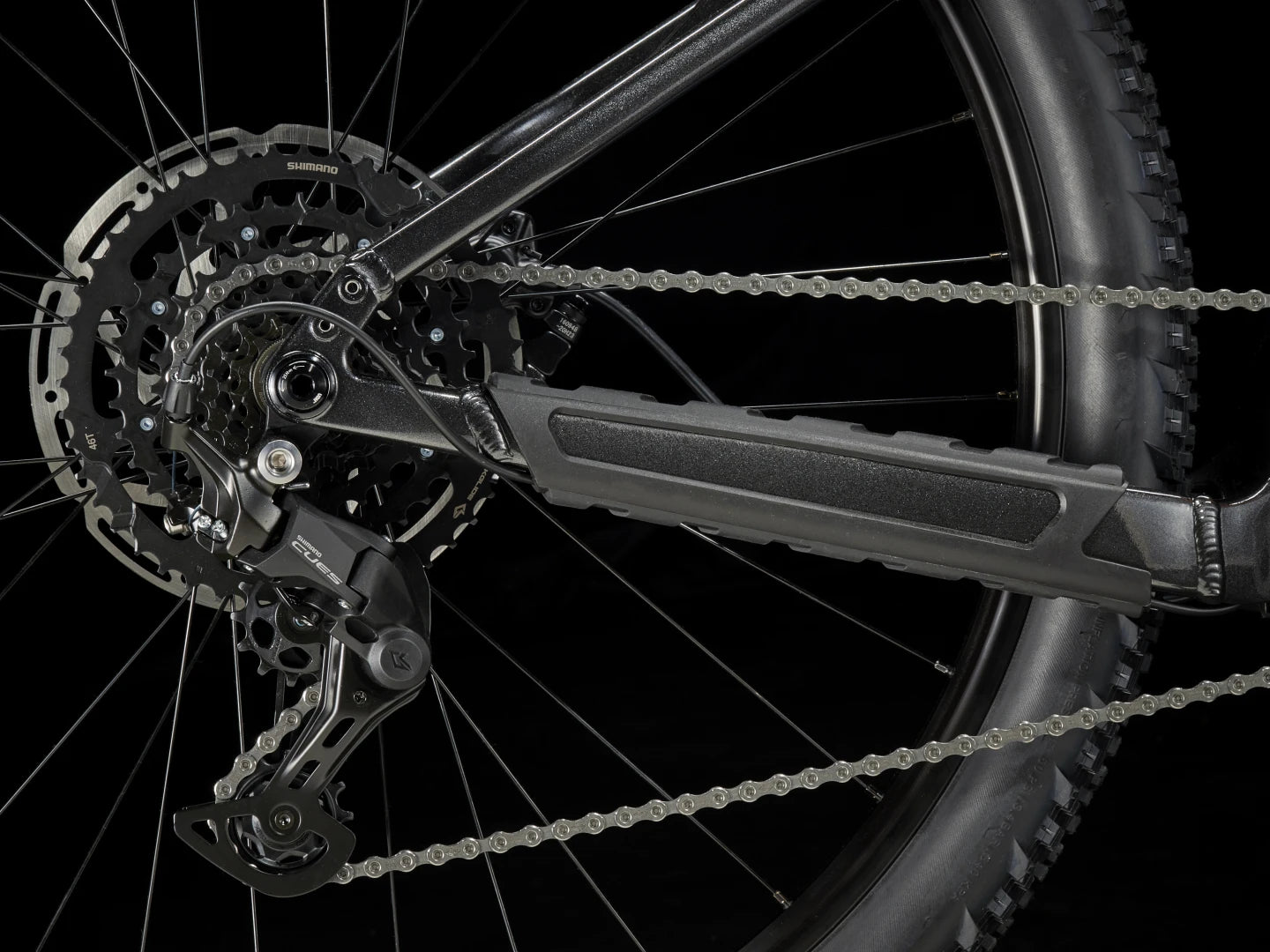

• Rear Derailleur: Shimano CUES U4000
• Pedals: VP-536 nylon platform
• Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
• Front Hub: Bontrager Cl-811 Centerlock Boost hub
• Rear Hub: Bontrager Cl-3248 Centerlock Boost hub, Shimano HG freehub
• Front Tyre: Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" (XS - SM: 27.5x2.4˝)
• Rear Tyre: Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" (XS - SM: 27.5x2.4˝)
• Brakes: Tektro HD-M275 hydraulic disc
• Handlebars: Bontrager alloy, 31.8 mm, 15 mm rise, 720 - 750 mm width
• Grips: Bontrager XR Endurance Comp, lock-on
• Headset: Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
• Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 - 60 mm length

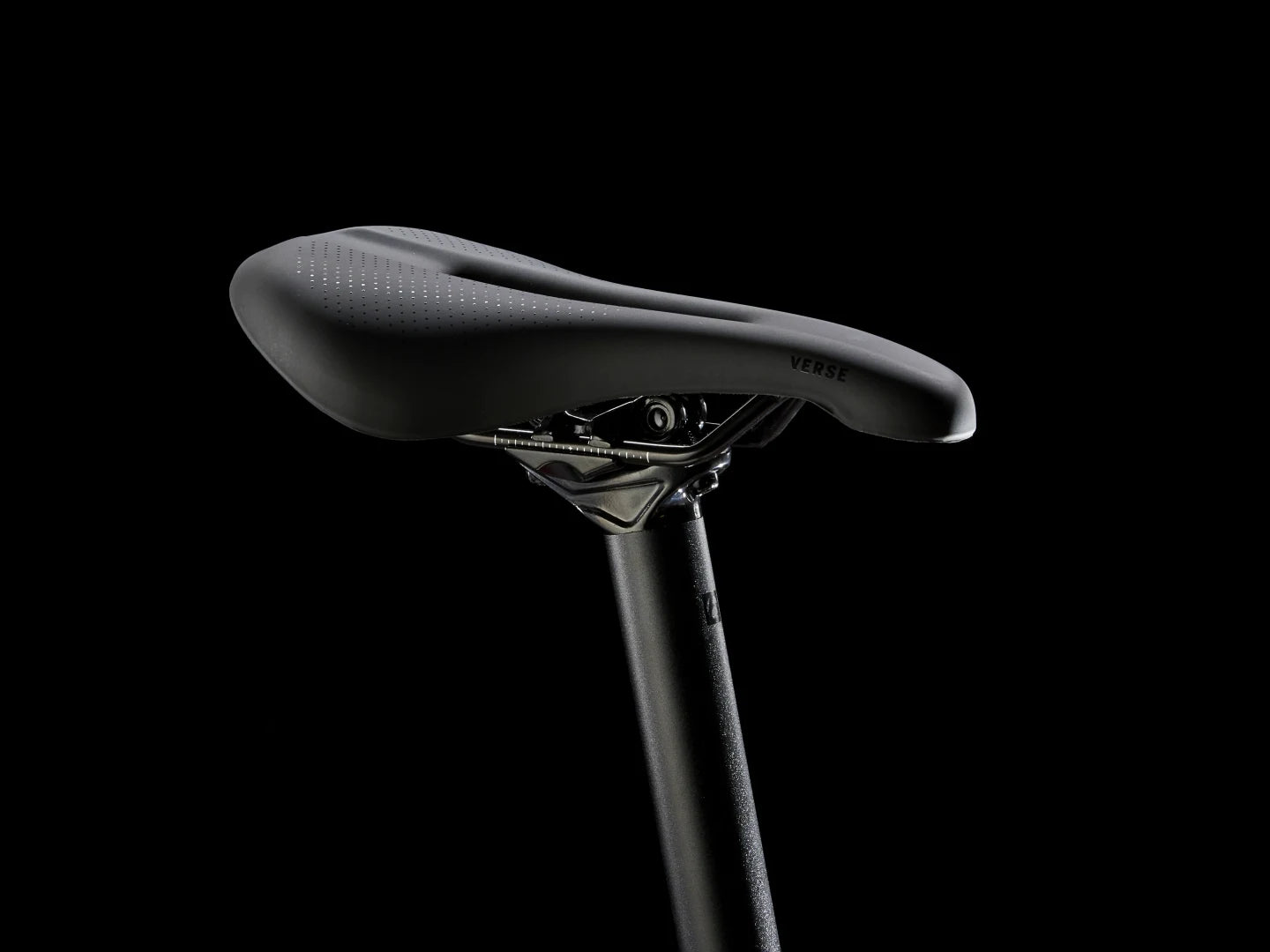

• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, 330 - 400 mm length
• Accessories: Bosch standard 2A Charger, 230V, smart system
• Weight: M- 22.45 kg / 49.5 lbs (with tubes)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
