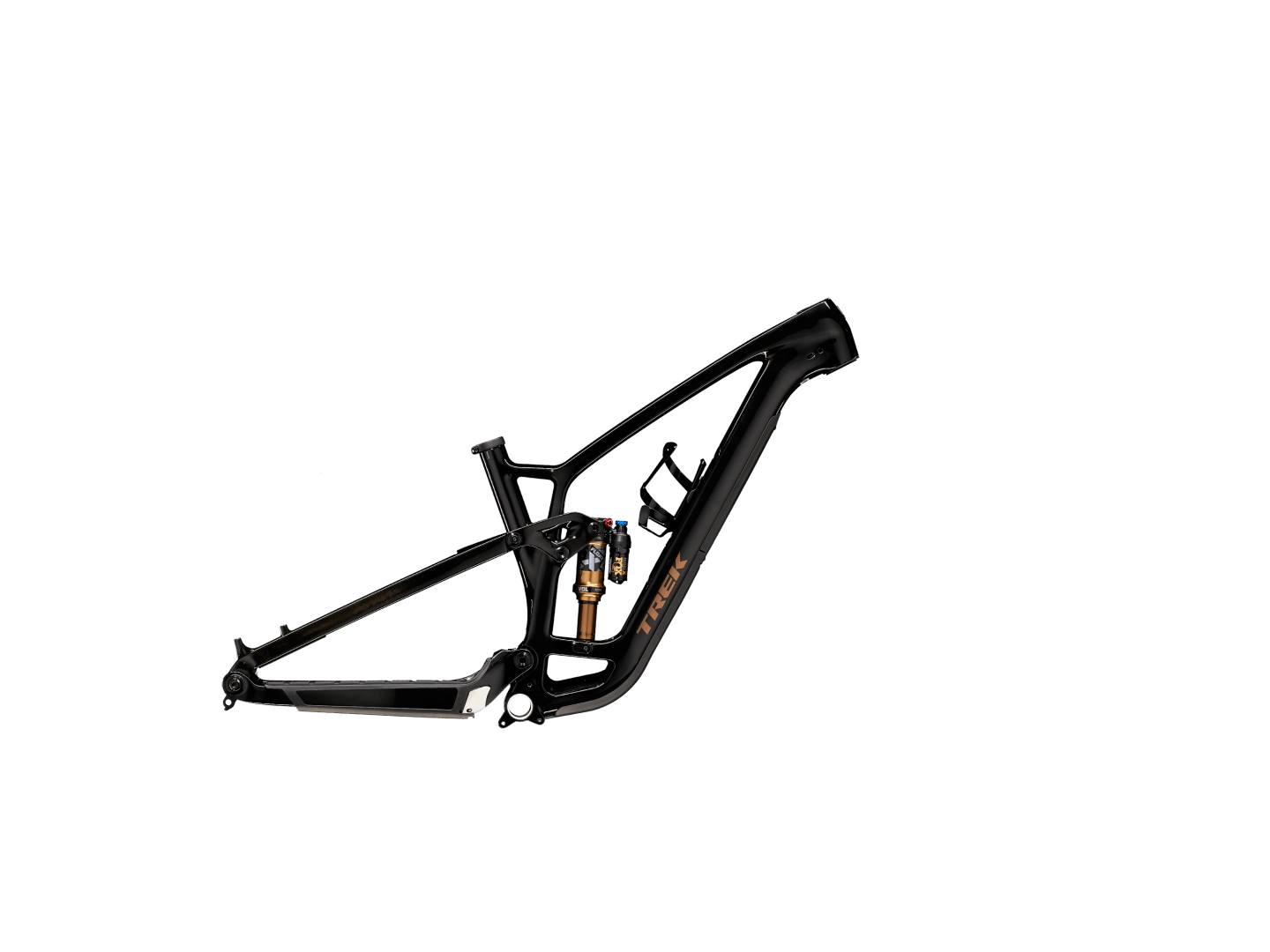

The Fuel EX C Frame Set is a light and ready frame set that's only limit is your imagination.
It's constructed from lightweight, vibration-damping carbon fibre for a ride that's stiff where you want it and compliant where you don't. Its engineered for the trail with progressive geometry that stretches out the front-end for more control on descents, and gets steeper in the rear for better pedalling efficiency.
Features Trek Fuel EX C Gen 6 Frame Set
- The Fuel EX Gen 6 gives you 140/150 mm of travel and slack, adjustable geometry for an extra capable ride, plus, in-frame storage on all models – even alloy
- It features modern geometry that's ready for steep and loose descents, and hammering up climbs
- With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
Full Specification
-
Frame: OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
-
Shock: Fox Performance Float X, 2-position damper, 185 mm x 55 mm
-
Skewer rear: Bontrager Switch thru-axle, removable lever
-
Head set: Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
-
Bag: Bontrager BITS Internal Frame Storage Bag
-
Weight: M- 3.40 kg / 7.5 lbs
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
