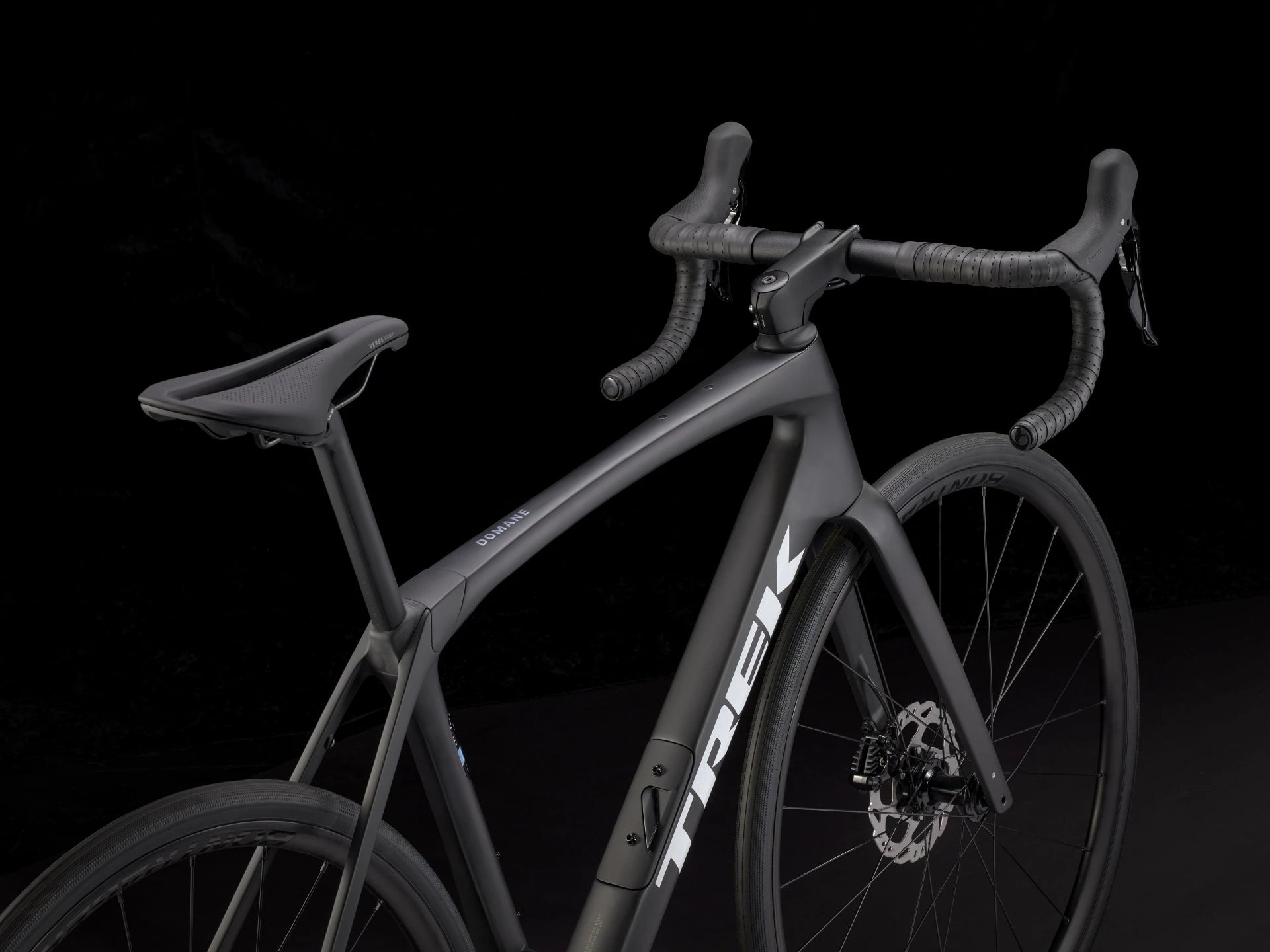

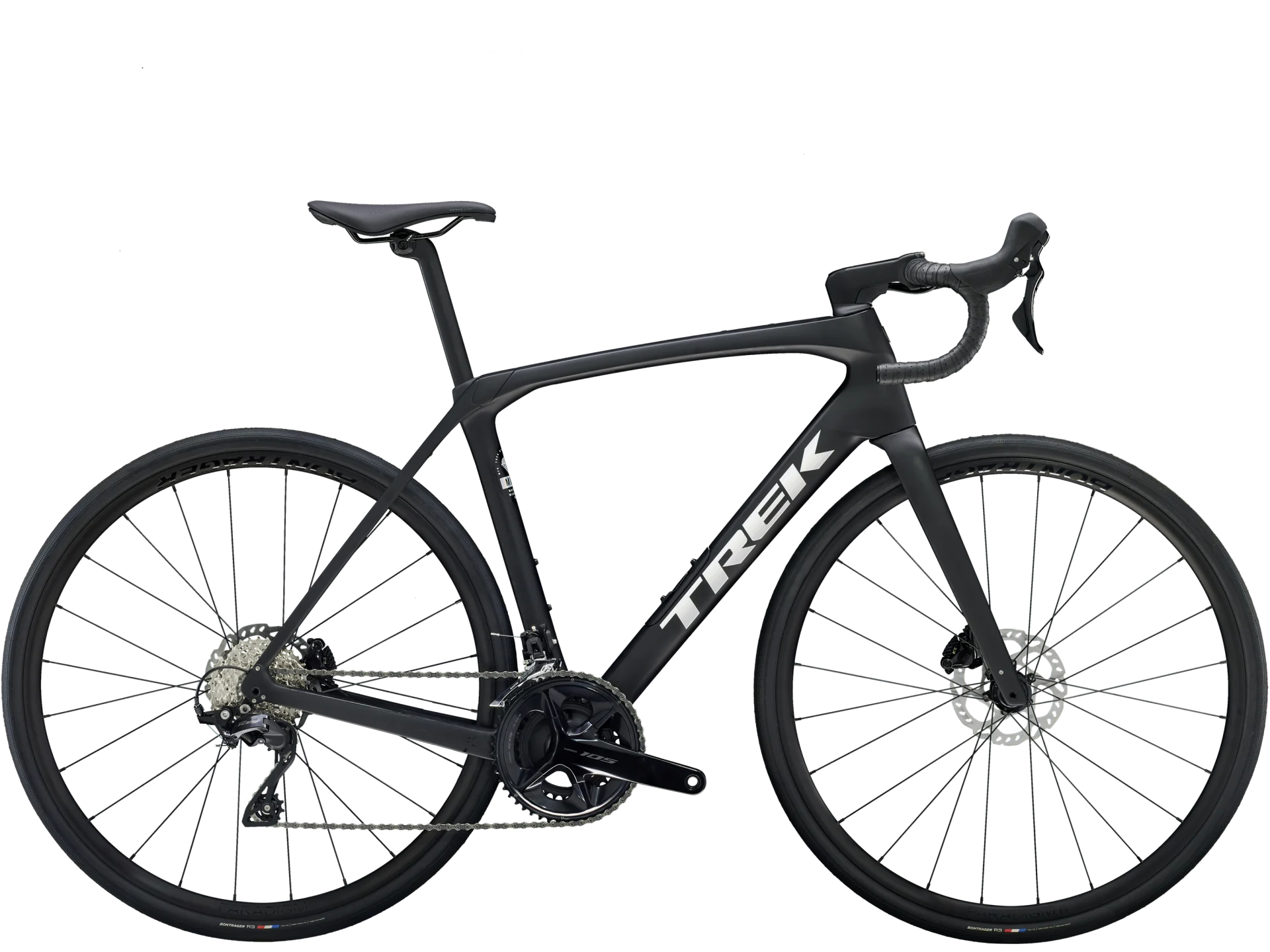

The Domane SL 5 is ready to comfortably take on rough roads and long miles in comfort. The lightweight 500 Series OCLV Carbon frame has rear IsoSpeed to smooth out bumps in the road and reduce fatigue, and an integrated cockpit for a set-up that looks as good as it feels. It features a reliable Shimano 105 drivetrain, and an easy-access internal storage compartment for stowing ride essentials. Plus, lofty 38 mm tyre clearance lets you take on any road from tarmac to light gravel.

Key Features

• 500 Series OCLV Carbon frame: Saves weight and gives you more free speed thanks to updated Kammtail tube shapes
• Proven Componentry: Powerful Shimano hydraulic disc mount brakes and 24-speed 105 drivetrain.
• 38 mm Tyre Clearance: Absorbs fatiguing bumps in the road for a smoother, more comfortable ride.

Full Specification

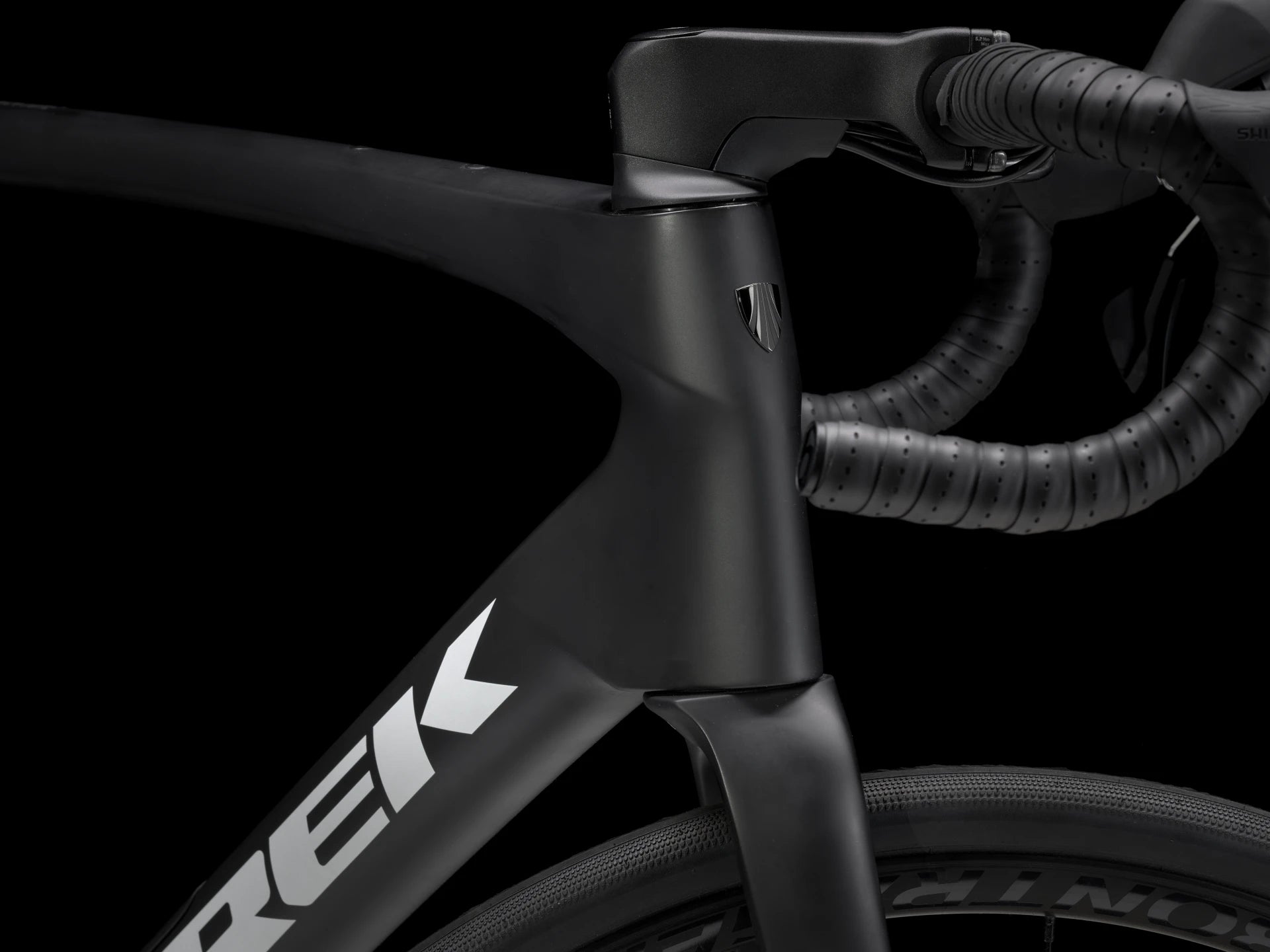

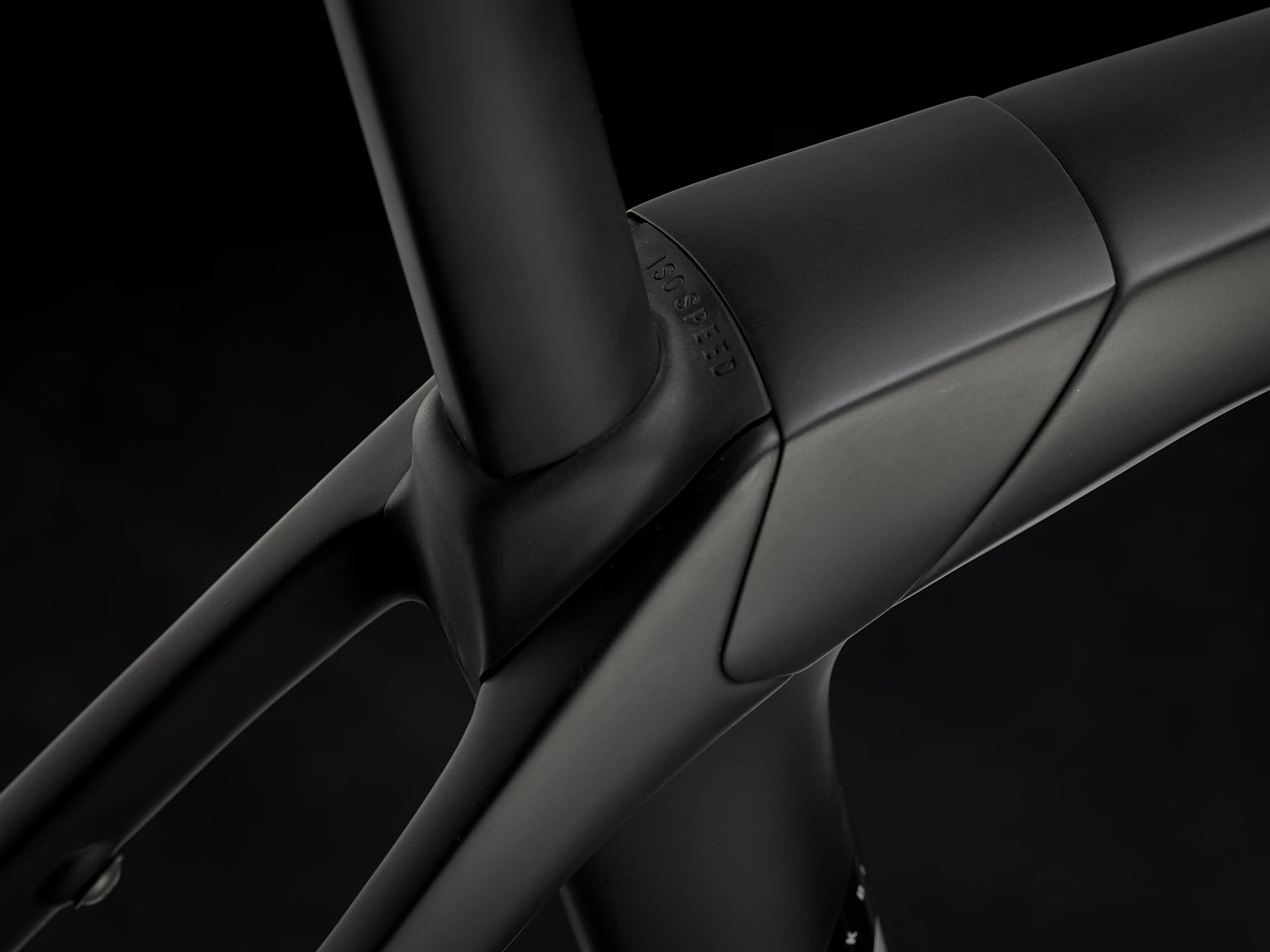

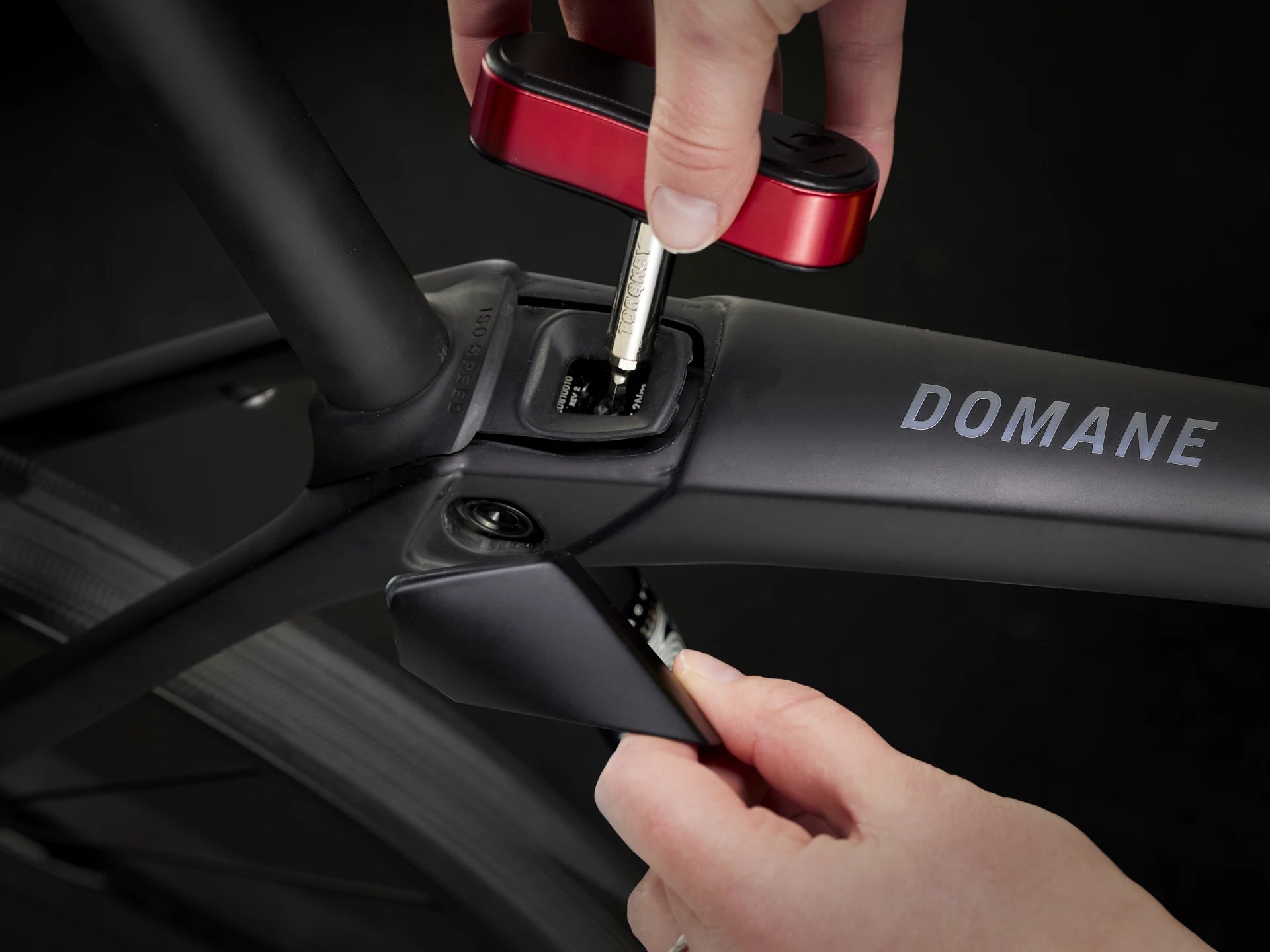

• Frame: 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
• Fork: Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
• Gear Shifters: Shimano 105 R7120, 12-speed

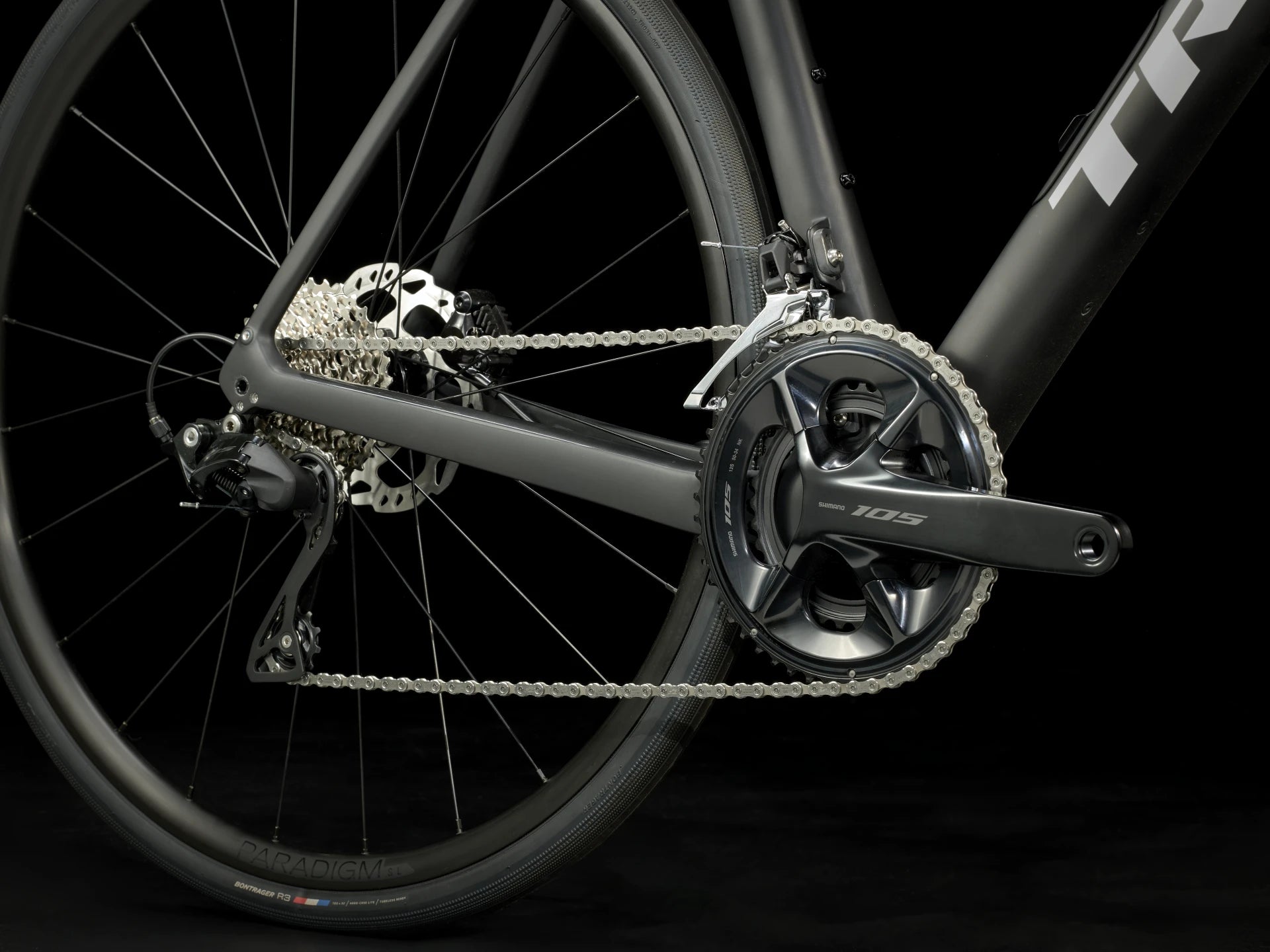

• Chainset: Shimano 105 R7100, 50/34, 165 - 175 mm length
• Rear Cassette: Shimano 105 7101, 11-34, 12-speed
• Chain: Shimano SLX M7100, 12-speed
• Front Derailleur: Shimano 105 R7100, braze-on, down swing
• Rear Derailleur: Shimano 105 R7100, 36T max cog
• Bottom Bracket: Praxis, T47 threaded, internal bearing
• Pedals: Not supplied
• Front Wheel: Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle
• Rear Wheel: Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 mm thru axle
• Tyres: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 mm

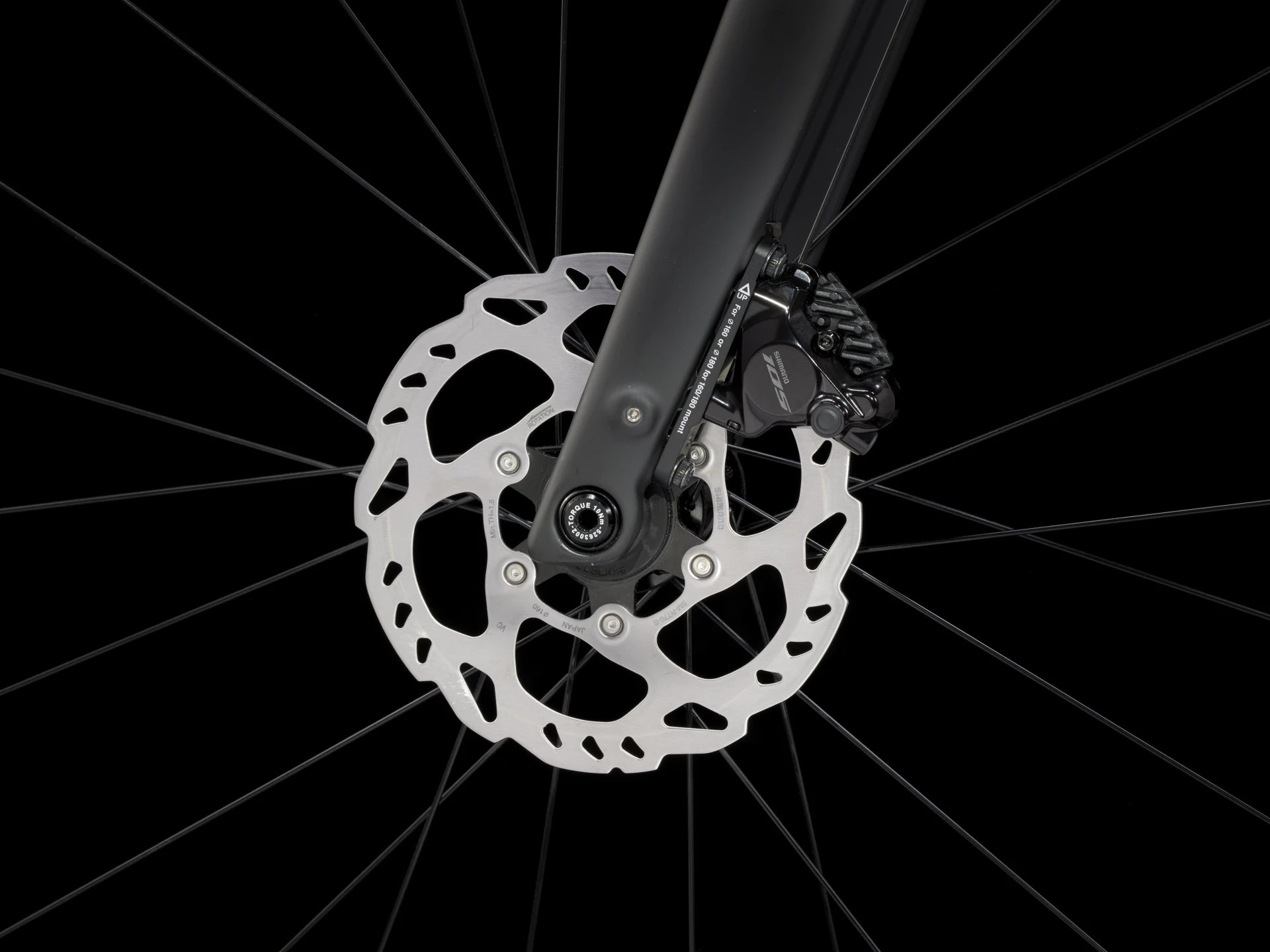

• Brakes: Shimano 105 hydraulic disc

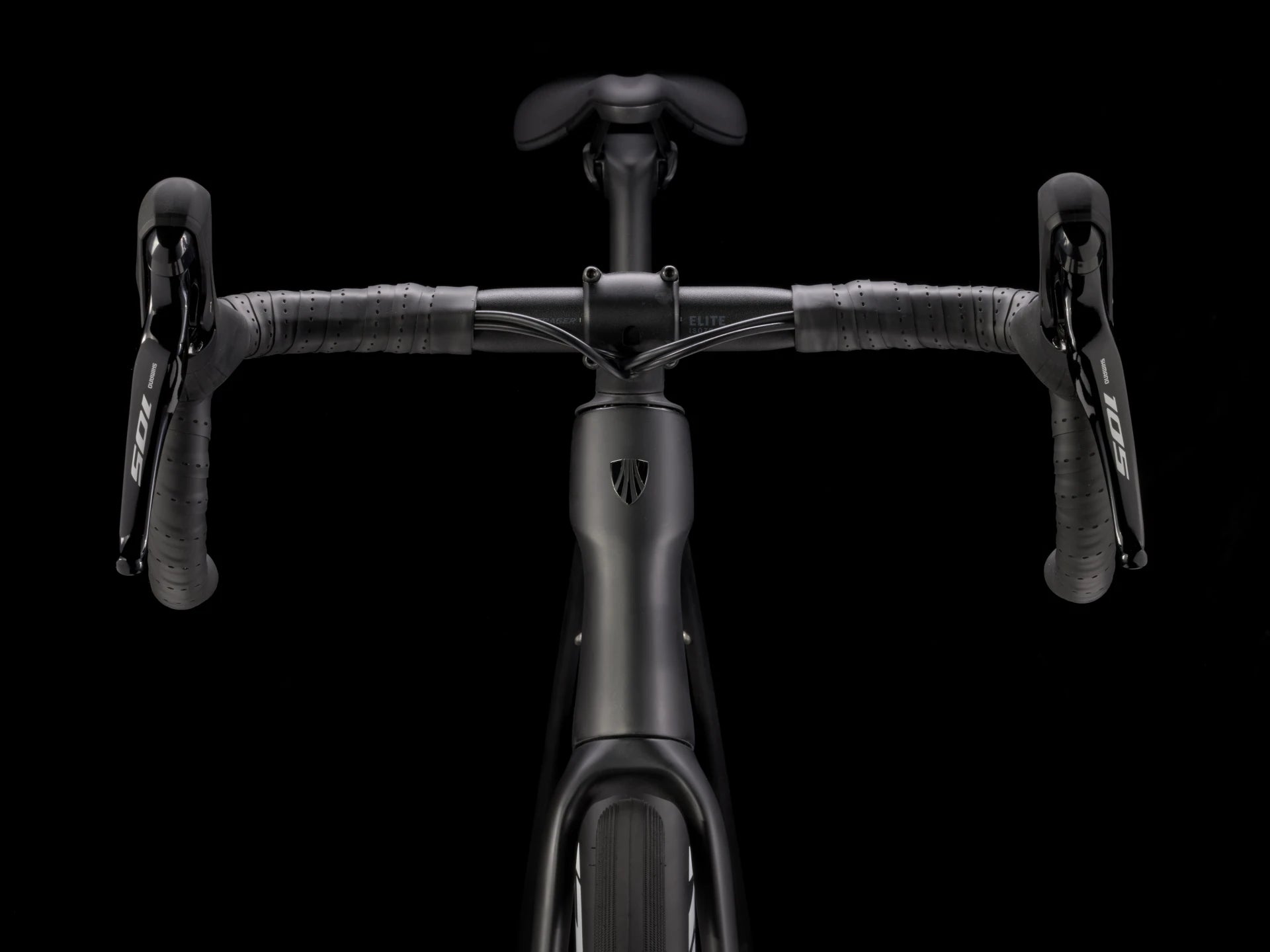

• Handlebars: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop
• Bar Tape: Bontrager Supertack Perf tape
• Headset: Integrated
• Stem: Trek RCS Pro, -7-degree, 60 - 110 mm length
• Saddle: Bontrager Verse Short Comp, steel rails
• Seatpost: Domane carbon seat post, KVF shaping, 20 mm offset, 280-320mm length

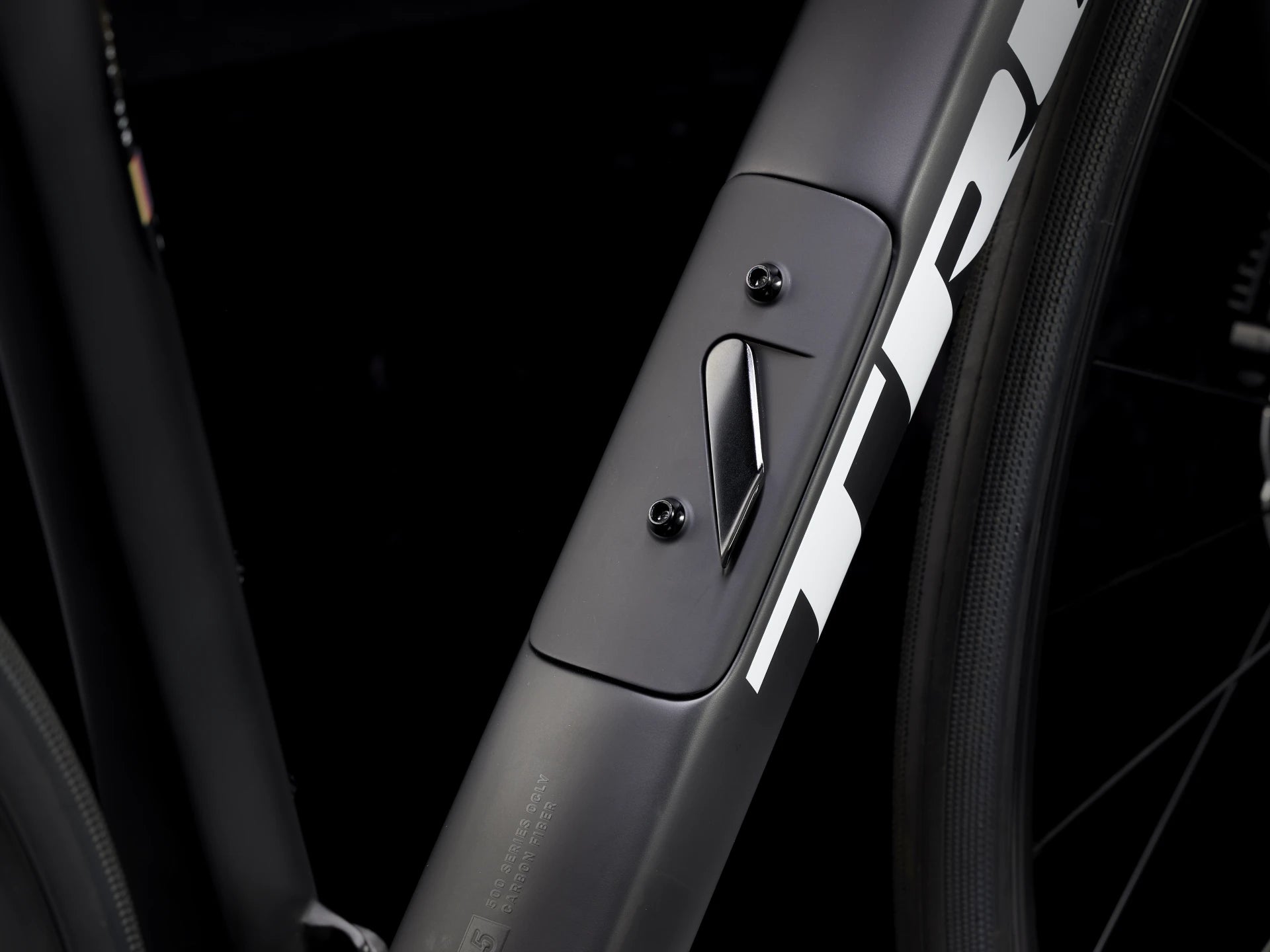

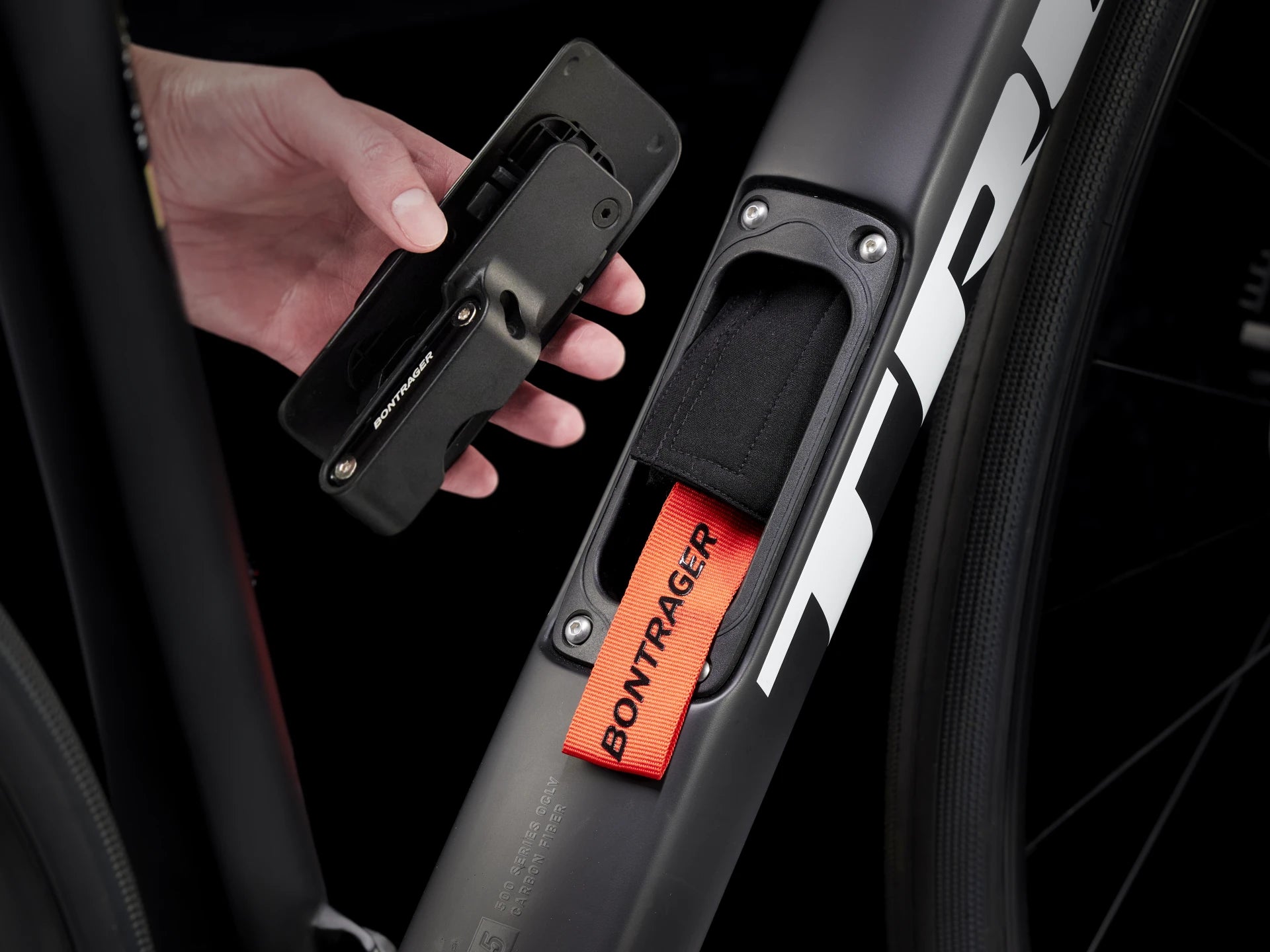

• Accessories: Bontrager BITS Internal Frame Storage Bag
• Weight: 56 - 8.93 kg / 19.69 lbs (with TLR sealant, no tubes)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
