TREK DOMANE+ AL 5 eROAD BIKE 2025 MATTE LITHIUM GREY
Product Details - Trek Domane+ Al 5 Eroad Bike 2025 Matte Lithium Grey
Product Details - Trek Domane+ Al 5 Eroad Bike 2025 Matte Lithium Grey
eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated in two boxes.
Minimum personal assembly is required.

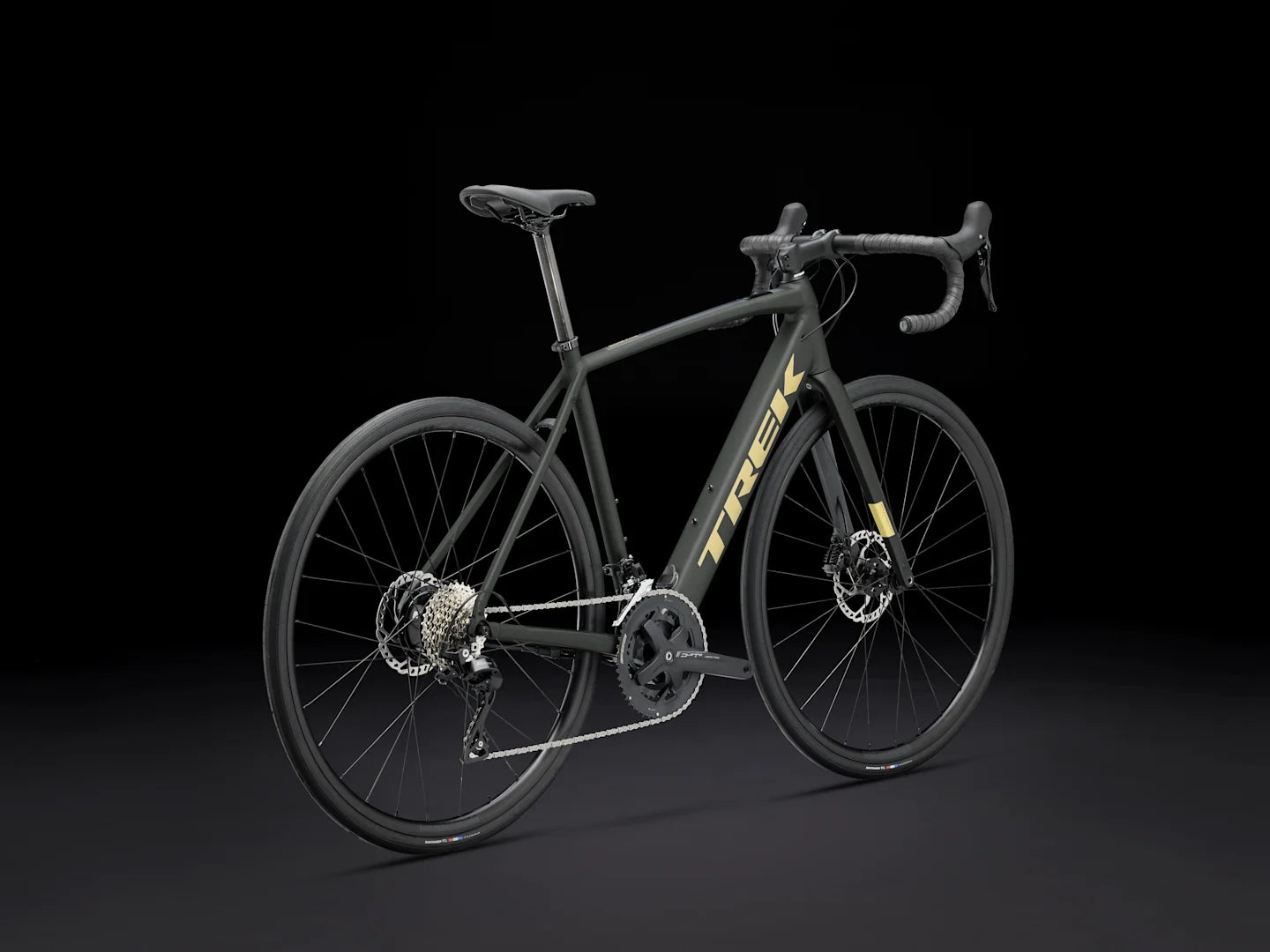

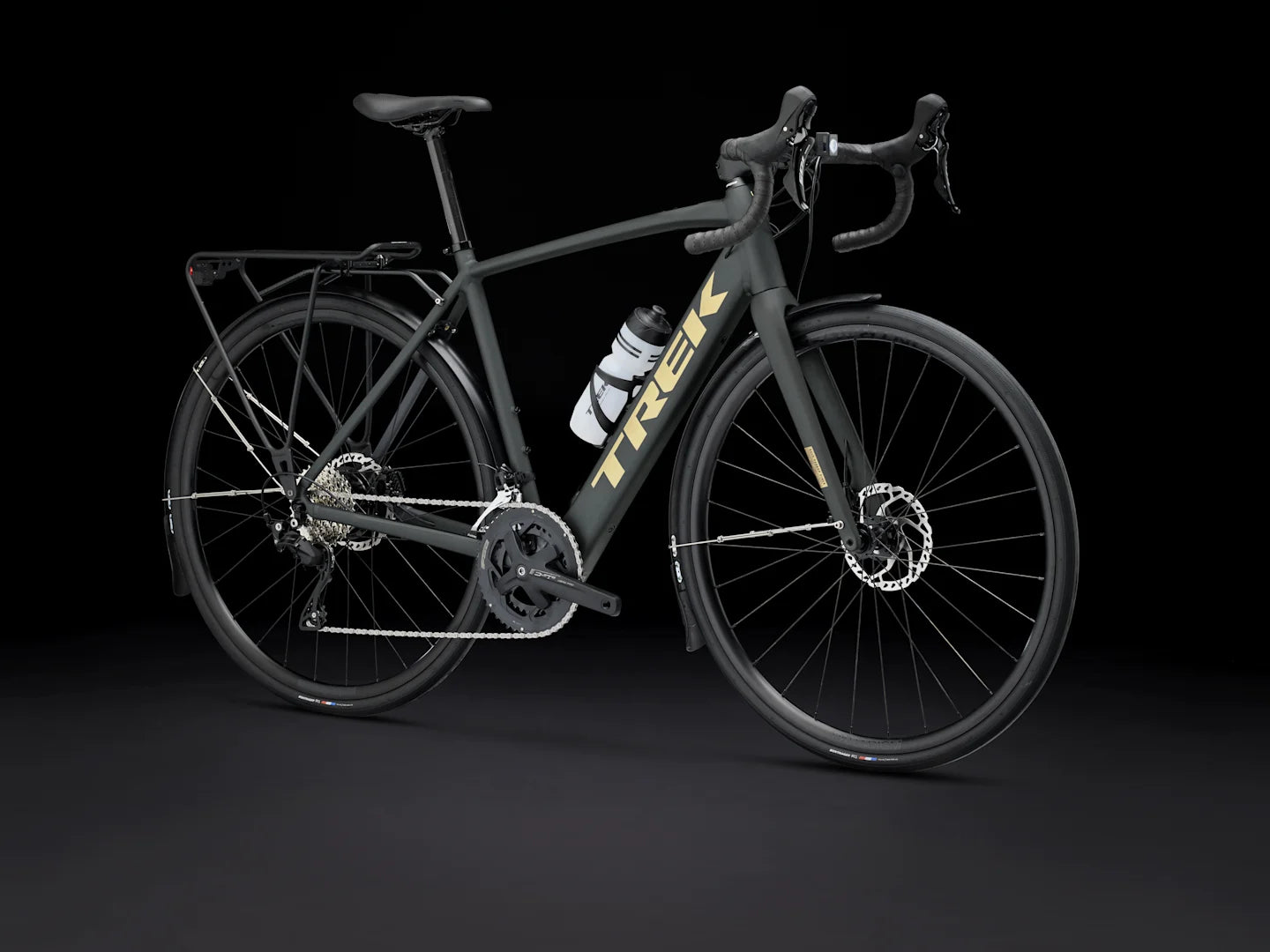

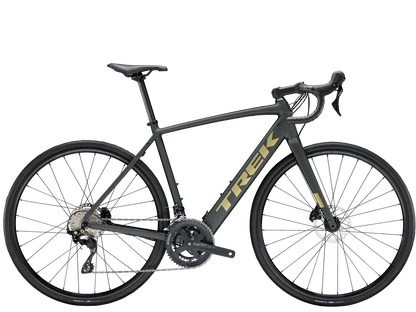

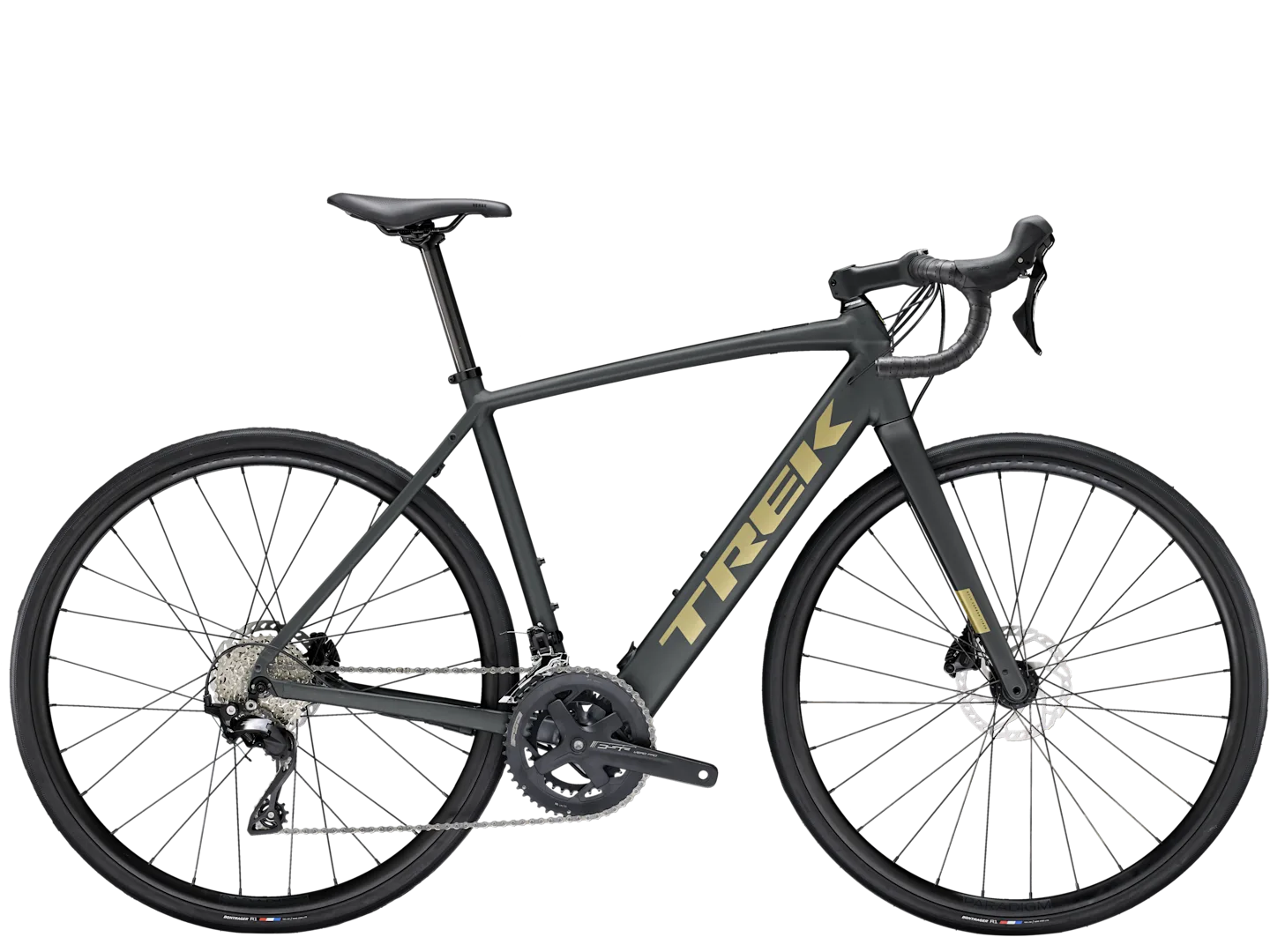

The Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain or push yourself harder on training rides.
Key Features Trek Domane+ AL 5 eRoad Bike 2025
- Range extender compatible: You can add on a Range Extender that fits neatly in the bottle cage
- Fast and efficient HyDrive Motor: Assists up to 32km/h, this pedal assist system has a hub motor for a more natural ride feel.
-

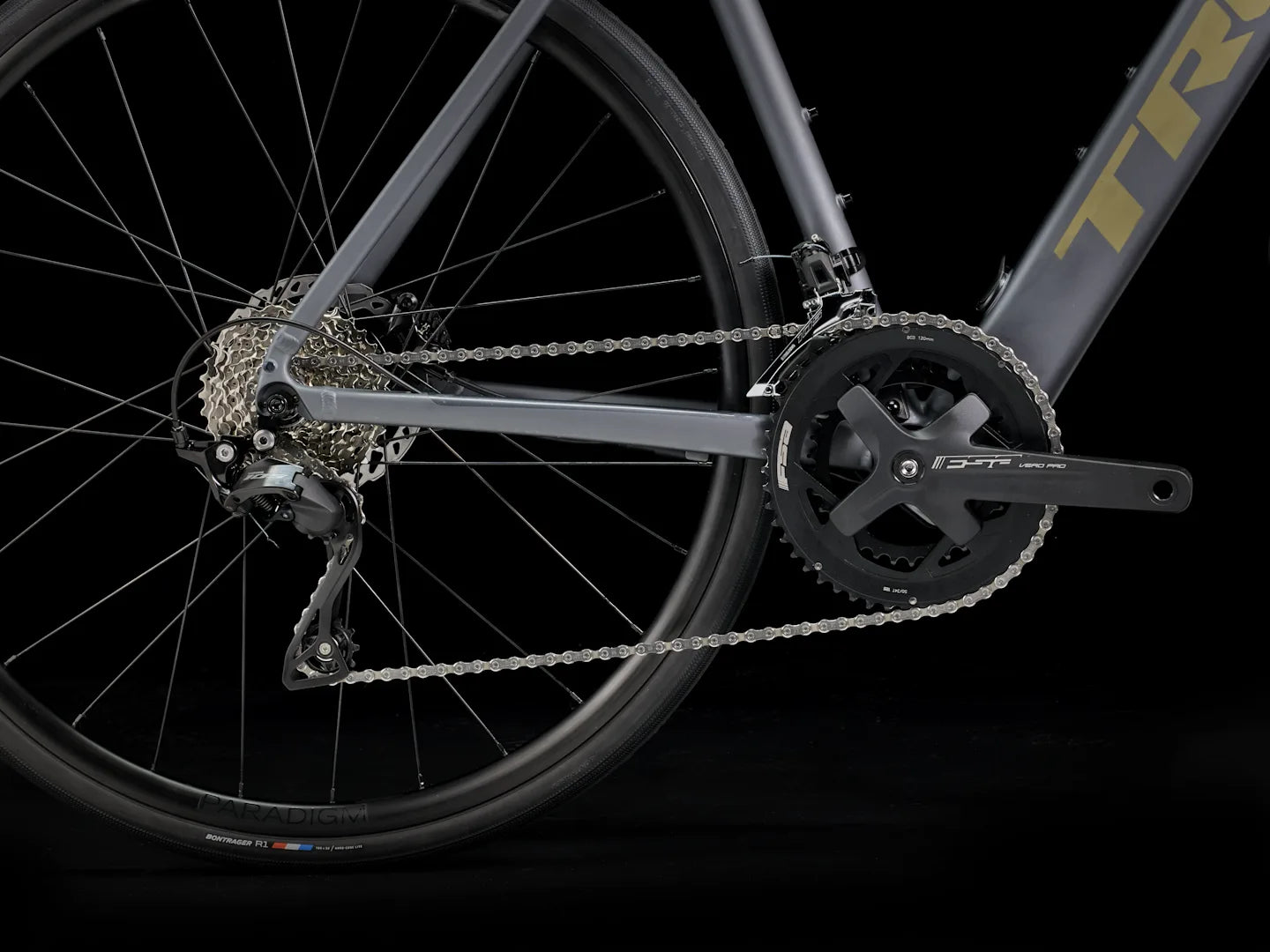

Shimano 105 drivetrain: Delivers exceptional shifting, with a wide range of gears suitable for all terrain.
Full Specification
- Frame: 100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts
- Fork: Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
- Motor: HyDrive hub drive motor, 40 Nm, 250 W
- Battery: 250 Wh, integrated in down tube
- Controller: Top-mounted buttons with top tube integrated display
- Shifters: Shimano 105 R7120, 12-speed
- Crankset: FSA Vero Pro, 50/34,165-175 mm
- Cassette: Shimano 105 7101, 11-34, 12-speed
- Chain: Shimano SLX M7100, 12-speed
- Front Derailleur: Shimano 105 R7100, 31.8 mm clamp, down swing
- Rear Derailleur: Shimano 105 R7100, 36T max cog
- Bottom Bracket: Torque sensor, threaded, 110 mm spindle
- Rims: Bontrager
- Front Hub: .

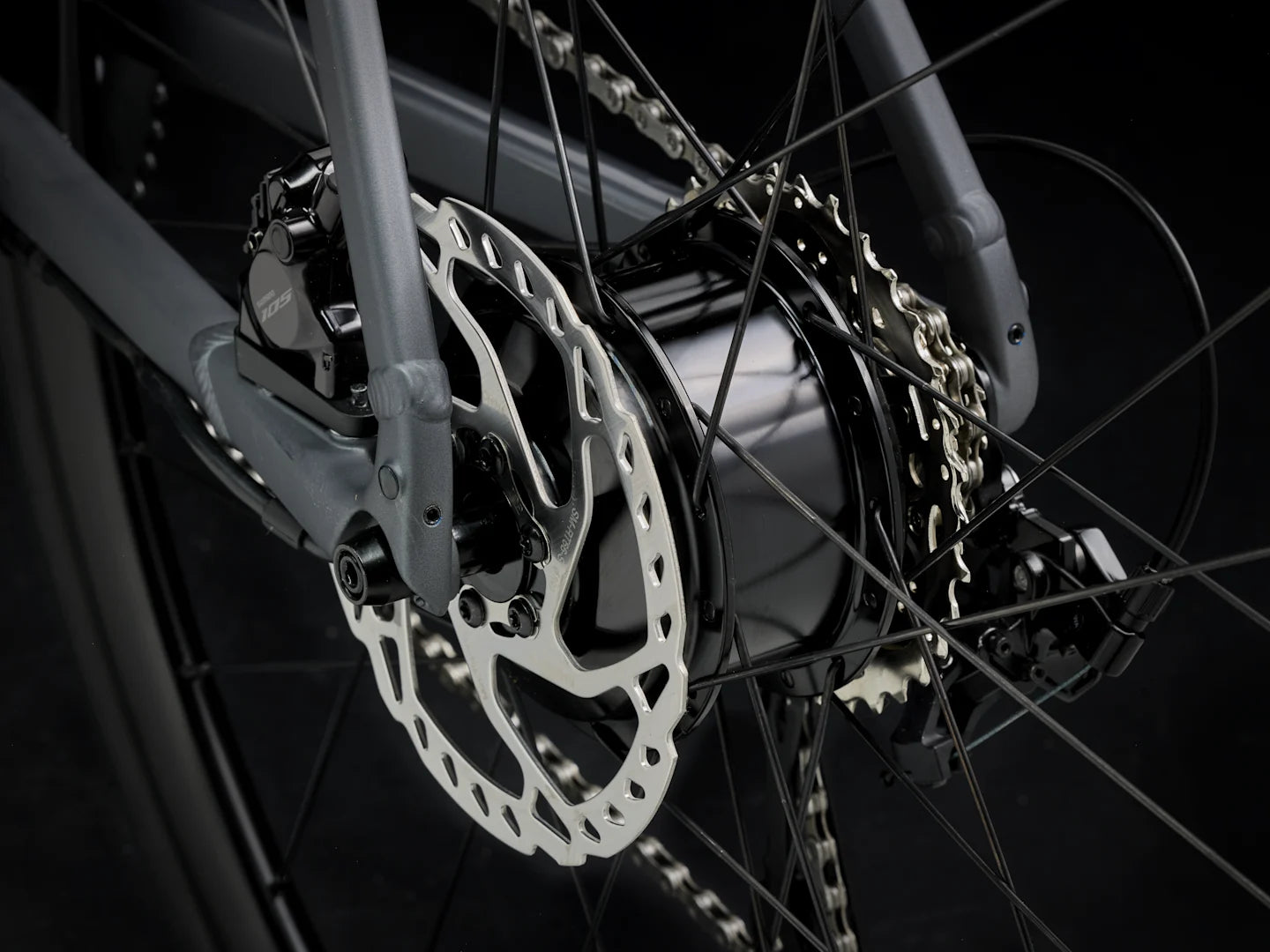

- Rear Hub: HyDrive hub drive motor, 40 Nm, 250 W
- Tyres: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
- Brakes: Shimano RT66, 6-bolt, 160 mm

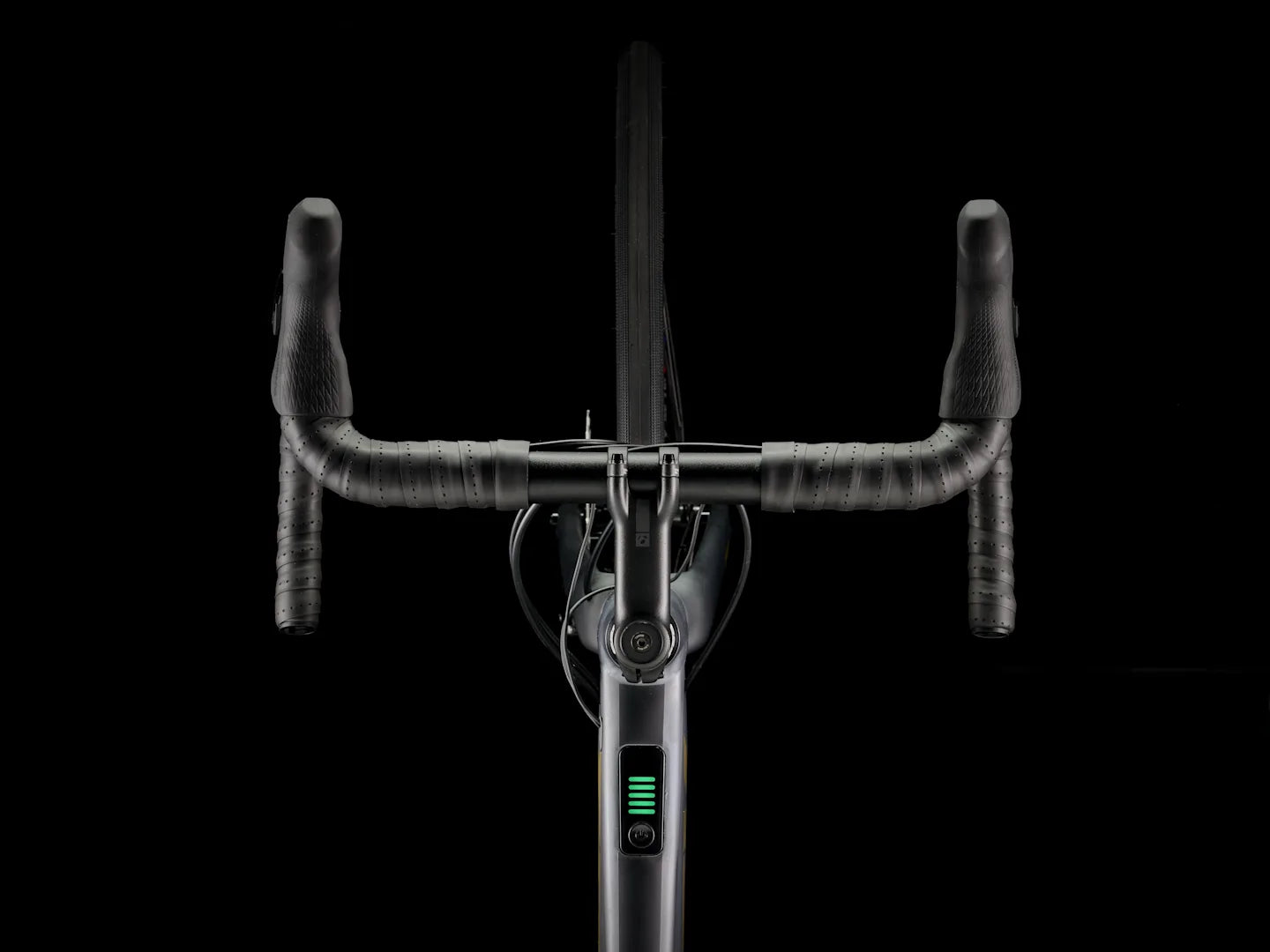

- Handlebars: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38-44 cm width
- Bar Tape: Bontrager Supertack Perf tape
- Stem: Bontrager
- Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
- Saddle: Bontrager Short Comp, steel rails, 155-145 mm width
- Accessories: 2A, 42V output, 100V–240V AC input charger,
-
Weight: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Size Guide
Size Guide

How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
