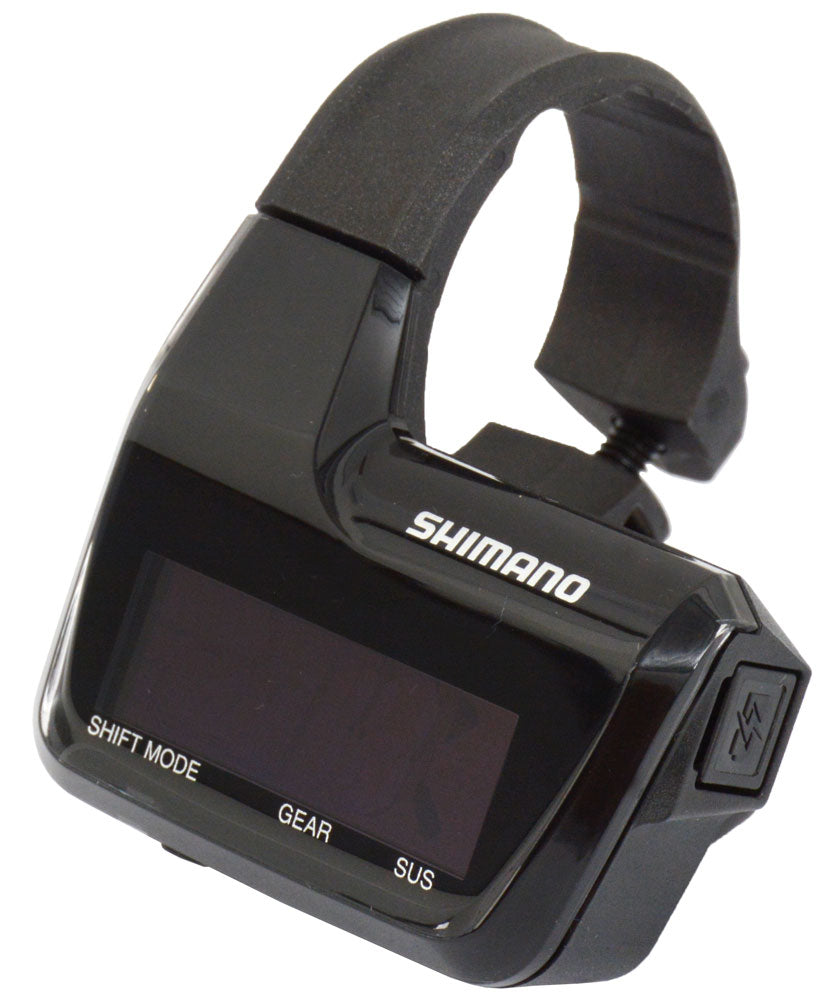

Transmitter and receiver unit for wireless adjustment of multi-shift and synchro-shift function via smartphone and tablet. However, the outstanding technological innovation of the Shimano XT Di2 SC-MT800 is undoubtedly the wireless capability in terms of Bluetooth connection to computers and smart devices with SHIMANO's E-Tube software, the platform through which Di2 systems can be programmed and adjusted individually.
Features
- Identify system status of: battery level, gear position, shift mode and FOX iRD suspension position; all at a glance
- Shimano Synchronized Shift mode switch with three modes available (S1/S2/Manual) and audible shift notification
- Precise derailleur adjustment with easy access adjustment mode and numerical adjustment indicator
- Wireless communication (ANT private/Bluetooth low energy) allows for easy to set up, customization and data utilization in the field with a smart phone, tablet and other mobile electronics
- Battery charging port (compatible with Di2 charger SM-BCR2)
- 3 E-Tube ports
-
Smart phone: Bluetooth® wireless connectivity through E-Tube Wireless App; Functions: Drivetrain customization, firmware update
-
Tablet: Bluetooth® wireless connectivity through E-Tube Project Wireless App; Function: Drivetrain customization, firmware update, error check, pre-set
Specification
-
Use: MTB
-
Group: Deore XT Di2 M8050
-
Model: SC-MT800-A
-
E-tube port (QTY): 3
-
Battery charging port: 1
-
Master unit: No
-
Mount: Clamp 31.8mm or 35mm
-

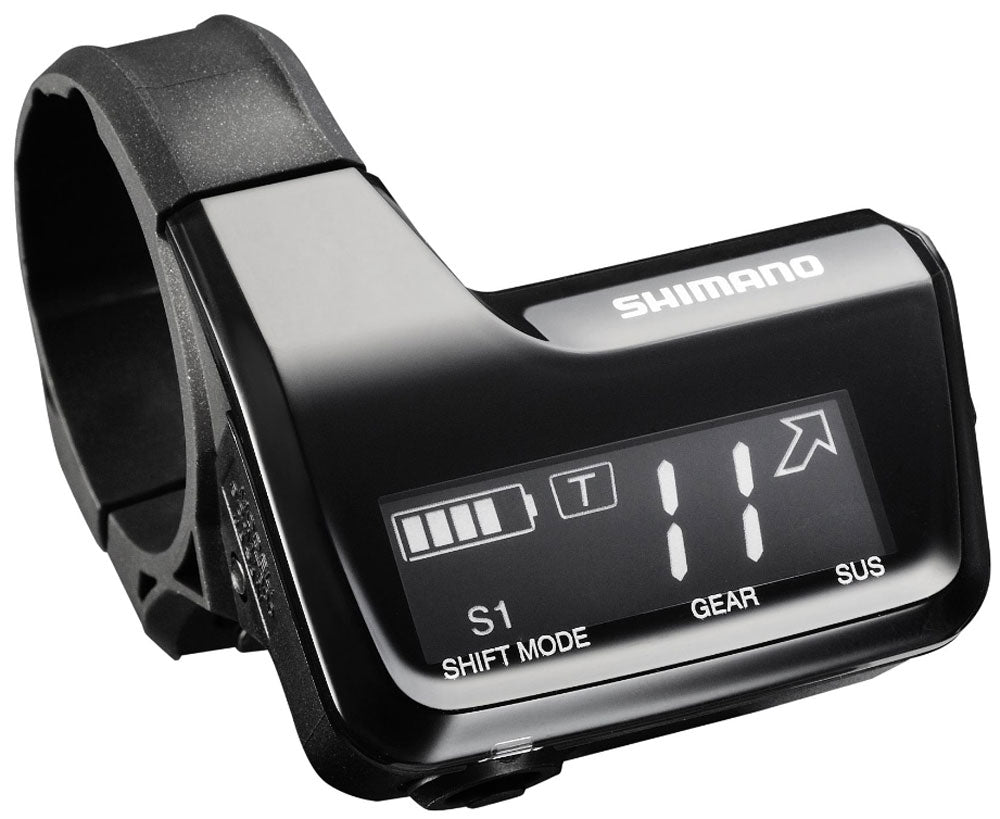

Display function: Gear indicator (rear 11, front 1/2/3), Shifting mode (Manual/Synchronized), Suspension mode, Shifting adjust mode, Battery charge level
-
Setting function: Shifting adjust, Shifting adjust indicator, System diagnosis, Charging port for built-in battery, Compatible charger, Synchronized shifting mode change
-
Compatible charger: SM-BCR2
-
Bluetooth LE (Low Energy): compatible
Weight
Contents
- Shimano Di2 XT System Information Display SC-MT800

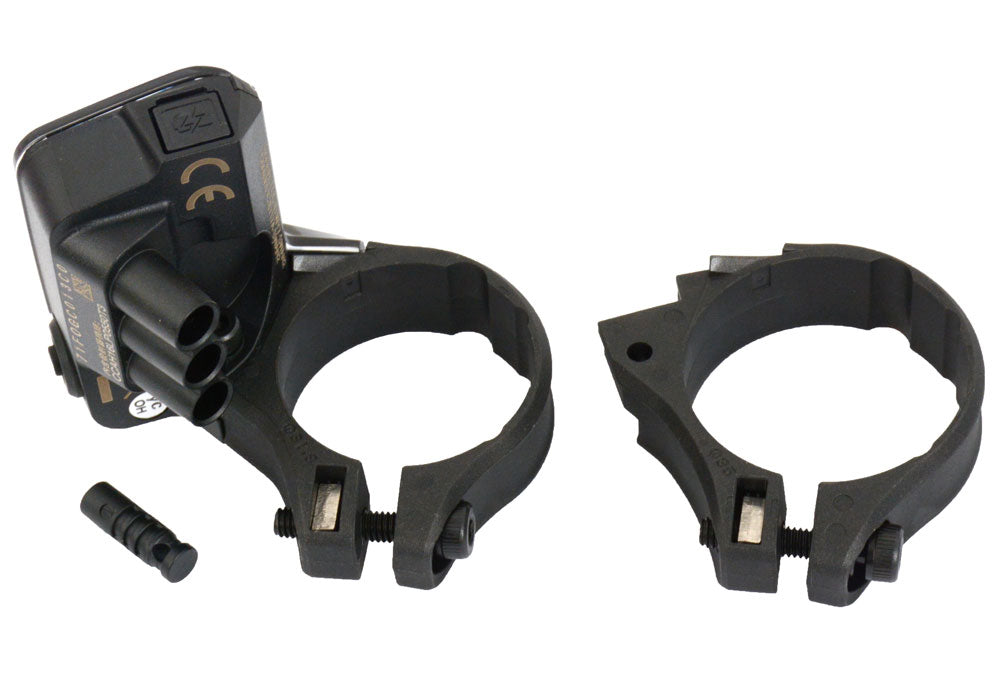

- Clamp adapter (31.8/35mm)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
