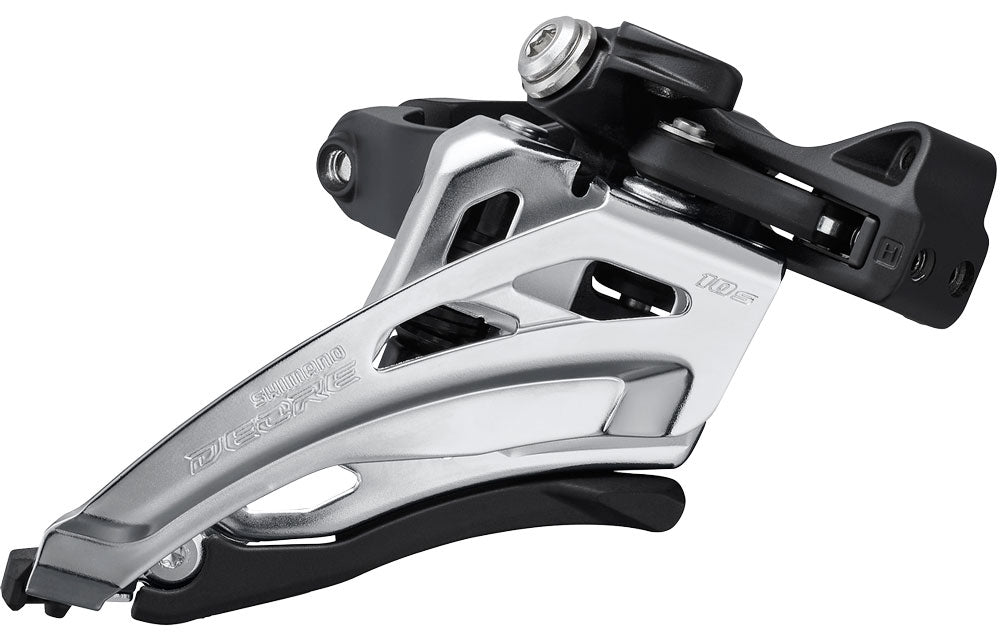

The elegant DEORE FD-M4100 10-speed front derailleur from Shimano is available as Direct-Mount (FD-M4100-D), E-Type (FD-M4100-E) version and for the middle clamp position (FD-M4100-M). Shift performance is improved by side swing technology, which provides 15 mm more space between seat tube and tyre.
Moulded from the same DNA as XTR, DEORE XT and SLX, the DEORE delivers quality and performance to all those who discover the mountain bike passion for themselves, which at this level only SHIMANO can guarantee.
Features
- Smooth shifting by Side-Swing mechanism
- Increased tire clearance of 15mm allows for shorter chainstays
- Greater tire clearance - Compatible with 2.3-inch tire on wider rims
- Mounting options: Direct-Mount, E-Type, Clamp (choose variant)
- Adapt 48.8mm, 51.8mm chainline
- For DEORE FC-M4100-2 10-speed Crank 36/26
Specification
- Use: MTB
- Group: DEORE M4100
- Model: FD-M4100
- Cable route type: Front Pull
- Gear front: 2-speed
- Gear rear: 10-speed
- Top gear teeth: 36T
- Total capacity: 10T
- Compatible Chain: HG-X 10-speed
- Chain stay angle: 64-69°
- Chain line: 48.8mm (142mm) / 51.8mm (148mm Boost)
Mounting
- Direct-Mount FD-M4100-D
- E-Type FD-M4100-E (without plate)
-
Clamp FD-M4100-M (Clamp 34.9mm with Adapter 28.6mm, 31.8mm)
Material
- Aluminium
- Stainless steel
- Steel
Contents
- 1 x Shimano DEORE FD-M4100 10-speed Front Derailleur Side-Swing
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
