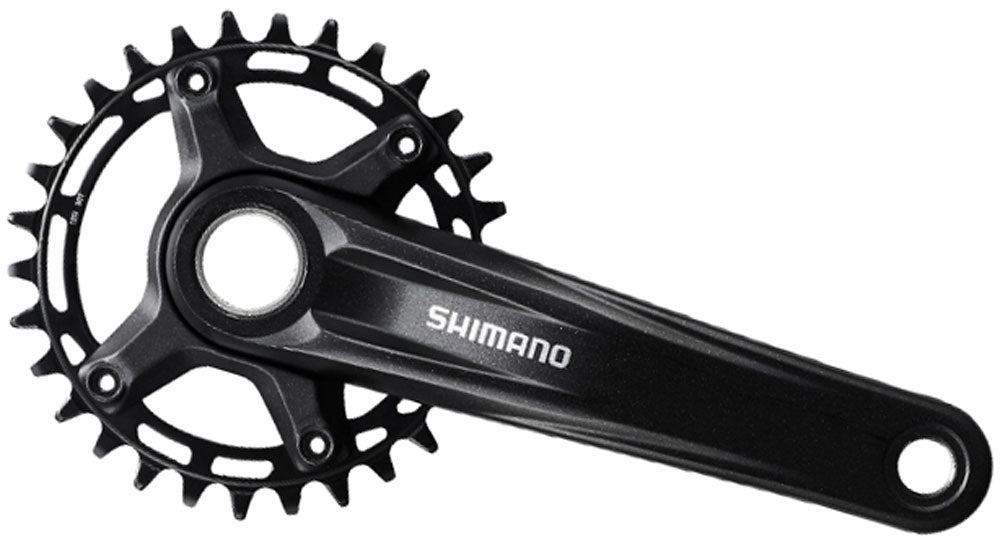

The Shimano FC-M510-1 1 x 12-speed crank with 177 mm Q-factor, 52 mm chainline and 135 / 142 / 148 mm O.L.D stands for highest drive efficiency. It offers optimum power transmission and maximum speed for the new system, which only use 1 chainring.
The group-free crankset at DEORE level comes in single-only (1x12) configuration for drivetrain simplicity. It features the same Dynamic Chain Engagement+ technology as XTR, DEORE XT and SLX cranksets, which with its narrow/wide tooth profile is key to the improved chain retention, smoothness and quietness of the drivetrain.
Features
-
FC-MT510-1 Q-Factor 177mm
-
Chain line 52mm
-
O.L.D 135mm / 142mm / 148mm
-
Compatibility 1x12-speed with cassette 10-51
Specification
-
Use: MTB
-
Model: FC-MT510-1
-
Gradation: 30T
-
Q-Factor: 177mm
-
Threaded BB shell width: 68 / 73mm
-
Gear rear: 12-speed
-
Construction: 2-Piece
-
Compatible Chain: HG+ 12-speed
-
Crank arms: 4 arm
-
Bolt Circle Diameter: 96mm
-
O.L.D: 135mm / 142mm / 148mm
-
Chain line: 52mm
Crank Arm Length
Material
-
Crank arm: Aluminium
-
Crank axle: Steel
-
Chainring: Steel
Contents
- 1 x Shimano FC-MT510-1 12-speed Crank 30
Bottom Bracket SM-BB52 / Pressfit BB-MT500-PA not included!
