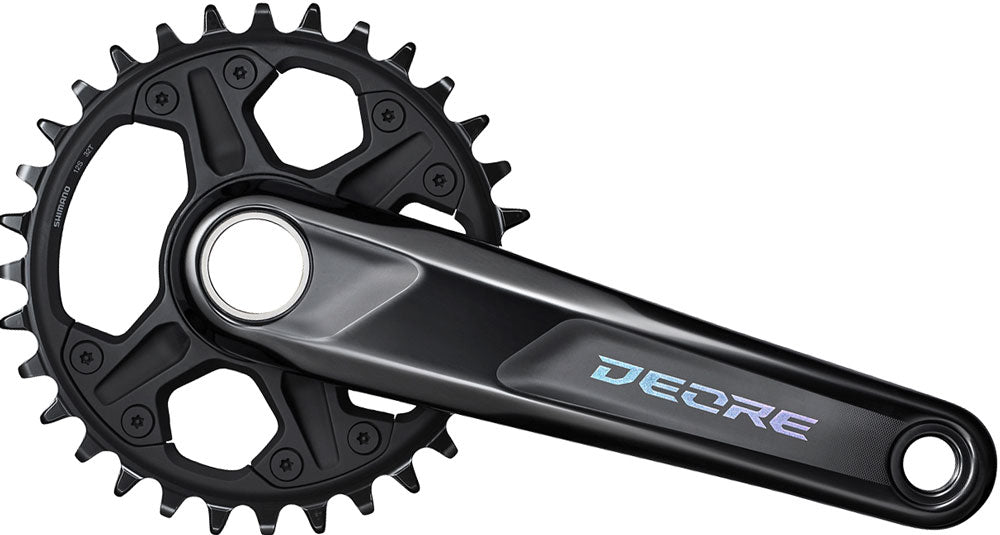

The Shimano DEORE FC-M6120 1x12-speed crank with 178 mm Q-factor, 55 mm chainline and 148 mm O.L.D stands for highest drive efficiency. It offers optimum power transmission and maximum speed for the new DEORE system, which only use 1 chainring.
Features
-
FC-M6120-1 Q-Factor 178mm
-
Chain line 55mm
-
O.L.D 148mm (Boost)
-
Compatibility 1x12-speed with CS-M6100 cassette 10-51
-
Mounting system Direct mount (Lighter and stiffer design & easy exchangeable chainring by direct mount and one key release)
Specification
-
Use: MTB
-
Group: DEORE M6100
-
Model: FC-M6120-1
-
Gradation: 32T
-
Q-Factor: 178mm
-
Threaded BB shell width: 68 / 73mm
-
Gear rear: 12-speed
-
Construction: 2-Piece
-
Compatible Chain: CN-M6100 12-speed
-
Crank arms: 4 arm
-
O.L.D: 148mm (Boost)
-
Chain line: 55mm
Crank Arm Length
Material
-
Crank arm: Aluminium Anodized
-
Crank axle: Steel Plated
Contents
- 1 Shimano DEORE FC-M6120 12-speed Crank 32T
Bottom Bracket SM-BB52 / Pressfit BB-MT500-PA not included!
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are basedoothness and quietness of the drivetrain. For secure and fast mounting of the chainring, the crank is equipped with a direct mount system, making chainring changes a breeze. off pre-production products at time of publication. Weights may vary in final production.
