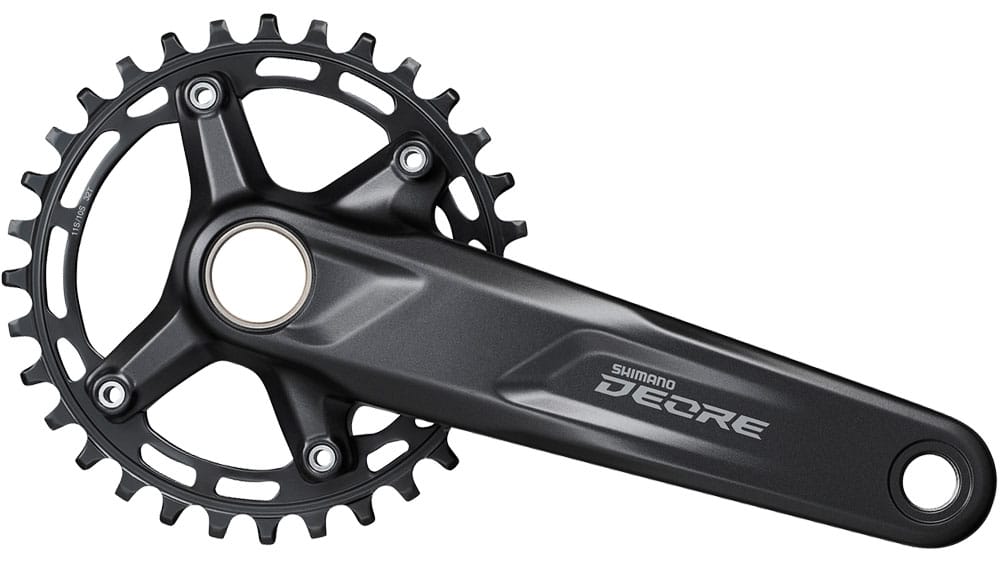

The Shimano DEORE FC-M5100 1x10/11-speed crank with 178.5 mm Q-factor and 52 mm chainline stands for highest drive efficiency. It offers optimum power transmission and maximum speed for the new DEORE system, which only use 1 chainring.
Compatibility
- 1x10-speed with CS-M4100 cassette 11-46
- 1x11-speed with CS-M5100 cassette 11-51
Specification
-
Use: MTB
-
Group: DEORE M5100
-
Model: FC-M5100-1
-
Gradation: 32T
-
Q-Factor: 178.5mm
-
Threaded BB shell width: 68 / 73mm
-
Gear rear: 10/11-speed
-
Construction: 2-Piece
-
Compatible Chain: HG-X 10-speed / 11-speed
-
Crank arms: 4 arm
-
Bolt Circle Diameter: 96mm
-
O.L.D: 135mm / 142mm / 148mm
-
Chain line: 52mm
Crank Arm Length
Colour
Material
-
Crank arm: Aluminum Anodized
-
Crank axle: Steel Plated
