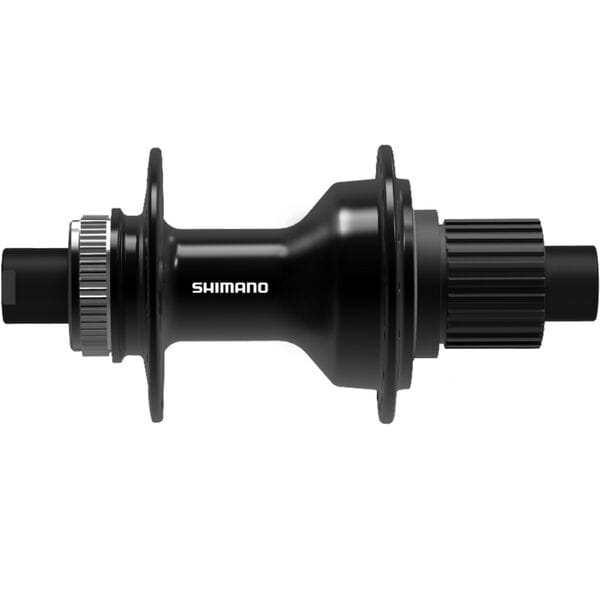

The Shimano FH-TC600-MS-B rear hub with centre-lock disc brake mount offers the well-known reliability and performance for 12-speed Micro-Spline cassettes in the Boost E-Thru thru-axle design. Robust, easily adjustable and durable FREEHUB rear hub for disc brakes with high quality seals.
Features
- Simple setup and reliable trail performance
- Easy disc brake rotor installation with spline mount and lock ring
- Stiff and lightweight 12 mm E-THRU skewer system
- Labyrinth & Contact Sealing
- Quick engagement
- Excellent durability with high pedalling torque
- Optimal bearing positioning for reliable e-bike and high torque usage
- Smaller spline diameter for 10T top gear
- O.L.D.: 148mm
- #13 and #14 spoke compatible
- Only compatible with Shimano Micro-Spline cassettes!
Specification
-
Use: MTB, Trekking
-
Model: FH-TC600-MS-B
-
Freehub body: Shimano 12-speed
-
Brake type: Center Lock Disc
-
Flange distance: 61.1mm
-
Offset: 7.19mm
-
P.C.D.: left 60mm / right 61mm
-
Flange diameter: left 68.8mm / right 69.8mm
-
Hub: Labyrinth and contact seals
-
Type: E-Thru Axle Boost
-
Axle length: 12x148mm
Spoke hole
Material
-
Hub: Aluminium
-
Axle: Steel
-
Freehub body: Steel
Contents
- 1 x Shimano FH-TC600 12-speed Center-Lock Rear Hub 12x148mm
Boost E-Thru Axle not included!
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
