The Shimano CUES FD-U4000 2 x 9/10-speed front derailleur is available as a direct-mount (FD-U4000-D), E-type (FD-U4000-E) version and for the middle clamp position (FD-U4000-M). The switching performance is improved, among other things, by the side-swing technology, which creates 15 mm more clearance between seat tube and tire.
Tackle trails with this front derailleur's smooth and quiet shifting. It is compatible with 2x9 and 2x10-speed drivetrains, with 36-22T and 40-26T gearing options optimized for large-wheel mountain bikes.
Features
- Smooth shifting by Side-Swing mechanism
- Increased tire clearance of 15mm allows for shorter chainstays
- Adapt 48.8mm, 51.8mm chainline
- Smooth and quiet shifting on and off the trail
- SIDE SWING design provides smooth and efficient front shifting
- Wider tire clearance
- Extra-wide range with front double with 36-22T and 40-26T
- Total capacity: 14T
- Only compatible with LINKGLIDE shifting system
Specification
-
Use: MTB, Trekking
-
Group: CUES U4000
-
Model: FD-U4000
-
Cable route type: Front Pull
-
Gear front: 2-speed
-
Gear rear: 9/10-speed
-
Top gear teeth: 36/40T
-
Total capacity: 14T
-
Compatible Chain: LINKGLIDE, HG 11-speed
-
Chain stay angle: 64-69°
-
Chain line: 48.8mm (142mm) / 51.8mm (148mm Boost)
Mounting
-

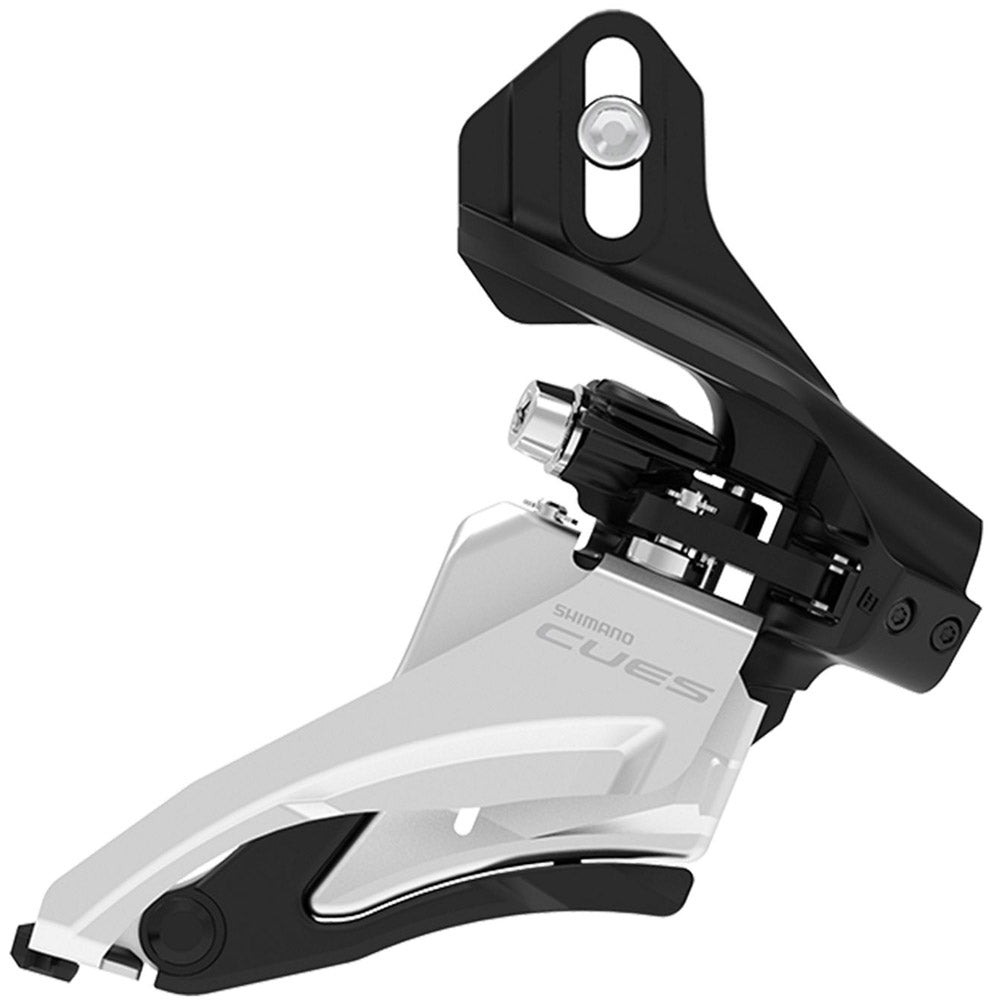

Direct-Mount FD-U4000-D
-

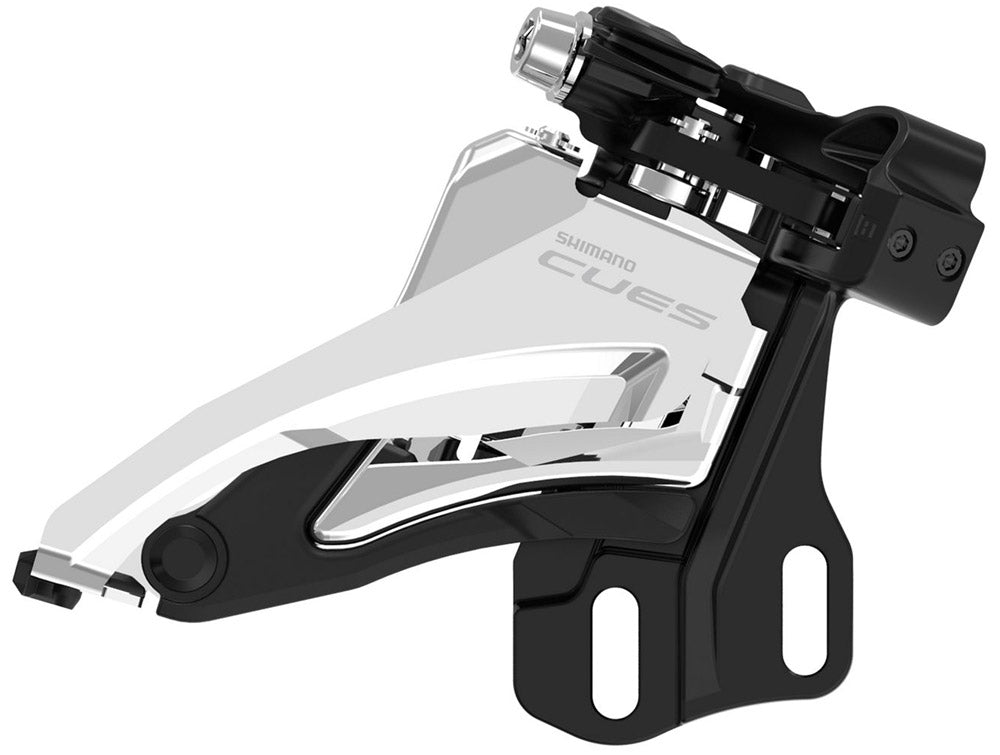

E-Type FD-U4000-E (without plate)
-

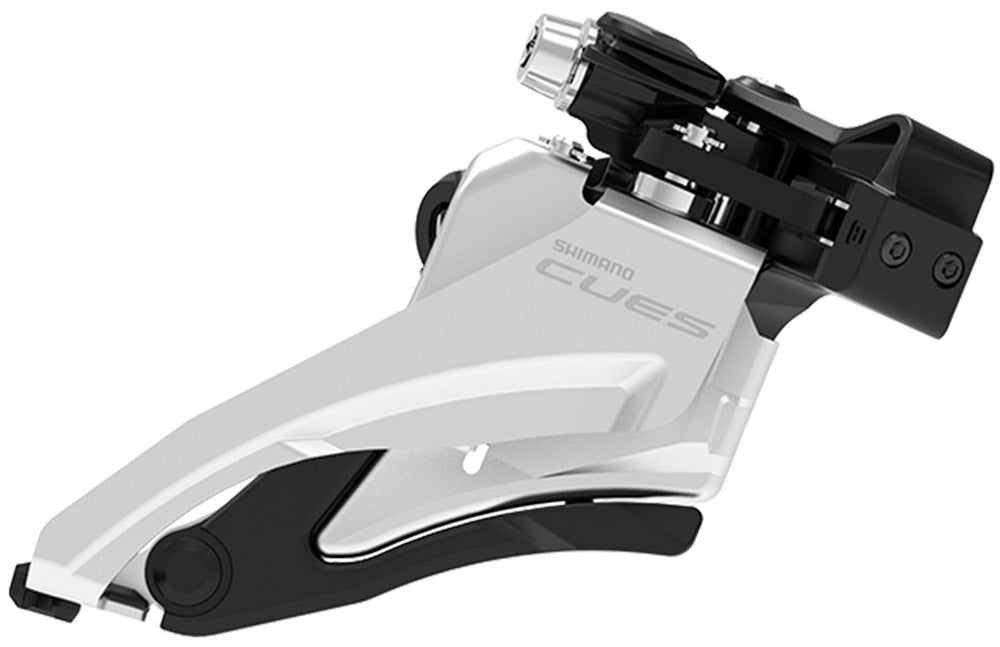

Clamp FD-U4000-M (Clamp 34.9mm with Adapter 31.8mm)
Material
- Aluminium
- Stainless steel
- Steel
Contents
- 1 x Shimano CUES FD-U4000 9/10-speed Front Derailleur Direct Mount
