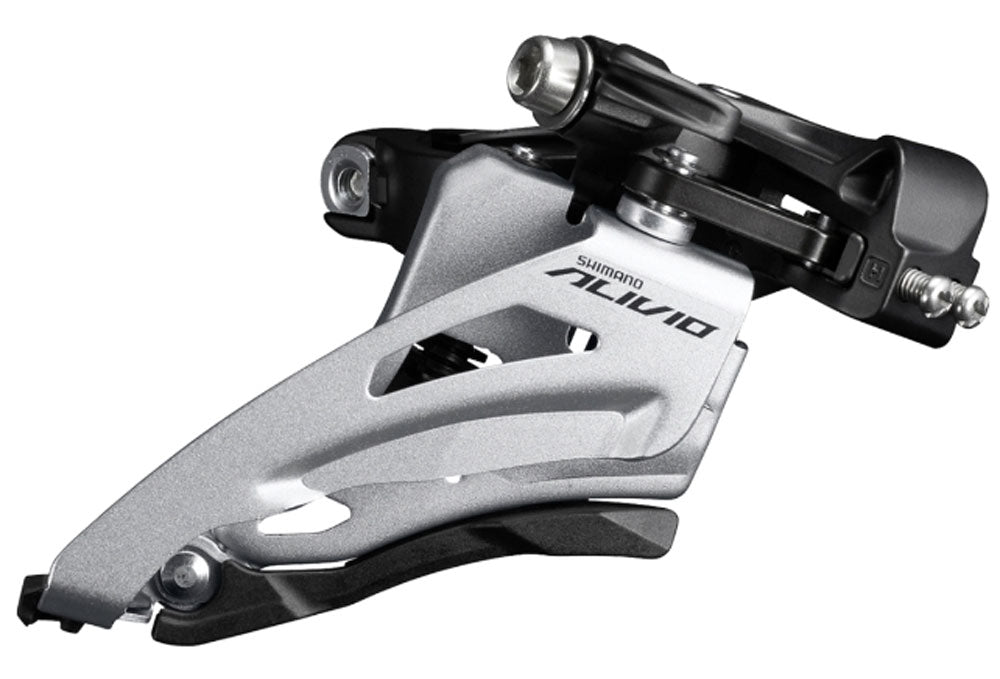

SHIMANO ALIVIO FD-M3120-B 2x9-SPEED FRONT DERAILLEUR SIDE SWING
Product Details - Shimano Alivio Fd-m3120-b 2x9-speed Front Derailleur Side Swing
Product Details - Shimano Alivio Fd-m3120-b 2x9-speed Front Derailleur Side Swing
The ALIVIO FD-M3120-B 2 x 9-speed front derailleur from Shimano with middle clamp position and 51.8 mm chain line.
Shift performance is improved by side swing technology, which provides 15 mm more space between seat tube and tyre.
Features Shimano ALIVIO FD-M3120-B 2x9-speed Front Derailleur
- Smooth shifting by Side-Swing mechanism
- For front double chainring
- Smooth and quiet front shifting on the trail
- More powerful outward shifting
- Wider traction range reduces chain rub for rear suspension bikes
- Extra wide range with front double 36-22T
- Wide frame mounting compatibility
- Compatible with 2.3-inch tire on wider rims
- Chainline 51.8mm
Specification
- Use: MTB
- Group: ALIVIO M3100
- Model: FD-M3120-M-B
- Cable route type: Front Pull
- Gear front: 2-speed
- Gear rear: 9-speed
- Top gear teeth: 36T
- Total capacity: 14T
- Compatible Chain: HG 9-speed
- Chain stay angle: 64-69°
- Chain line: 51.8mm (148mm Boost)
Mounting
- Clamp FD-M3120-M-B (Clamp 34.9mm with Adapter 28.6mm, 31.8mm)
Material
- Aluminium
- Stainless steel
- Steel
Contents
- 1 x Shimano ALIVIO FD-M3120-B 2x9-speed Front Derailleur Side-Swing
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
