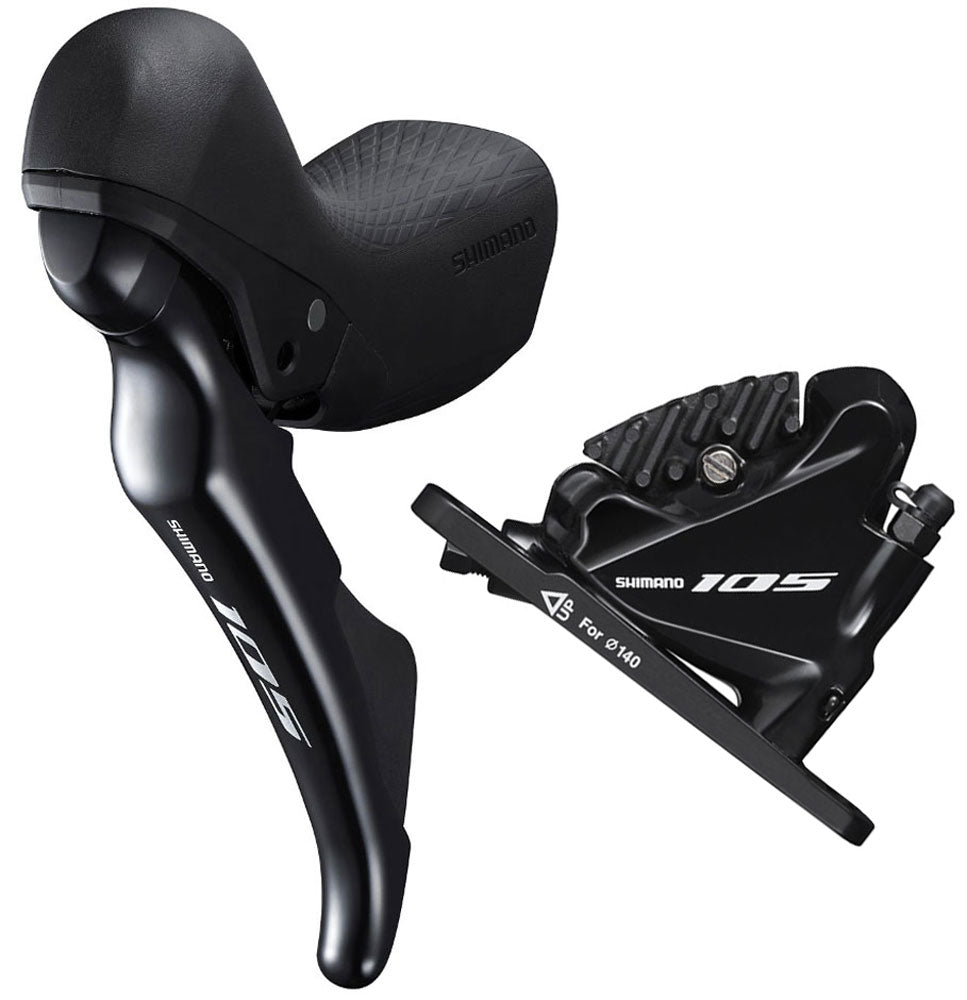

With smaller, sleeker hoods, the Shimano 105 2x11-speed compatible ST-R7020 STI with BR-R7070 calliper for hydraulic disc brake units deliver improved ergonomics for better rider comfort and control, with reduced lever stroke and lighter action.
Features
- Greater reach adjust range
- Redesigned internal shifting unit
- Greater rider control in all conditions
- Quick and intuitive rear shifting operation
- Same light shifting operation as top tier systems
- Great ergonomics cascaded from ULTEGRA
- Lighter front shifting when paired with FD-R7000 (compared with previous generation)
- Fast and easy bleeding through one-way Bleeding
- Front (140/160mm)
Specification
-
Use: Road/Cyclocross
-
Group: 105
-
Model: ST-R7020
-
Type: Dual-Control (STI)
-
Handlebar mounting: left
-
Gear front: 2-speed
-
Optical gear display: No
-
Lever reach adjust: Yes
-
Handlebar diameter: 23.8mm/24.2mm
-
Brake-type: Hydraulic Disc Brake
-
Brake calliper: BR-R7070
-
Brake mounting: Flat-Mount
-
Brake pads: L02A Resin with Fin
-
Brake hose: SM-BH90-JK-SSR front 1000mm (shortable)
-
One-Way bleeding: Yes
-
Brake fluid: Mineral oil
-
Recommended brake rotor: SM-RT70 (140mm/160mm)
Compatible Pads Brake Pads
- K02S Resin
- K03S Resin
- K04S Metal
- L02A Resin
- L04A Resin
- L04S Metal
Material
-
Body: CFRP
-
Lever: Aluminium, painted
-
Calliper: Aluminium, painted
Weight
- Approx 485g (without rotors)

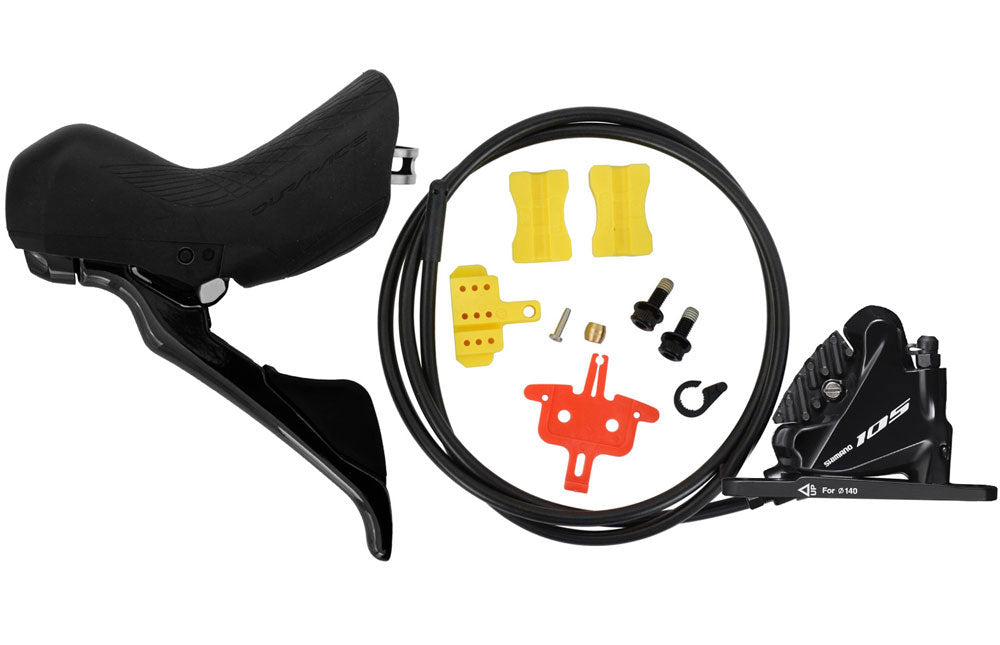

Contents
- 1 x 105 2-speed STI Dual Control ST-R7020 left
- 1 x 105 Disc Brake Caliper BR-R7070 Flat-Mount
- 1 x Flat-Mount Adapter 140mm/160mm
- 1 x Brake Pads L02A-Resin with Fin
- 1 x Brake Hose SM-BH90-JK-SSR 1000mm (shortable)
- 2 x Screw for brake caliper
- 1 x Tube Joint Kit (Insertpin + Olive)

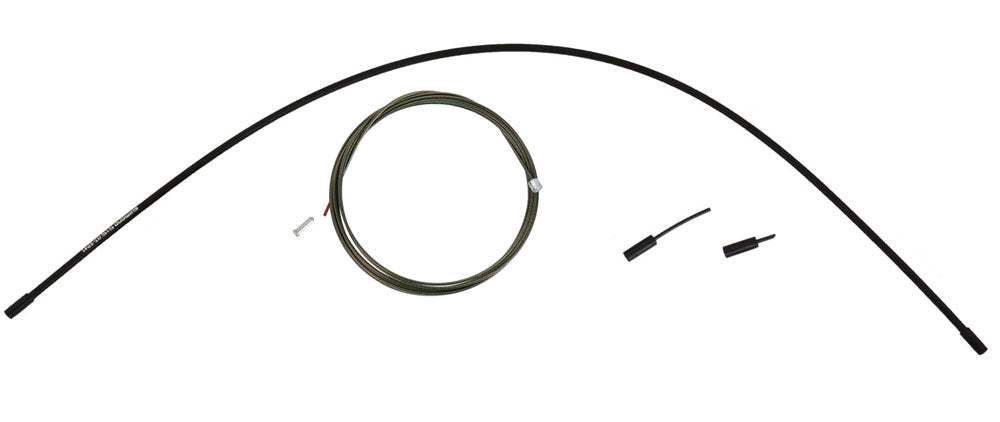

- 1 x Gear wire (Optislick) 1800mm
- 1 x Gear cable SIS OT-SP41 600mm
- 1 x End caps
- The brake hose SM-BH90-JK-SSR is with mineraloil filled and pre-mountedon the caliper BR-R7070!
Disc Rotor SM-RT70 Center Lock not included!
