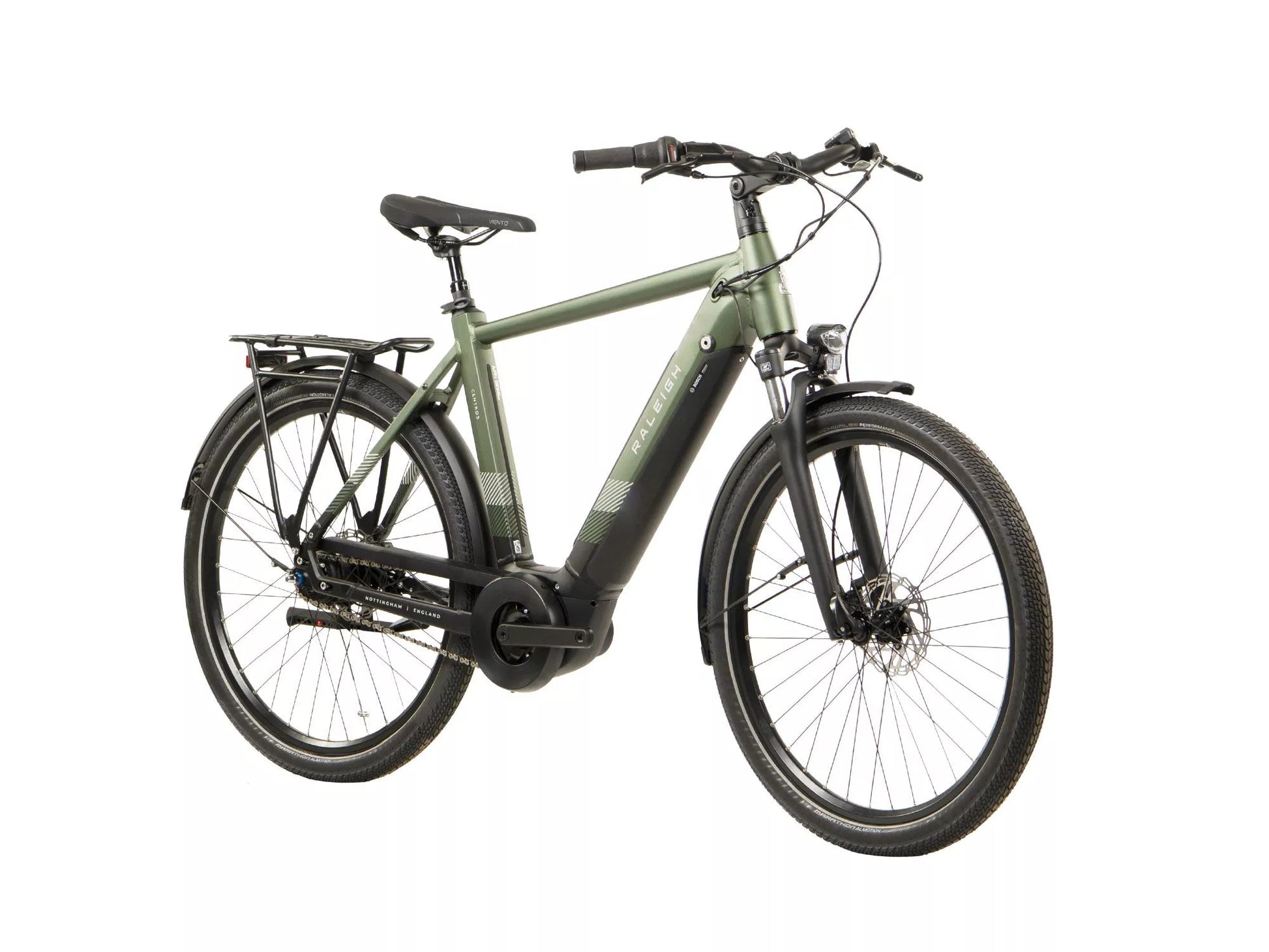

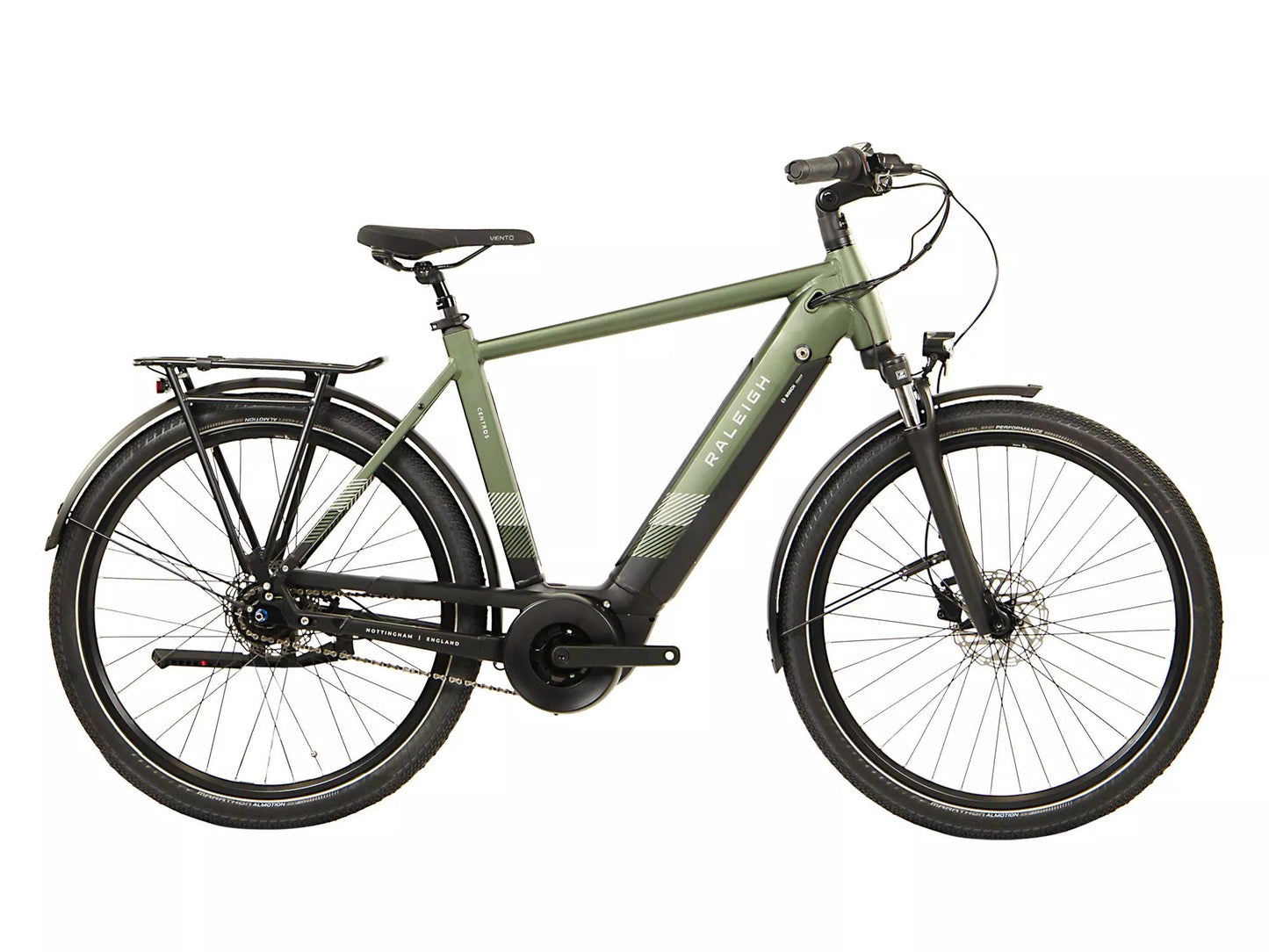

RALEIGH CENTROS CROSS BAR HYBRID eBIKE WITH HUB GEARS KHAKI GREEN
Product Details - Raleigh Centros Cross Bar Hybrid Ebike With Hub Gears Khaki Green
Product Details - Raleigh Centros Cross Bar Hybrid Ebike With Hub Gears Khaki Green
eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated in two boxes.
Minimum personal assembly is required.
This one’s for the off-roaders. The trail-lovers. The bikepackers. The paddle-boarders.
Welcome to the Centros. Fitted with a silent Bosch motor to add serious power to your pedalling, the Centros will take you further and faster than you ever thought possible. Whether you’re a casual trail rider or a cross-country bikepacker, this sporty set of wheels is built for some serious adventures – with a battery that can take you up to 130 miles on a single charge. Next stop: everywhere.
Centros. More to explore.
Key Features Raleigh Centros Cross Bar Hybrid eBike with Hub Gears
- 625w Internal Battery: There ain’t no stopping you with the powerful 625Wh internal battery. Take on 130 miles on a single charge, plus the option to fit a range extender and extra battery. Where will your Centros take you?
- Hub Gears: Hub gears enable you to shift while standing still. and require very little maintenance. They are known for their practicality and durability in all conditions.

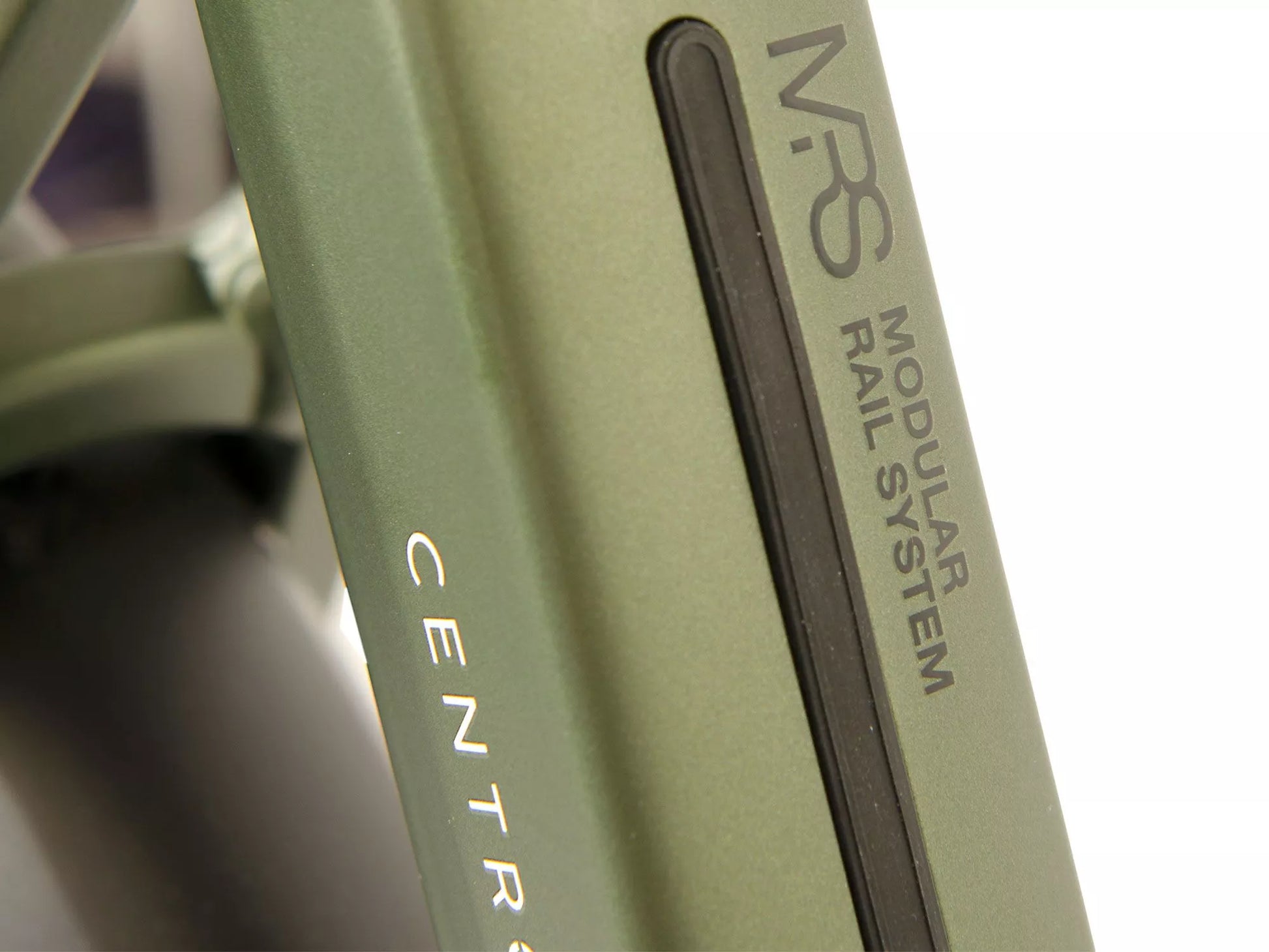

- MRS: Adapt your Centros to your lifestyle. The Modular Rail System (MRS) allows you to not only add accessories to your bike frame, but also an additional battery and range extender.
- Fully-Equipped: Ready to roll, the Centros is fully equipped for wherever you’re heading. Mudguards, pannier rack and lights, all you need to do is choose where your next adventure takes you.
Specification
- Frame: 6061 Aluminium
- Sizes: Small (48cm), Medium (52cm), Large (56cm)
- Fork: Suntour Nex Suspension Fork 63mm Travel
- Motor: Bosch Performance Line
- Battery: Bosch Powertube 625wh with option for range extender
- Controller: Bosch Purion
- Charger: Bosch 4A
- Front Shifter: Shimano Nexus revoshift 8 speed
- Gear Shift: Hub Gear
- Chainset: KMC 38t chainring with 170mm crank arm
- Rear Cassette: Shimano 19t sprocket
- Chain: KMC E1 Chain single speed
- Front Derailleur: N/A
- Rear Derailleur: N/A
- Pedals: Aluminium flat pedal
- Wheels: 650b double side wall rim with QR aluminium hub 36H, disc
- Tyres: 650B x 55c Schwalbe Marathon Almotion
-
Brakes: Shimano MT200 Hydraulic Disc Brake, 180mm / 160mm

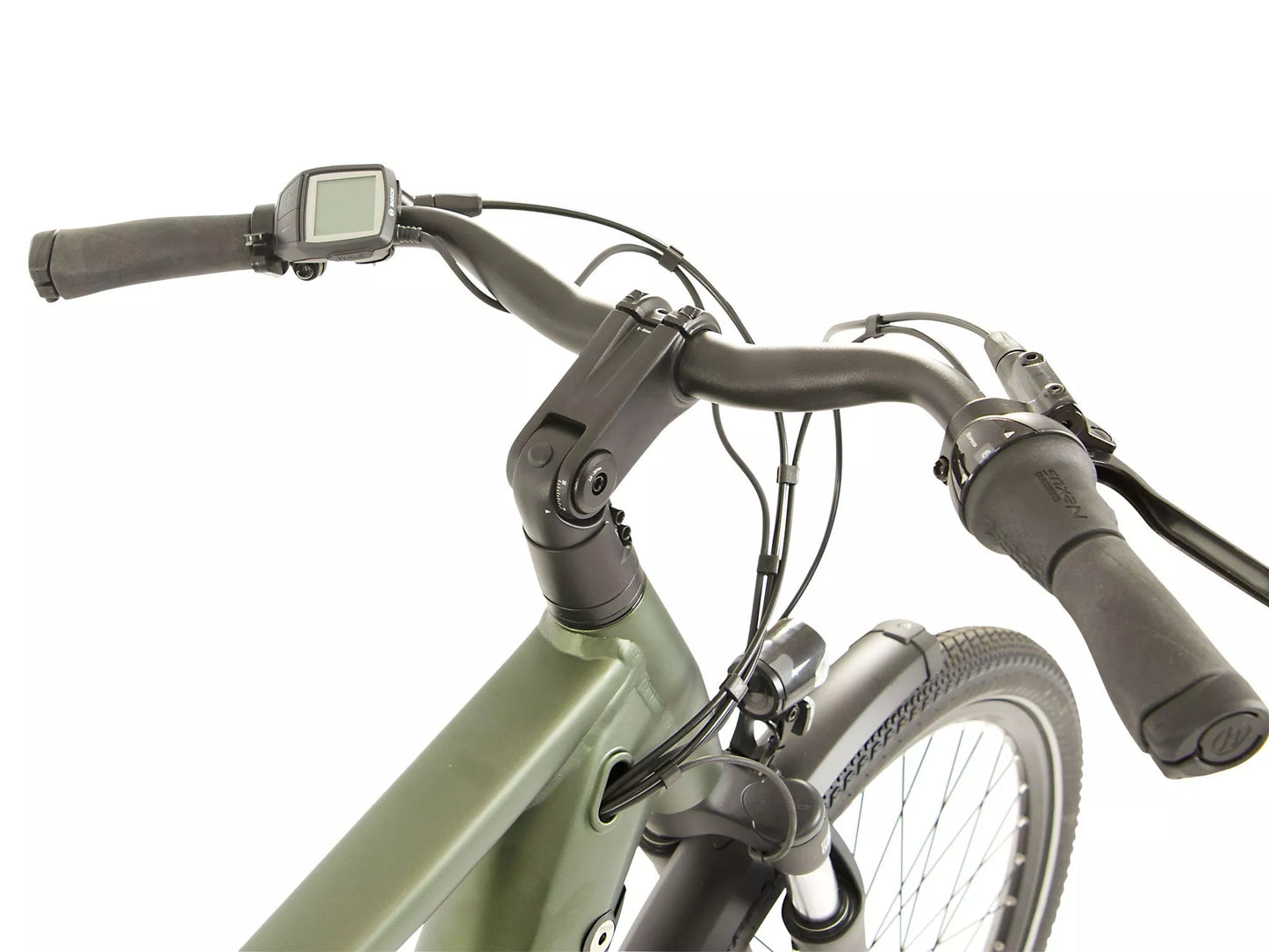

- Handlebars: Aluminium comfort handlebar 640mm
- Grips: XLC ergonomic comfort grips
- Stem: XLC Aluminium adjustable stem 80mm

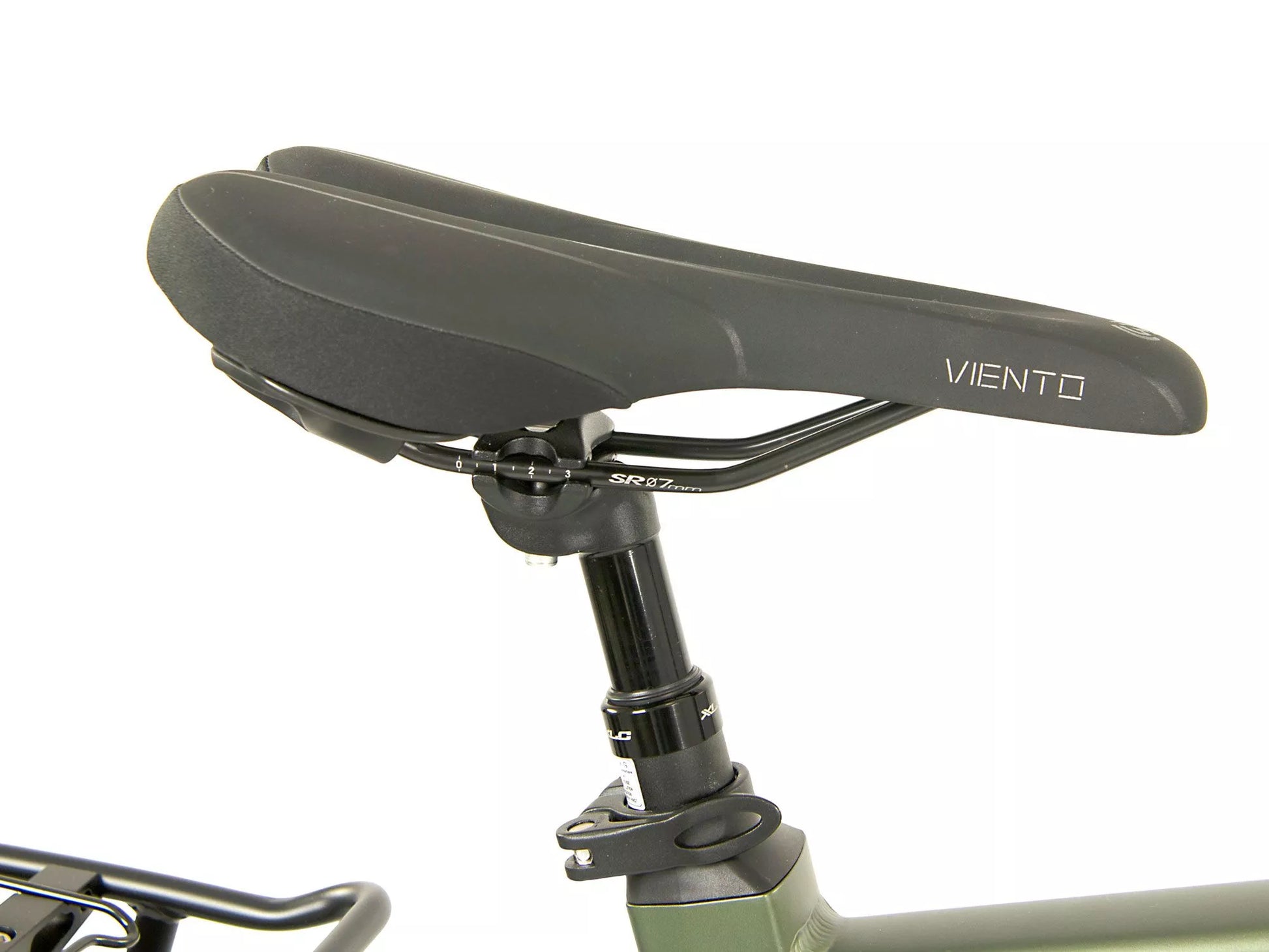

- Saddle: Selle Royal Viento
- Seatpost: Aluminium seatpost 31.6x300mm
- Mudguards: SKS Full Mudguards

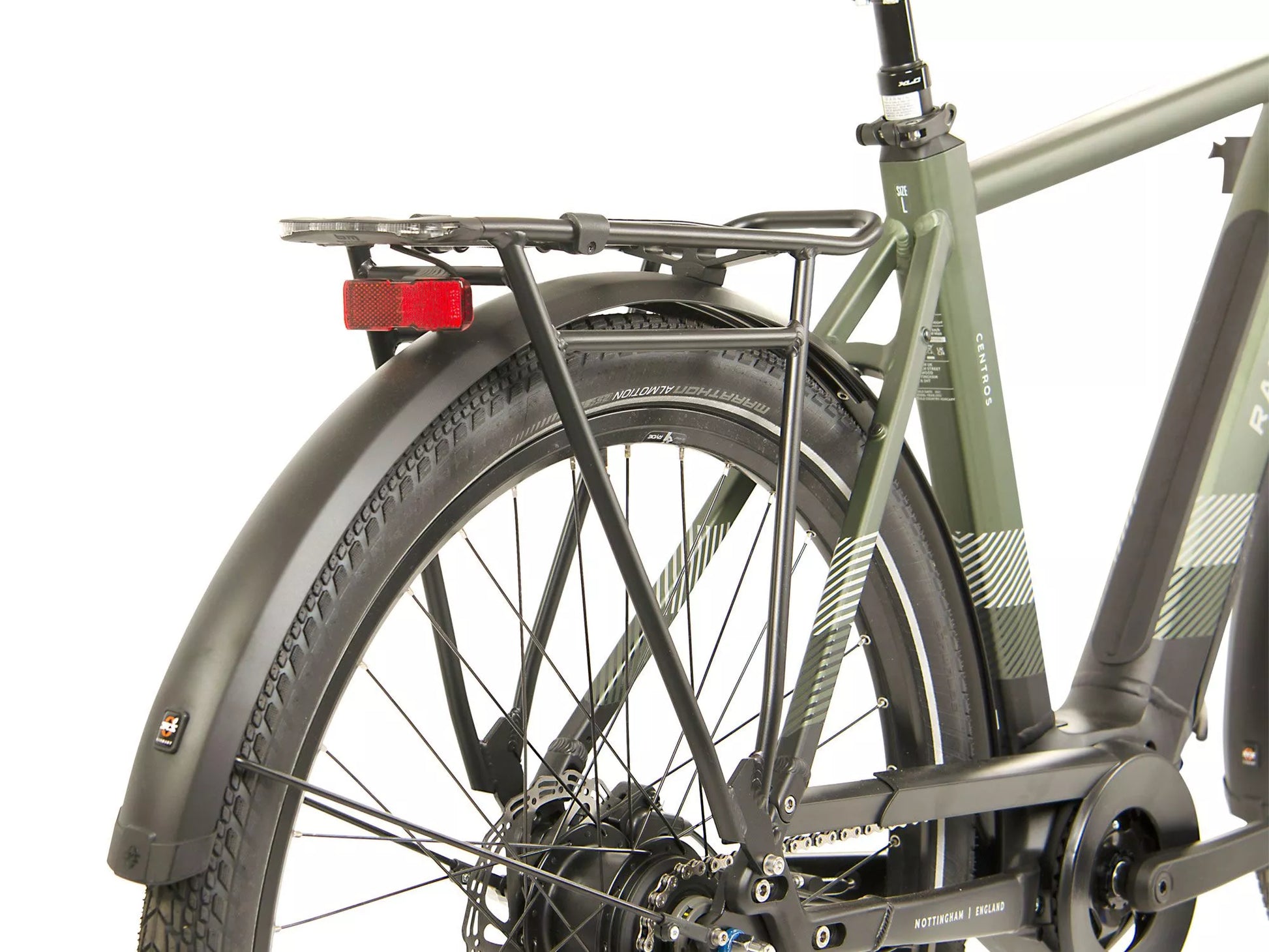

- Rack: Racktime Aluminium Rack
- Front Light: Herrmans H-Black MR4 front light
- Rear Light: Integrated Rear Light
- Stand: Adjustable aluminium stand with 18mm mount
- Total Bike Weight: 27.1kg
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
