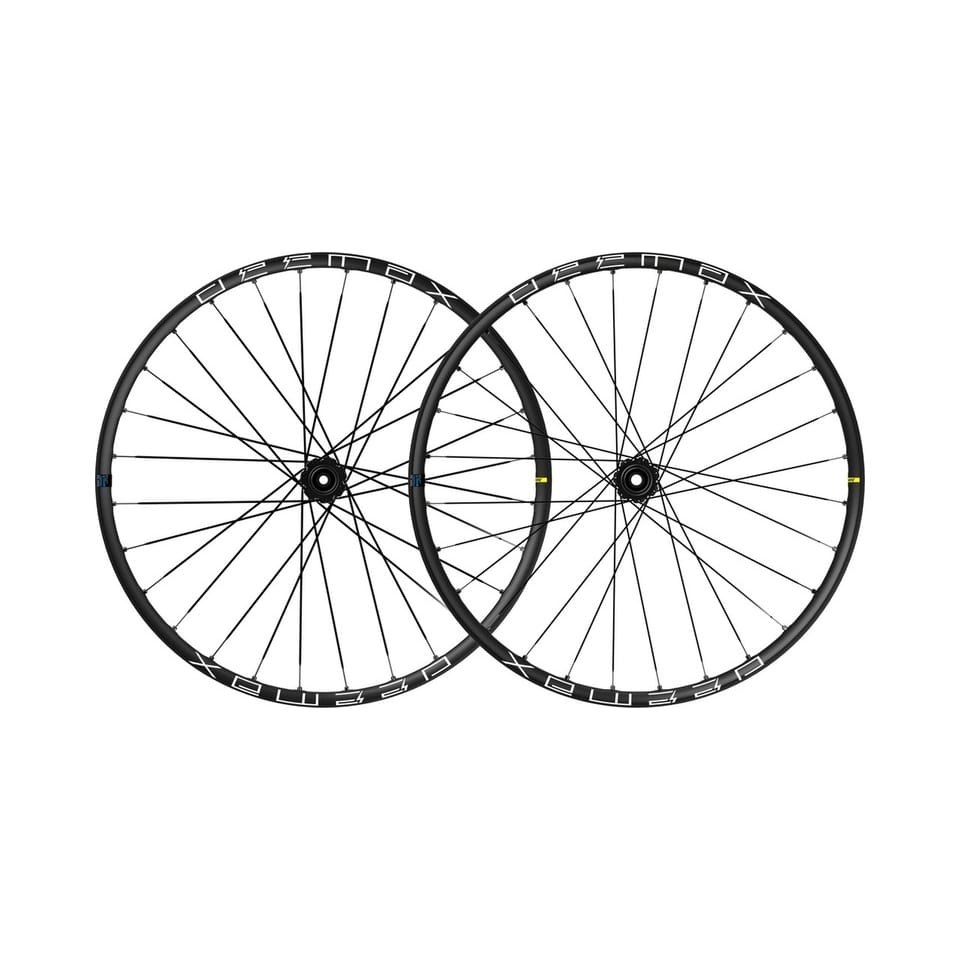

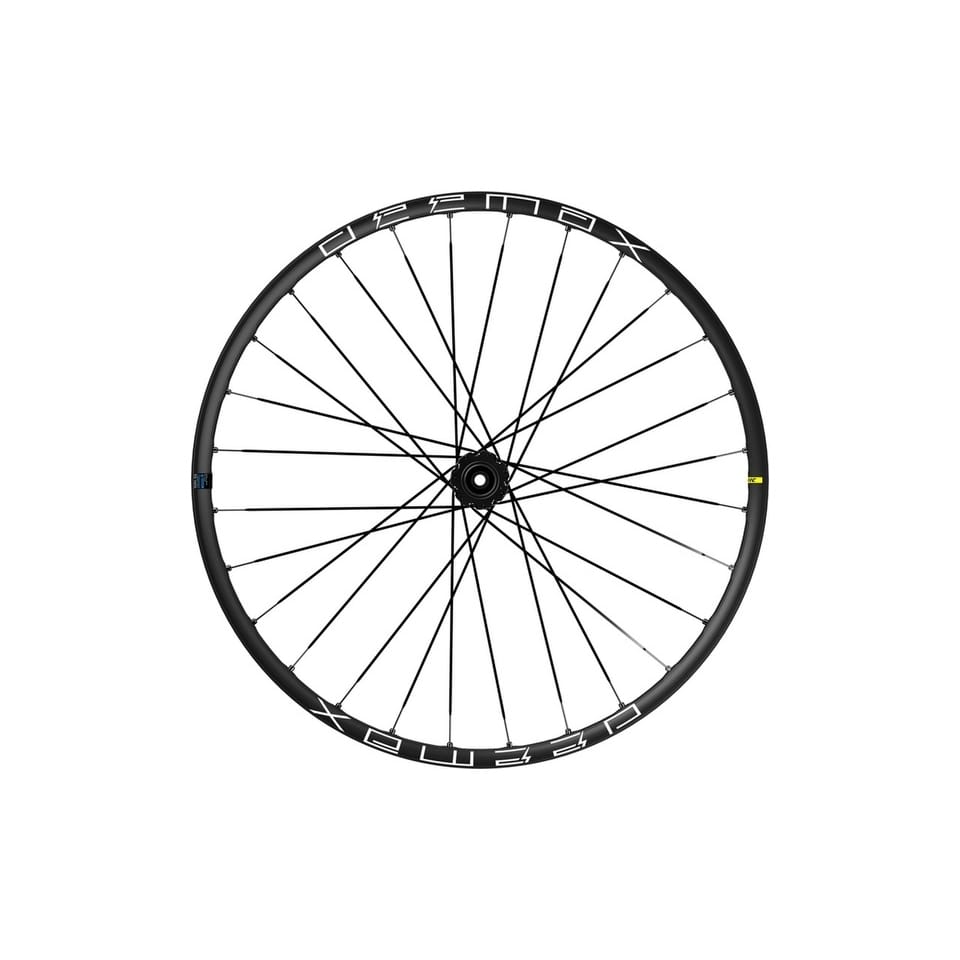

As the perfect upgrade for your electric mountain bike, the Mavic E-Deemax S35 27.5" 6-Bolt Disc MTB Wheelset is optimised for the added weight and power of a motor and battery, offering enhanced durability and lasting performance. Featuring a unique profile to prevent pinch flats and 28-spoke lacing, these wheels are built for the abuses of gravity riding and are highly durable for season after season of use.

For rapid acceleration, the Instant Drive 360 freewheel technology provides fast engagement, allowing the user to sprint out of corners without delay. The Black Shield rim treatment provides a modern look and resists scratches for a long-lasting finish. Suitable for up to a 3.2” tyre, the oversized 35mm internal rim width offers exceptional traction and support, making it perfect for aggressive riding.

Compatibility

• Rear axle: 12x148 Boost thru axle
• Freewheel: Shimano HG9, XD or Micro Spline
• Front axle: 15x110 Boost, convertible to 20x110 Boost thru axle with adapters

Compatible Adapters and freewheel bodies

• ID360 Shimano Micro Spline alloy freewheel body (LV3990100)
• Boost : 20x110 boost front hub cap (LV2680400 Delivered with the wheel)
• Boost : Torque Caps (LV2374400)
• ID360 Sram XD freewheel body (LV3740100)
• ID360 Shimano HG9 alloy freewheel body (LV3780100)

Weight

• Pair 650b/27,5" without tire: 2030 grams
• Front 650b/27,5" without tire: 940 grams
• Rear 650b/27,5" without tire: 1090 grams

Hubs

• Axles: Front 15X110 Boost ; Rear 12X148 Boost
• Hub available with 6-bolt or centre lock (R) brake rotors
• QRM Auto bearing preload technology
• Instant Drive 360 freewheel technology

Intended Use

• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included
• ASTM CATEGORY 5 : GRAVITY RIDING FOCUSED ON THE DESCENT
• Recommended tyre sizes: 65mm to 81mm (2.5" to 3.2")

Rims

• Asymmetrical rim design
• Pinch Flat Protection sidewall (minimizes the risk of tire cuts and punctures)
• Black Shield treatment (protects your rim against impacts and scratches)
• ETRTO size 27.5": 584x35TC
• E-Bike specific rim profile
• Internal width: 35 mm
• Fore tapeless tubeless technology
• SUP welding technology
• Material: S6000 Aluminum
• Tire: UST Tubeless and tubetype
• Weight reduction: ISM
• Material: Maxtal

Spokes

• Lacing: front and rear crossed 3, contactless
• Count: 28 front and rear
• Shape: straight pull, flat, double butted
• Material: steel
• Nipples: Fore integrated aluminum

Versions

• Freewheel: SRAM XD
• Hub width : Boost only (front 110, rear 148)
• Disc standard : 6 Bolts
