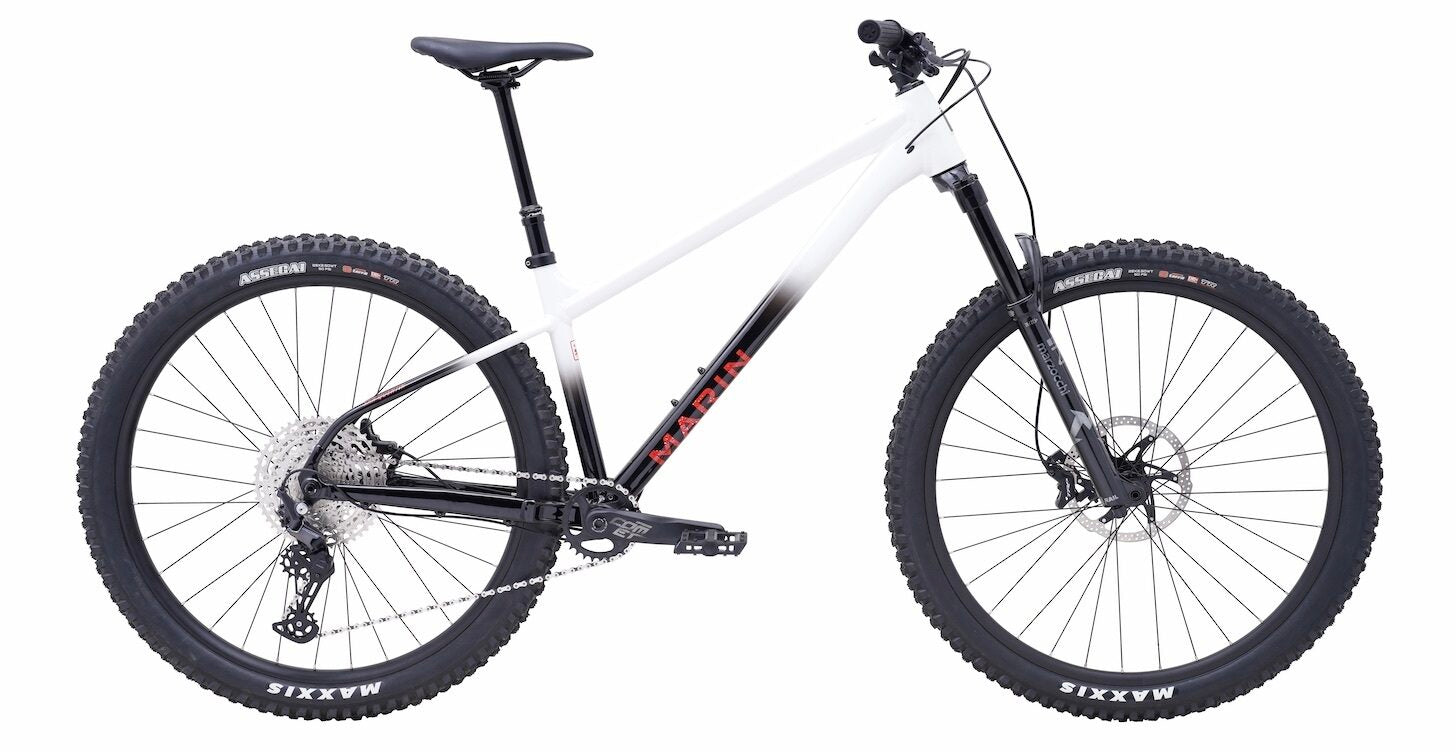

MARIN SAN QUENTIN 29" 3 HARDTAIL MTB BIKE 2025 WHITE/BLACK

Skip to product information
1 of 7

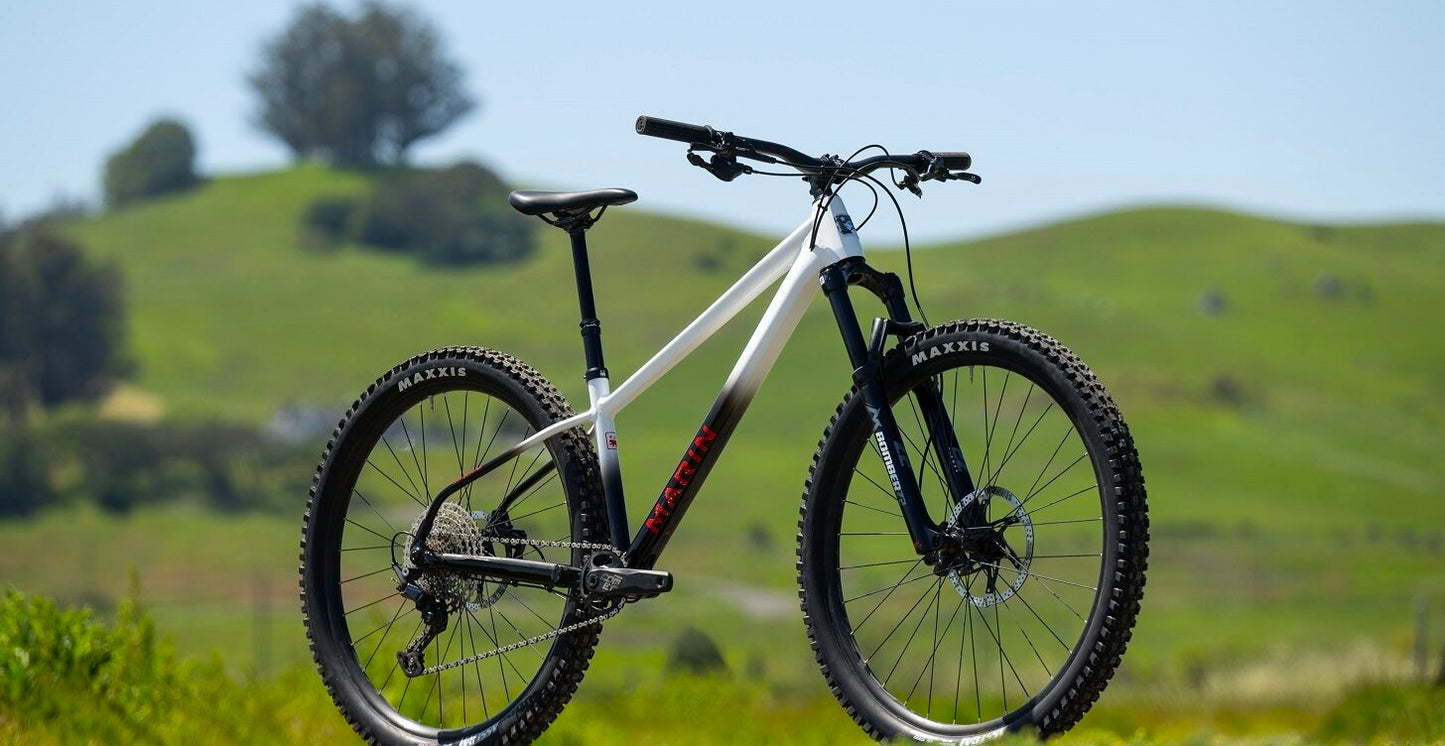

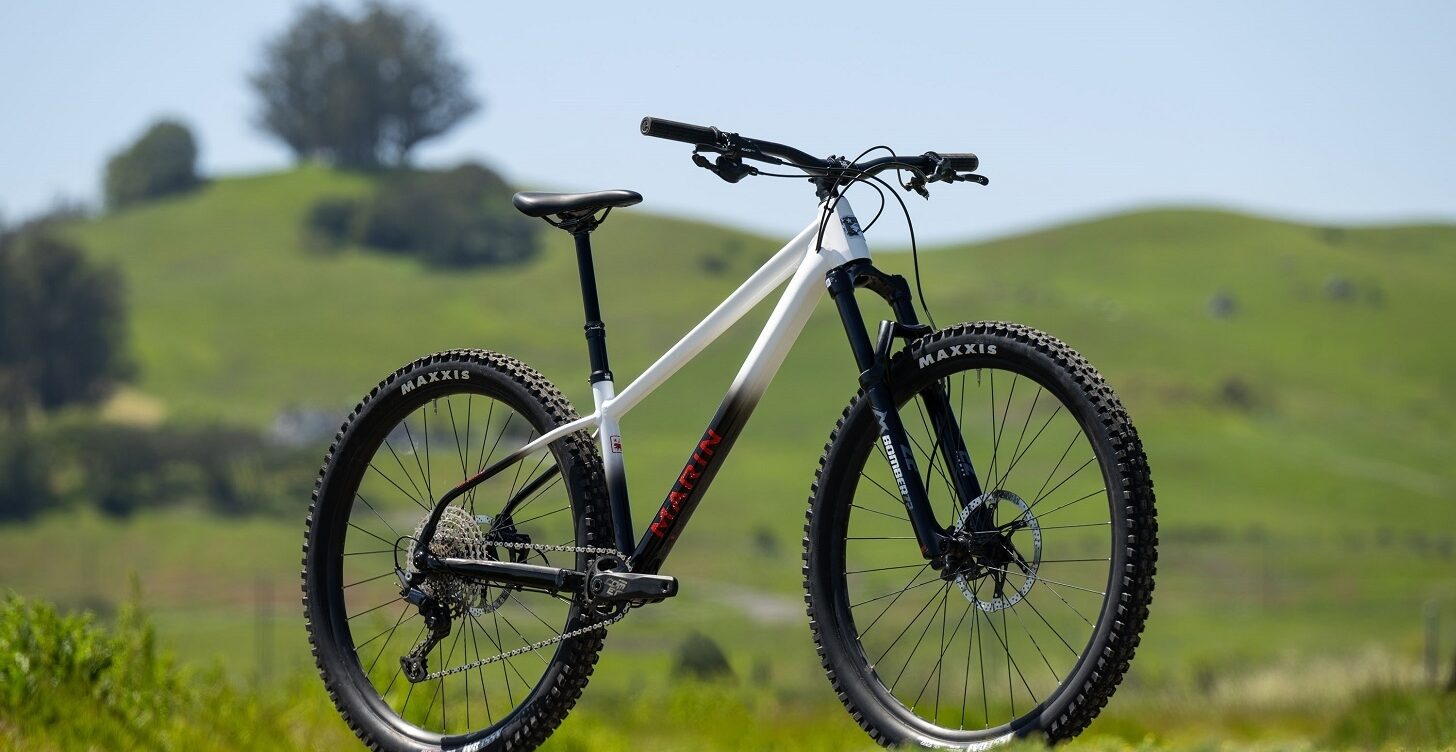

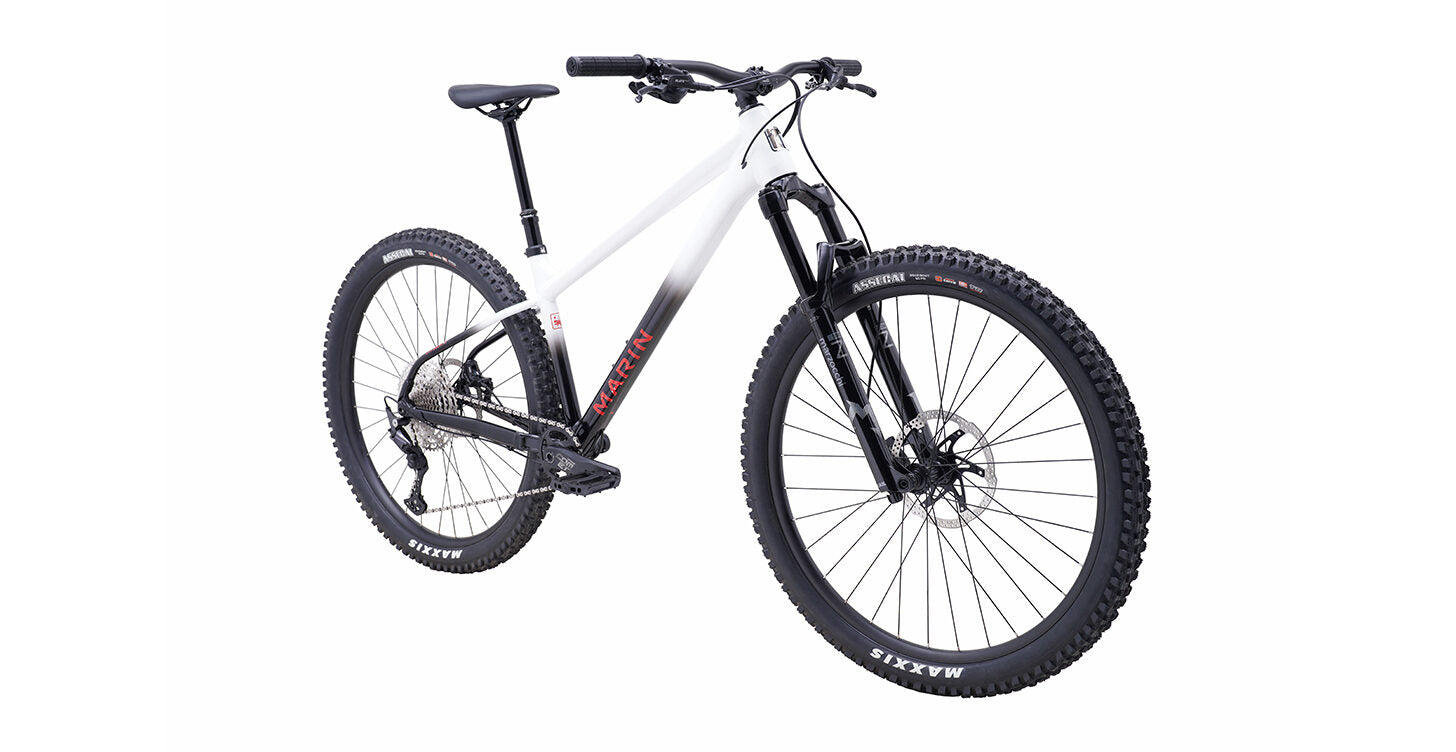

Product Details - Marin San Quentin 29" 3 Hardtail Mtb Bike 2025 White/black

Dirt jump DNA with all the speed and roll-over of 29" wheels.

The San Quentin 3 29 is the top dog in the SQ 29 family. We’ve worked tirelessly to create the very best-specced San Quentin 29 ever but still kept the price tag down to earth and in reach of everyone. Marzocchi Z2 fork? Check. TRP 4-piston brakes and 12-speed drivetrain? TranzX dropper post? You got it. FSA cranks, Maxxis rubber and plenty of kick-ass Marin kit? Abso-freakin-lutely.

Key Upgrades from the San Quentin 2 29"

  • Marzocchi Bomber Z2 fork
  • Shimano Deore wide-range 12-speed drivetrain
  • TRP Slate Evo 4-piston brakes
  • Maxxis Assegai tubeless compatible tyres

Key Features

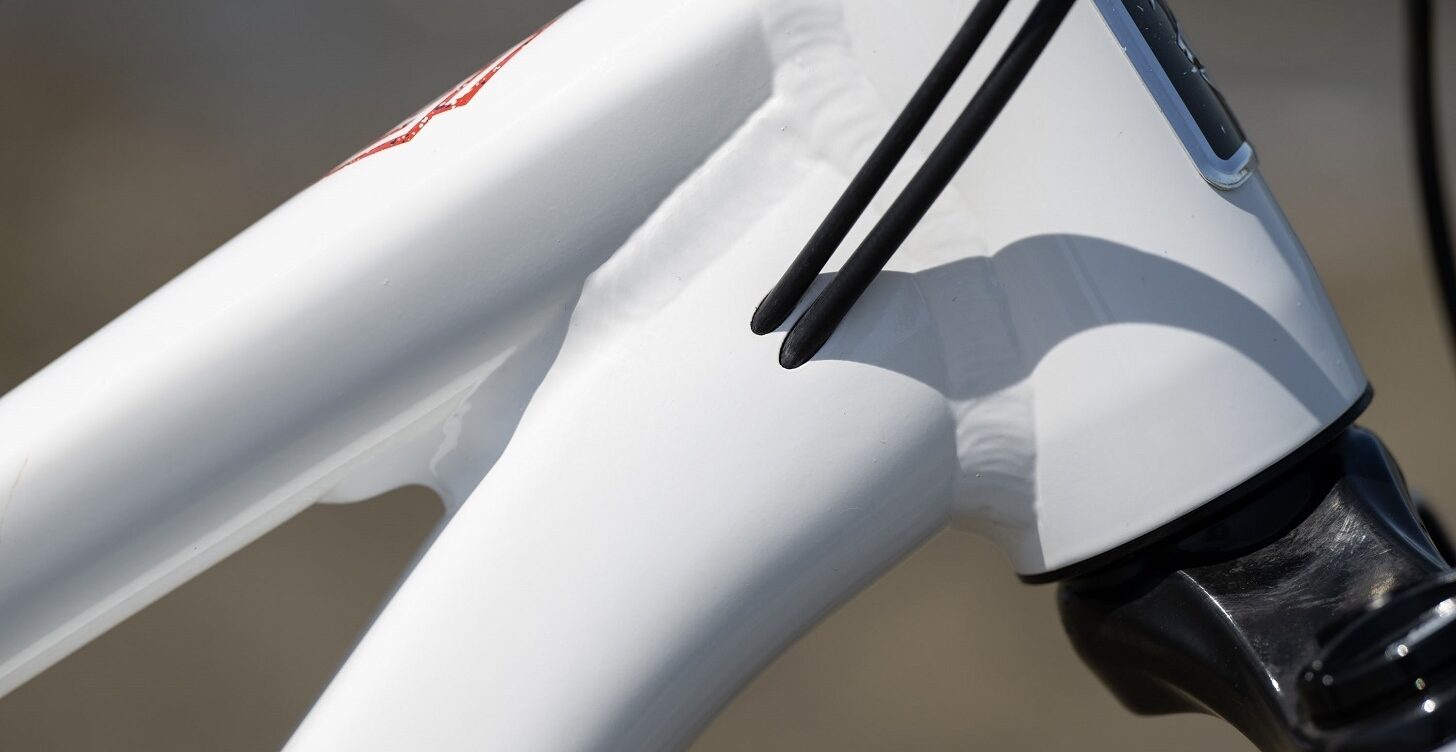

  • Series 3 Aluminium frame: More advanced tube forming, more complex dropouts, post mount disc tabs, full internal cable routing, and a boost 148mm thru-axle model, and San Quentin 2 and 3 have full internal cable routing, and a boost 148mm thru-axle.
  • Dirt Jump Frame Style: Taking cues from the Alcatraz, the San Quentin line up provides all the benefits of the DJ style with massive stand over, slick frame tubes, and a sexy paint job.
  • Powerful Disc brakes: For minimal maintenance and all-conditions stopping power.

Full Specification

    • Frame: All New Series 3 6061 Aluminium, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB
    • Fork: Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle, 44mm Offset

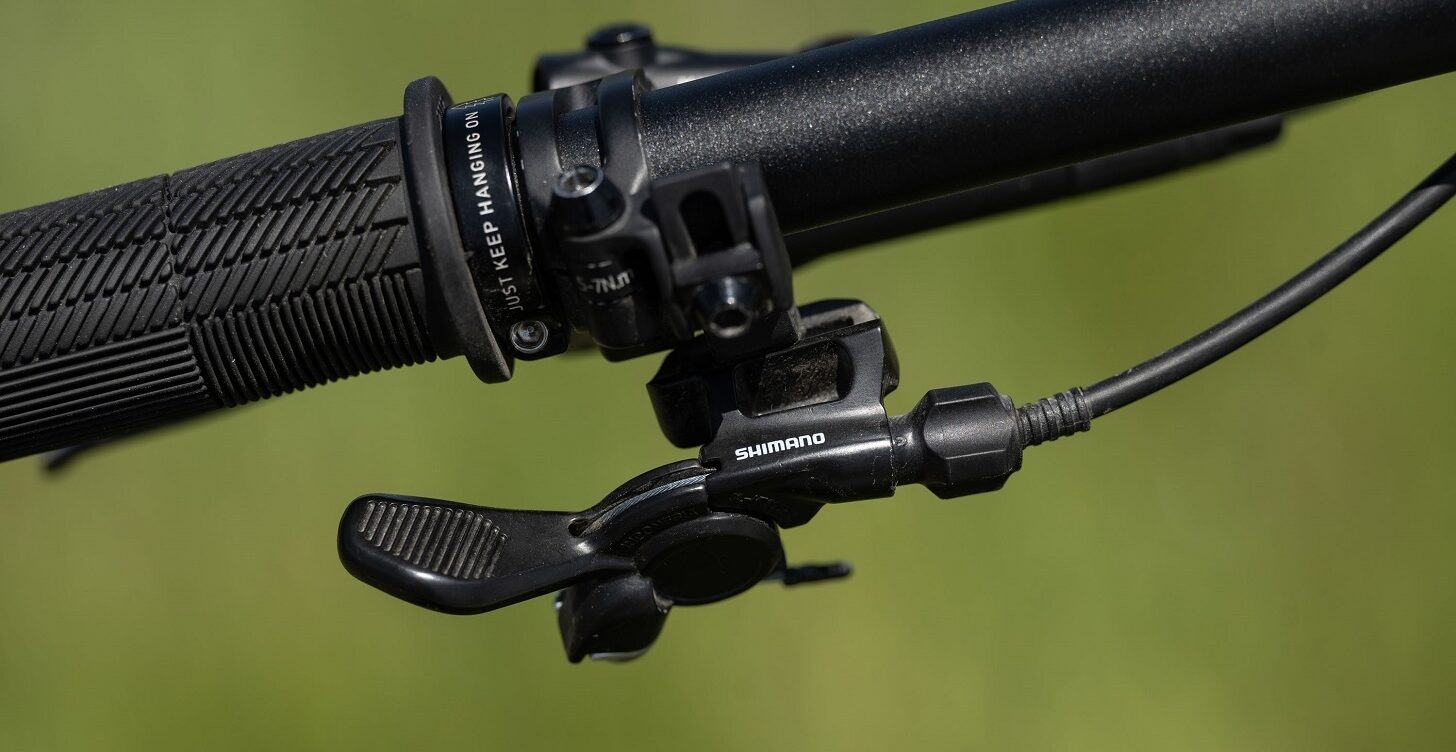

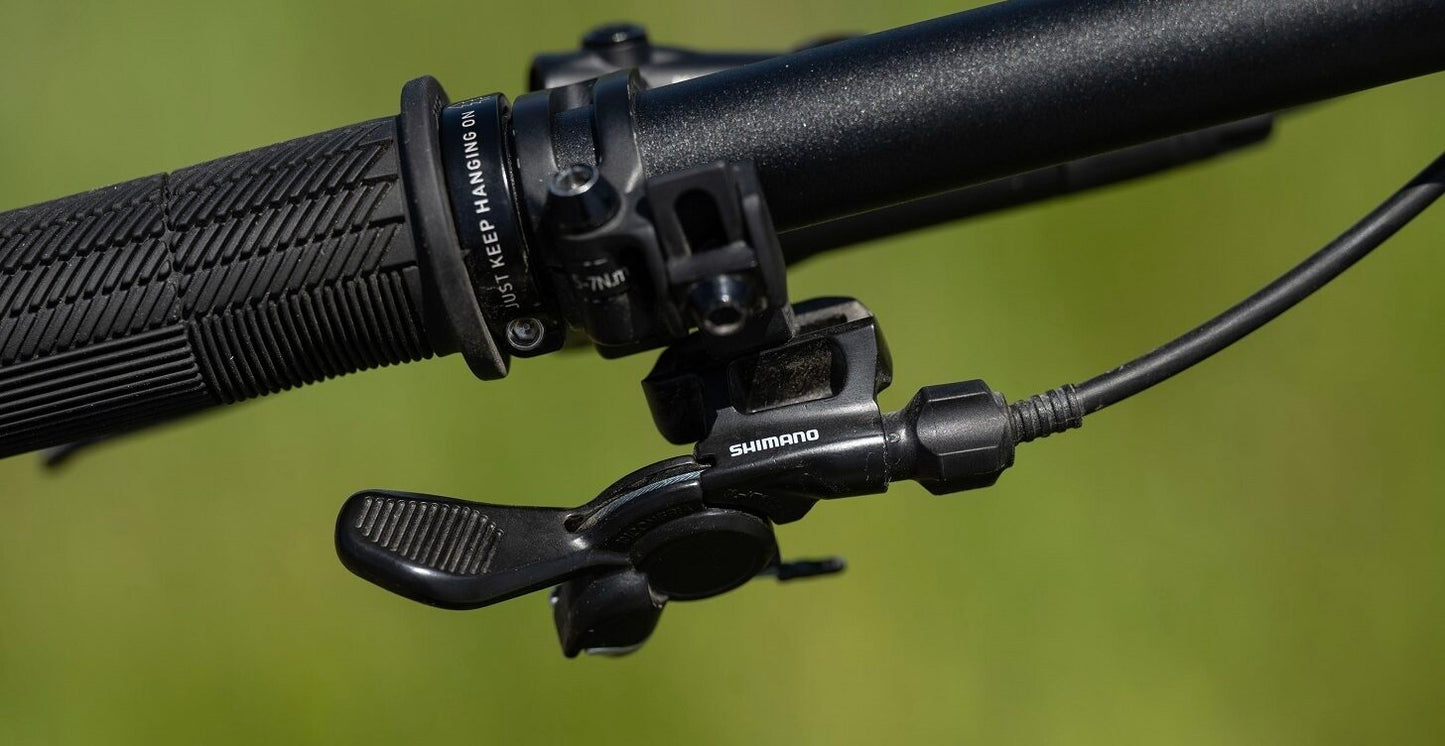

    • Shifters: Shimano Deore, 12-Speed, SL-6100IR
    • Crankset: FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
    • Cassette: SunRace, 12-Speed, MicroSpline, 10-51T
    • Chain: KMC X-12 Silver and Black
    • Front Derailleur: N/A
    • Rear Derailleur: Shimano Deore, 12-Speed, SGS
    • Bottom Bracket: FSA MegaExo 73mm BSA
    • Pedals: Marin Oso OE Flat
    • Rims: Marin Aluminium Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible
    • Front Hub: Shimano HF-MT410B, 110x15mm, Disc
    • Rear Hub: Shimano FH-TC500, 148x12, MicroSpline Freehub Body, Centerlock Disc, 32H
    • Tyres: Maxxis Assegai, 29 x 2.5" MAXX TERRA, EXO Casing, Tubeless Compatible

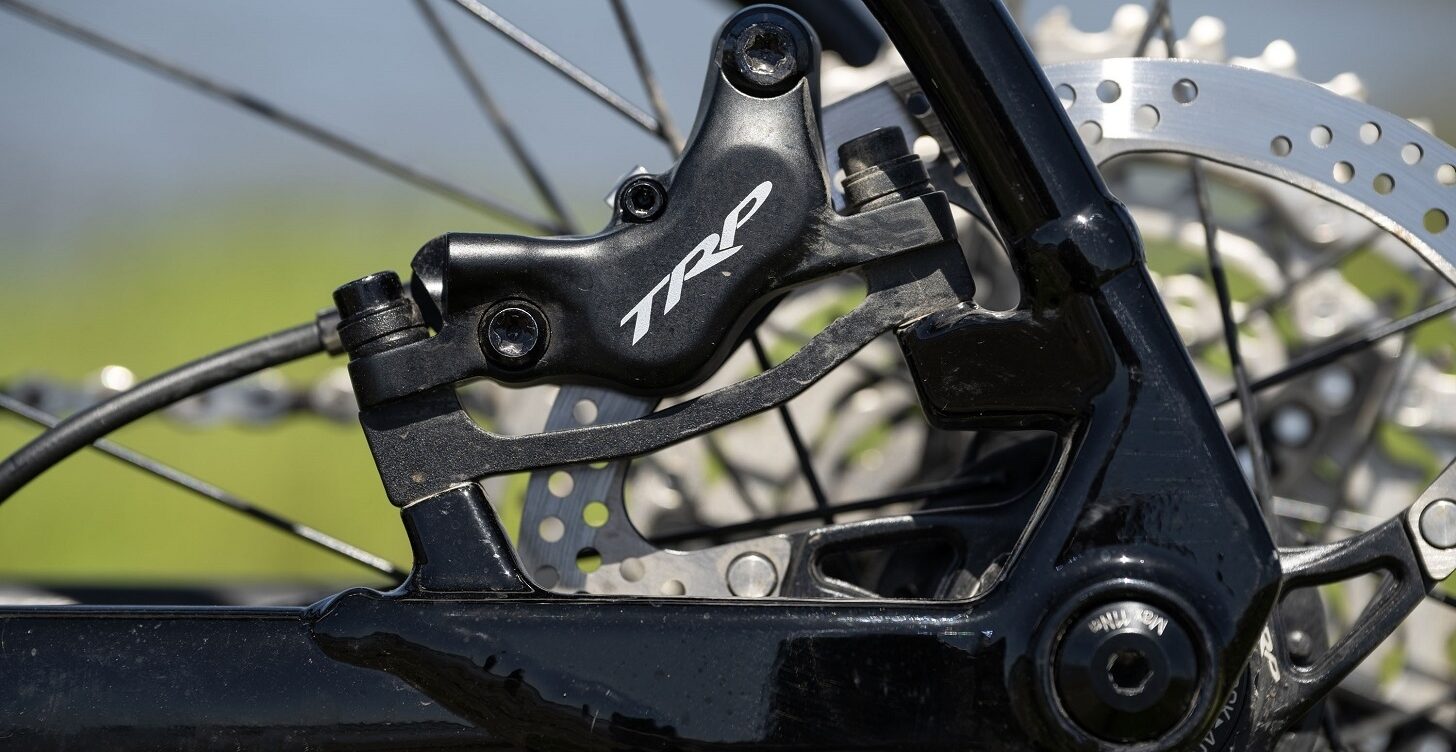

    • Brakes: TRP Slate EVO, 4-Piston Hydraulic, Resin Pads, 203 - 180 mm Rotors
    • Handlebar Grips: Marin Grizzly Lock On
    • Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 28mm Rise, 5º Up, 9º Back
    • Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
    • Stem: Marin 3D Forged Alloy, 35mm
    • Saddle: Marin Speed Concept
    • Seatpost: TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm Travel, Size L-XL 170mm Travel, 30.9mm
    • Accessories: N/A

    Size Guide for Marin San Quentin

    Size Rider Height
    S 5'2" - 5'5"
    M 5'5" - 5'8"
    L 5'8" - 5'11"
    XL 5'11" - 6'2"

    We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

    Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

    How we Build & Pack Your Bike

    Aftercare

    At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

    Bicycle Safety

    Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

    Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

    Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

    Follow road rules – Ride responsibly and remain aware of your surroundings.

    Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

    Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

    Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

    Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

    Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Routine Maintenance (Every Few Weeks)

    Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

    Brake Safety – Check brake pads and responsiveness before each ride.

    Tyre Inspection – Look for punctures and ensure correct air pressure.

    Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

    Frame Safety Check – Look for any signs of damage or cracks.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Professional Check-Ups

    Have your bike serviced at least once a year, or more frequently if you ride often.

    Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

    Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

    Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Routine e-Bike Maintenance (Every Few Weeks)

    Motor Inspection – Listen for unusual noises and ensure smooth operation.

    Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Seasonal e-Bike Maintenance

    Check Electrical Components – Ensure wires and connections are clean and secure.

    Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

    By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!

    Read our full advice

    If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
