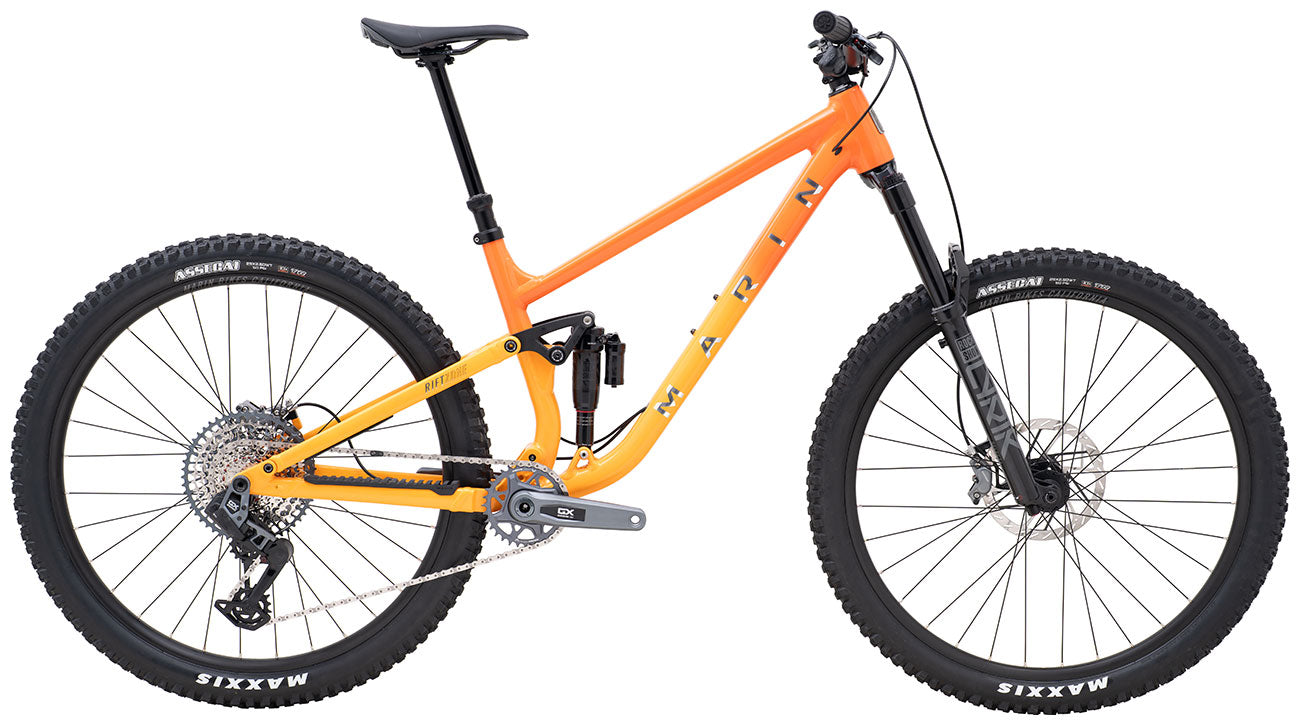

MARIN RIFT ZONE XR ARS FS MTB BIKE 2025 ORANGE/YELLOW

Skip to product information
1 of 1

Product Details - Marin Rift Zone Xr Ars Fs Mtb Bike 2025 Orange/yellow

The rift zone represents the most modern 29 short travel trail bike possible featuring 125mm of multitrack suspension and progressive geometry that takes full advantage of decades of trail riding experience to create best-in-class handling, both in and out of the saddle.

The rift zone is available with a carbon fibre or aluminum front triangle and is an ideal bike for mixing it up between long trail days in the saddle and fast weeknight group rides

Key Features Marin Rift Zone XR AXS Full Suspension MTB Bike 2025

  • Hydraulic Disc Brakes: Accurate and powerful braking capacity to keep you in control in all weather conditions.
  • Long, low and slack trail geo and 29” wheels: Make for a fast and quick-handling bike.
  • RockShox/Fox front and rear suspension: Pedal-friendly suspension that soaks up the bumps and delivers power to the ground.

Full Specification

  • Frame: Series 3 6061 Aluminium, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • Rear Shock: RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune
  • Fork: RockShox Lyrik Select+, 150mm Travel, 29" wheels, 110x15 Maxle Stealth, 42mm Offset
  • Gear Shifters: SRAM AXS POD MMX
  • Chainset: SRAM GX Eagle, 32T, 55mm CL, 170mmLength
  • Rear Cassette: SRAM XG 1275 Eagle Cassette 10-52T
  • Chain: SRAM GX Eagle T-Type
  • Rear Derailleur: SRAM GX Eagle AXS T-Type
  • Bottom Bracket: SRAM DUB MTB 73
  • Pedals: Not supplied
  • Rims: Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
  • Front Hub: Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
  • Rear Hub: Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
  • Tyres: Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible
  • Brakes: SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200/180mm Rotors
  • Handlebars: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
  • Handlebar Grips: Marin Grizzly Lock On
  • Stem: Marin CNC, 35mm Length, 35mm Bar Bore
  • Saddle: Marin Speed Concept
  • Seatpost: TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
  • Extras: Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
  • Weight: N/a

Size Guide: Marin Rift Zone 2025 Trail Bike

Frame Size Rider Height Guidance
Small 5'3" to 5'6"
Medium 5'6" to 5'10"
Large 5'10" to 6'1"
X Large 6'1" to 6'4"

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.


How we Build & Pack Your Bike

Aftercare

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
