MARIN RIFT ZONE E XR FULL SUSPENSION eMTB BIKE 2025 RED/BLACK
Product Details - Marin Rift Zone E Xr Full Suspension Emtb Bike 2025 Red/black
Product Details - Marin Rift Zone E Xr Full Suspension Emtb Bike 2025 Red/black
XR stands for EXTRA RAD.
We turned the Rifty E up another notch with this one - RockShox Lyrik Ultimate fork and Super Deluxe Ultimate Shock, Vee Tire Co rubber, Shimano XT drivetrain, next-gen Shimano EP801 motor, SRAM Code 4-piston brakes. And the cherry on top? SRAM AXS wireless shifting and a wireless RockShox Reverb dropper post. Our highest spec, highest tech Rifty E ever.
Key Upgrades from the Rift Zone E2
- SRAM GX AXS T-Type
- RockShox Lyrik Ultimate/Super Deluxe Ultimate suspension
- SRAM Code Bronze 4-piston brakes
- RockShox Reverb AXS dropper post
Key Features
- Hydraulic Disc Brakes: Accurate and powerful braking capacity to keep you in control in all weather conditions.
- Long, low and slack trail geo and 29” wheels: The Rift Zone E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system, with 140mm of suspension for the best on-trail experience.

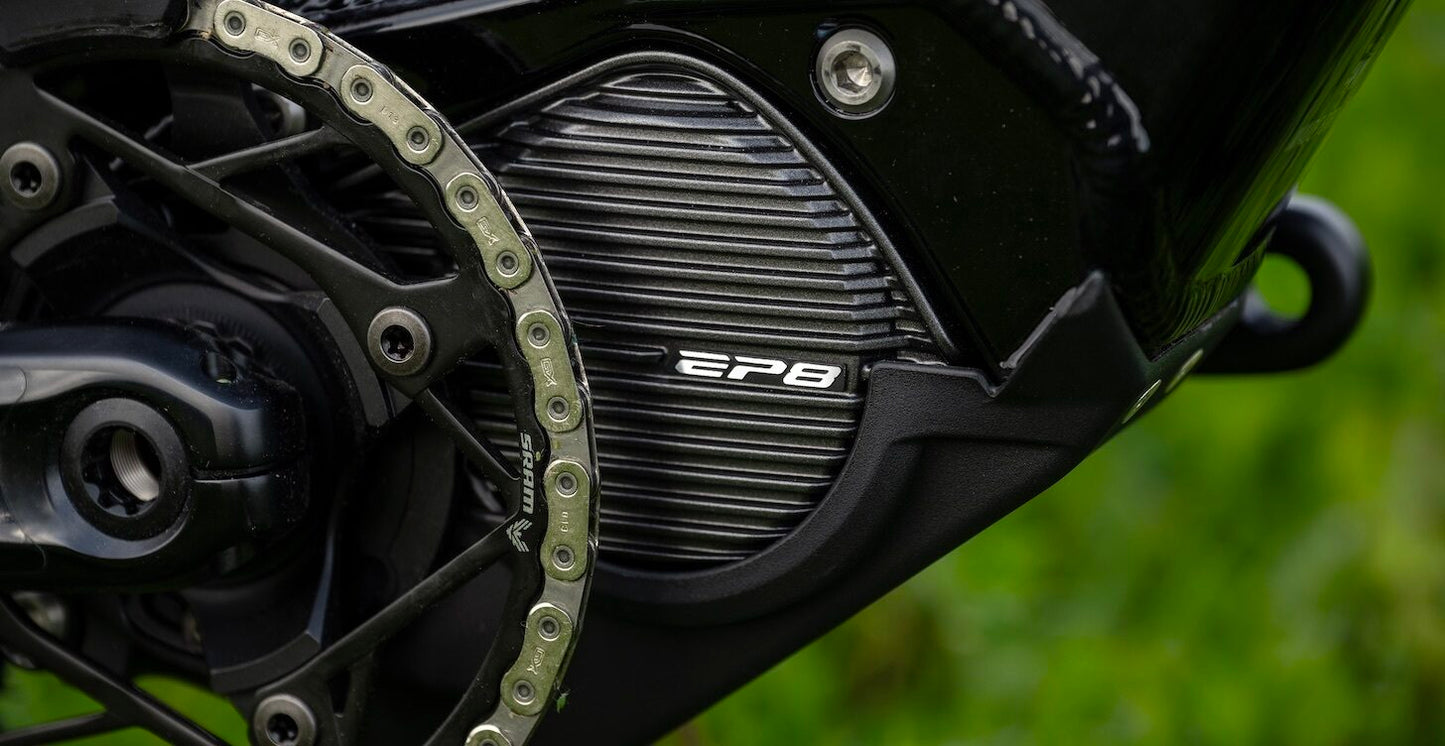

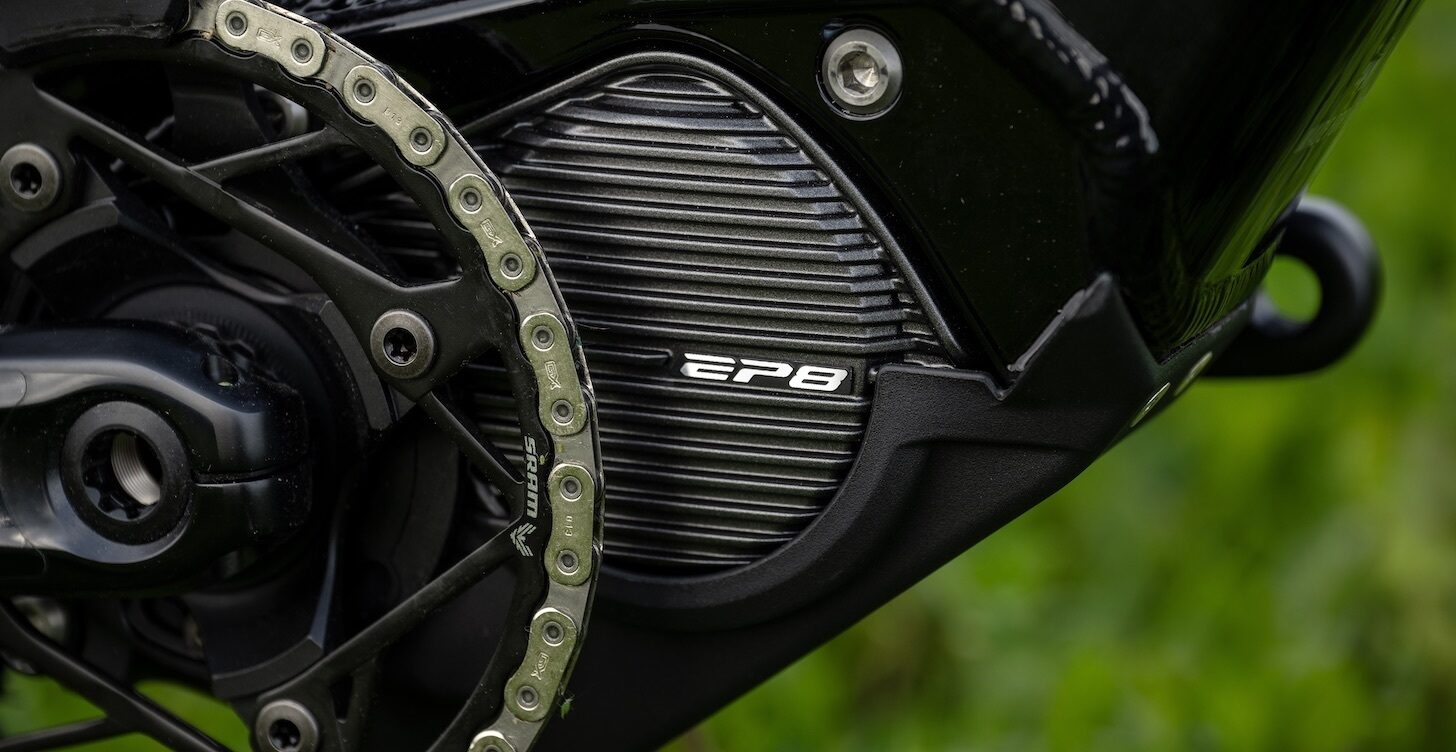

- Shimano Motor: Shimano’s EP801 system is both powerful and lightweight, with the mid-drive motor with a 250W boost.
Full Specification
- Frame: Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
- Rear Shock: RockShox Super Deluxe Ultimate, 210x55, 25mm x M8 Hardware, Custom Tune
- Fork: RockShox Lyrik Ultimate, 150mm Travel, 29", 110x15 Maxle Stealth, 42mm Offset
- Motor: Shimano EP801, 250W, 85Nm

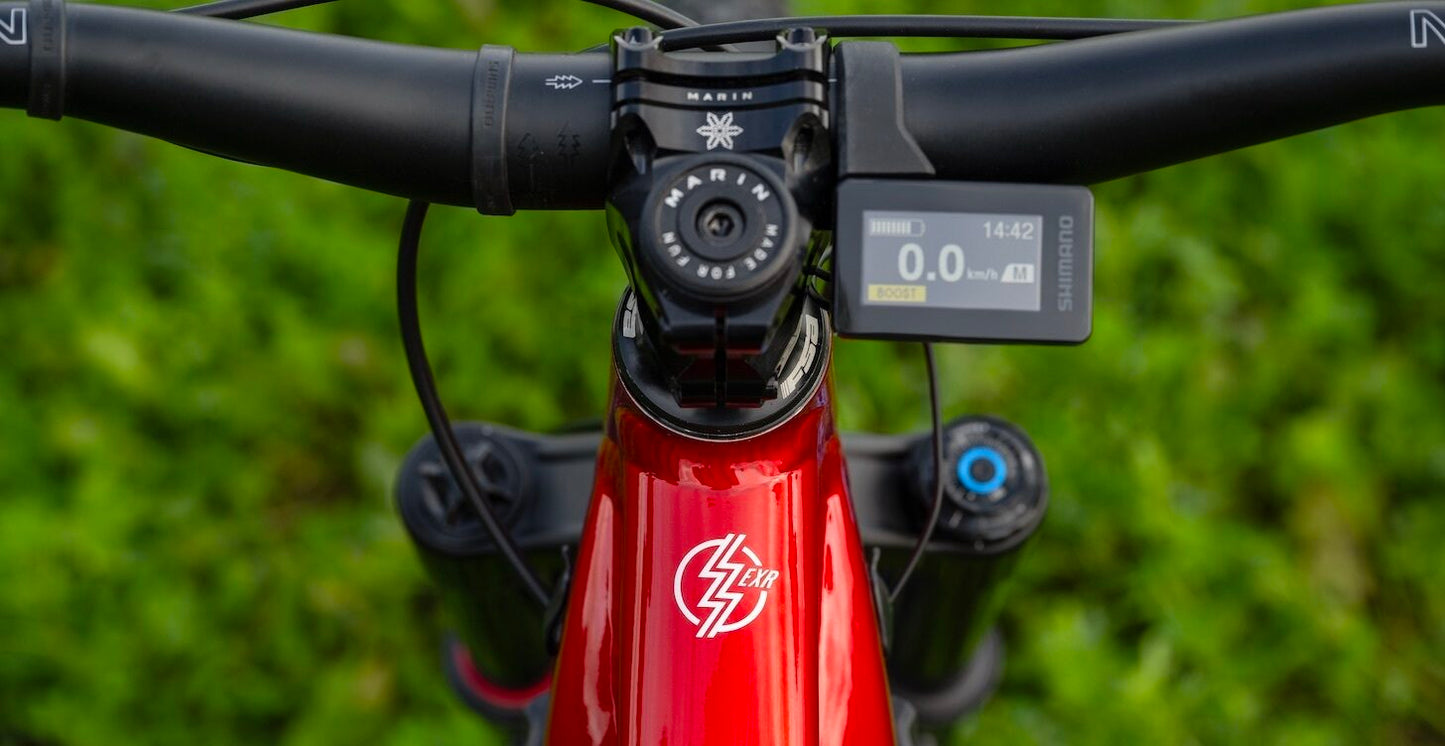

- Controller: Shimano SC-E600 Display, Shimano SW-EN600L Left Hand Switch for Assist Mode Change
- Battery: Shimano BT-8036, Internal 630Wh
- Charger: Shimano Battery Charger EC-E6002
- Shifters: SRAM AXS POD
- Crankset: Shimano XT M8150, 160mm Length, 38T Steel SRAM Chainring
- Cassette: SRAM CS-XS-1275, 10-52T
- Chain: SRAM GX
- Front Derailleur: N/A

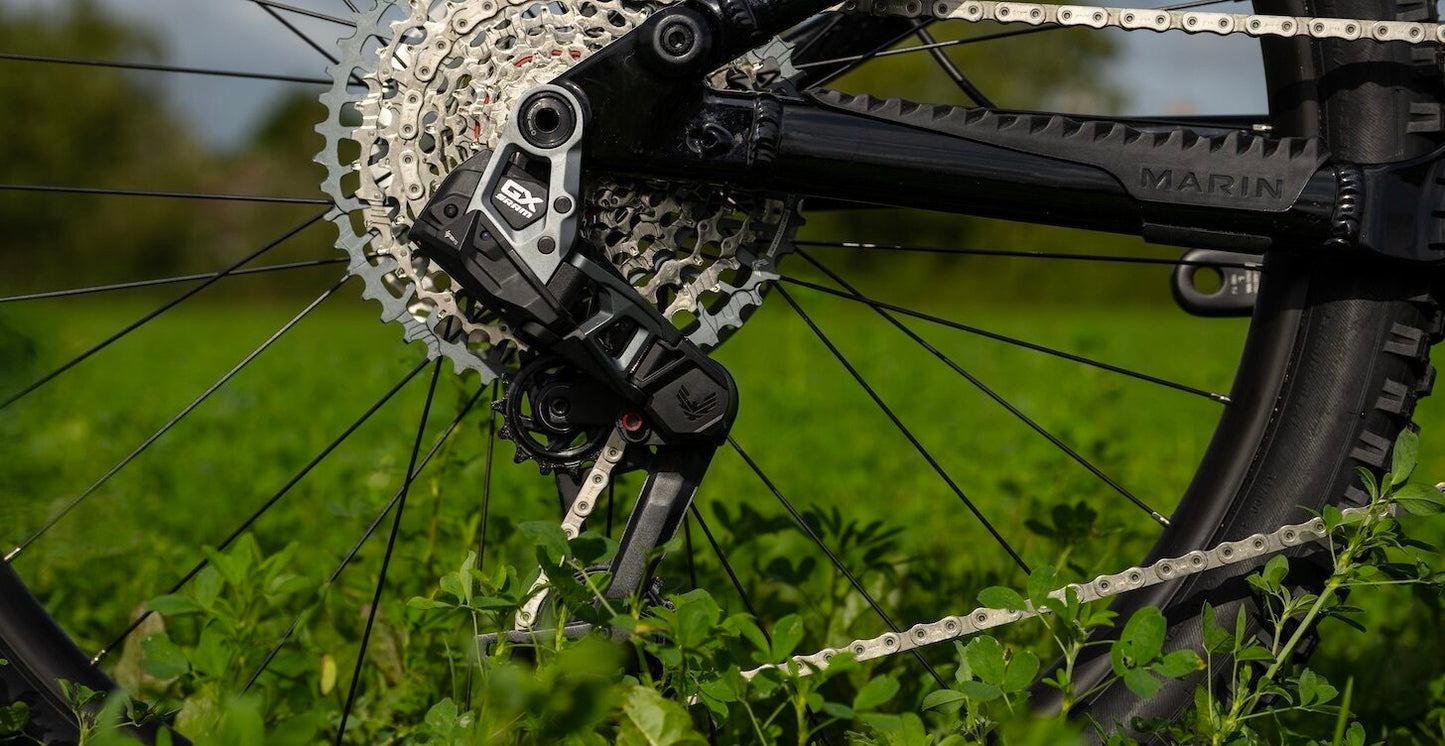

- Rear Derailleur: SRAM GX AXS
- Bottom Bracket: Integrated
- Pedals: Marin MTB Plastic
- Rims: Marin Aluminium Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
- Front Hub: Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H
- Rear Hub: Formula DC-711, 110x15, 6-Bolt, 32H
- Front Tyre: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Overide E-Specific Casing
- Rear Tyre: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing
- Brakes: SRAM Code Bronze, 4-Piston Hydraulic Disc, 203mm HS2 Rotor, 180mm HS2 Rotor w/ Bolt on Speed Sensor
- Handlebars: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
- Handlebar Grips: Marin Grizzly Single Clamp Locking
- Stem: Marin CNC, 35mm Length, 35mm Bar Bore
- Saddle: Marin eMTB Saddle
- Seatpost: Rock Shox Reverb AXS with POD remote, Size S: 125mm, Size M: 150mm, Size L/XL: 170mm
-
Extras: Shimano CS-EM800 Chain Guide, Shimano Battery Charger EC-E6002, CushCore Tire Inserts and Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap
- Weight: N/a
- Range, Charging Time: 25-90km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions)
Size Guide for Marin Rift Zone E
| Size | Rider height range |
| S | 5'3" - 5'6" |
| M | 5'6" - 5'10" |
| L | 5'10" - 6'2" |
| XL | 6'2" - 6'4" |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
