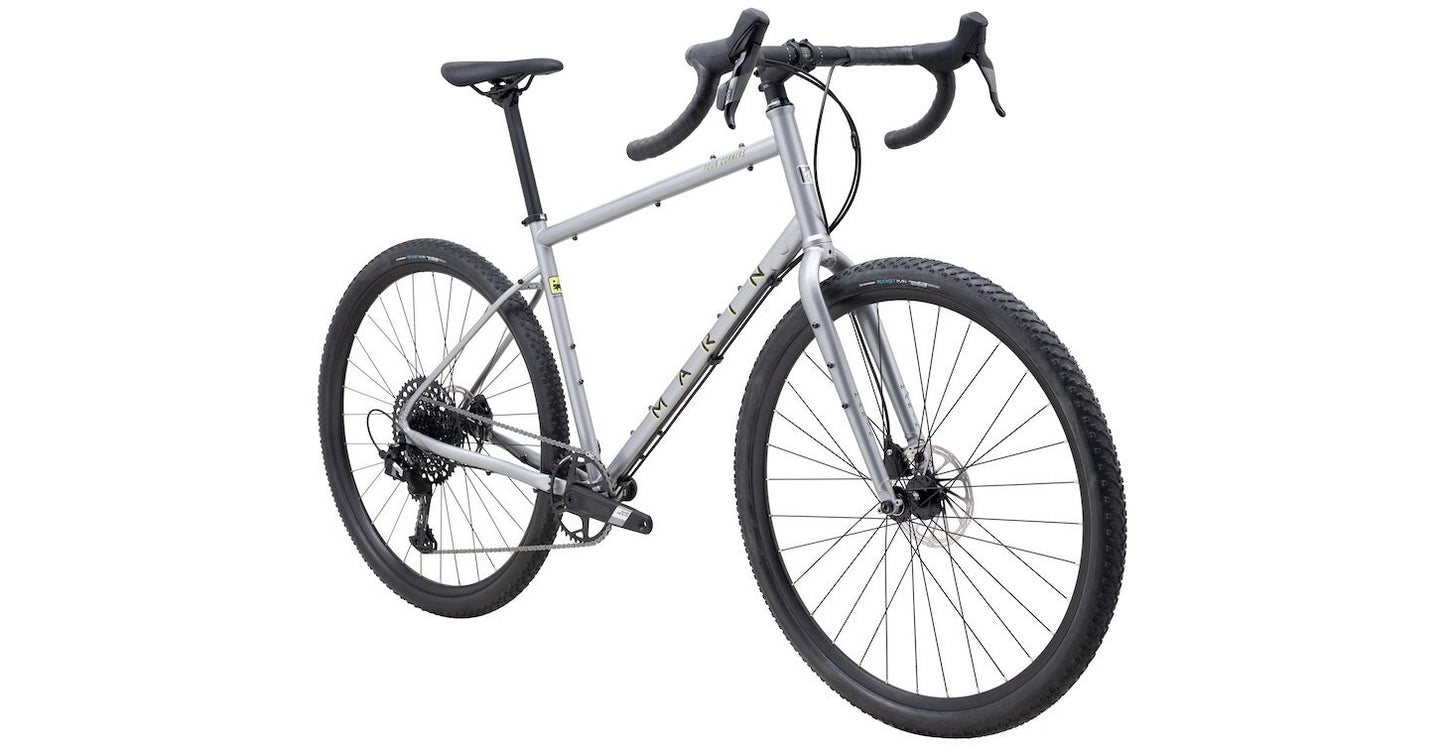

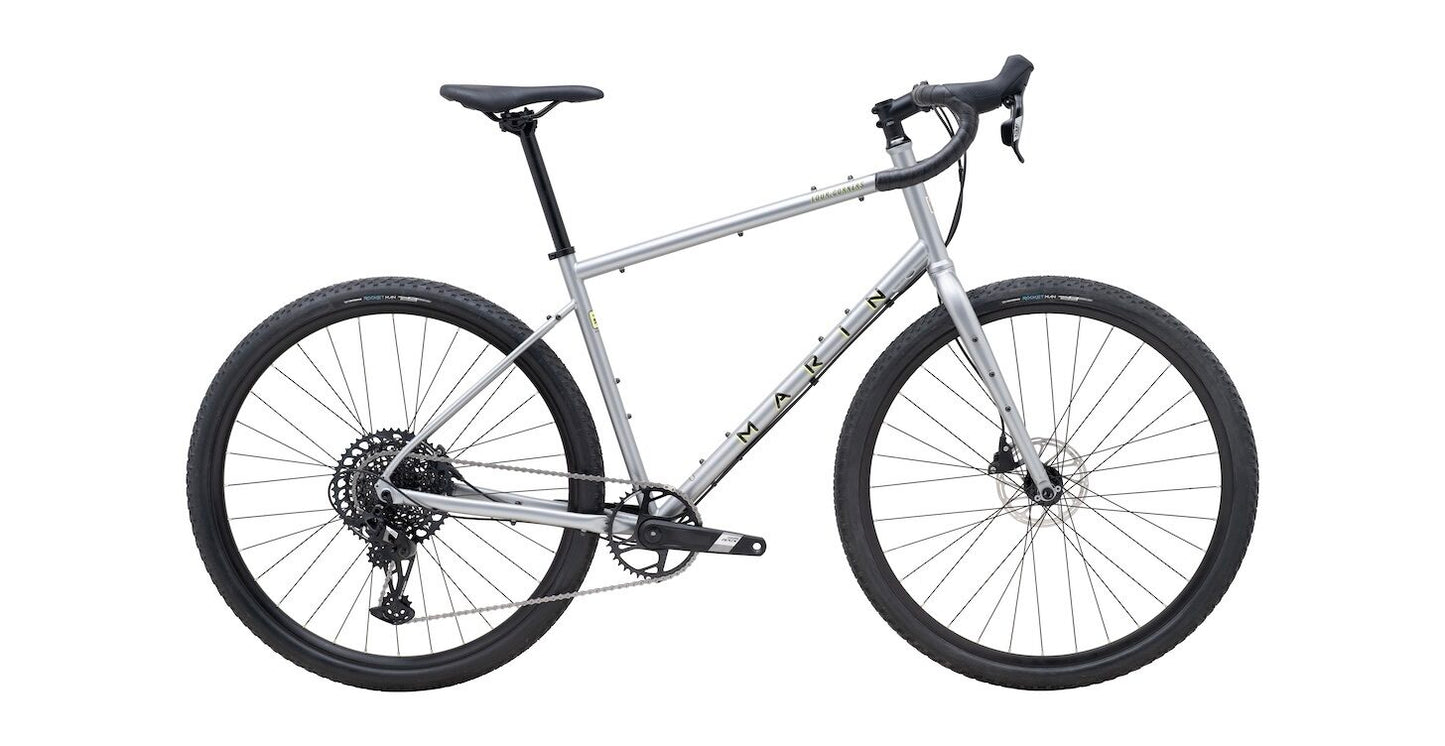

MARIN FOUR CORNERS 2 GRAVEL BIKE 2025 GLOSS Ti GREY/YELLOW/BLACK
Product Details - Marin Four Corners 2 Gravel Bike 2025 Gloss Ti Grey/yellow/black
Product Details - Marin Four Corners 2 Gravel Bike 2025 Gloss Ti Grey/yellow/black
Midweek commute, weekend adventures. No problem for the Marin Four Corners, our steel-framed explorer that's as comfortable on the asphalt as in the dirt.

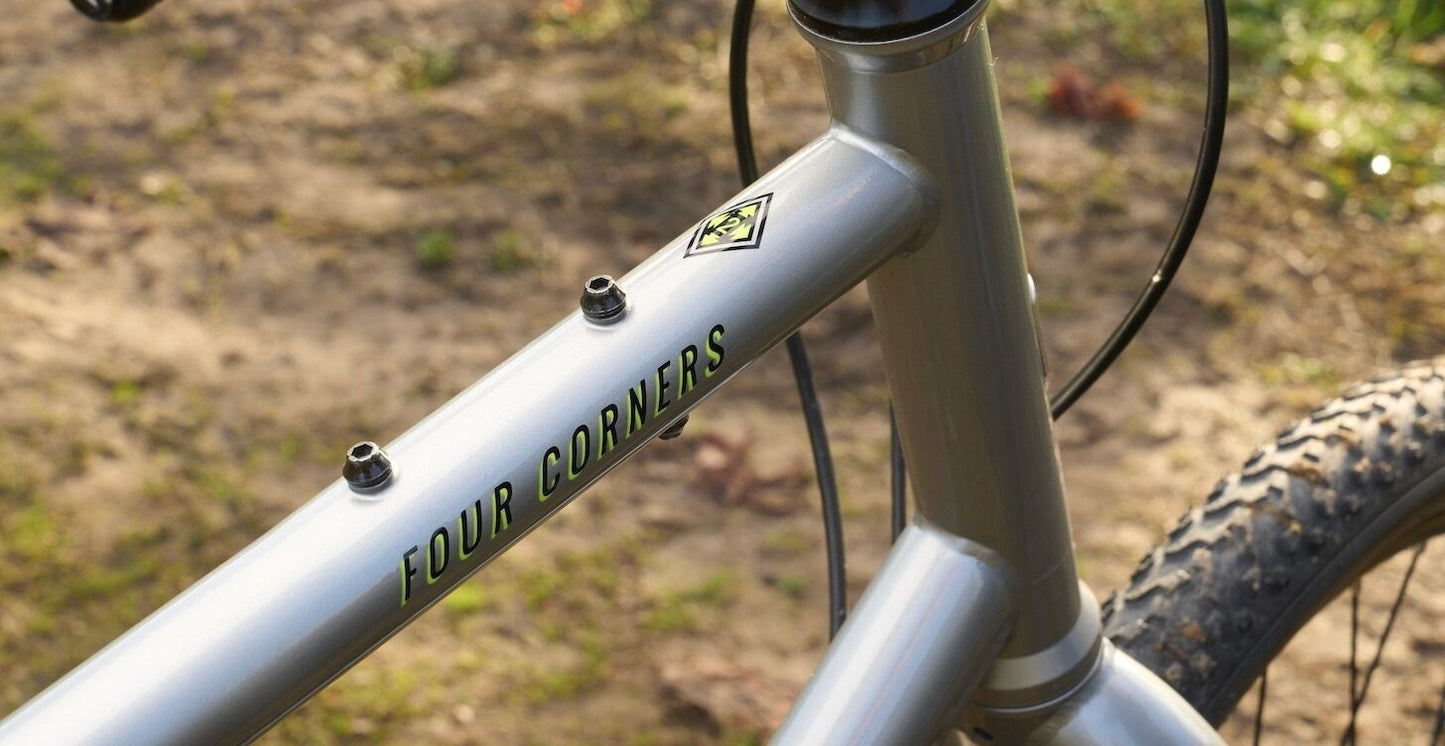

A double-butted 4130 CrMo steel frame and fork are designed to be comfortable on rough roads and handle fully loaded-touring and bikepacking. We've included six bottle mounts, rack and fender eyelets, lowrider fork mounts, generous tire clearance, and disc brakes to set you up for all conditions and all terrain.
Don't be fooled; that classic frame material doesn't mean low-tech. We've used biometric fit data to offer five different frame sizes, with size-matched 650b or 700C wheels to suit riders between 4'11 perfectly" – 6'4". A high front end creates all-day comfort and heads-up visibility; off-road-ready geometry means you won't skip a beat when you head off the asphalt and explore Beyond Road.
New for '24, the Four Corners 2 takes all the elements that make the Four Corners fantastic and adds a Series 3 double-butted CrMo frameset, a simpler, wide-range SRAM 1x12 speed Apex drivetrain, and matching, powerful Apex 1 hydraulic disc brakes. The rubber meets the road/path/trail with wider, 44mm Vee Tire Quickstyx tubeless-compatible tires, and the frame can accept tyres up to 50mm wide.
Key Features
- CroMo Steel Frame: With disc brakes, full fender and rack mounts, Fork leg bottle or accessory cage mounts on the base Four Corners, along with traditional front triangle bottle mounts (three on sizes M-XL, two on XS-S) provide up to six bottle cage mounts total.
- Powerful Disc brakes: For minimal maintenance and all-conditions stopping power.
-
Adventure ready: For proper fit and bike handling sizes XS and S use 650B wheels, sizes M, L, and XL use 700C.
Full Specification
- Frame: Series 3 Double Butted CrMo, Size-Specific Wheels (XS, S = 650B, M, L, XL = 700C) , Biometric Geometry, Fender and Rack Mounts, 142x12mm Thru-Axle, Flat Mount 160 Disc Mount
- Fork: Series 3 CrMo, 100x12mm Thru-Axle, Flat Mount 160 Disc Mount, Fender, Rack, and Bottle Cage Eyelets
- Shifters: SRAM Apex 1 1x12-Speed
- Chainset: SRAM Apex 1, 40T
- Cassette: SRAM CS-XG-1275, 10-52T
- Chain: SRAM NX
- Front Derailleur: N/A
- Rear Derailleur: SRAM Apex 1 12-Speed

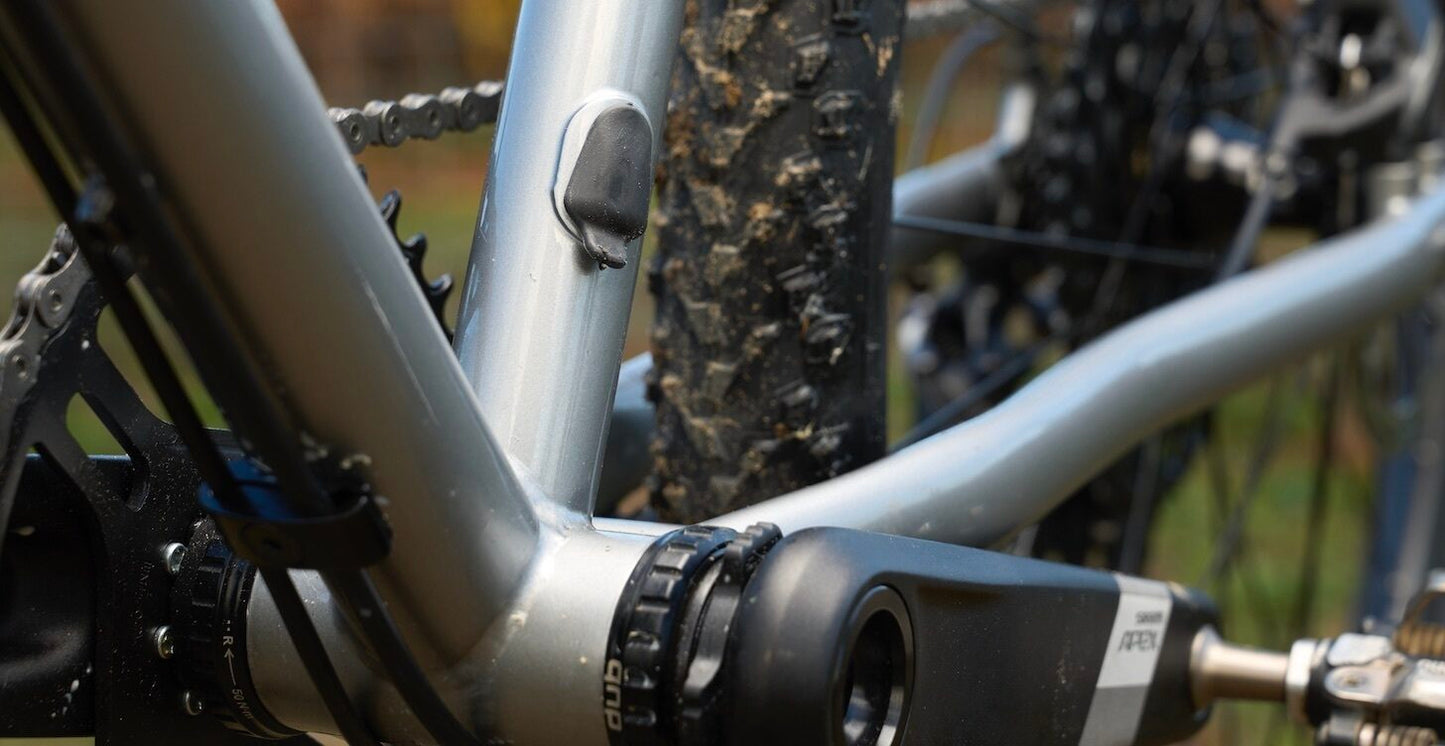

- Bottom Bracket: SRAM DUB BSA
- Pedals: Marin Oso OEM Nylon Platform
- Rims: Marin Aluminium Double Wall, 25mm Inner, Disc Specific, Tubeless-Compatible
- Front Hub: Forged Aluminium Alloy, Disc, 32H
- Rear Hub: Forged Aluminium Alloy, Disc, 32H
- Tyres: Vee Tire Co., Rocket Man, 650/700x44, Tubeless-Compatible

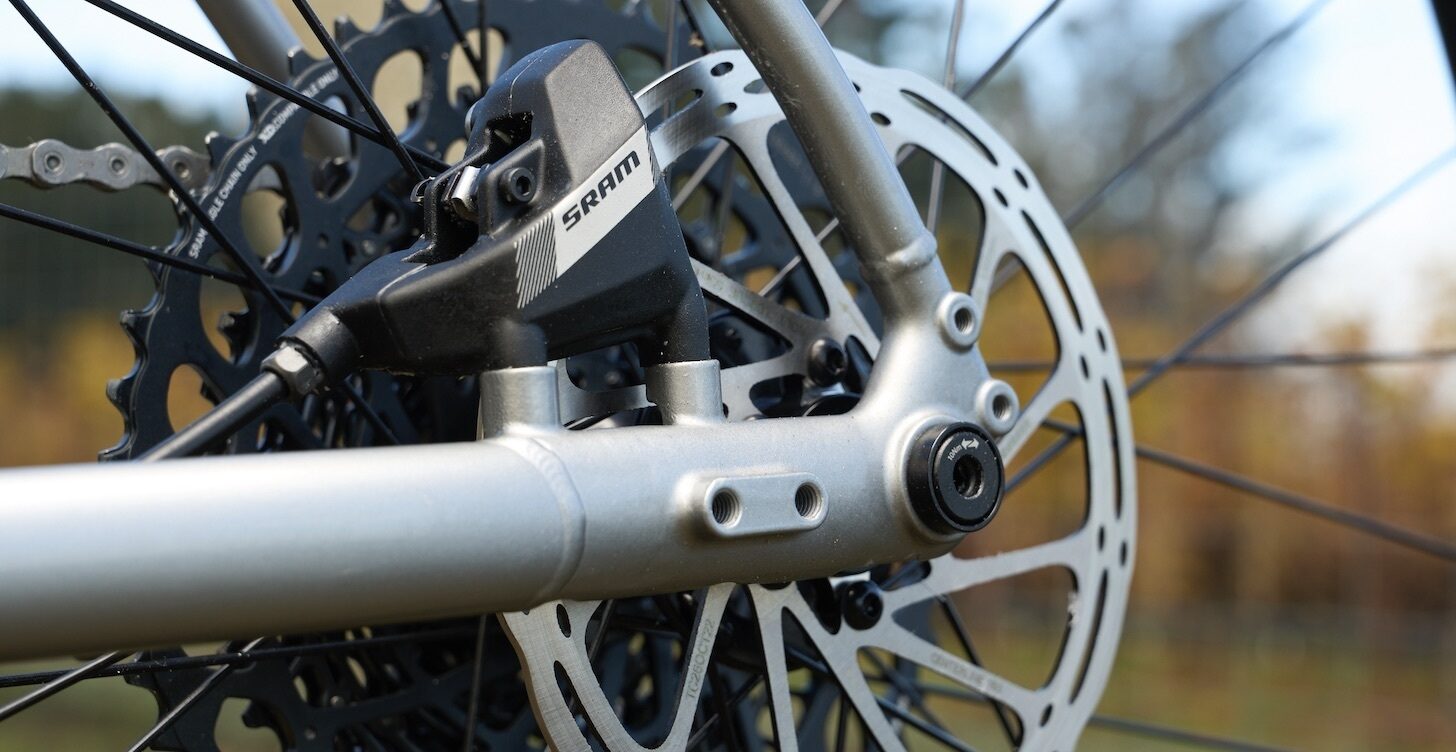

- Brakes: SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor
- Handlebar Tape: Marin Comfort Bar Tape, Shock Absorbing Gel Pads
- Handlebar: Marin Butted Alloy, Compact 16º Flared Drop
- Headset: FSA No.42/ACB
- Stem: Marin 3D Forged Alloy
- Saddle: Marin Beyond Road Concept
- Seatpost: Marin Alloy, 27.2mm
- Weight: N/A
Size Guide for Marin Four Corners
Size | Rider height range |
XS (650B) | 4'11" - 5'3" |
S (650B) | 5'2" - 5'6" |
M (700C) | 5'6" - 5'10" |
L (700C) | 5'10" - 6'1" |
XL (700C) | 6'1" - 6'5" |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
