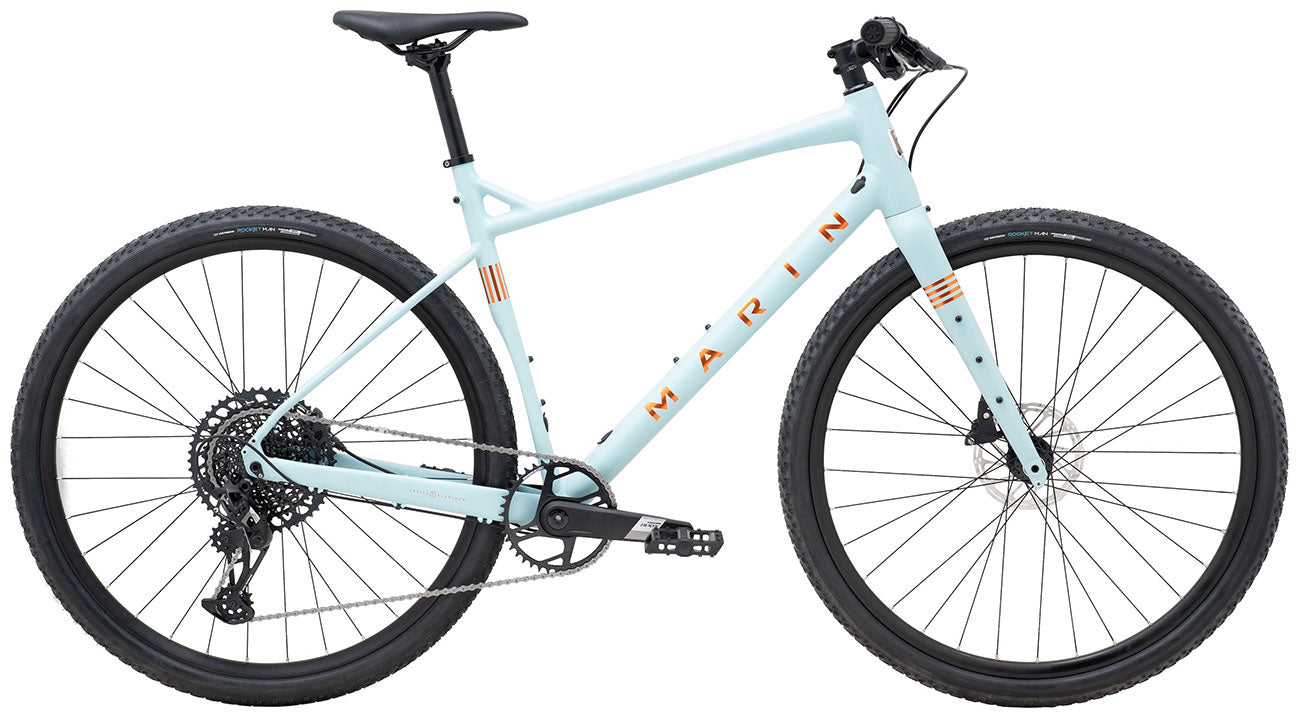

MARIN DSX 3 FLAT BAR GRAVEL BIKE 2025 BLUE

Skip to product information
1 of 1

Product Details - Marin Dsx 3 Flat Bar Gravel Bike 2025 Blue

The Marin DSX is everything you want from a modern, flat-bar gravel bike. Zippy aluminum frames, compliant forks, heaps of tyre clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders.

Taking inspiration from the Gestalt X drop bar line, we made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars.

The top offering in the DSX rigid fork lineup, the new addition to the line is built around the same Series 3 frames and carbon fork as the DSX 2, but with SRAM's wide-range Apex 1 x 12 speed drivetrain and DB-300 hydraulic disc brakes and Vee Tire's Rocketman tires, which offer a bit more bite.

Key Features Marin DSX 3 Flat Bar Gravel Bike 2025

  • Series 3 6061 Aluminium Frame: With internal cable routing, and rack and fender eyelets.
  • Powerful Disc Brakes: For minimal maintenance and all-conditions stopping power.
  • Adventure-ready Tyre Clearance: The DSX comes stock with 700x45mm tyres, with room for 29x2.1” knobbies.

Full Specification

  • Frame: Series 3 DSX, 6061 Aluminium, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
  • Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
  • Shifters: SRAM NX 12-Speed
  • Chainset: SRAM Apex 1, 40T
  • Cassette: SRAM CS-XG-1275, 10-52T
  • Chain: SRAM NX Eagle
  • Front Derailleur: N/A
  • Rear Derailleur: SRAM Apex 1, 12-Speed
  • Bottom Bracket: SRAM DUB BSA
  • Pedals: Marin Oso OE Flat
  • Rims: Marin Aluminium Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
  • Front Hub: Forged Aluminium, 100x12mm, Centerlock, 32H
  • Rear Hub: Shimano Forged Aluminium, 142x12mm, XDR, Disc, 32H
  • Tyres: Vee Tire Co. Rocket Man, 700Cx44mm
  • Brakes: SRAM DB-S300 Flat Mount Hydraulic Disc, 160mm Rotors
  • Handlebar: Marin Mini Riser
  • Handlebar Grips: Marin MTB
  • Headset: FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • Stem: Marin 3D Forged Alloy
  • Saddle: Marin DSX
  • Seatpost: Marin Alloy
  • Accessories: Bolt-On Thru-Axles F and R
  • Weight: N/A

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.


How we Build & Pack Your Bike

Aftercare

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
