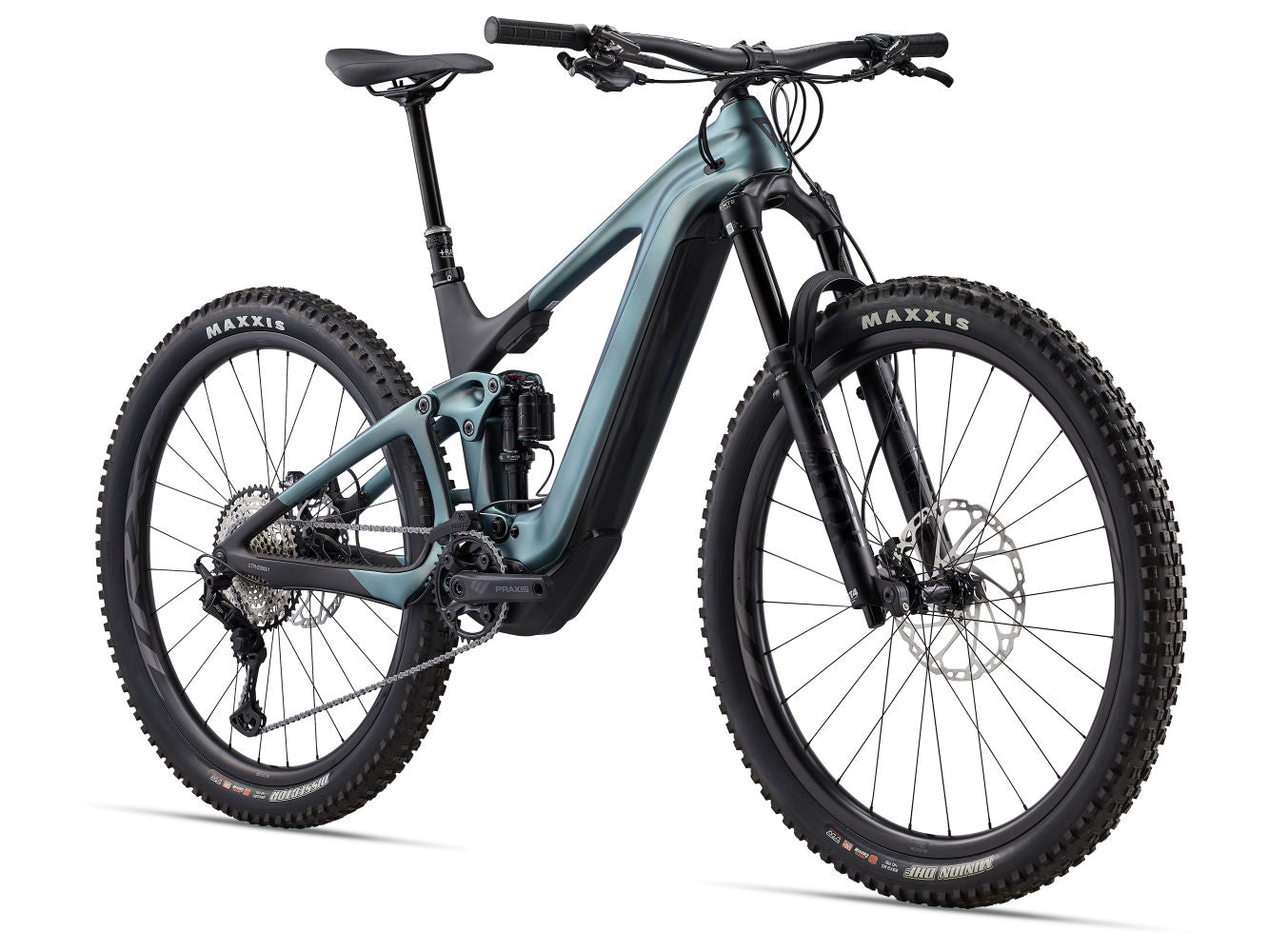

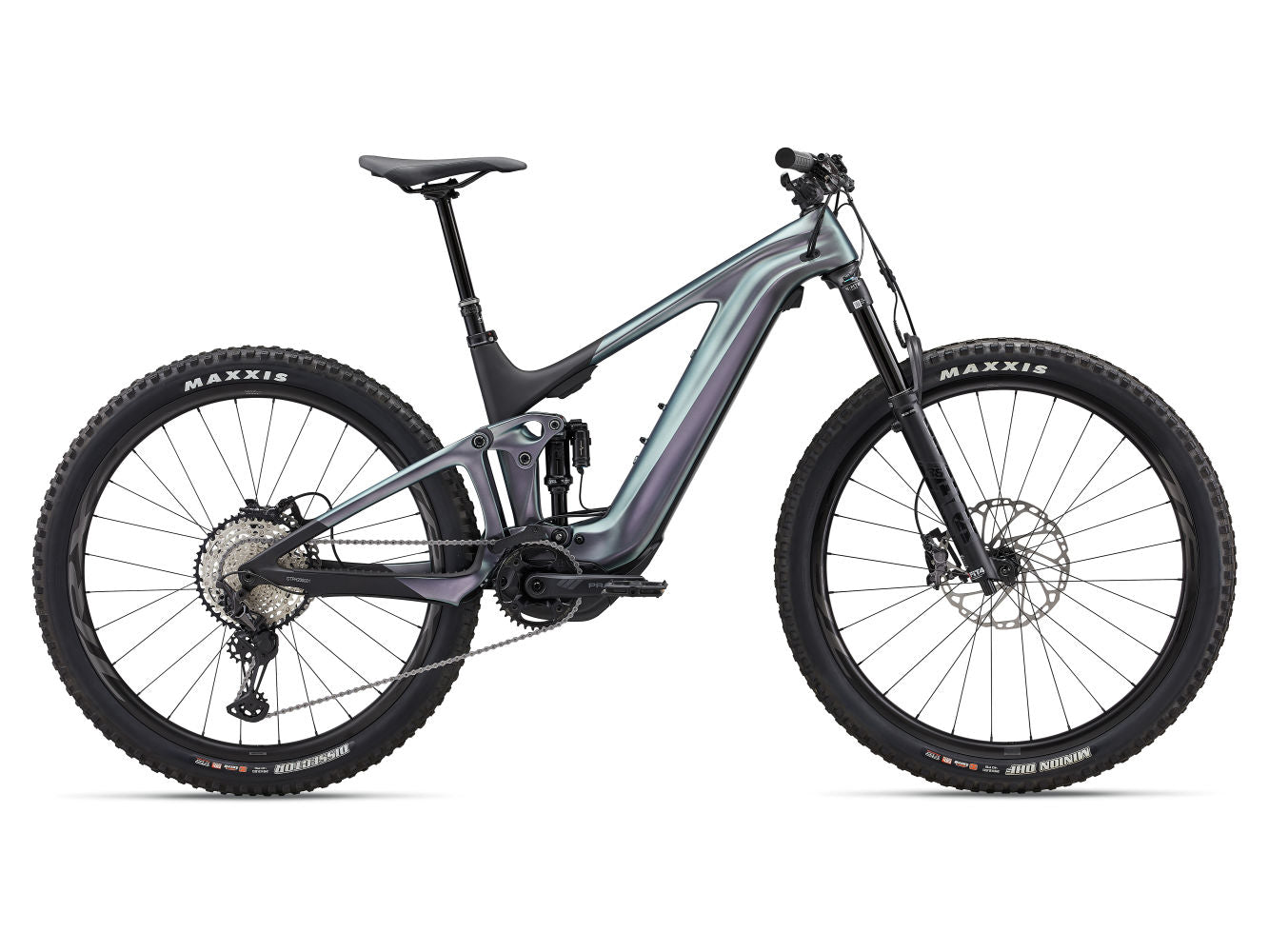

GIANT TRANCE X ADVANCED E+ 1 FULL SUSPENSION E-MTB BIKE 2023 AIRGLOW/CARBON SMOKE
Product Details - Giant Trance X Advanced E+ 1 Full Suspension E-mtb Bike 2023 Airglow/carbon Smoke
Product Details - Giant Trance X Advanced E+ 1 Full Suspension E-mtb Bike 2023 Airglow/carbon Smoke
eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated.
Minimum personal assembly is required.
A new breed of trail bike that blends power, performance and flat-out fun.
With its lightweight composite frame, plush suspension and new motor technology, you’ll never want the ride to end.
Key Features Giant Trance X Advanced E+ 1 Full Suspension eMTB Bike 2023
- Powerful and Responsive: SyncDrive Pro motor with 85Nm of torque creates powerful pedalling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.
- Adaptable to the Terrain: Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
- Clean Cockpit: RideControl Go top tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.
Full Specification
- Frame: Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
- Fork: Fox 36 Performance Elite Live Valve E-Tuned, 29er, 150mm travel, 44mm offset, Fit4 damper, Kabolt-X 110, electronic adaptive suspension, e-bike integrated
- Rear Shock: Fox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
- Motor: Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
- Controller: Giant RideControl Ergo3, grip integrated remote
- Display: Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
- Battery: Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
- Gear Shifters: Shimano Deore SLX
- Chainset: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160mm, M/L: 165mm, XL:170mm)
- Rear Cassette: Shimano CS-M7100, 10-51T, 12-speed
- Chain: KMC e.12Turbo, EcoProteq, e-bike optimised
- Front Derailleur: MRP HD2 co-moulded chain guide
- Rear Derailleur: Shimano Deore XT, 12-speed, Shadow+
- Bottom Bracket: Giant Integrated
- Pedals: Flatpedal
- Rims: e-TRX Hookless Carbon Composite Clincher, 29", 30mm inner width
- Front Hub :e-TRX 6 Bolt, Shimano Micro-spline, 110 x 15
- Rear Hub :e-TRX 6 Bolt, Shimano Micro-spline0, 148 x 12 Thru Axle
- Front Tyre: Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra
- Rear Tyre: Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra
- Brakes: Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm
- Handlebars: Giant Contact 35 Trail, 35x780mm
- Handlebar Grips: Giant Tactal Pro-E, single lock-on
- Stem: Giant Contact SL 35
- Saddle: Giant Romero, Neutral
- Seatpost: Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
- Accessories: Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
- Weight: N/A
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

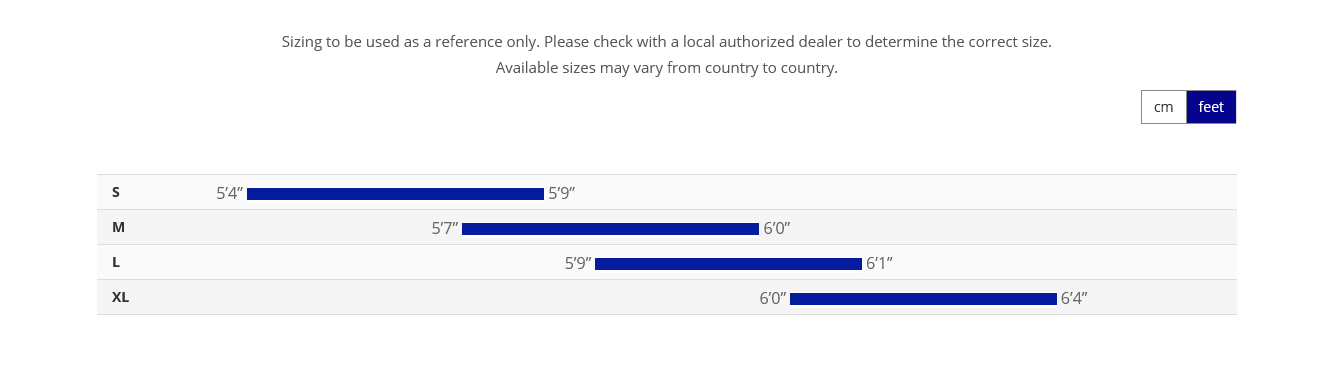

Size Guide
Size Guide
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
