GIANT TRANCE X ADVANCED 1 FULL SUSPENSION MTB BIKE 2024 GLOSS ARCTIC LIGHT

Float up technical climbs and sail down chunky descents.

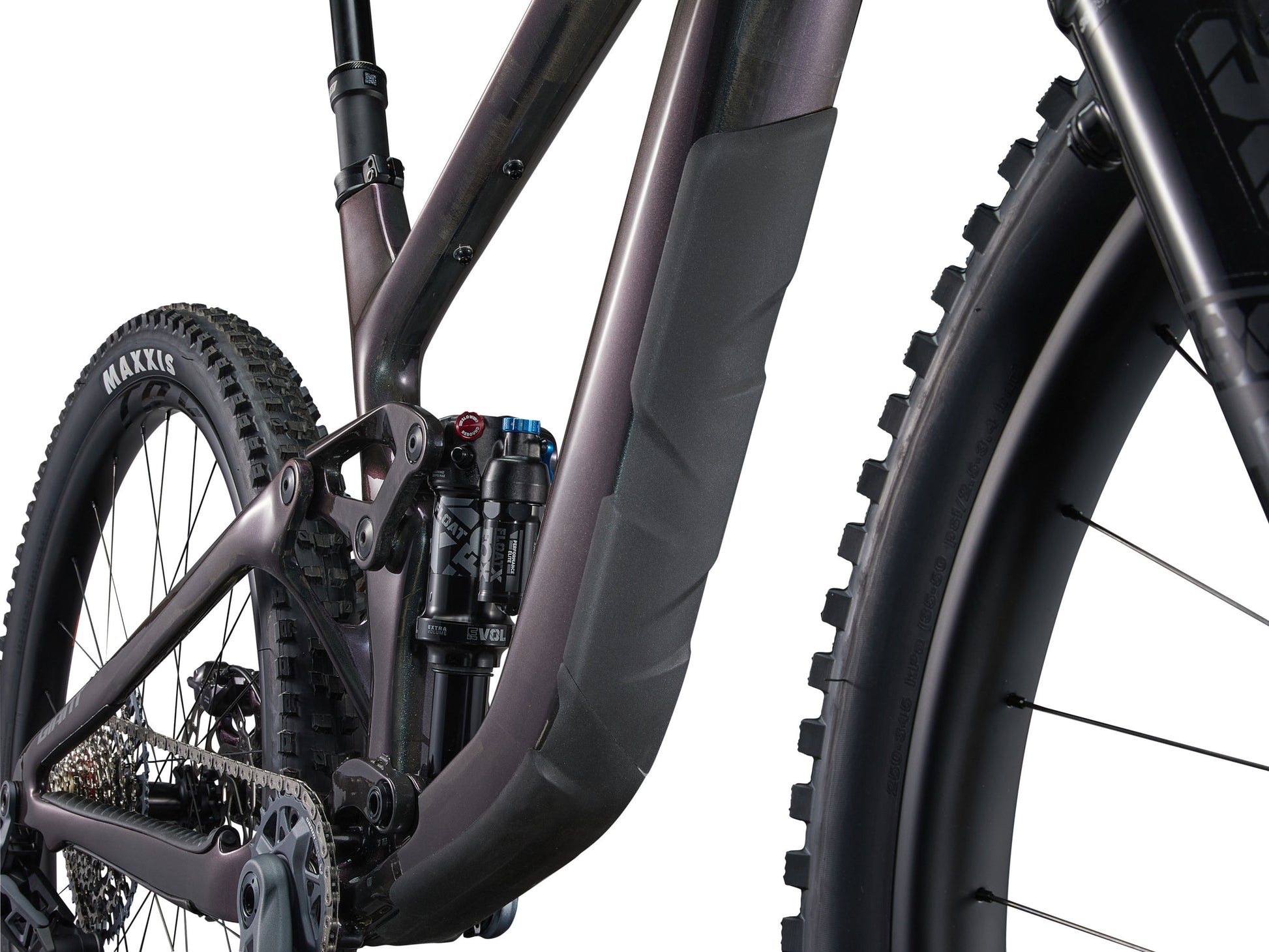

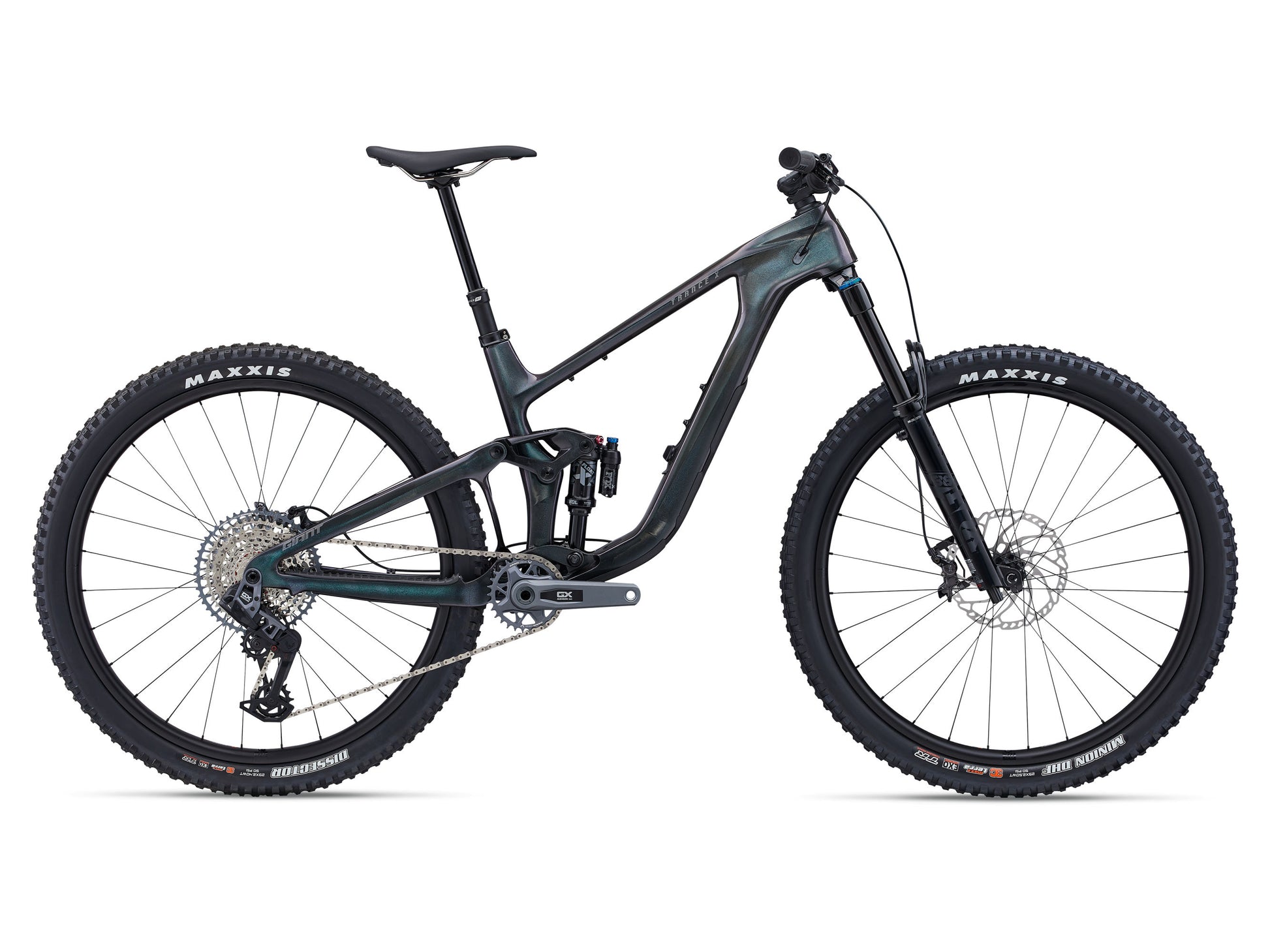

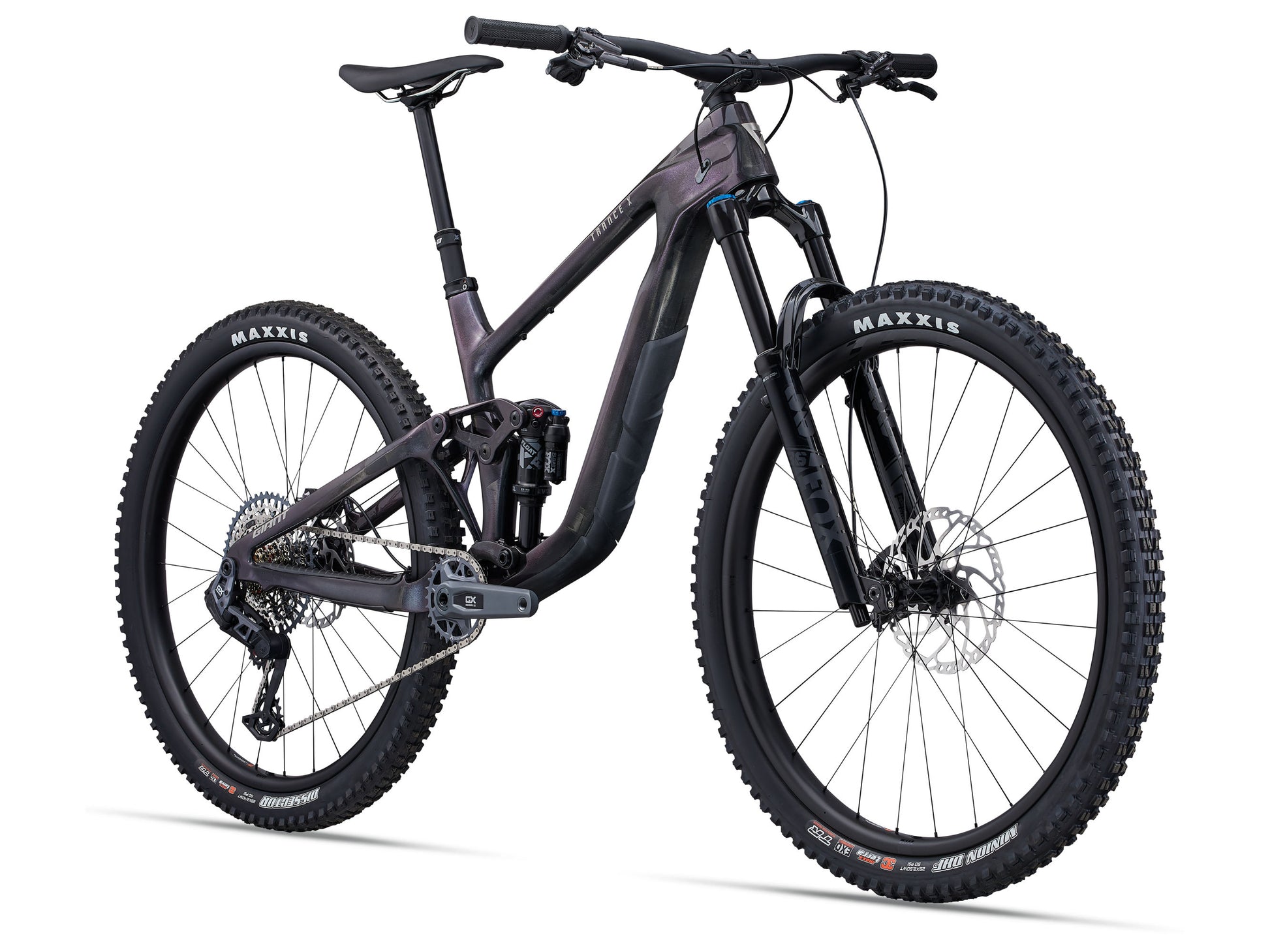

This all-new, full-composite trail bike gives you 140mm of smooth maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.

Features Giant Trance X Advanced 1 Full Suspension MTB Bike 2024

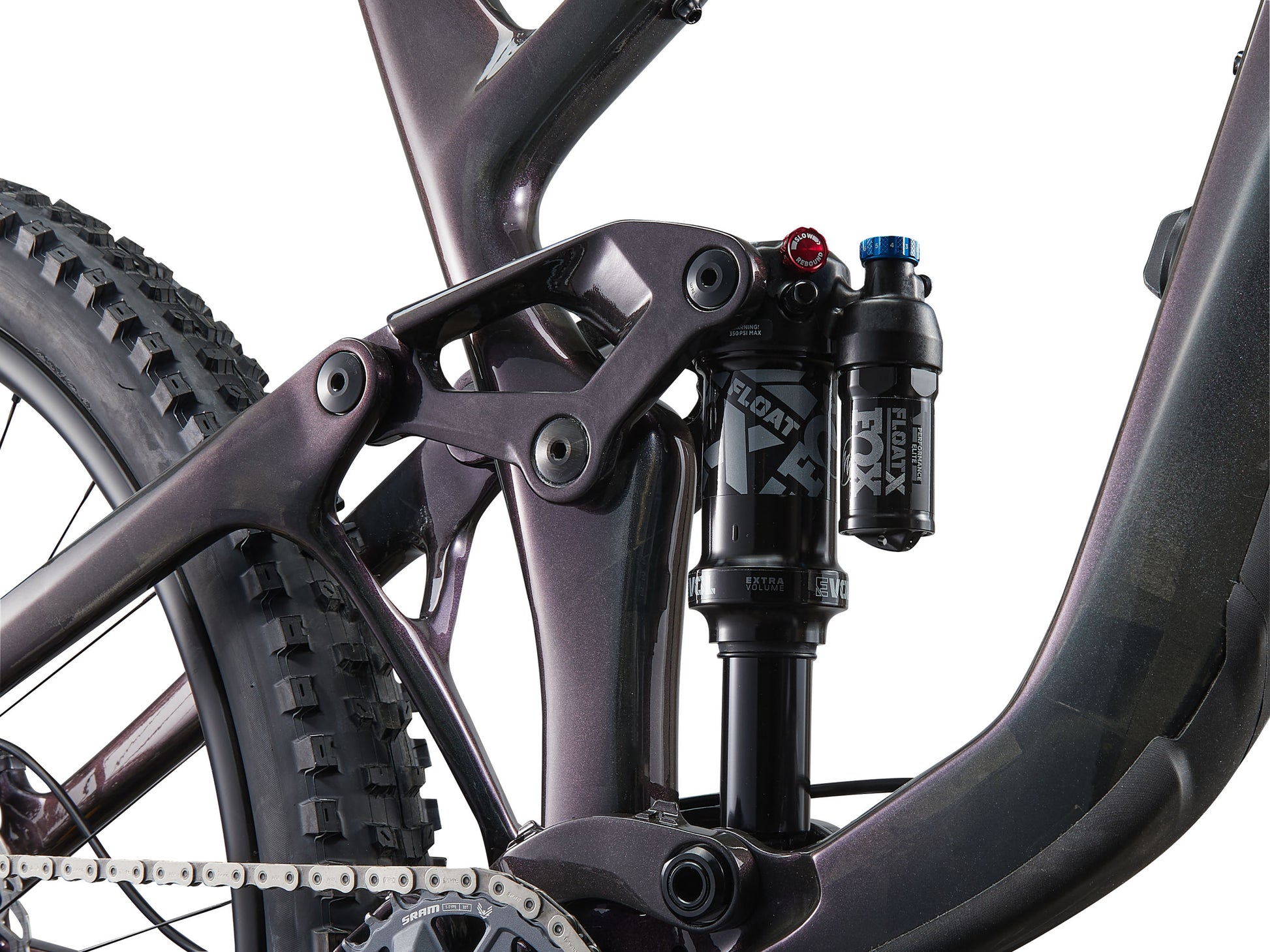

• More Travel: New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.
• Adjustable Frame Geometry: A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral.
• Best of Both Wheels: All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimises stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance.

Specification

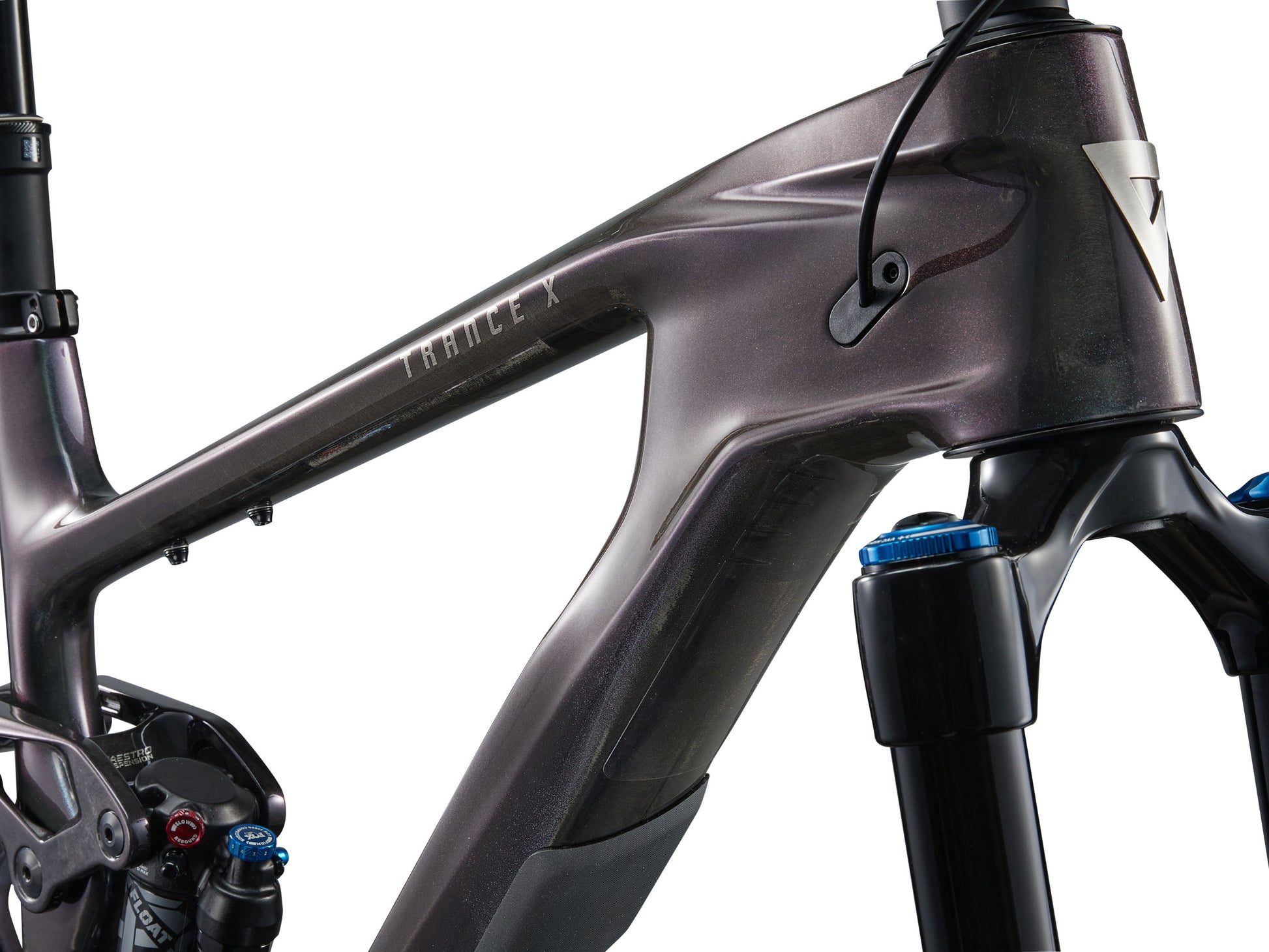

• Frame: Advanced-grade composite front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle
• Rear Shock: Fox Float X Performance Elite, 185/52.5, custom tuned for Giant
• Fork: Fox 36 Performance Elite, GRIP2 damper, 44mm offset, 150mm, 15x110 Kabolt X, custom tuned for Giant
• Gear Shifters: SRAM AXS, 1x12

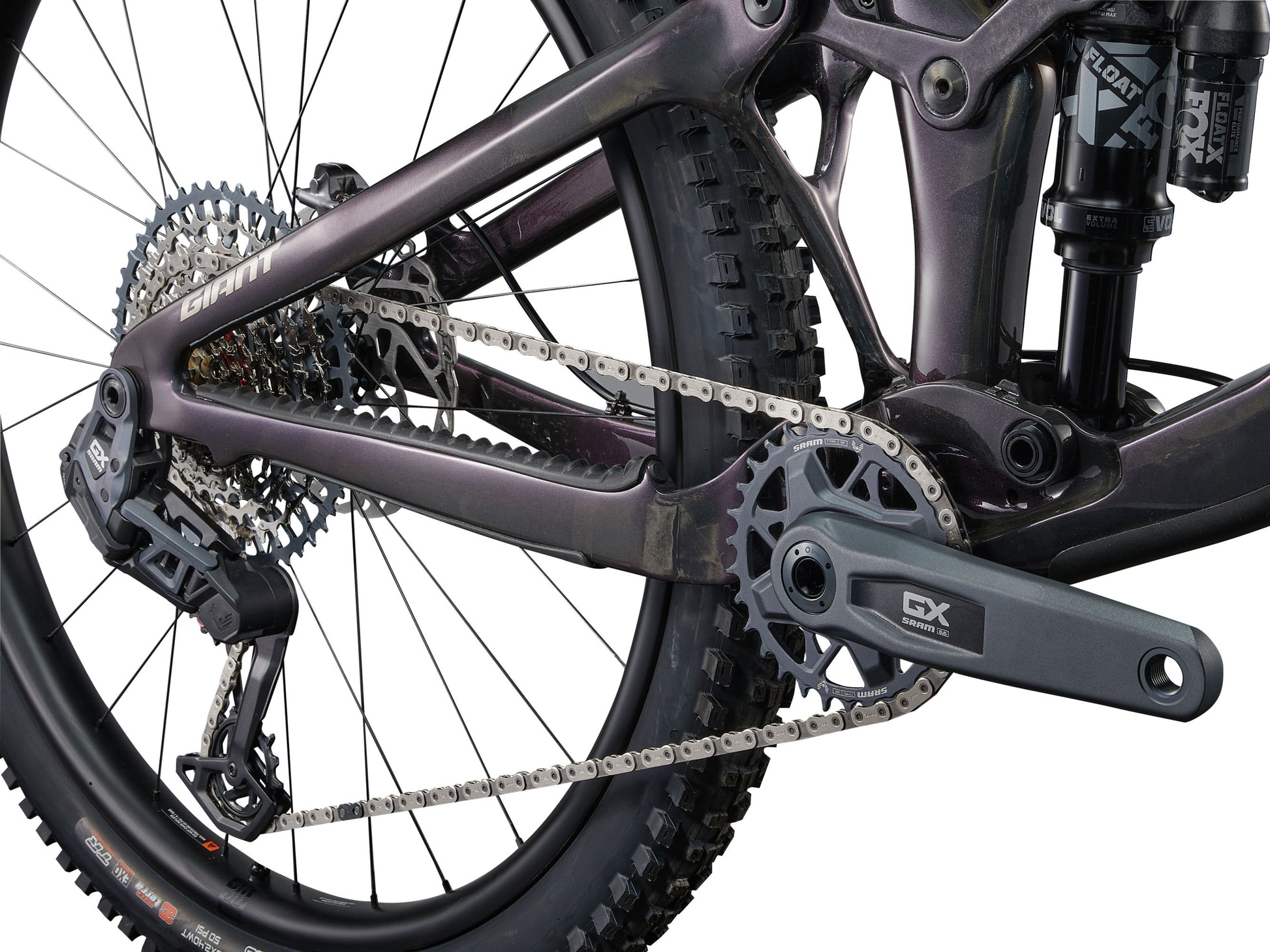

• Chainset: SRAM GX, 30t, 55mm chainline
• Rear Cassette: SRAM GX-1275, 10x52
• Chain: SRAM GX Eagle
• Front Derailleur: N/A
• Rear Derailleur: SRAM GX Eagle Transmission AXS
• Bottom Bracket: SRAM DUB, Press Fit
• Pedals: Not supplied
• Rims: Giant TRX, 29" hookless carbon wheelsystem, 30mm IW, 40mm OW, 22mm H, 72t POE, 28 SP spokes, DBL technology, XD driver body
• Front Hub: Giant MTB alloy, 6-bolt
• Rear Hub: Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, XD driver body
• Front Tyre: Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR
• Rear Tyre: Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless
• Brakes: Shimano Deore XT BR-MT8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
• Handlebars: Giant Contact SLR TR35, 780x35mm, 20mm rise
• Handlebar Grips: Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
• Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
• Saddle: Giant Romero SL
• Seatpost: Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
• Accessories: Factory tubeless set up, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector
• Weight: N/A


We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
