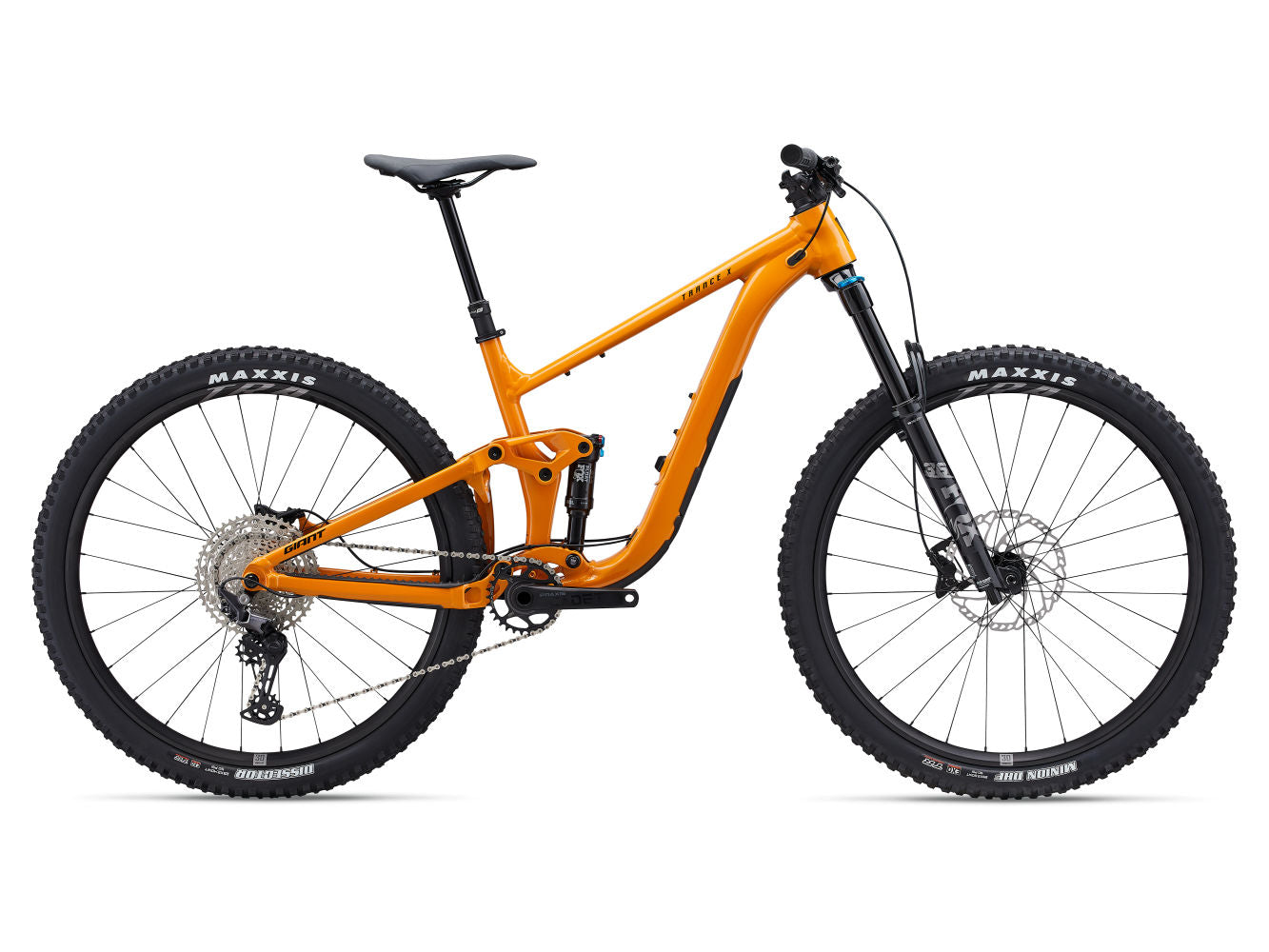

GIANT TRANCE X 2 FS MTB BIKE 2024 GLOSS SANDSTORM

Find your flow on technical trails.

With adjustable geometry, the option to change rear wheel size, and a new 140mm Maestro rear suspension setup, this versatile trail bike steamrolls singletrack with confidence and control.

Features Giant Trance X 2 MTB Bike 2024

• Proven alloy performance: Aluxx SL aluminium frameset is hand-built in-house by the world leader in aluminium engineering.
• Updated suspension: A new Maestro rear suspension system gives trail riders 140mm of rear travel and is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.
• Adjustable frame Geometry: New flip chip feature lets you change the head tube and seat tube angles

Specification

• Sizes: S, M, L, XL
• Frame: ALUXX SL-grade aluminium front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle
• Fork: Fox 36 Float Rhythm, GRIP damper, 44mm offset, 150mm, 15x110 Kabolt, custom tuned for Giant
• Shock: Fox Float Performance, 185/52.5, custom tuned for Giant
• Handlebar: Giant Contact TR35, 780x35mm, 20mm rise
• Grips: Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
• Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
• Seatpost: Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
• Saddle: Giant Romero
• Pedals: Not included
• Shifters: Shimano Deore, 1x12
• Front Derailleur: N/A
• Rear Derailleur: Shimano Deore
• Brakes: Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
• Brake Levers: Shimano Deore BL-MT401
• Cassette: Shimano Deore, 10x51
• Chain: KMC X-12
• Crankset: Praxis Cadet, 30t, 55mm chainline
• Bottom Bracket: Praxis, press fit
• Rims: Giant TRA 2, 29" wheelset, hookless aluxx wheelsystem, 30mm inner width, 40mm outer width
• Hubs: [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body
• Spokes: Sapim, 28, J-bend
• Tyres: [F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless
• Extras: Factory set up tubeless, 2.6" max tyre size, 34t max chainring size, MRP AMG CS chain guide
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
