eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated.
Minimum personal assembly is required.

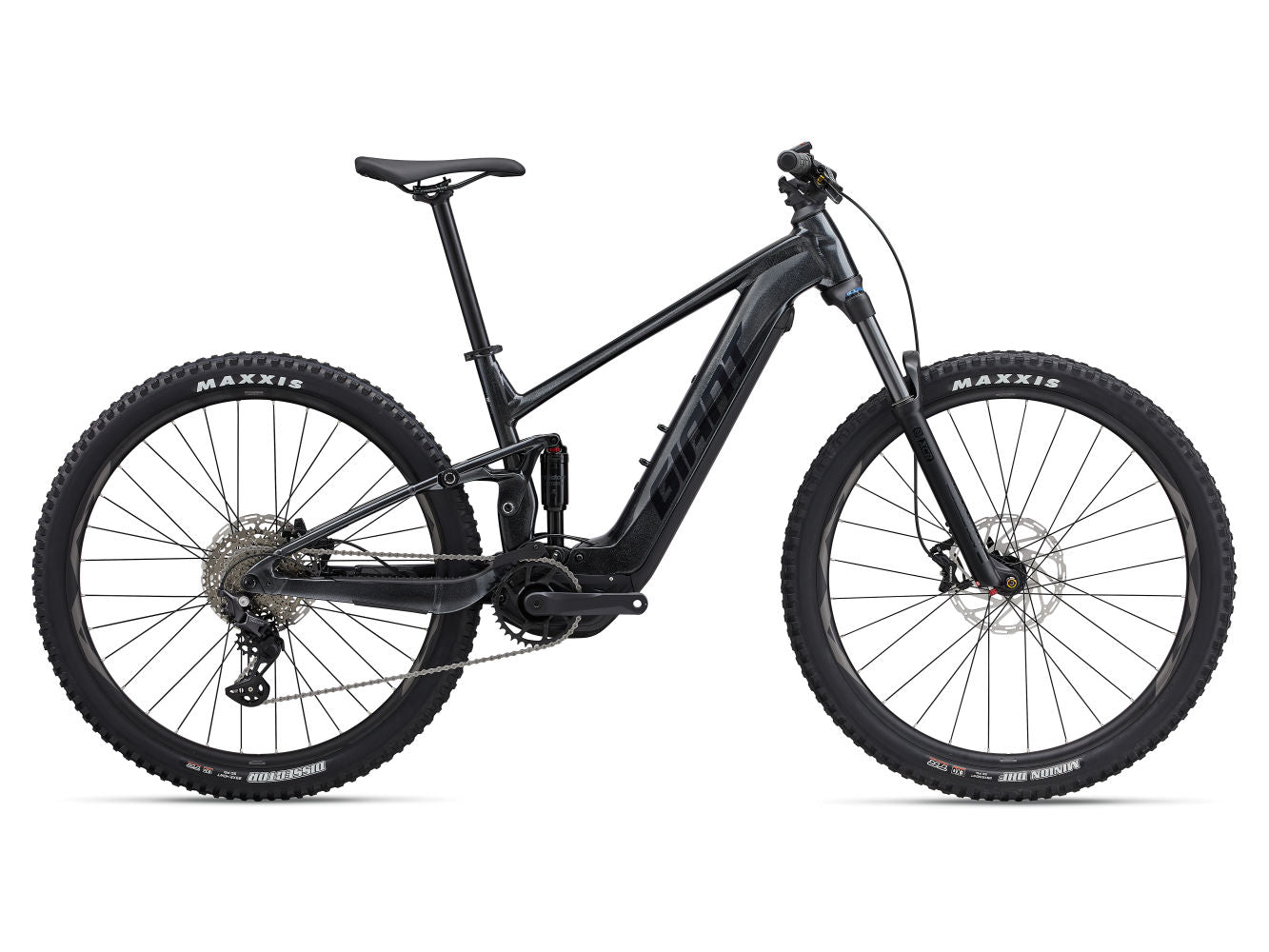

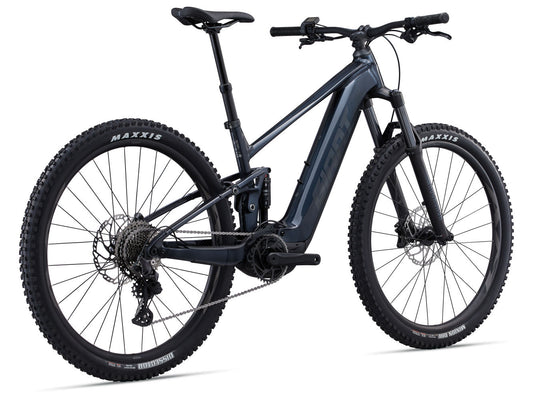

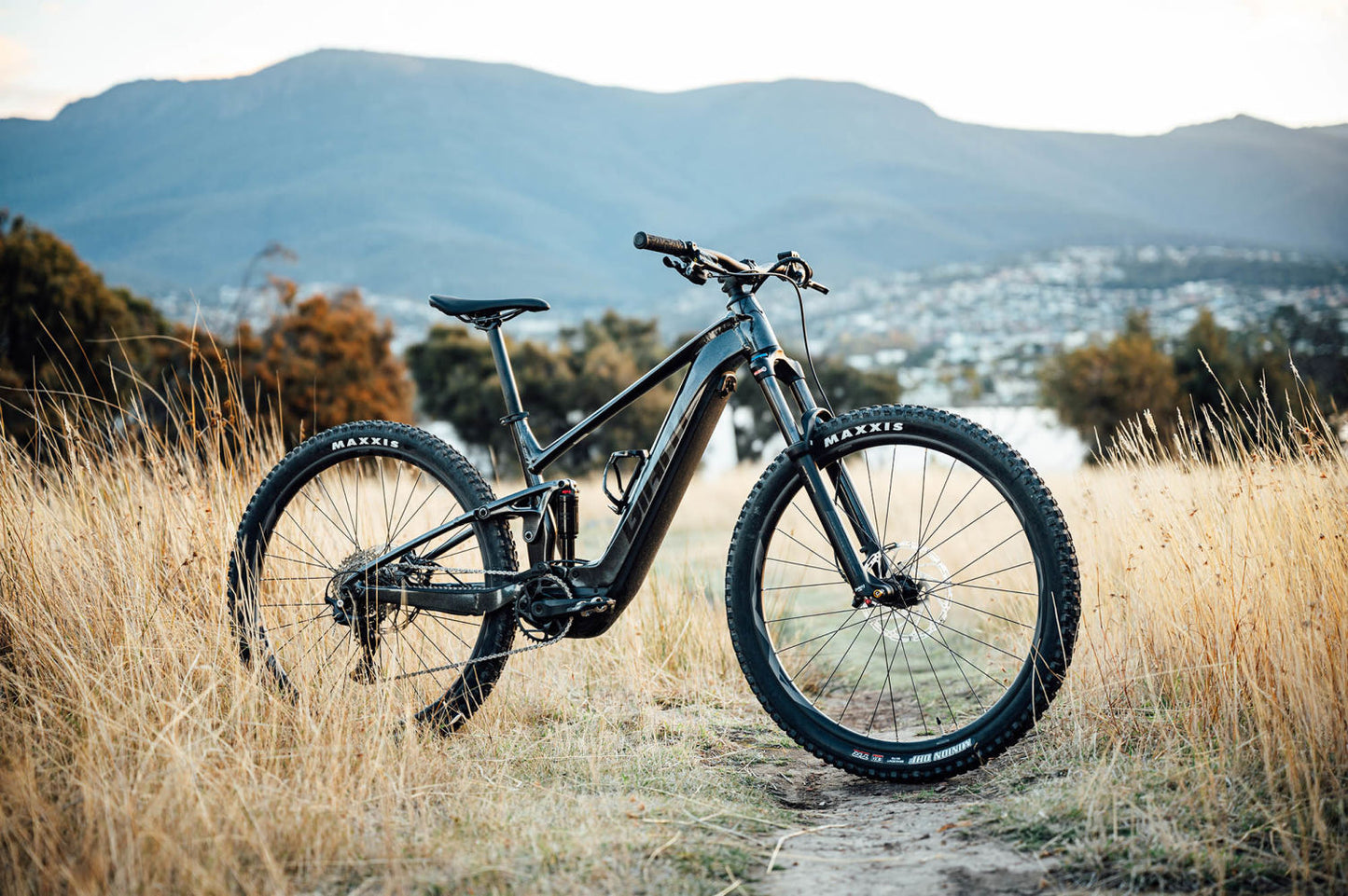

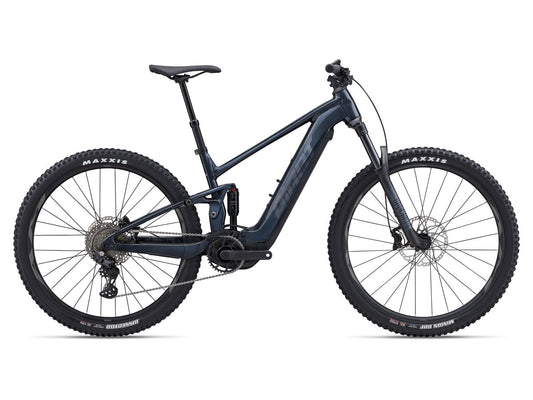

Ride trails with confidence, control and flat-out fun. This new E-bike has a powerful motor, plush suspension, and intuitive controls that can take your trail adventures to a whole new level.
Key Features
- Powerful Pedalling Support: New compact SyncDrive Sport motor has Smart Assist technology and is sonically tuned for smooth, quiet performance. It delivers 75Nm of torque for high power, even at low speeds on technical trails.
- Confident Handling: ALUXX SL aluminium frame with 120mm travel FlexPoint rear suspension and larger diameter 29-inch wheels produces a smooth, stable ride on technical trails.
- Long-lasting Fun: The new EnergyPak offers ample range and the integrated battery pack makes charging quick and easy.
Full Specification
- Frame: ALUXX SL-grade aluminium, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset
- Fork: SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle
- Rear Shock: SR Suntour Raidon R, 190x45mm, custom tuned
- Motor: SyncDrive Sport, 75Nm
- Controller: RideControl Dash
- Display: RideControl Dash, full Colour LCD screen
- Battery: EnergyPak Smart 625Wh, EnergyPak Plus 250Wh range extender compatible
- Gear Shifters: Shimano Deore LinkGlide
- Chainset: FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T
- Rear Cassette: Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
- Chain: Shimano, LinkGlide, CN-LG500
- Front Derailleur: MRP HD2 co-moulded chain guide
- Rear Derailleur: Shimano Deore LinkGlide, 10-speed
- Bottom Bracket: Giant Integrated
- Pedals: Flatpedal
- Rims: Giant AM 29", Tubeless ready, 30mm inner width
- Front Hub: Giant eTracker Boost 110x15
- Rear Hub: Giant eTracker Boost 148x12mm
- Front Tyre: Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO, 60TPI
- Rear Tyre: Maxxis Dissector 29X2.40" WT Foldable, TLR, EXO, 60TPI
- Brakes: Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
- Handlebars: Giant Connect TR Riser 31.8x780mm
- Handlebar Grips: GiantTactal single lock-on
- Stem: Giant Contact
- Saddle: Giant Sport
- Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
- Accessories: Torx 25 Battery Lock with built-in Torque limiter, Charger
- Weight: N/A
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
