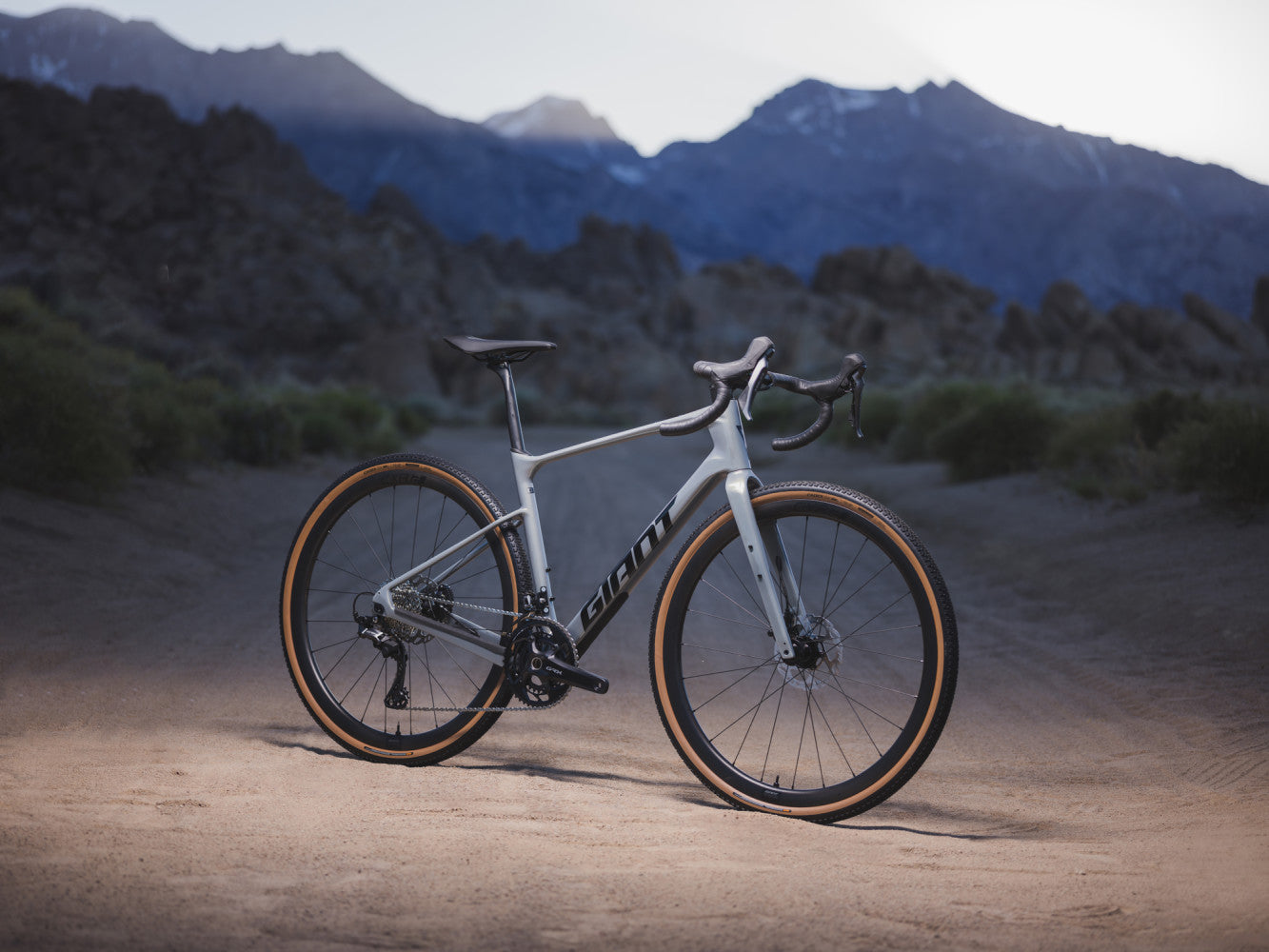

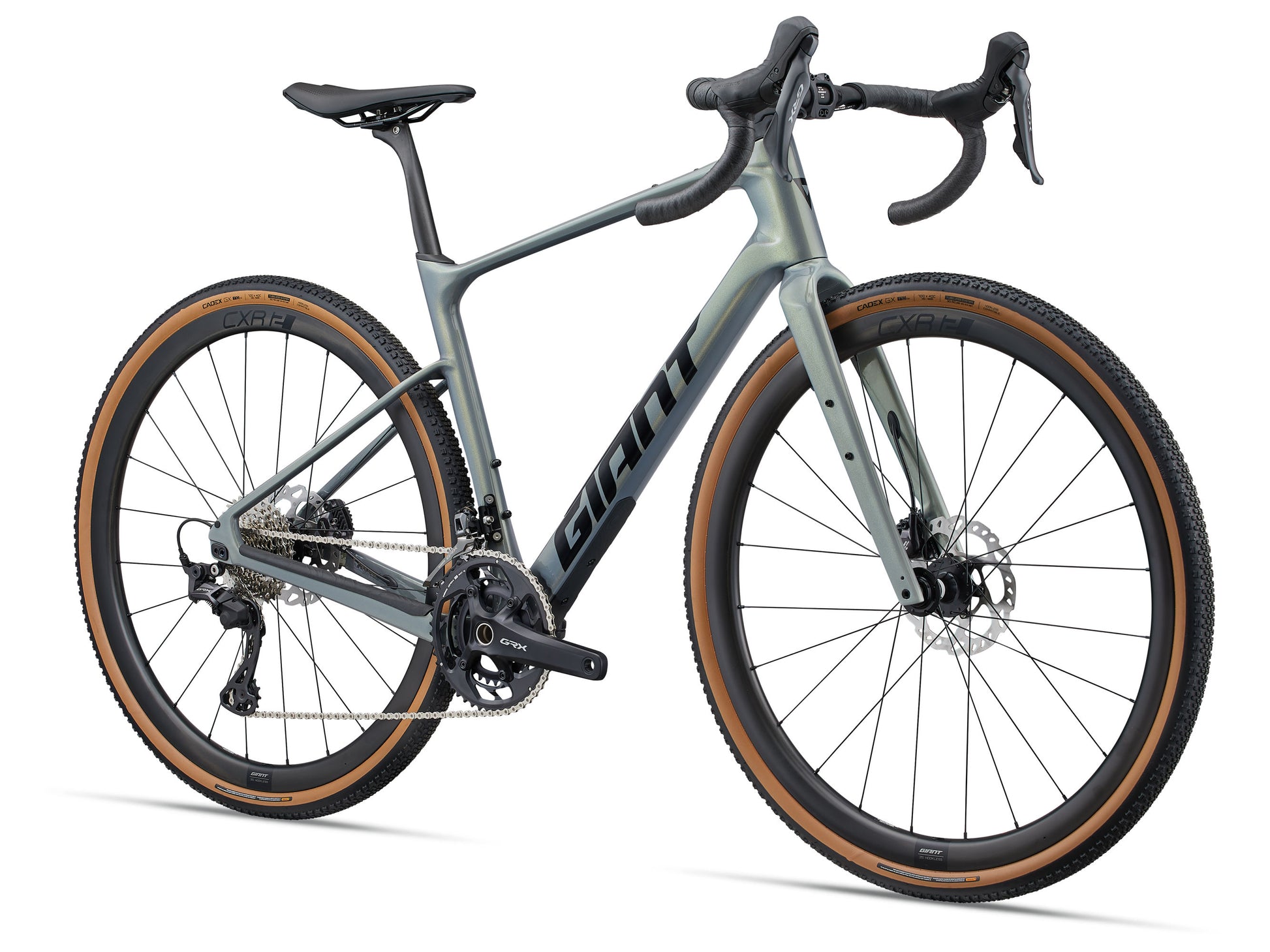

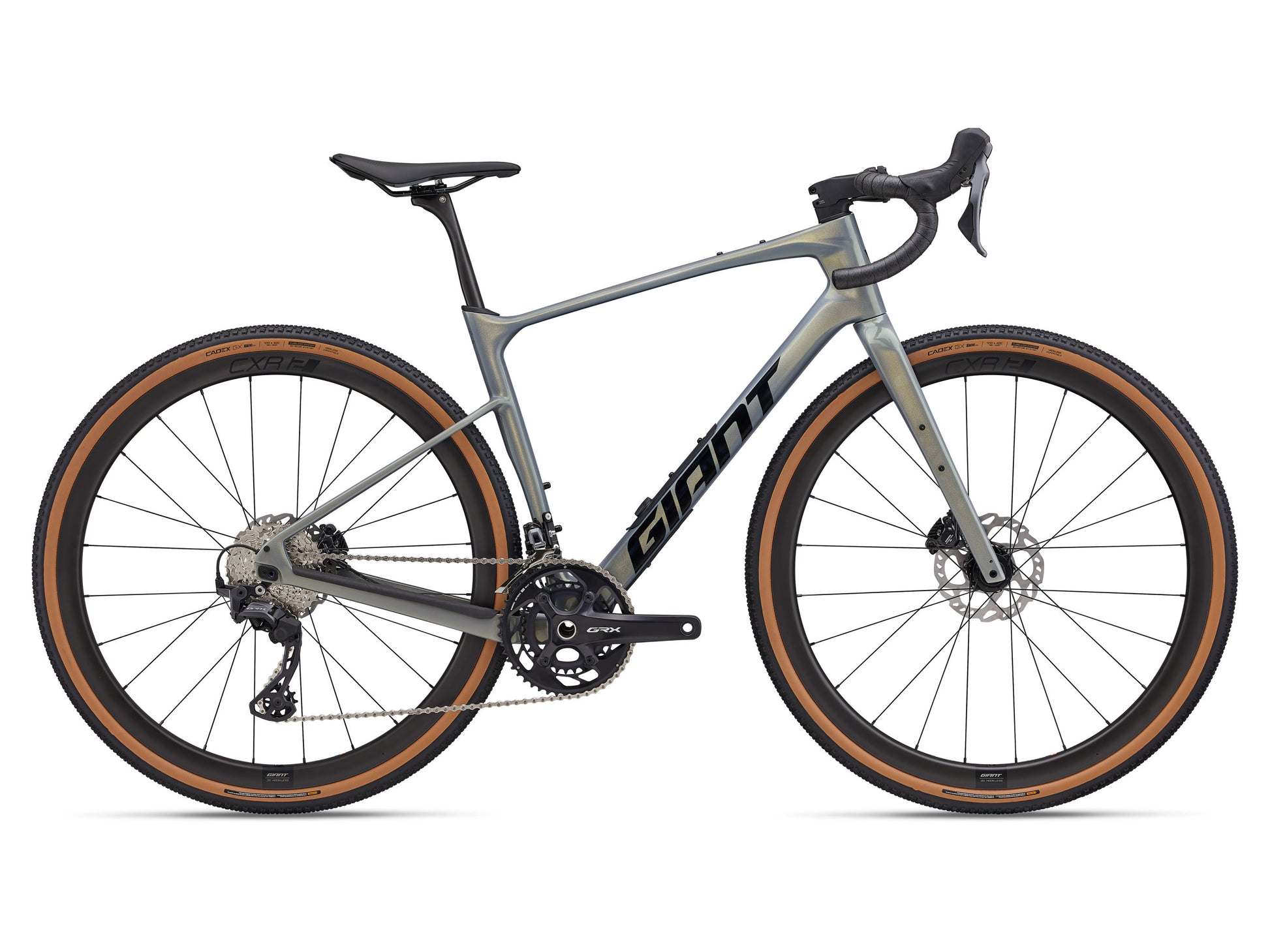

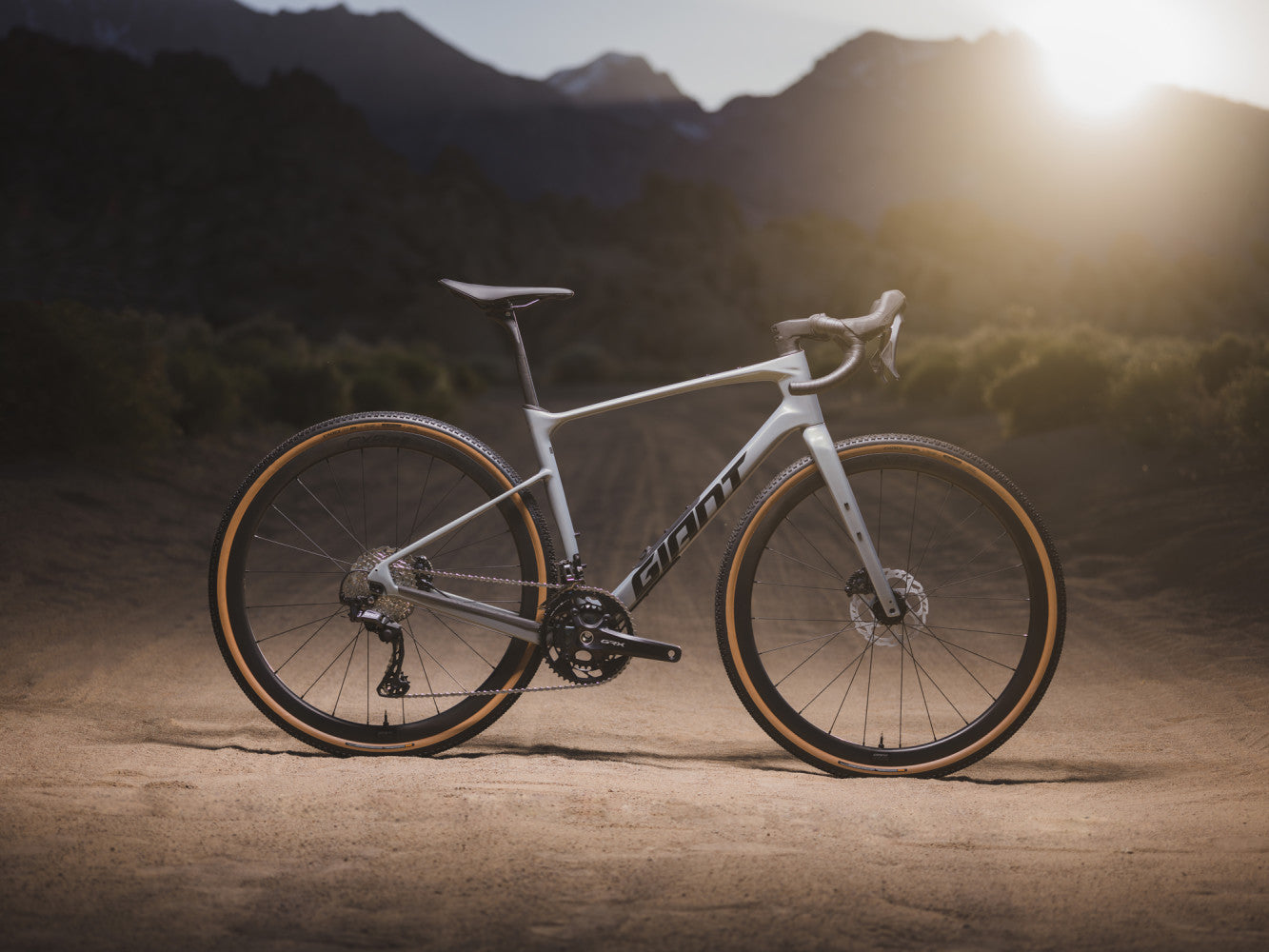

For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective.
Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.
Key Features
-

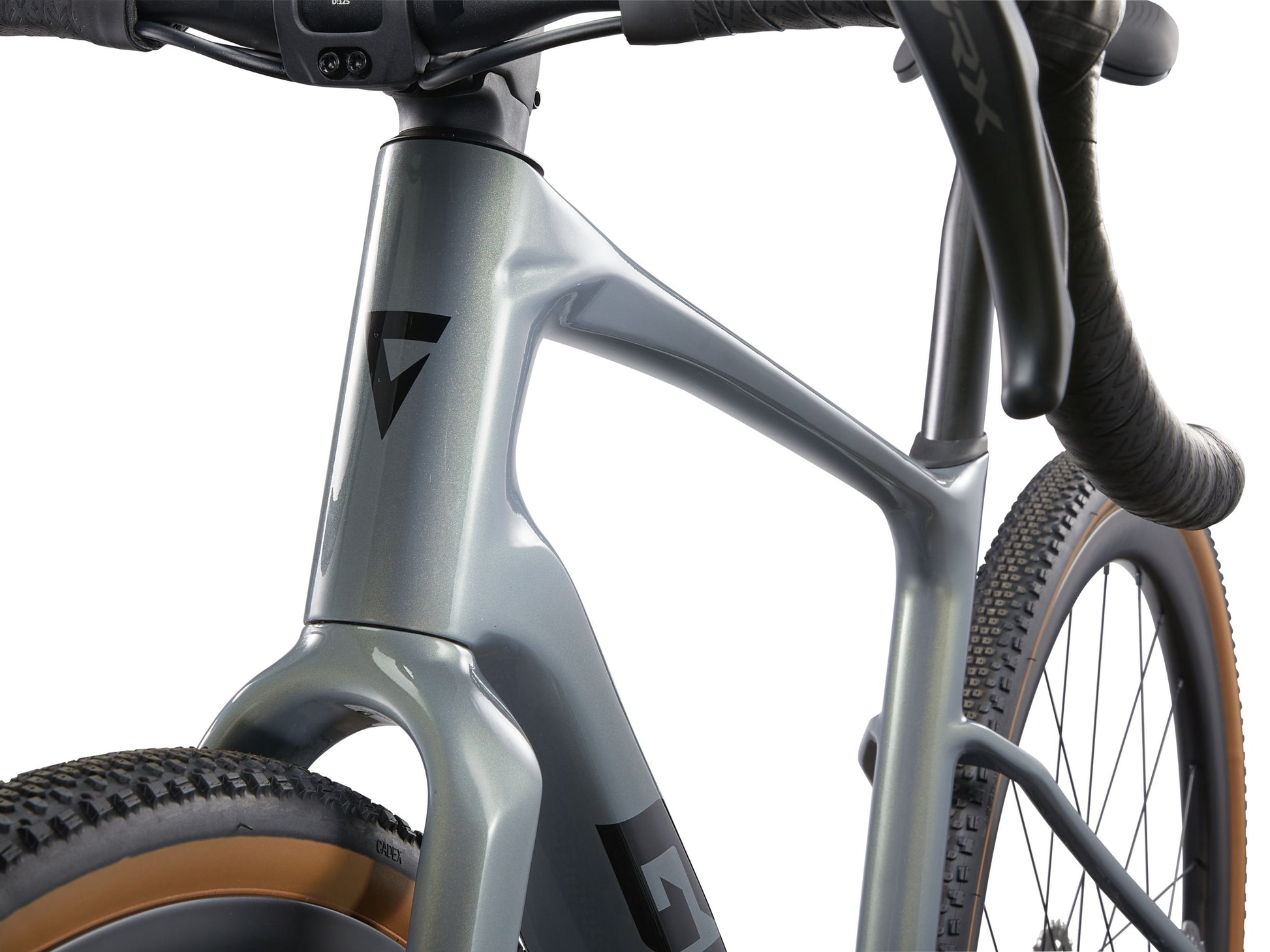

Fast and Versatile: An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control.
-
Tuned Compliance: Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel.
-

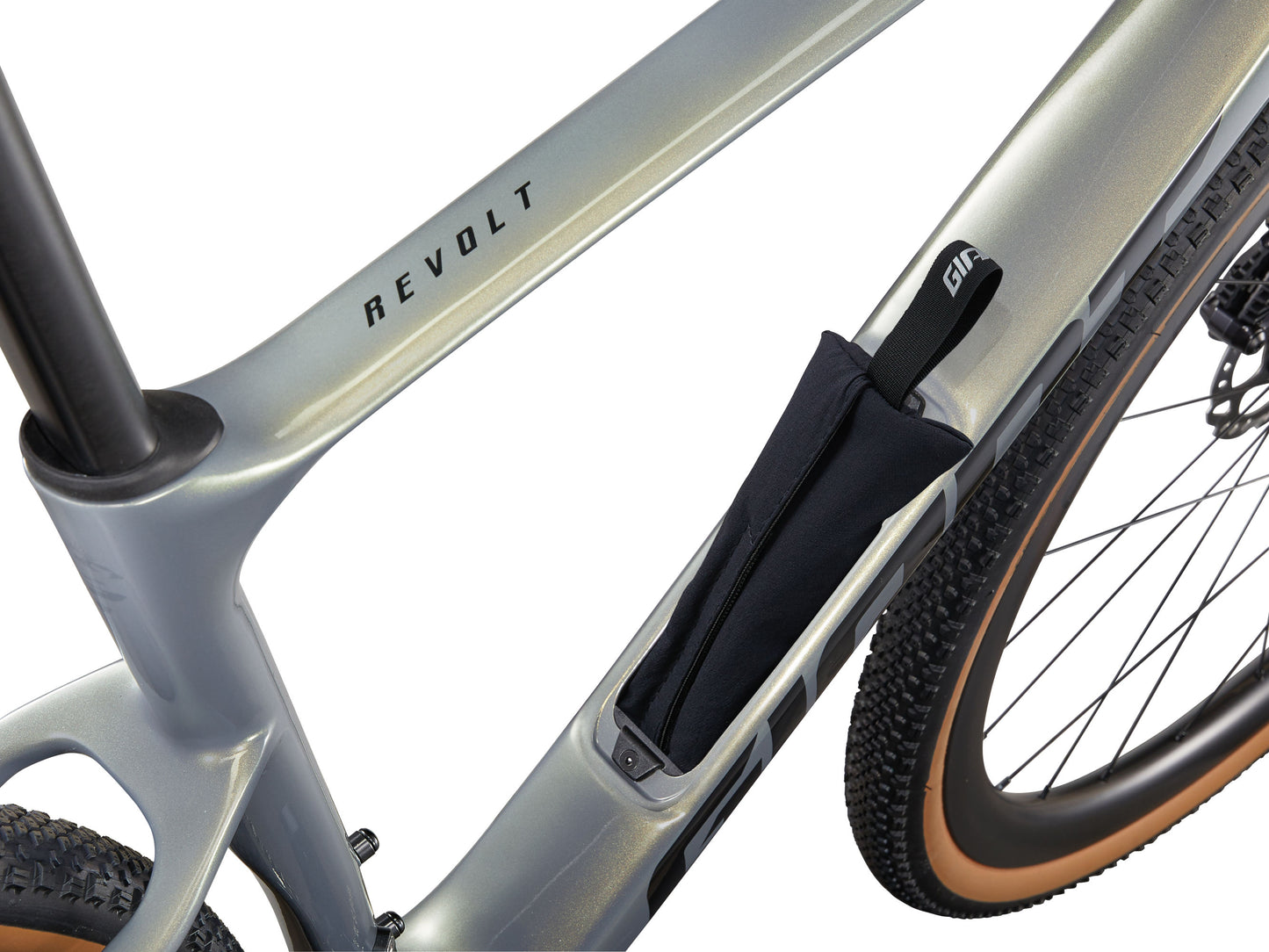

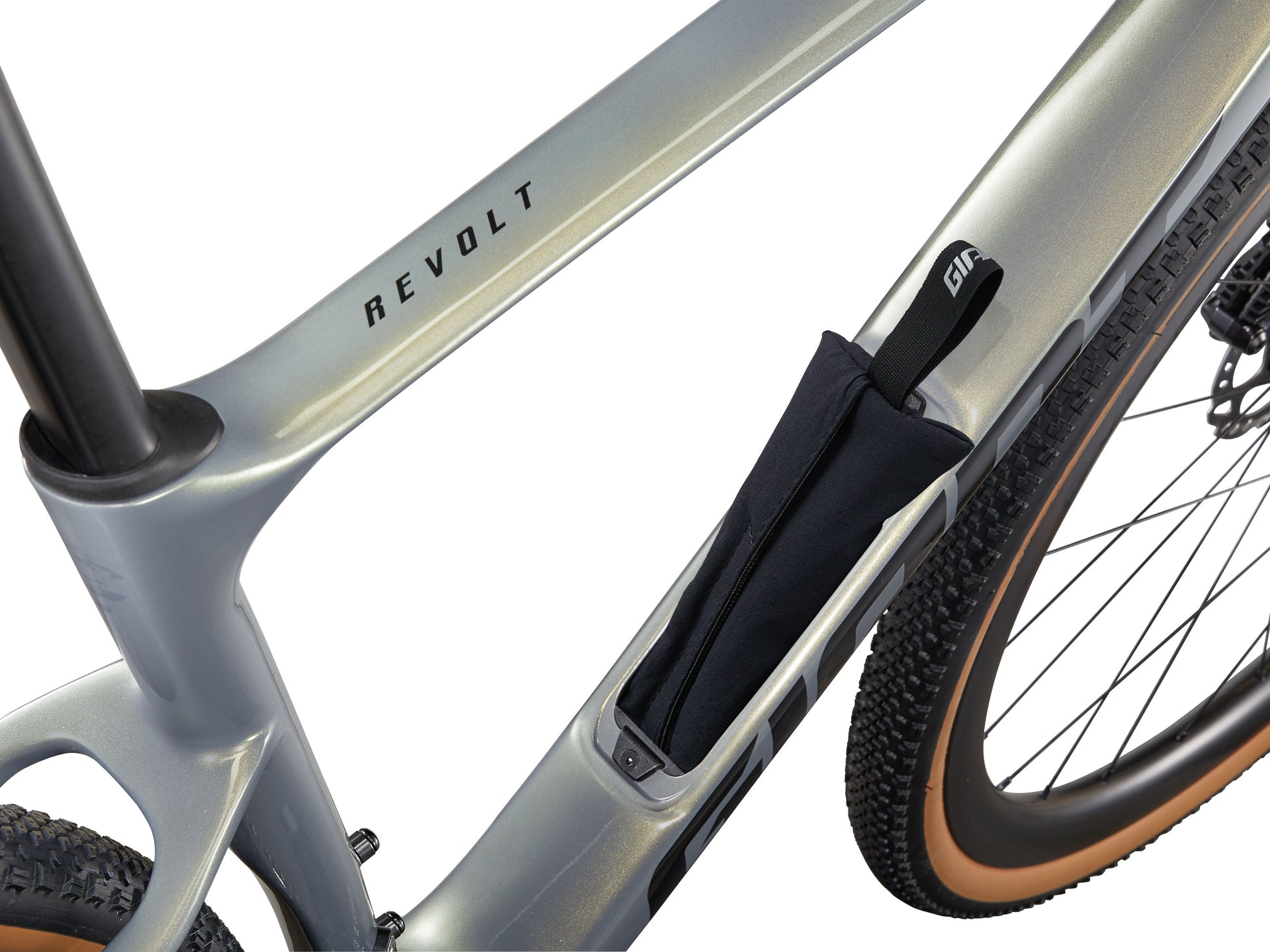

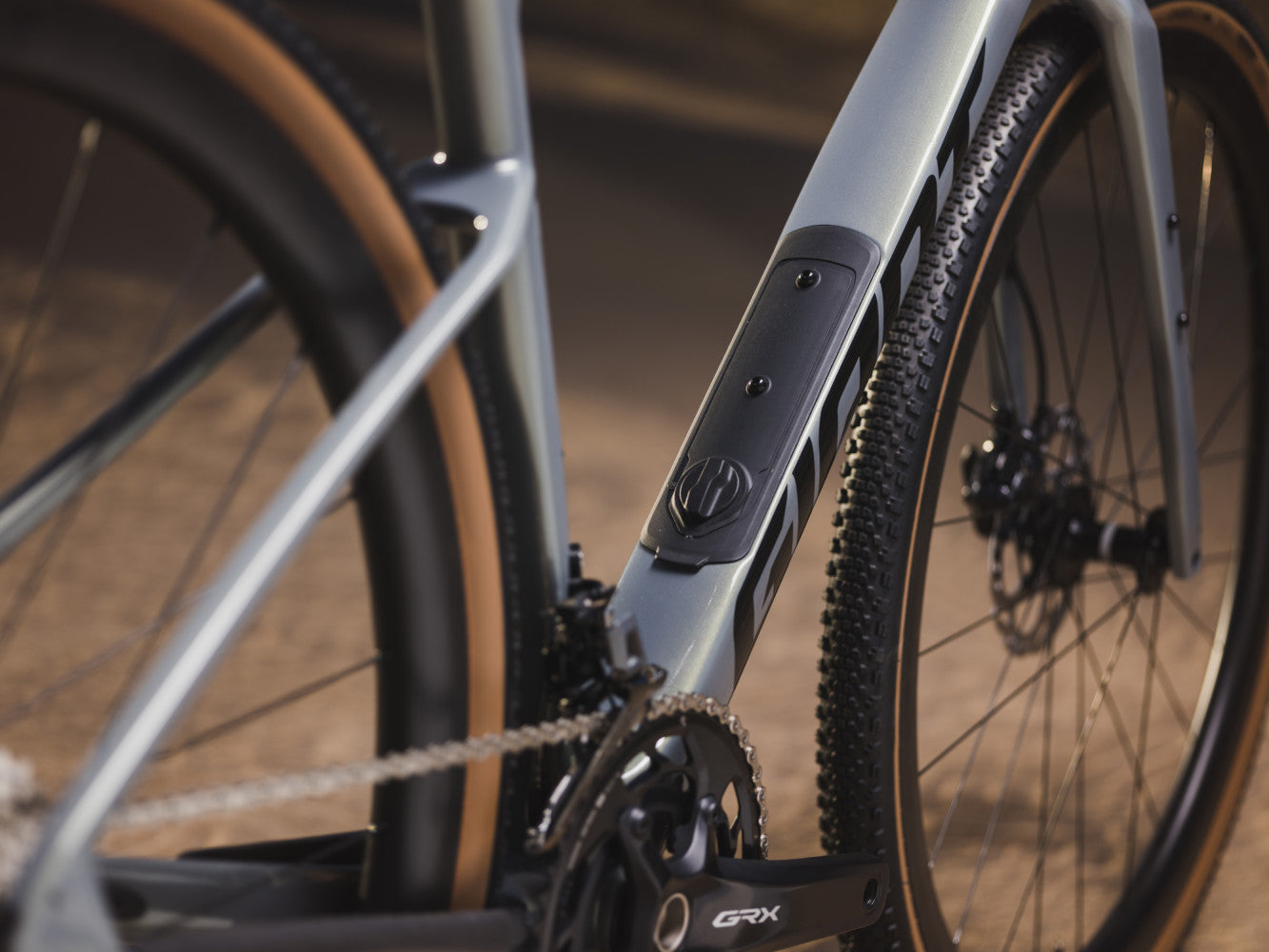

Smart Integration: Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials.
Full Specification
-
Frame: Advanced-grade composite
-
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
-
Gear Shifters: Shimano GRX RX-820, 2x12
-

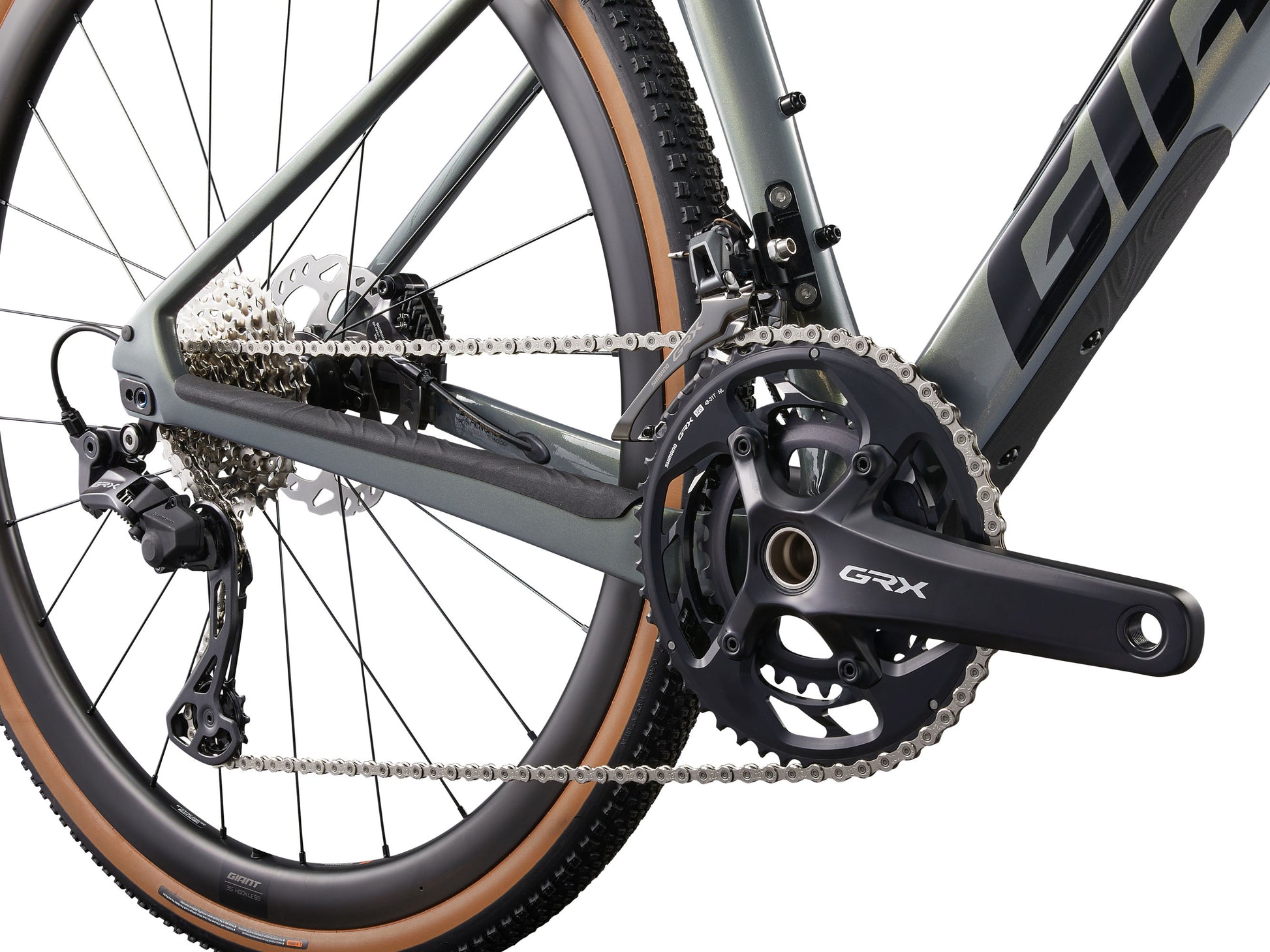

Chainset: Shimano GRX RX-820, 31/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
-
Rear Cassette: Shimano CS-HG710, 12-speed, 11x36
-
Chain: KMC X12L-1
-
Front Derailleur: Shimano GRX RX-820
-

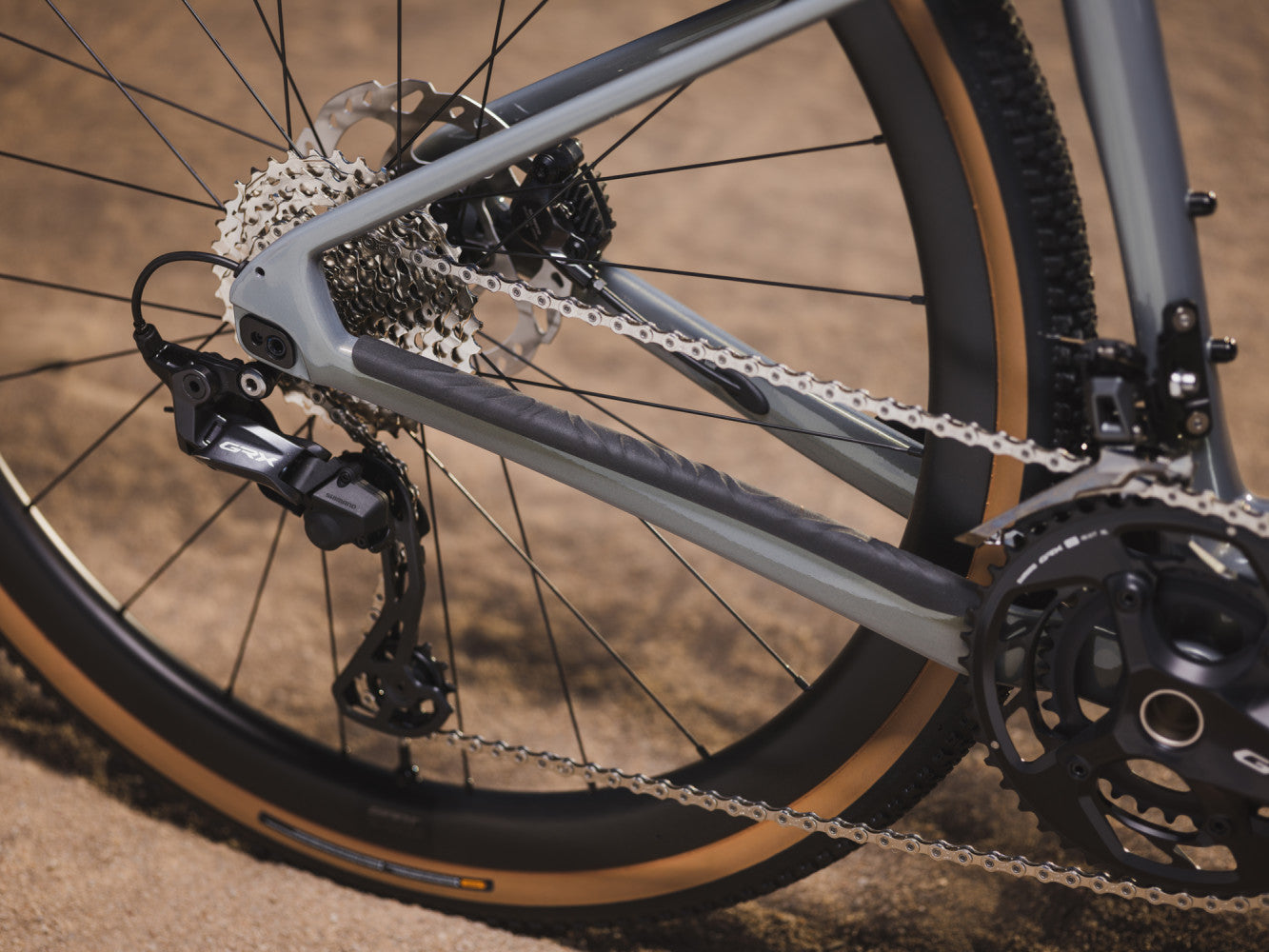

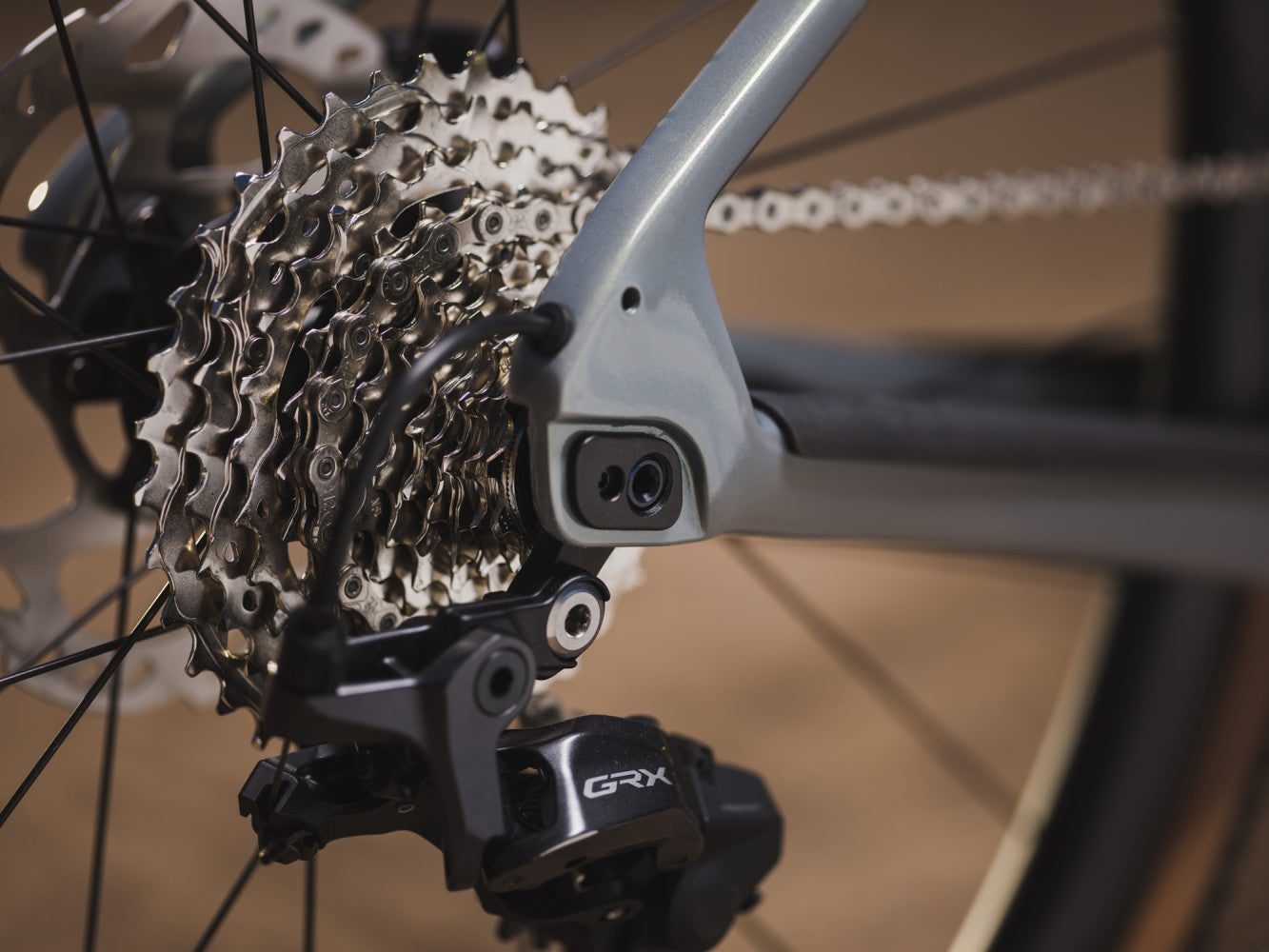

Rear Derailleur: Shimano GRX RX-820
-
Bottom Bracket: Shimano, press fit
-
Pedals: Not supplied
-
Rims: Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
-
Front Hub: Giant alloy, Centrelock, 12mm thru-axle
-
Rear Hub: Giant alloy, 3-pawl 36t driver, Centrelock, 12mm thru-axle
-
Tyres: CADEX GX, 700x40c, tubeless
-
Brakes: Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
-

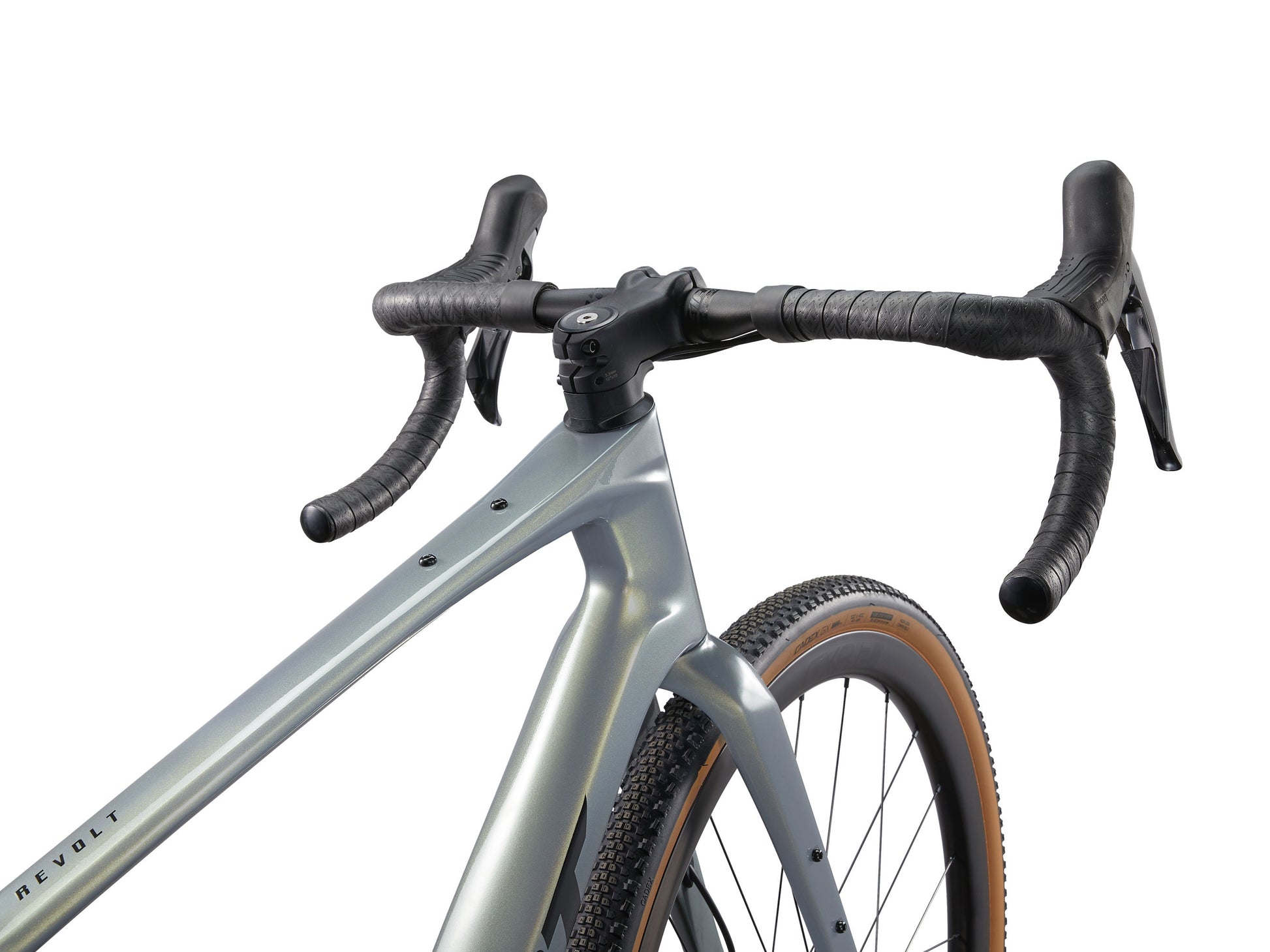

Handlebars: Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
-
Stem: Giant Contact AeroLight, -10 degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
-
Saddle: Giant Grit
-
Seatpost: Giant D-Fuse SL, composite, -5/+15mm offset
-
Accessories: Tubeless prepared, in-frame storage bag. 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
-
Weight: N/A
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
