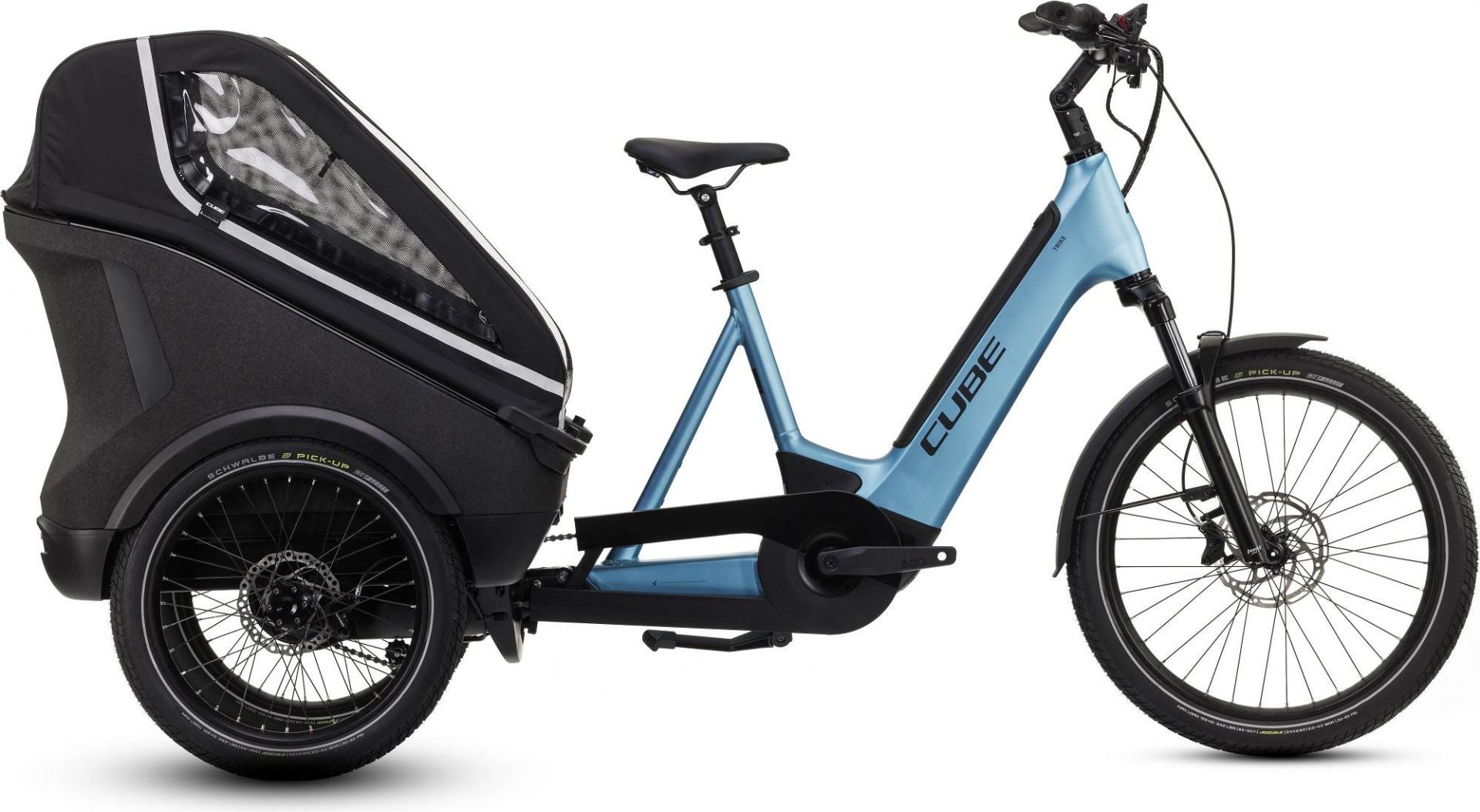

CUBE TRIKE FAMILY HYBRID 750 eBIKE 2025 BLUE' N 'REFLEX

Skip to product information
1 of 9

Product Details - Cube Trike Family Hybrid 750 Ebike 2025 Blue' N 'reflex


eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated.

Minimum personal assembly is required.


Only available at the Salts Mill Bike Store, Saltaire, BD18 3LA
Shipping is not possible!
You can get more information at: 01274 588-488 or sales@allterraincycles.co.uk

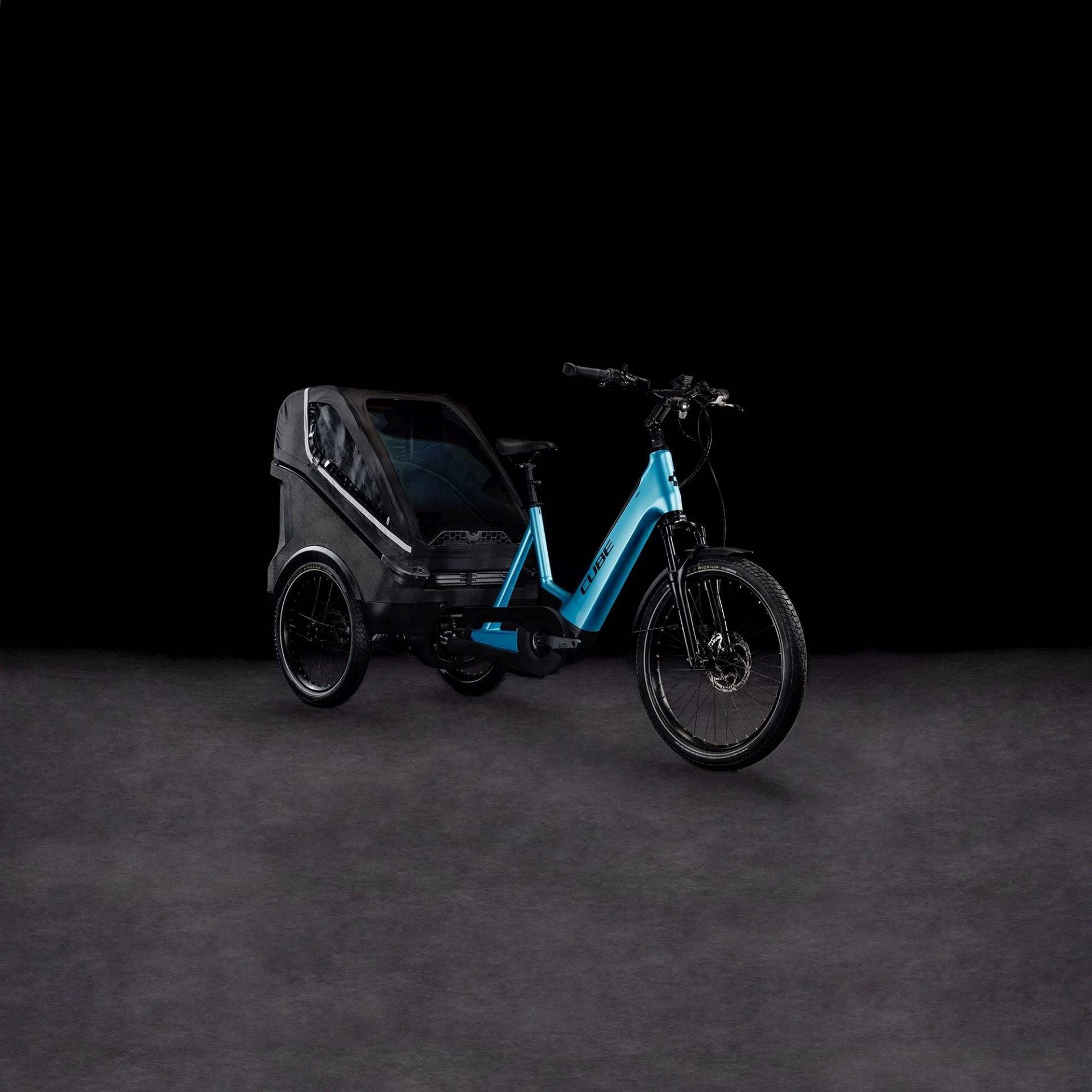

Easy to ride, cunning CUBE design and extra Bosch power for people- and cargo-hauling.

Humans need to move, but it's becoming clearer that cars can be a problem rather than a solution. The Trike Family Hybrid 1500 offers a refreshing, practical and easy-to-ride alternative. An innovative design in its own right, it harnesses the power of Bosch's fourth-generation CX Line drive system with two 750Wh batteries for a total of 1500Wh. There's a Suntour Mobie34 suspension fork for a comfortable ride, even on rough city streets. We fitted powerful disc brakes – and a parking brake – to keep you safe in all weathers, and the stepless hub gear makes light work of any journey. The clever one-size-fits-most design uses a telescopic seatpost and an adjustable handlebar. At the rear, the versatile cargo box with built-in (but removeable) seats, safety harnesses and rain cover makes it a cinch to take along your kids, the shopping, the recycling. whatever you need. And the unique tilt mechanism, combined with the stability of three wheels, means it's as easy to manoeuvre as any normal hybrid bike. Who needs a car?.

Full Specification Cube Trike Family Hybrid 750 eBike 2025

  • Size: One Size

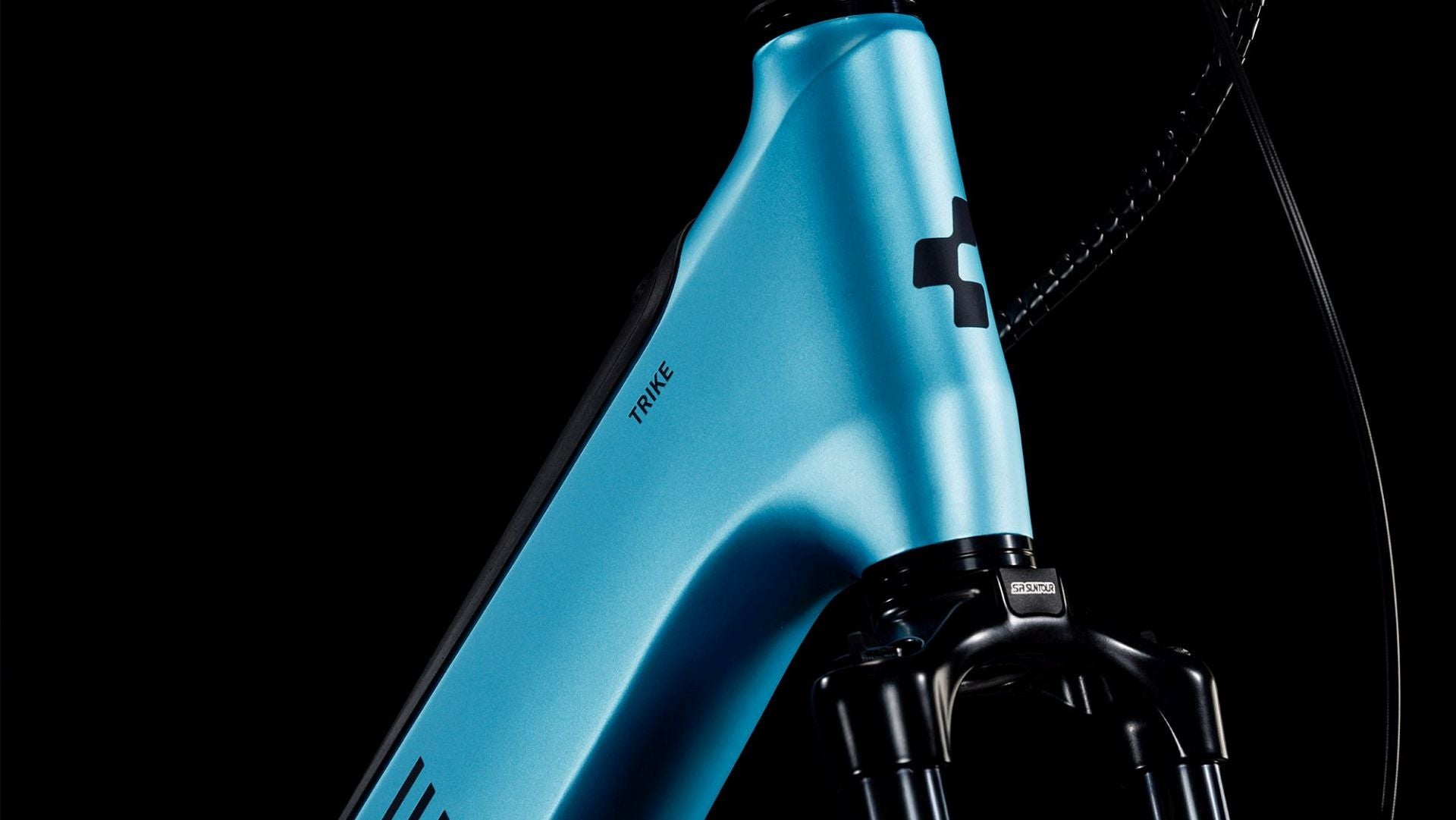

  • Frame: Aluminium Gravity Casting, Comfort Ride Geometry, Tilting Technology, Downtube Storage
  • Fork: SR Suntour MOBIE 34 CARGO 24", 100mm
  • Motor: Bosch Drive Unit Cargo Line Generation 4 (85Nm) Cruise (250Watt), Smart System
  • Battery: Bosch PowerTube 750 Axial

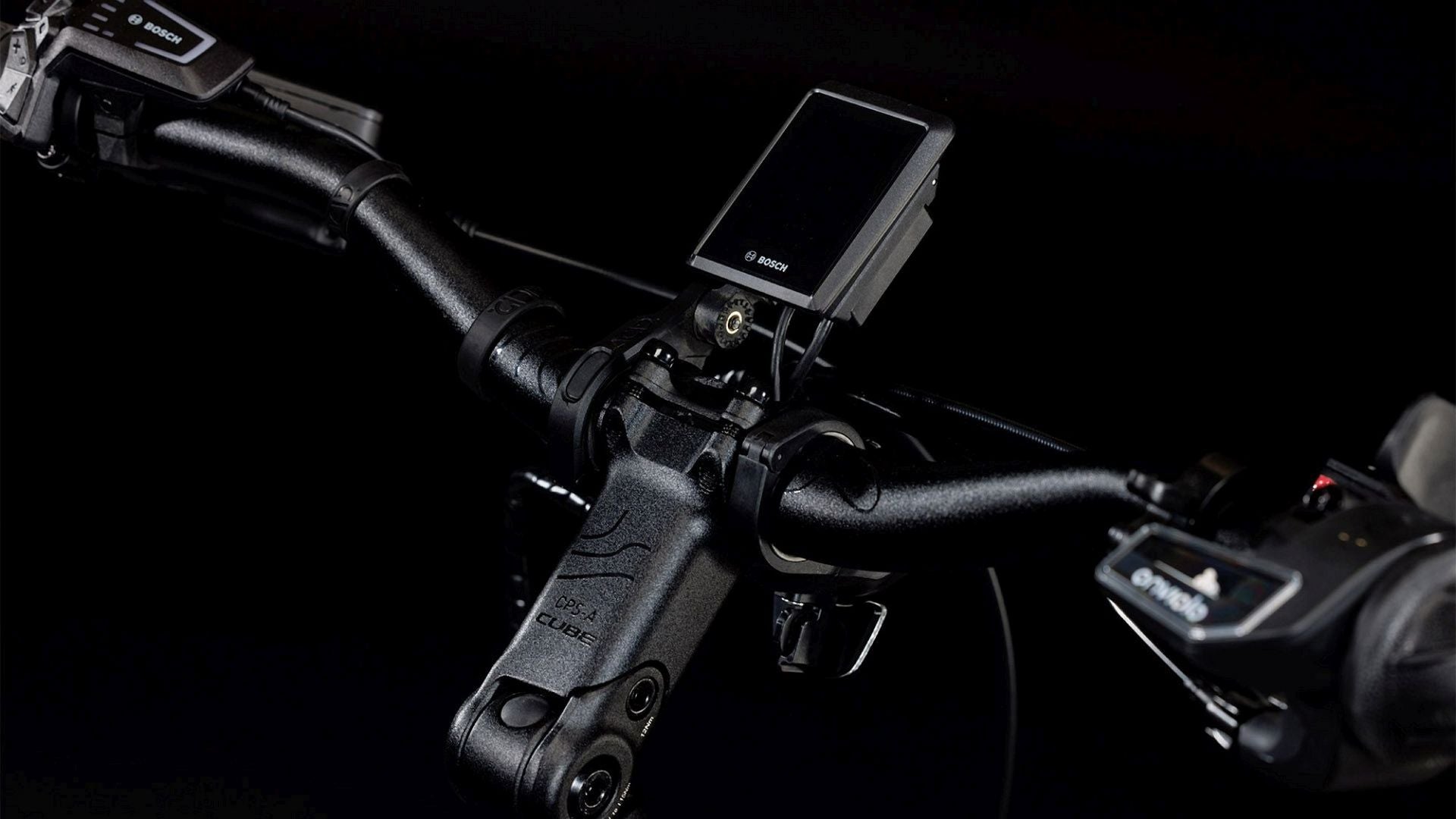

  • Controller: Bosch Kiox 300 display
  • Charger: Bosch 4A

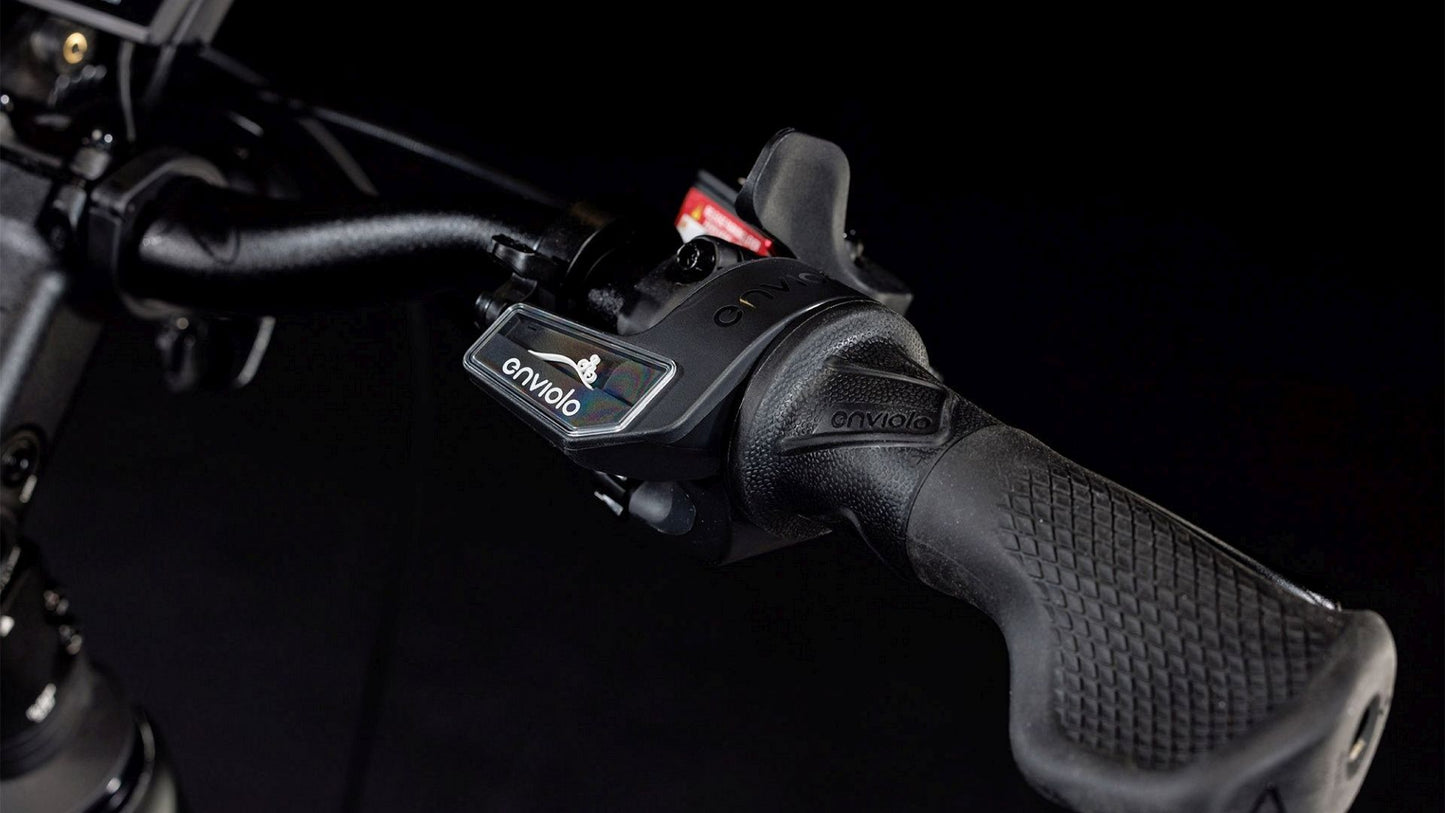

  • Shifters: Enviolo Cargo manual
  • Crankset: ACID E-Crank, 170mm, 42T
  • Cassette: KMC 3mm, 18T
  • Chain: KMC e101 EPT
  • Pedals: CUBE PP MTB
  • Rims: CUBE EX40, 507 x 36H / 406 x 32H, DISC, Tubeless Ready
  • Front Hub: Cube Cargo Hub, 36H, Straightpull, 110x15mm Boost
  • Rear Hub: Cube Trike Hub, Straightpull
  • Tyres: Schwalbe Pick-Up, Super Defense, 65-507
  • Brakes: Tektro Auriga Twin+ HD-E745 with parking lock mechanism (180/160)
  • Handlebars: CUBE Comfort Trail Bar, 700mm
  • Grips: ACID Travel Comfort Gripshift
  • Headset: ACROS Carrier Mount Headset
  • Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
  • Saddle: Natural Fit Sequence Comfort
  • Seatpost: Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
  • Front Light: ACID Front Light PRO-E 110, 5-16V, DC
  • Rear Light: Supernova T-M99
  • Stand : Ursus XXS
  • Mudguards: Acid 75
  • Bell: RING Bell
  • Weight: 80,0 kg

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Weights are based off pre-production products at time of publication. Weights may vary in final production.



How we Build & Pack Your Bike

Aftercare

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!

Read our full advice

If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
