eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated.

Minimum personal assembly is required.

---

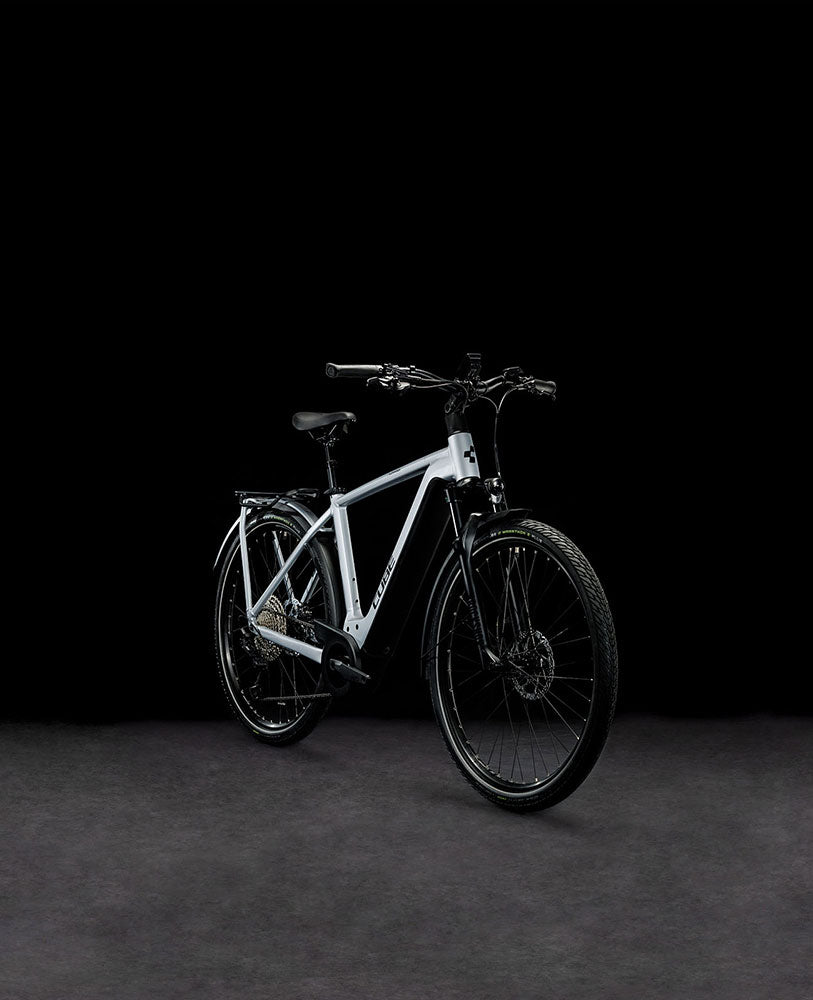

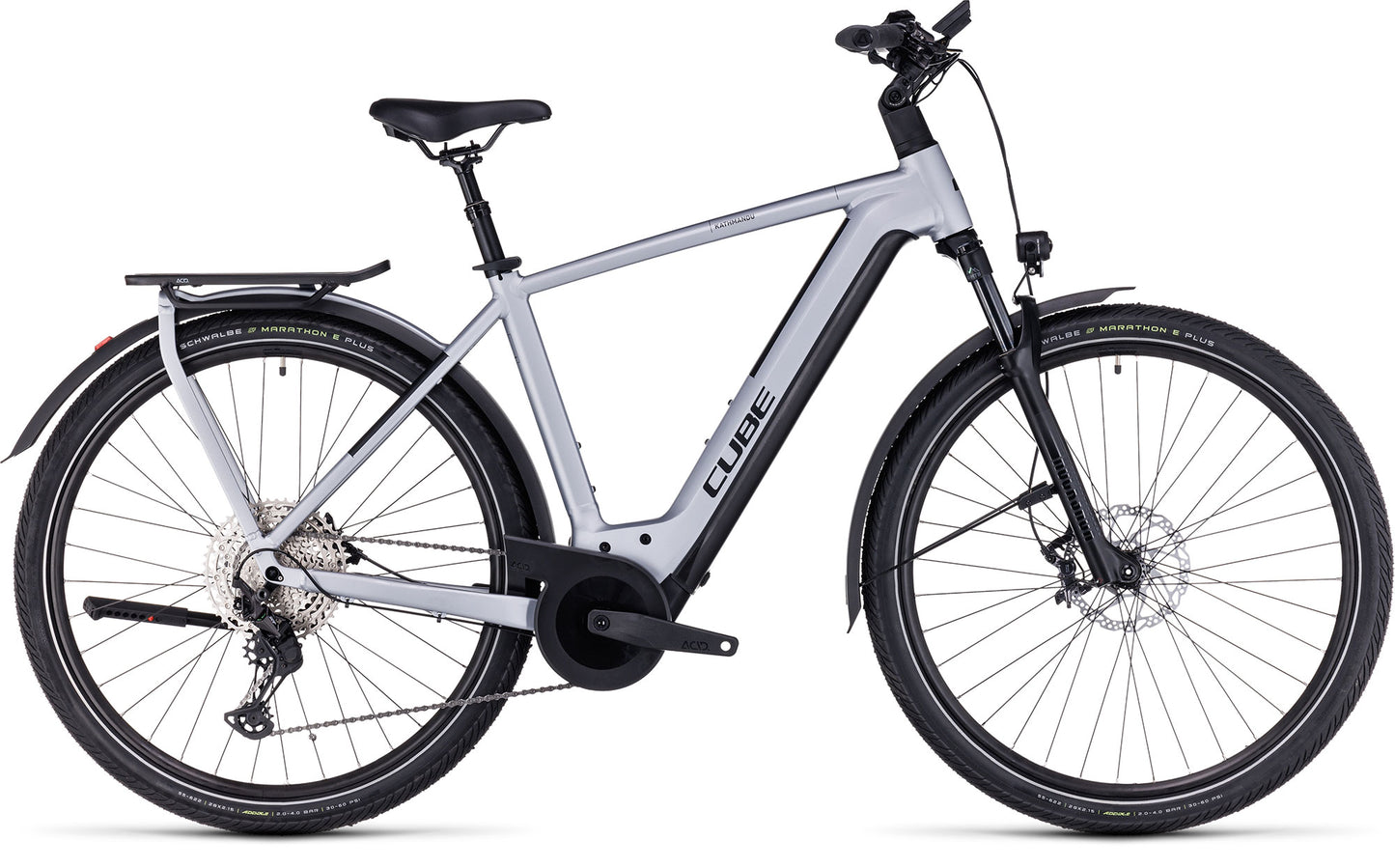

Fully equipped for anything that life – or adventures – can throw your way, the Kathmandu Hybrid SLX 750 sets the bar higher. With its fourth-generation Bosch CX drive unit and high-capacity 750Wh battery, it's got the power to take you further than ever.

---

Open 360° view

---

Shimano's reliable XT 1x12 gears put a huge range of hill-devouring ratios at your fingertip, and powerful four-piston XT hydraulic disc brakes help keep you safely in control in any weather. The RockShox Recon Silver air fork, suspension seatpost and adjustable stem are all there to ensure your comfort. And the elegant and tough Integrated Carrier 3.0 and full complement of included accessories make this probably the most versatile bike you've ever owned.

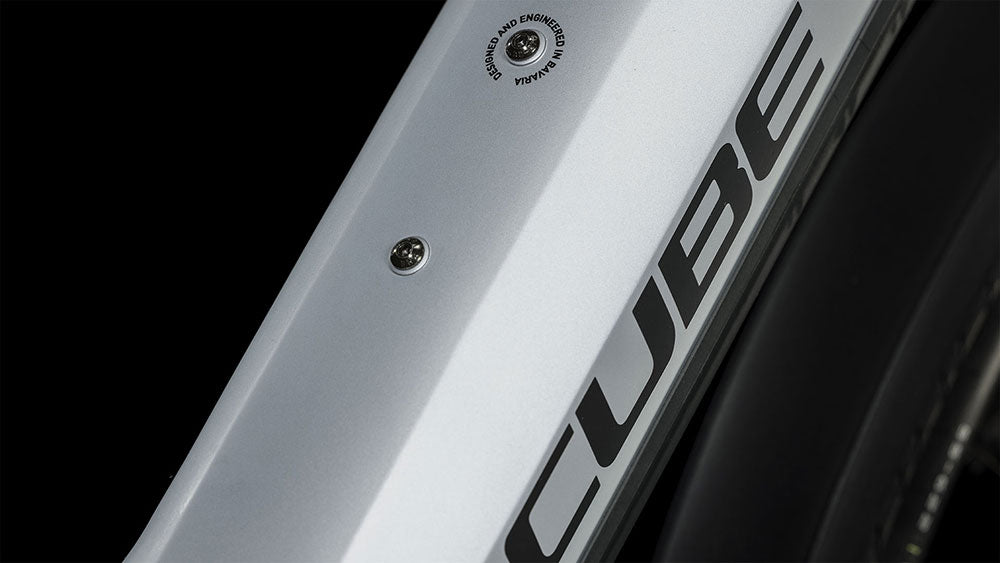

Designed for comfort, versatility and durability, the Kathmandu's frame incorporates a high-capacity 750 Wh Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you'll love – and it's the perfect way to add accessories and carry whatever you need with you.

---

Key Features

• 250W Bosch Motor: Most reliable pedal-assist motor in e-bike industry, capable of sustaining speeds up to 25 km/h
• Hydraulic Disc Brakes: Reliable braking performance to keep you in control, whatever the weather.
• 12 Shimano Deore/XT Gears: Wide range of gears suitable for a range of terrain, with the simplicity of a single shifter.

Full Specification

• Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
• Fork: RockShox Recon Silver RL Air, Tapered, 15x110mm, 100mm, Lockout
• Motor: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
• Battery: Bosch PowerTube 750
• Controller: Bosch LED Remote, Bosch Kiox 300 display
• Charger: Bosch 4A
• Gear Shifters: Shimano Deore SL-M6100-IR, Direct Attach

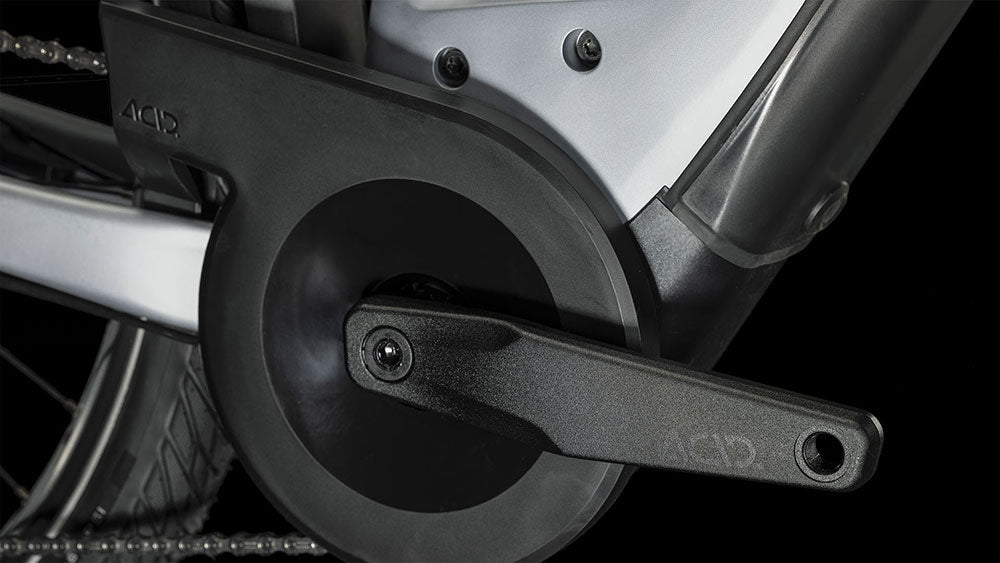

• Chainset: ACID E-Crank, 40T, 175mm
• Rear Cassette: Shimano Deore CS-M6100, 10-51T
• Chain: Shimano CN-M6100
• Front Derailleur: N/A
• Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• Pedals: ACID PP Trekking
• Rims: CUBE EX23, 36H, Disc, Tubeless Ready
• Front Hub: Shimano HB-MT400-B, 15mm, Boost, Centerlock
• Rear Hub: Shimano FH-MT410-B, 12mm, Boost, Centerlock
• Tyres: Schwalbe Marathon E-Plus, Smart-DualGuard, 55-622
• Brakes: Shimano XT BR-M8120/M8100, Hydr. Disc Brake (180/180)
• Handlebars: CUBE Comfort Trail Bar, 700mm
• Grips: ACID Travel Comfort
• Headset: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
• Saddle: Natural Fit Sequence Comfort
• Seatpost: CUBE Suspension Seatpost HD, 30.9mm
• Mudguards: ACID 65 Integrated Carrier 3.0

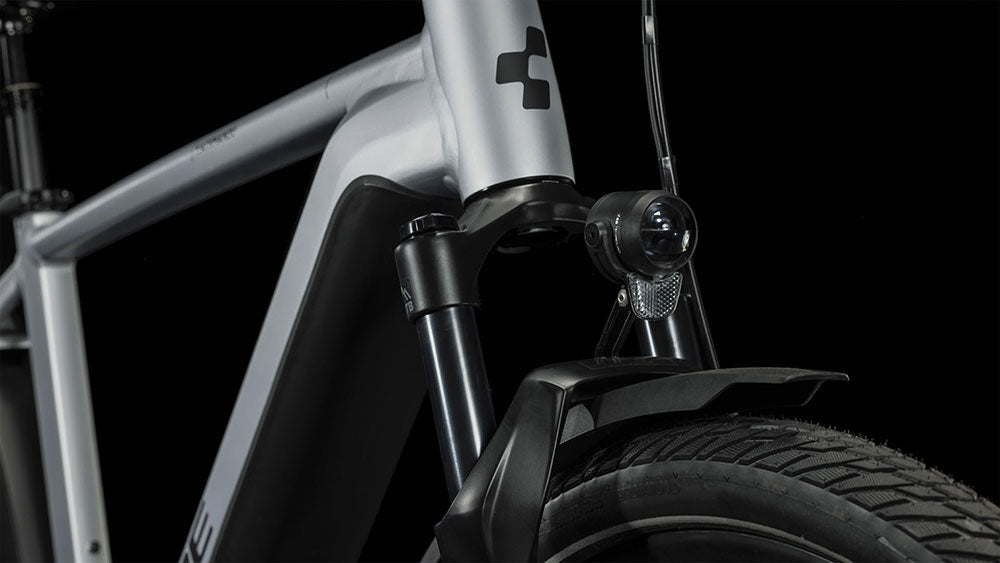

• Lights: ACID Front Light PRO-E 110, 5-16V, DC, ACID Mudguard Rear Light PRO-E, 12V, DC
• Pannier Rack: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
• Accessories: Ring Bell, ACID FM Pure Kickstand
• Weight: Starting from 27.9Kg

---

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

---
