Product Details
Product Details

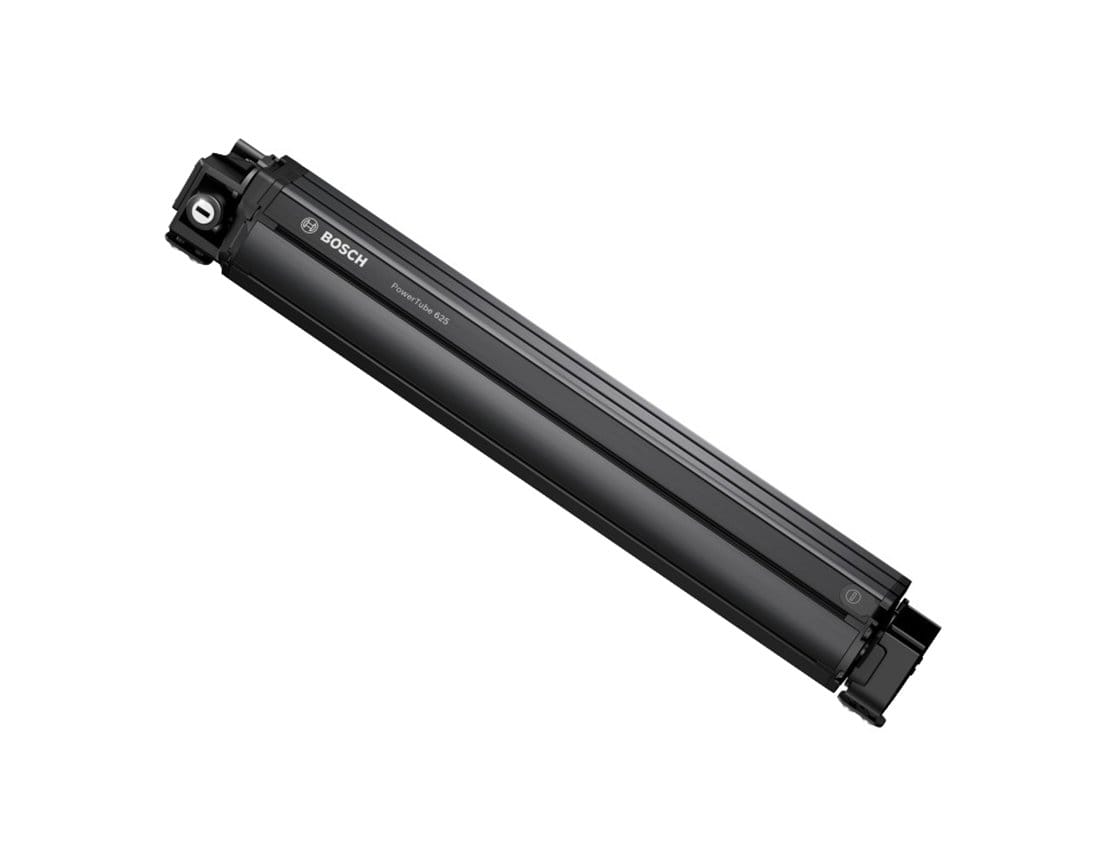

The new PowerTube 625 from Bosch lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 17.4 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp.
The lithium-ion battery, which can be fully integrated into the bicycle frame, opens up new possibilities for bicycle manufacturers thanks to its compact dimensions and minimalist design. The battery is not visible and is also perfectly protected by the frame. The battery clicks out of the frame about 2 cm when unlocked via a comfort function and can thus be gripped better. Recesses on the top side are suitable for attaching bottle holders or design covers.
The well-secured PowerTube 625 will not fall out of its housing, even on demanding terrain. But is still easily removed. After approx. 3.7 hours, the battery is fully charged with the 6 A Fast Charger, while half the charge is already attained after approx. 1.4 hours.
Features
- Horizontal installation variant, rechargeable battery that can be integrated into the bicycle frame
- Convenient and safe insertion and removal
- High mileage and long service life thanks to integrated battery management system
- No memory effect and no self-discharge
- Compatible with DualBattery
- Compatible with Bosch eBike-System 2
- Version: For horizontal mounting in the frame
- Length: 416 mm
Specification
- Model: PowerTube 625 Horizontal
- Model designation: BBP290
- Manufacturer code: 0275007543
- System: Bosch eBike-System 2
- Mounting type: Frame battery integrated
- Mounting variant: Horizontal
- Voltage (V): 36 V
- Capacity (Ah): 16.7 Ah
- Energy content (Wh): 625 Wh
- Charging cycles: 500 - 600
- Dimensions: 416 x 84 x 65 mm
Compatibility
- Active Line Plus (BDU3XX)
- Active Line (BDU3XX)
- Performance Line Speed(BDU4XX)
- Performance Line (BDU3XX)
- Cargo Line / Speed (BDU4XX)
- Active Line (BDU2XX)
- Performance Line CX (BDU2XX)
- Performance Line (BDU2XX)
Weight
- 3.5 kg (manufacturer information)
Contents
- 1 x Bosch PowerTube 625 Battery (BBP290) HORIZONTAL
- 1 x Transport packaging (dangerous goods compliant)
- 1 x Instruction manual
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
