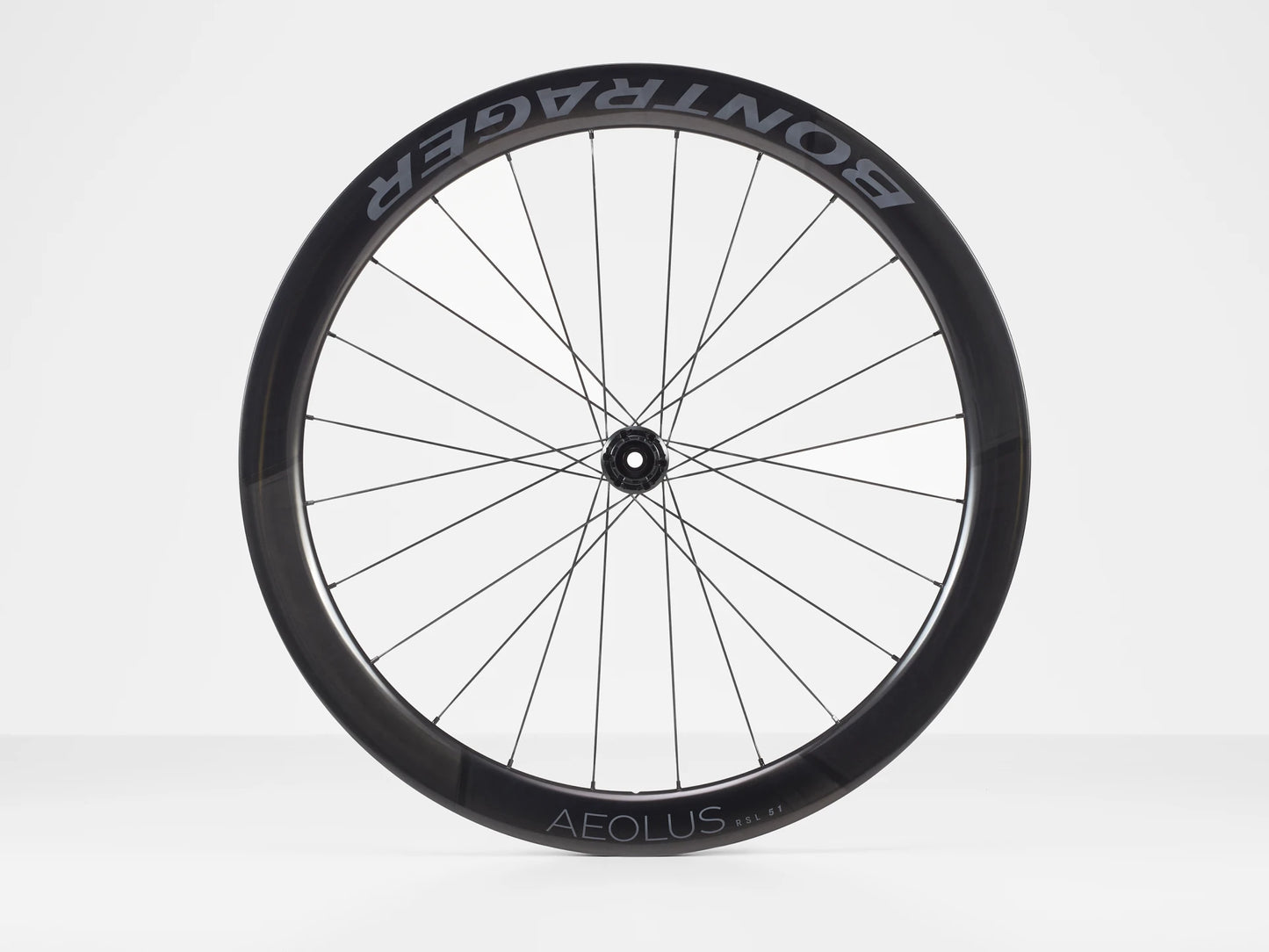

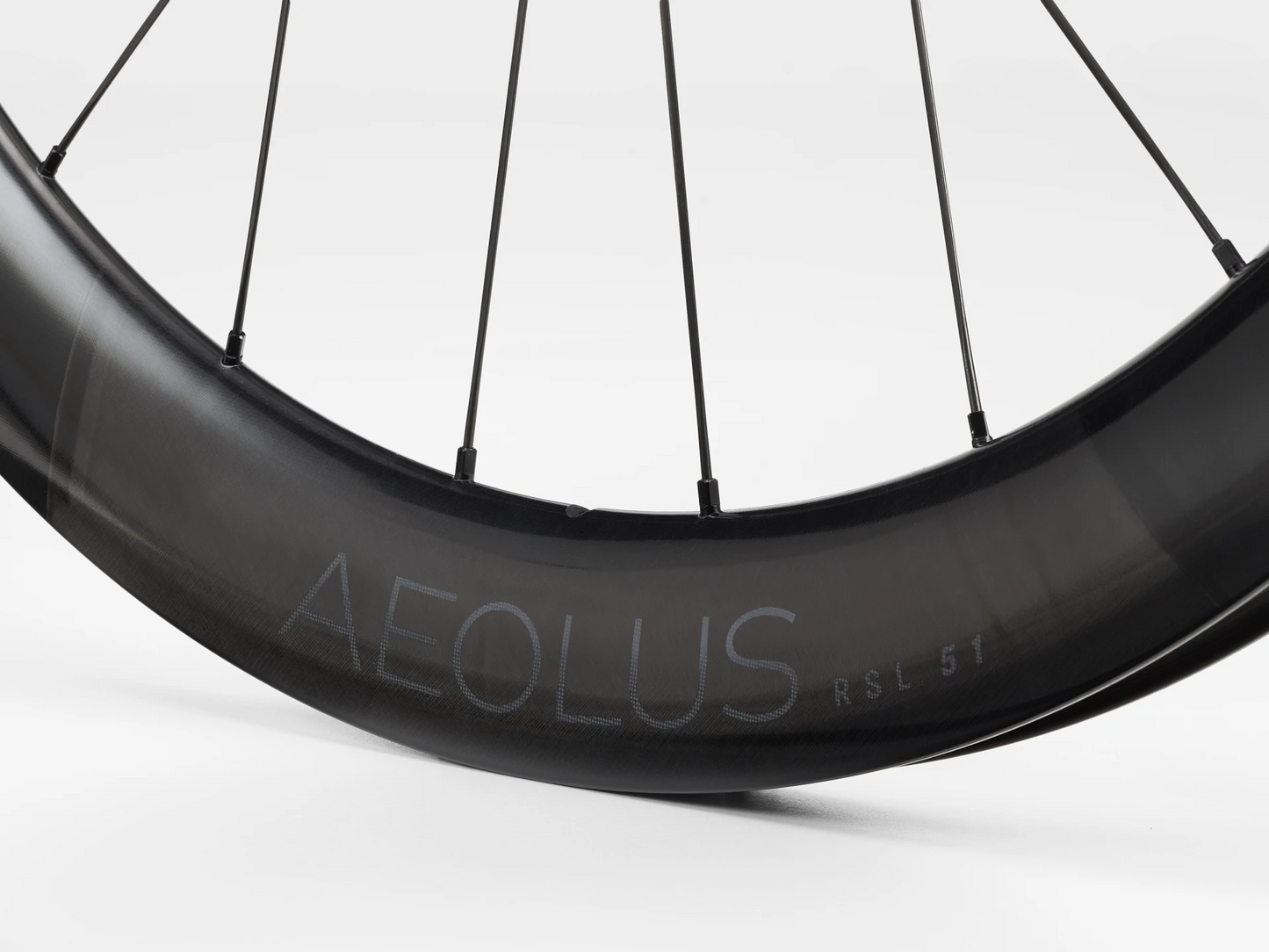

BONTRAGER AEOLUS RSL 51 TLR DISC REAR WHEEL
Product Details - Bontrager Aeolus Rsl 51 Tlr Disc Rear Wheel
Product Details - Bontrager Aeolus Rsl 51 Tlr Disc Rear Wheel
Bontrager’s marquee lightweight carbon road wheel in a 51 mm depth: designed for the ultimate in speed, stability and confidence in all conditions.
Be the fastest you
The ultra-light Aeolus RSL 51 is the perfect upgrade for a faster you. Created with Bontrager’s all-new three-dimensional modelling design process, the all-new Aeolus RSL delivers a step-change in speed without sacrificing stability. It’s built with the lightest RSL-level OCLV Carbon, shaped into a new 51 mm rim profile for the ultimate in speed and versatility across all conditions. Tubeless Ready rims with a wider 23 mm inner width proven to roll with less drag add to the overall speed gains, while ultra-light hubs with DT Swiss 240s internals and a Ratchet EXP 36-freehub keep your ride smooth.
All Bontrager carbon wheels are warrantied for life for the original purchaser and come with the added protection of Carbon Care. If you structurally damage your wheels while riding in the first two years of ownership, we'll replace them. It’s that easy.
Features
- RSL OCLV Carbon is lighter and stronger, allowing for faster, more stable rim profiles
- 51mm depth rim profile born of 3D design modelling for our fastest, most stable designs ever
- 23 mm inner width proven to roll smoother with less drag for a faster wheel and tyre system
- Tubeless Ready (TLR) rims compatible with both Bontrager TLR rim strips and TLR tape
- 51mm depth OCLV Carbon rim (31mm outer) DT Aerolite spokes 24/24, DT Pro Lock nipples
- Ultra-light 12 mm thru-axle DT Swiss 240s hubs with Ratchet EXP 36-point rear
- Compatible with Shimano 10/11/12-speed, SRAM 10/11 freehubs, 12-sp XDR available separately
- Includes TLR rim strip, TLR valve and traditional rim strip
Specification
Size | Front, Not applicable | Rear, Shimano HG 10/11-speed |
---|---|---|
FT/RR | Front | Rear |
Diameter | 700C | 700C |
Type | Tubeless Ready (TLR)/Clincher | Tubeless Ready (TLR)/Clincher |
Cassette compatibility | Not applicable | Shimano HG 10/11-speed |
Hub width | 100 mm | 142 mm |
Holes | 24 | 24 |
Butting | 14/17/14 | 14/17/14 |
Cross section | Bladed | Bladed |
Brake type | CenterLock disc | CenterLock disc |
Attachment | Thru axle | Thru axle |
Nipple locking type | Alloy locking | Alloy locking |
Valve | Presta | Presta |
Hub engagement (rear) | Not applicable | 36 |
Rim width (inner) | 23 mm | 23 mm |
Rim depth | 51 mm | 51 mm |
ISO 5775-2 compliant | No | No |
Material - Rim | Carbon | Carbon |
Weight | 645g | 765g |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
