TREK SUPERCALIBER SL 9.7 GX AXS GEN 2 MTB BIKE 2025 RED CARBON SMOKE

Skip to product information
1 of 6

Product Details - Trek Supercaliber Sl 9.7 Gx Axs Gen 2 Mtb Bike 2025 Red Carbon Smoke

The Supercaliber SL 9.7 GX AXS is an ultra-light carbon XC mountain bike that's ready to lay down rubber on race day. Its SL OCLV Mountain Carbon frame is as light as it is meticulous, with a high modulus lay-up that gives you all the stiffness you crave, and none of the weight. XC courses get rowdier every year, so it's equipped with a 110 mm fork and 80 mm of IsoStrut rear suspension to smooth your roll without kicking pedalling efficiency to the wind. It's all topped off with a carbon cockpit and SRAM's wireless GX AXS Transmission.

Key Features Trek Supercaliber SL 9.7 GX AXS T-Type Gen 2 MTB Bike 2025

  • IsoStrut: Gives you tunable, damped suspension without missing out on efficiency for hammering up climbs at top speed.
  • SLR OCLV Mountain Carbon Frame: Intensely light, stiff and responsive.
  • SRAM GX AXS Wireless Drivetrain: A wide range of gears with electronic shifting, so you can ease the ups in the big ring or stomp to the front in the flats.

Full Specification

  • Frame: SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel

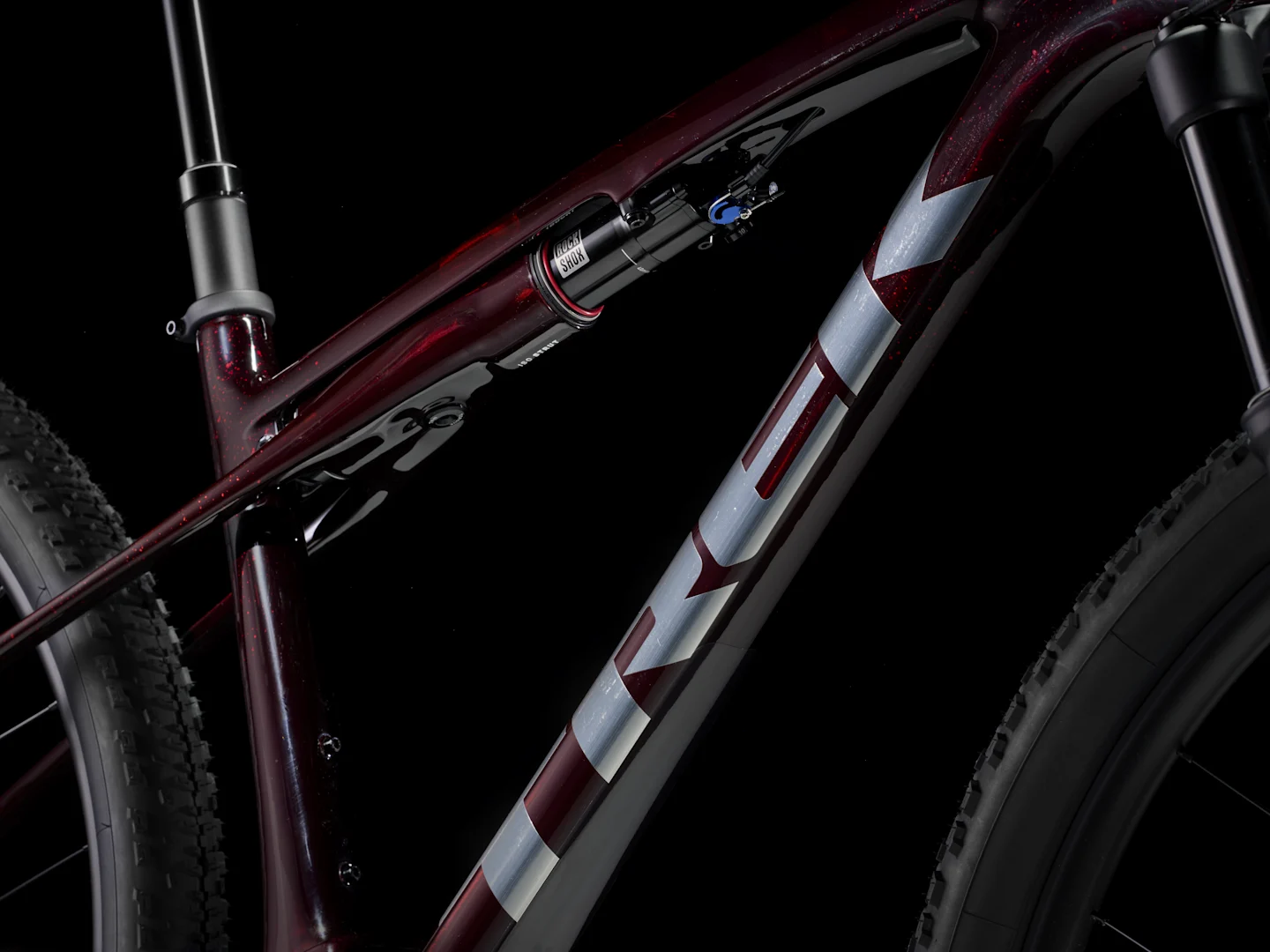

  • Rear Shock: Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
  • Fork: RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel
  • Shifters: SRAM AXS POD

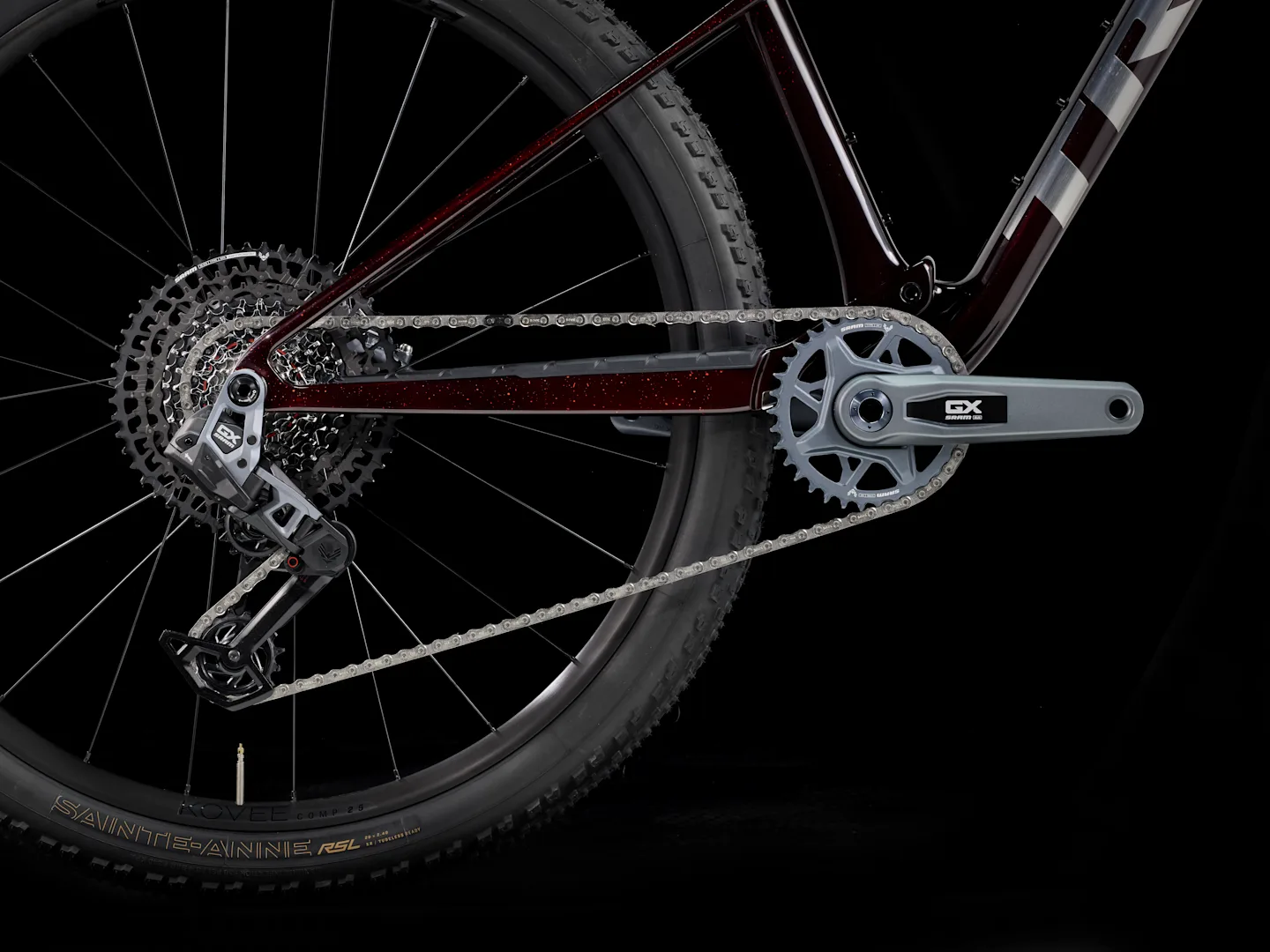

  • Crankset: SRAM GX Eagle, DUB, 34T, T-Type, 55 mm chain line, S/M/ML: 170 mm, L/XL: 175 mm length.
  • Cassette: SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
  • Chain: SRAM GX Eagle, T-Type, 12-speed
  • Rear Derailleur: SRAM GX Eagle AXS, T-Type
  • Bottom Bracket: SRAM DUB, 92 mm, PressFit
  • Pedals: Not supplied
  • Rims: Bontrager Kovee Comp 25, Tubeless-Ready
  • Front Wheel: Bontrager Kovee Comp 25, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
  • Rear Wheel: Bontrager Kovee Comp 25, Tubeless-Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29"
  • Tyres: Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40"
  • Brakes: SRAM Level Bronze 4-piston hydraulic disc
  • Handlebars: Bontrager Kovee Pro, OCLV Carbon, 35 mm, 5 mm rise, S: 720 mm width, M/ML/L/XL: 750 mm width
  • Handlebar Grips: ESI Chunky
  • Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
  • Stem: Bontrager Elite, 35 mm, 13-degree, S/M: 60 mm, ML: 70 mm, L: 80 mm, XL: 90 mm length
  • Saddle: Verse Short Elite, hollow magnesium rails, 145 mm width
  • Seatpost: Bontrager Line Dropper, MaxFlow, internal routing, 31.6 mm, S: 100 mm travel/310 mm length, M/ML/L/: 150 mm travel/410 mm length, XL: 170 mm travel/450 mm length
  • Accessories: SRAM eTap battery pack (with charger)
  • Weight: N/A

    We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

    Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

    Size Guide

    Trek Supercaliper Sizing Chart Size Guide

    How we Build & Pack Your Bike

    Aftercare

    At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

    Bicycle Safety

    Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

    Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

    Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

    Follow road rules – Ride responsibly and remain aware of your surroundings.

    Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

    Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

    Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

    Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

    Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Routine Maintenance (Every Few Weeks)

    Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

    Brake Safety – Check brake pads and responsiveness before each ride.

    Tyre Inspection – Look for punctures and ensure correct air pressure.

    Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

    Frame Safety Check – Look for any signs of damage or cracks.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Professional Check-Ups

    Have your bike serviced at least once a year, or more frequently if you ride often.

    Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

    Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

    Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Routine e-Bike Maintenance (Every Few Weeks)

    Motor Inspection – Listen for unusual noises and ensure smooth operation.

    Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Seasonal e-Bike Maintenance

    Check Electrical Components – Ensure wires and connections are clean and secure.

    Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

    By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!

    Read our full advice

    If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk

    TREK SUPERCALIBER SL 9.7 GX AXS GEN 2 MTB BIKE 2025 RED CARBON SMOKE
    0 (0 Reviews)
    Regular price £5,175.00
    Regular price £5,175.00 Sale price £5,175.00
    Price Match
    If you find the same bike cheaper, we'll try to match the price.
    More information

    Size
    • SKU: 5324363
    • EPOS Code:
    Est. Dispatch
    Delivery Available
    Finance Available
    Family Owned Independent
    Built by Cytech Mechanics
    10% Off Accessories
    We Accept Cyclescheme
    View full details
