Product Details
Product Details
Key Features

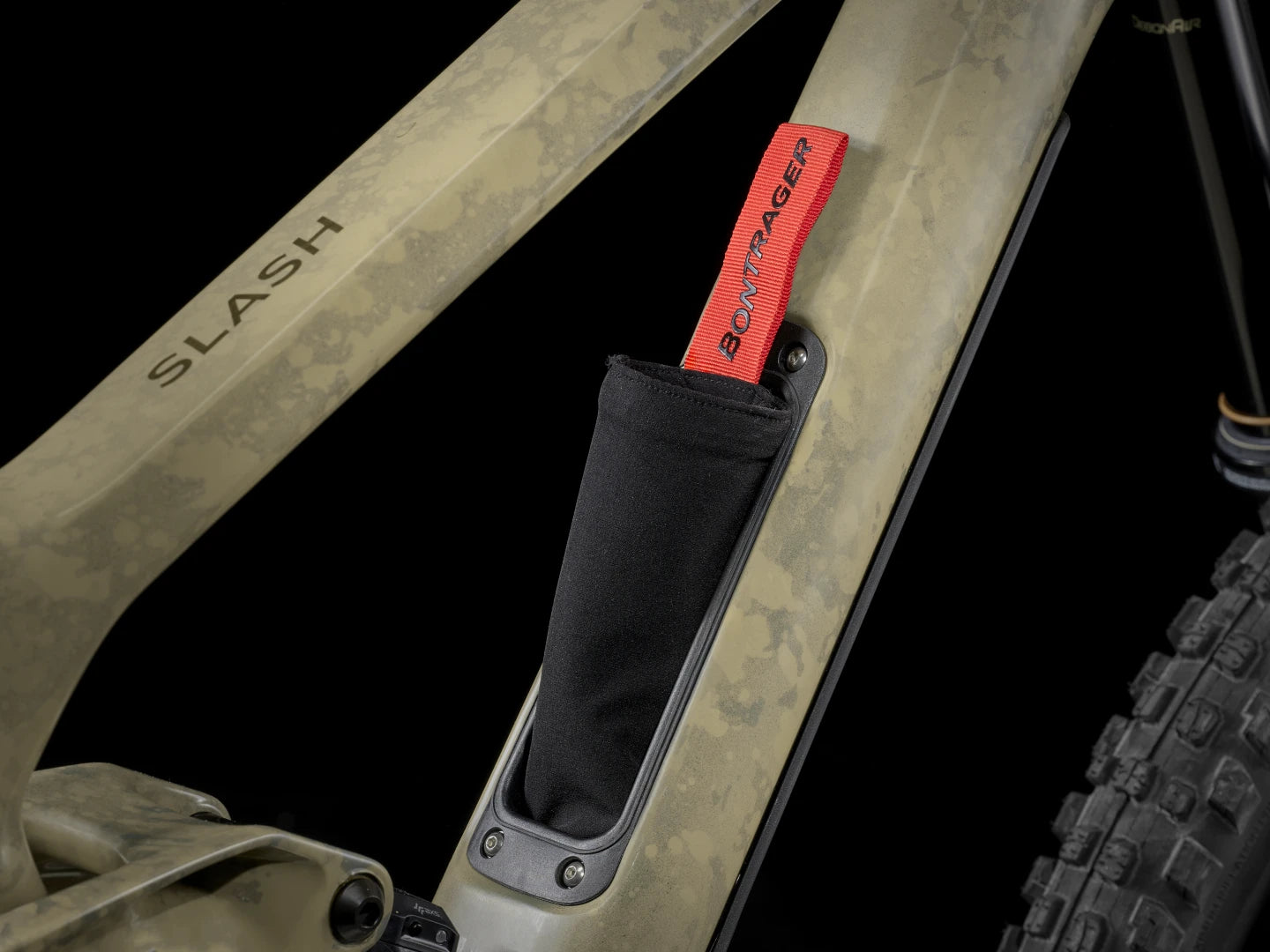

- Internal Frame Storage: Keep your riding essentials handy at all times with no riding pack.
- RockShox ZEB: Bigger 38 mm stanchions help you stay on your line through the chunky stuff, while the updated damper lets you dial in the feel
-
SRAM GX AXS Wireless Drivetrain: Winch the steepest climbs and shred the next descent with responsive electronic gearing.
Full Specification

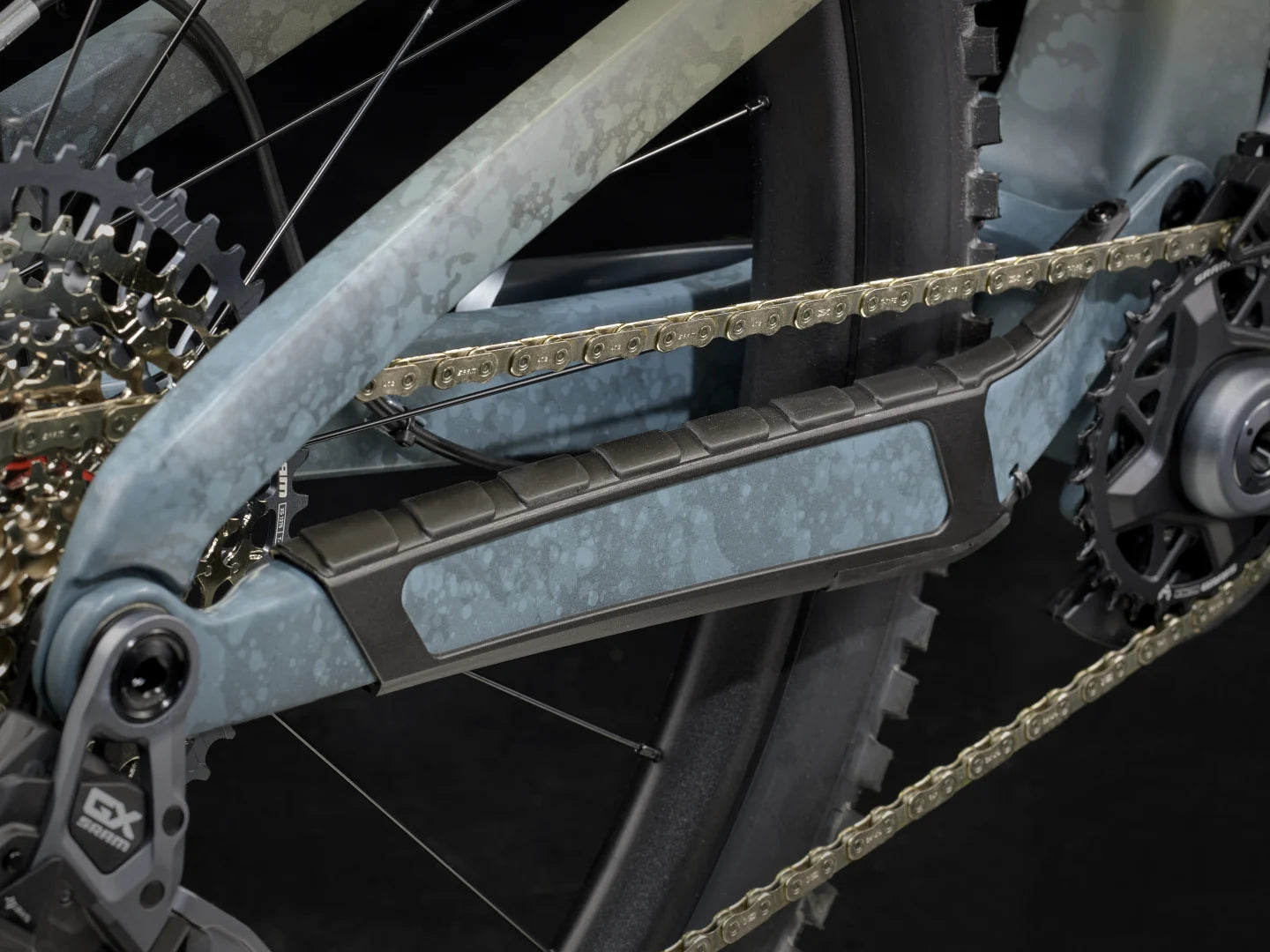

- Frame: OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, Carbon Armour, shuttle guard, threaded BB, ISCG 05, 34.9 mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160 mm travel

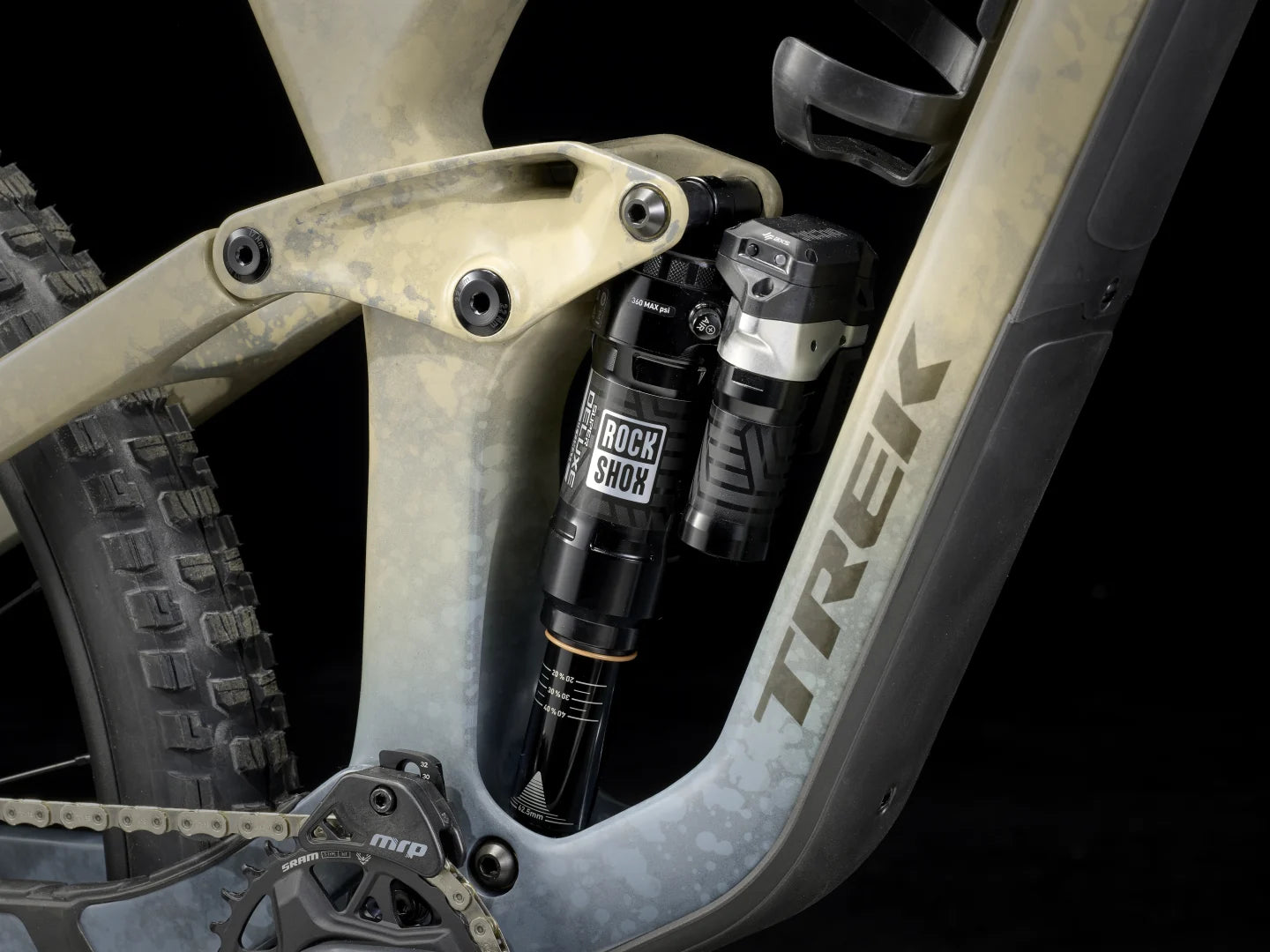

- Rear Shock: RockShox Super Deluxe Ultimate Flight Attendant, 230 mm x 62.5 mm

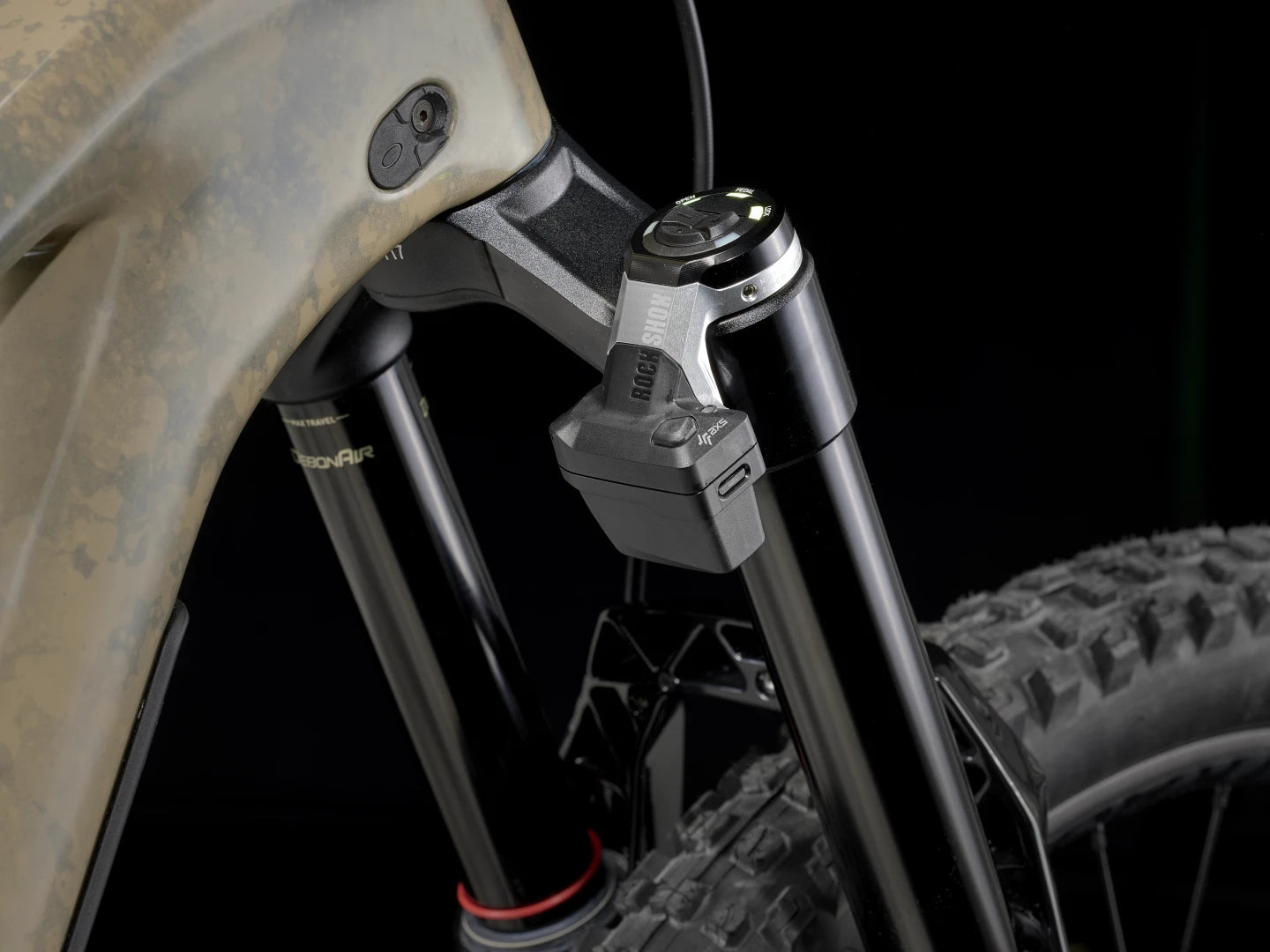

- Fork: RockShox ZEB Ultimate, Flight Attendant, DebonAir spring, Charger 2.1 RCT3 AXS damper, 1.5'' tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 170 mm travel
- Gear Shifters: SRAM AXS POD, paired with dropper

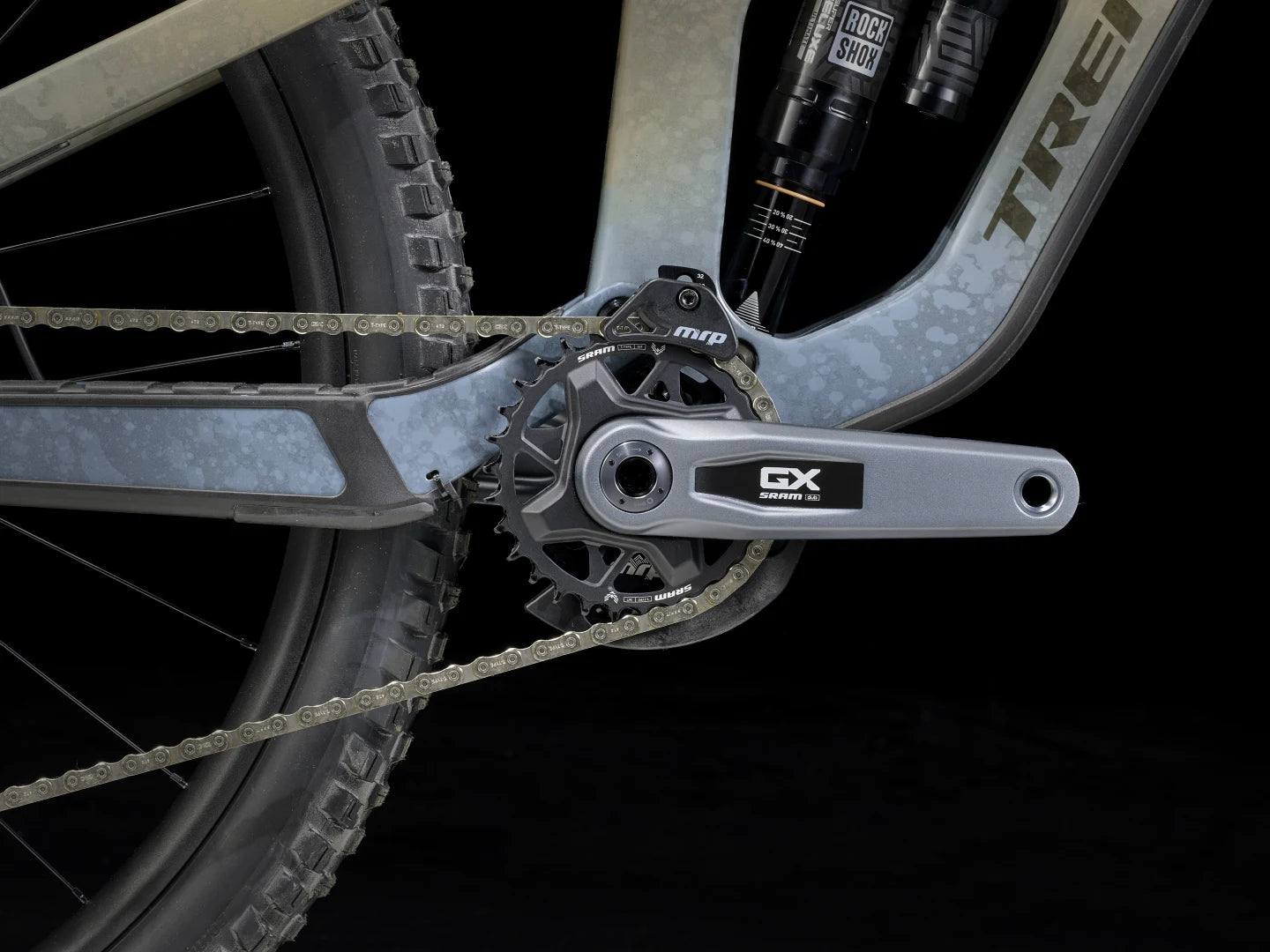

- Chainset: SRAM GX Eagle, DUB MTB Wide, T-Type, 30T, 55 mm chain line, 165 mm length
- Rear Cassette: SRAM Eagle XS-1275, T-Type,10-52, 12-speed
- Chain: SRAM GX Eagle, T-Type, 12-speed
- Front Derailleur: N/A

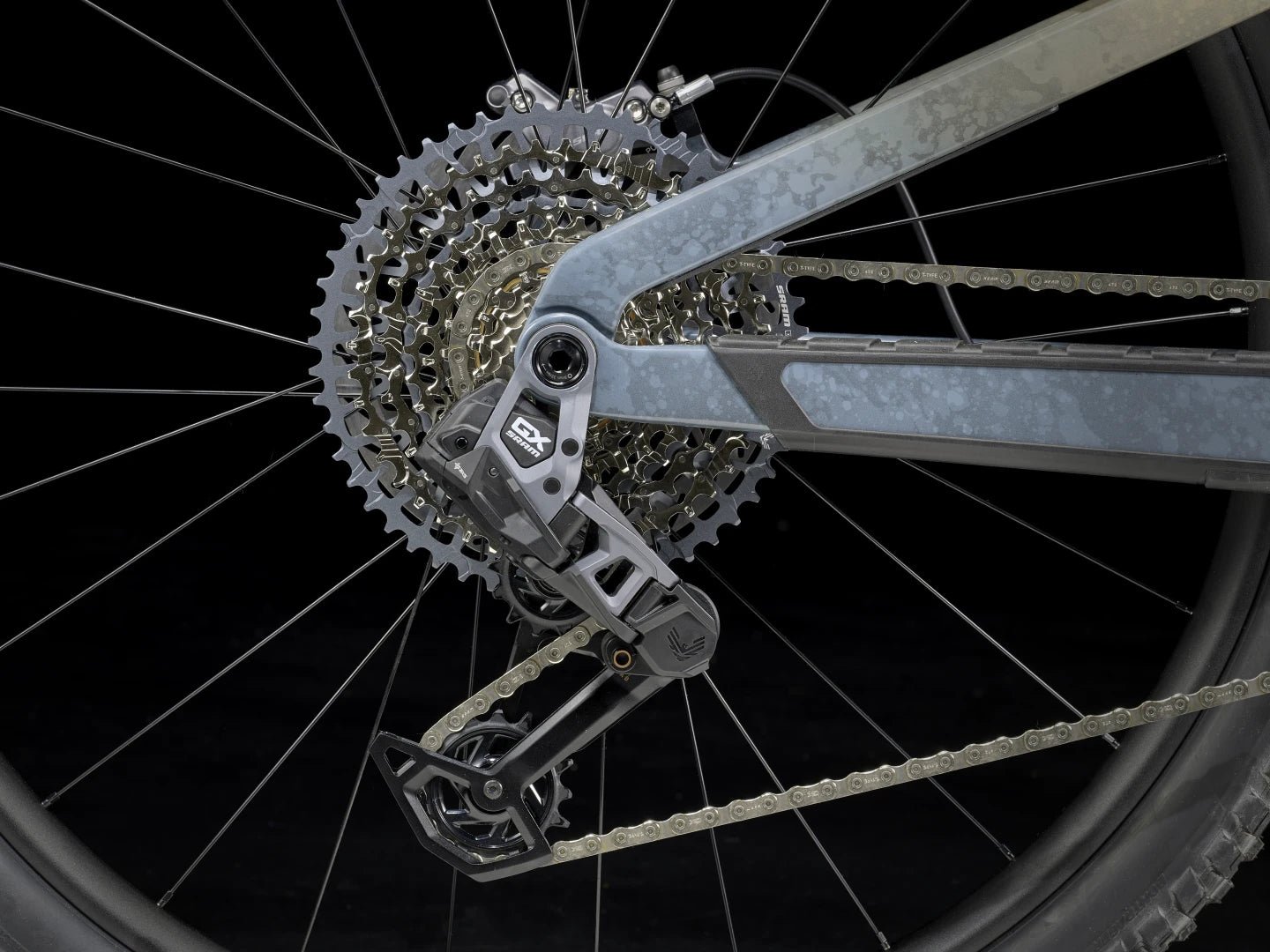

- Rear Derailleur: SRAM GX Eagle AXS, T-Type
- Bottom Bracket: SRAM DUB MTB Wide, 73 m, BSA threaded
- Pedals: Not supplied
- Rims: Bontrager Line Comp 30, Tubeless Ready, 29"
- Front Hub: Bontrager Line Comp 30, 6-bolt, Boost110, 15 mm thru axle
- Rear Hub: Bontrager Line Comp 30, Rapid Drive 58, 6-bolt, Boost148, 12 mm thru axle
- Front Tyre: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"

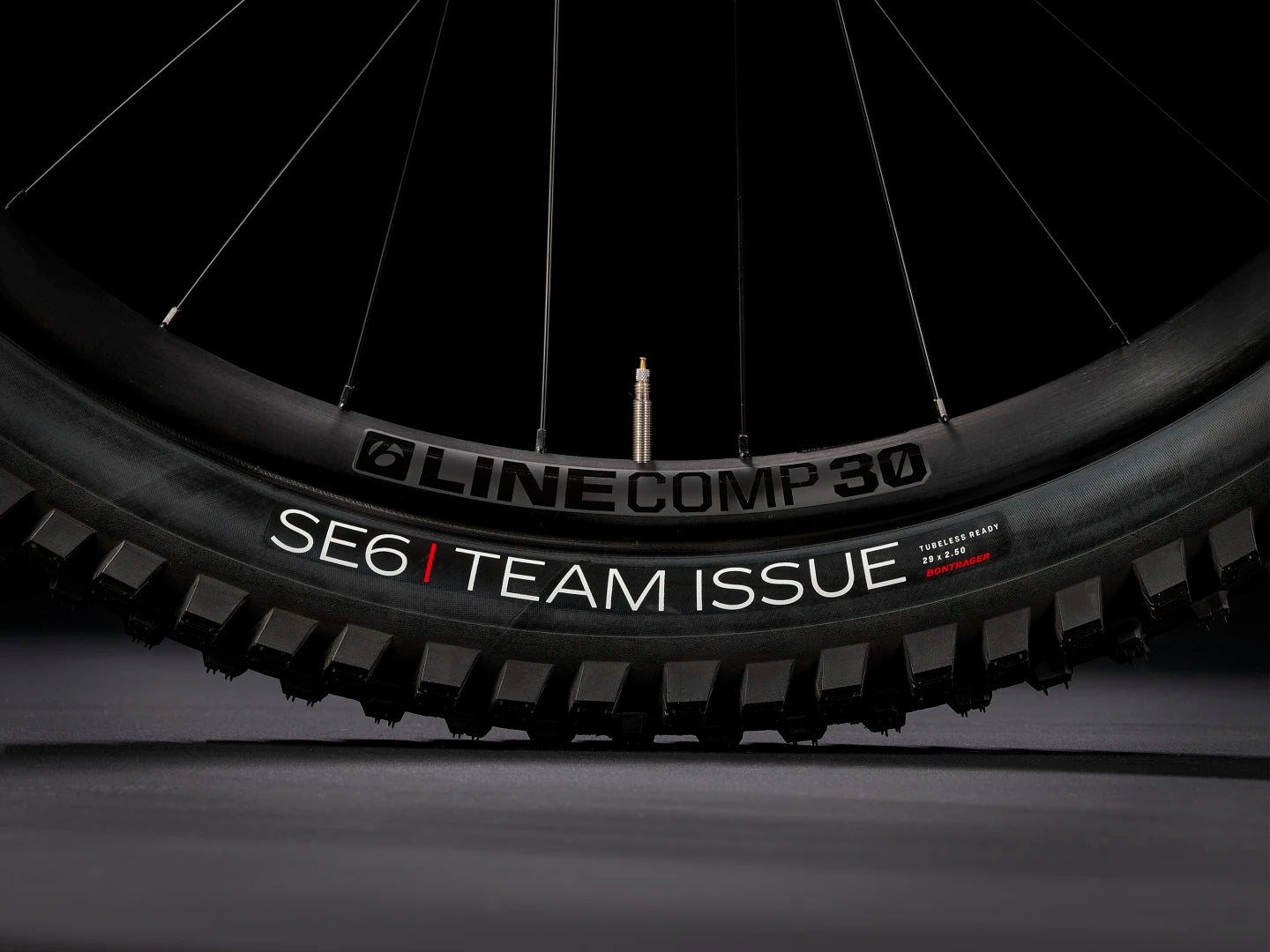

- Rear Tyre: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"

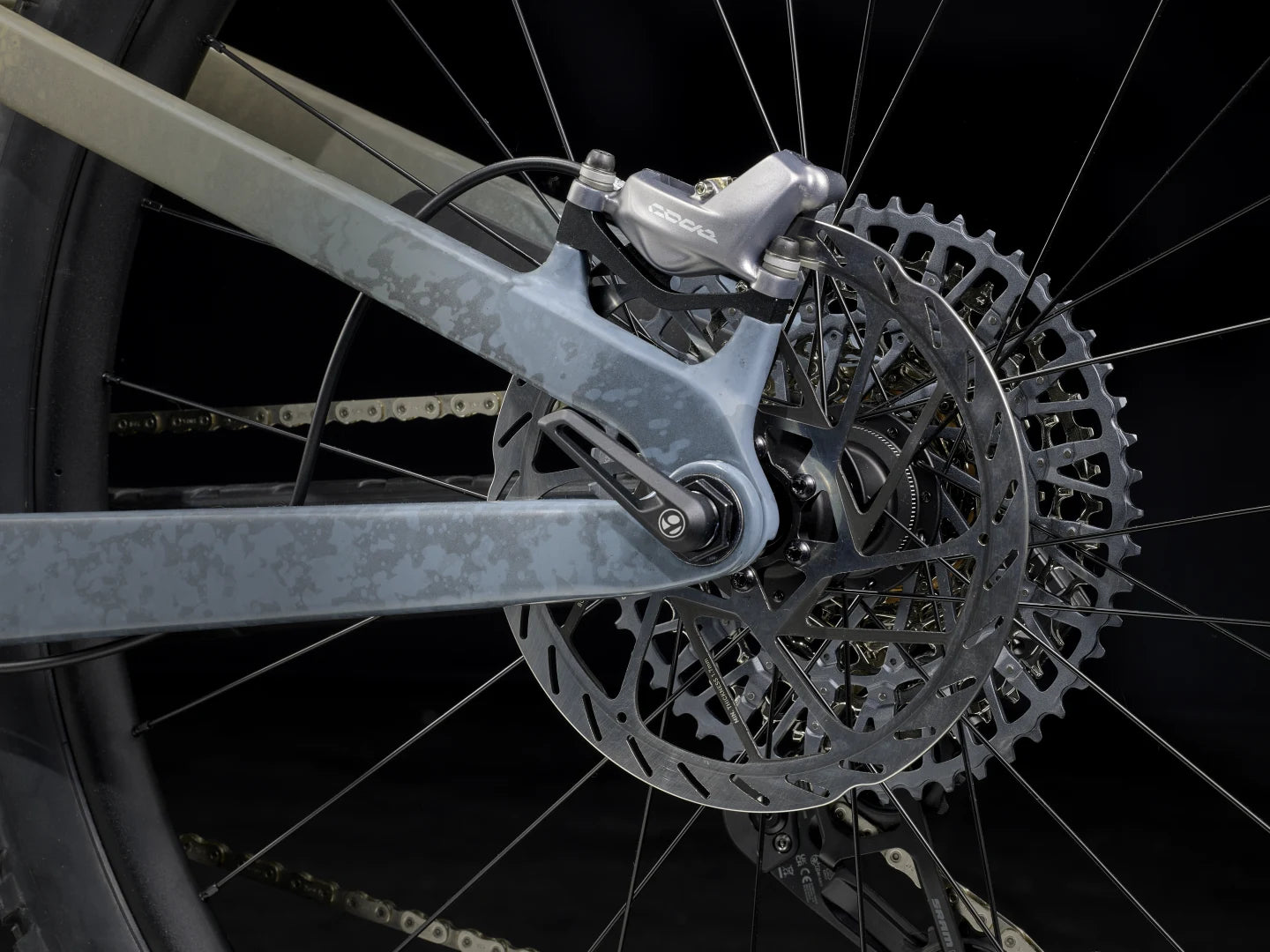

- Brakes: SRAM CODE Bronze 4-piston hydraulic disc
- Handlebars: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
- Handlebar Grips: Bontrager XR Trail Pro, alloy lock-on
- Headset: Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

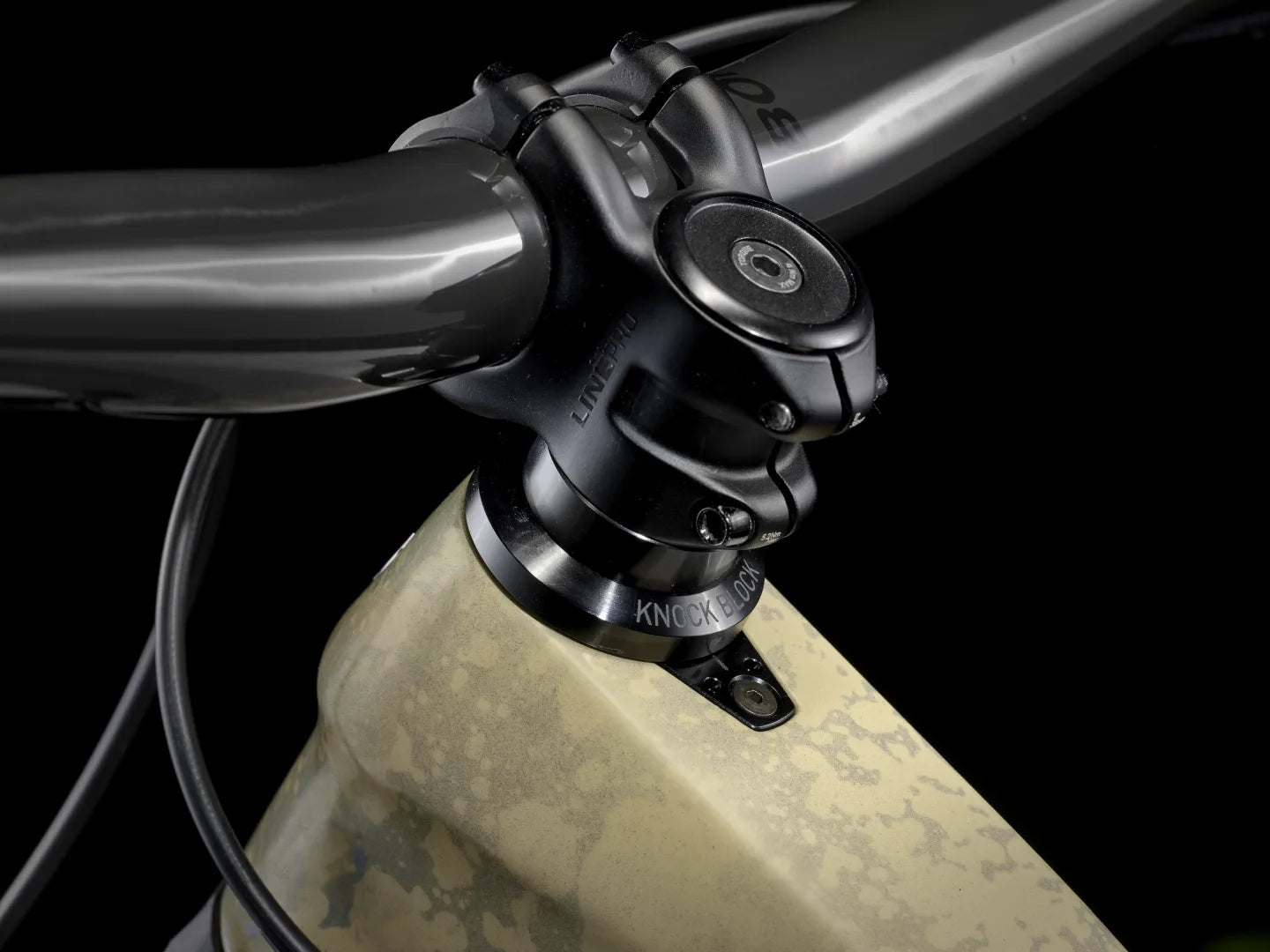

- Stem: Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length

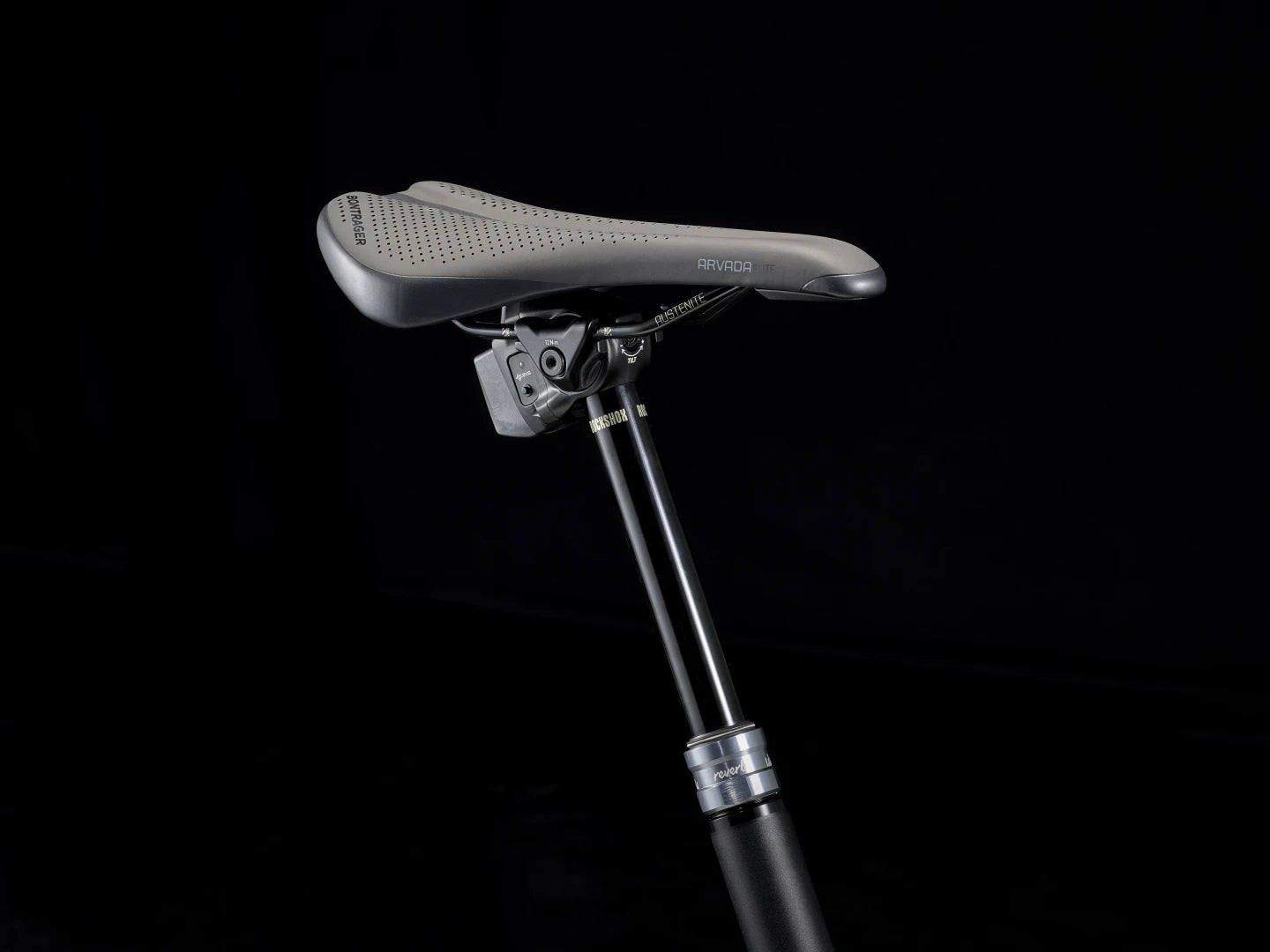

- Saddle: Bontrager Arvada Elite, stainless steel rails, 138 mm width
- Seatpost: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 - 480 mm length
- Accessories: Bontrager BITS Internal Frame Storage Bag
-
Weight: M - 15.53 kg / 34.24 lbs (with TLR sealant, no tubes)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How to Build Your Bike
How to Build Your Bike
Aftercare
Aftercare
You Might Be Interested In

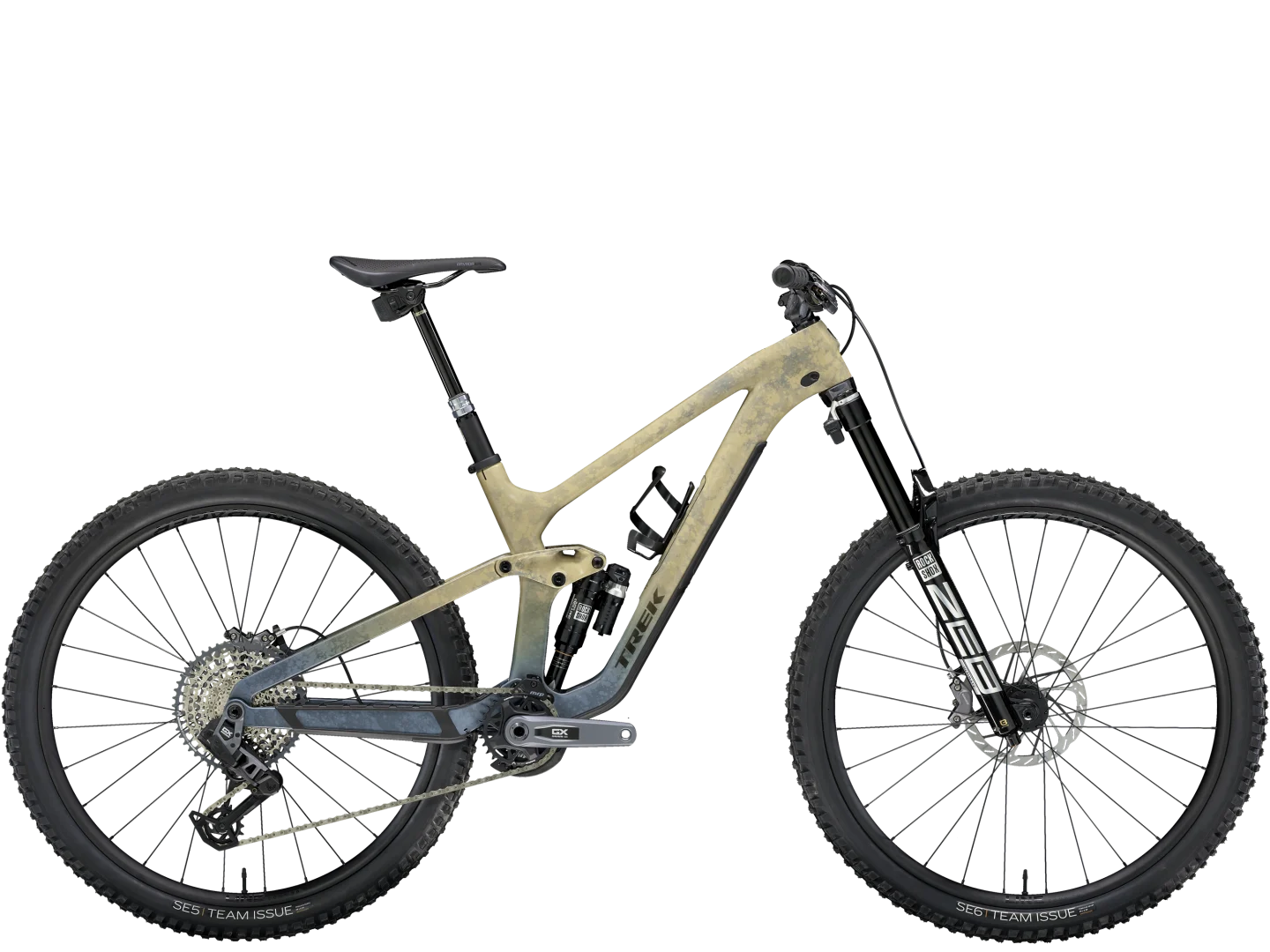

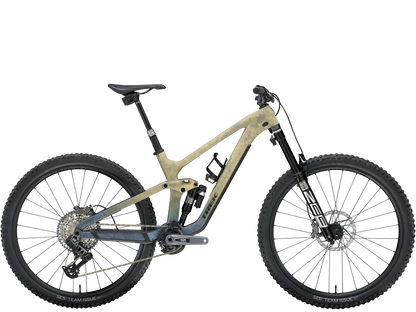

TREK SLASH SE GEN 5 FULL SUSPENSION MTB BIKE 2025 QUICKSAND/BATTLESHIP BLUE
