eBikes by their very nature can in the future  require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated.

Minimum personal assembly is required.

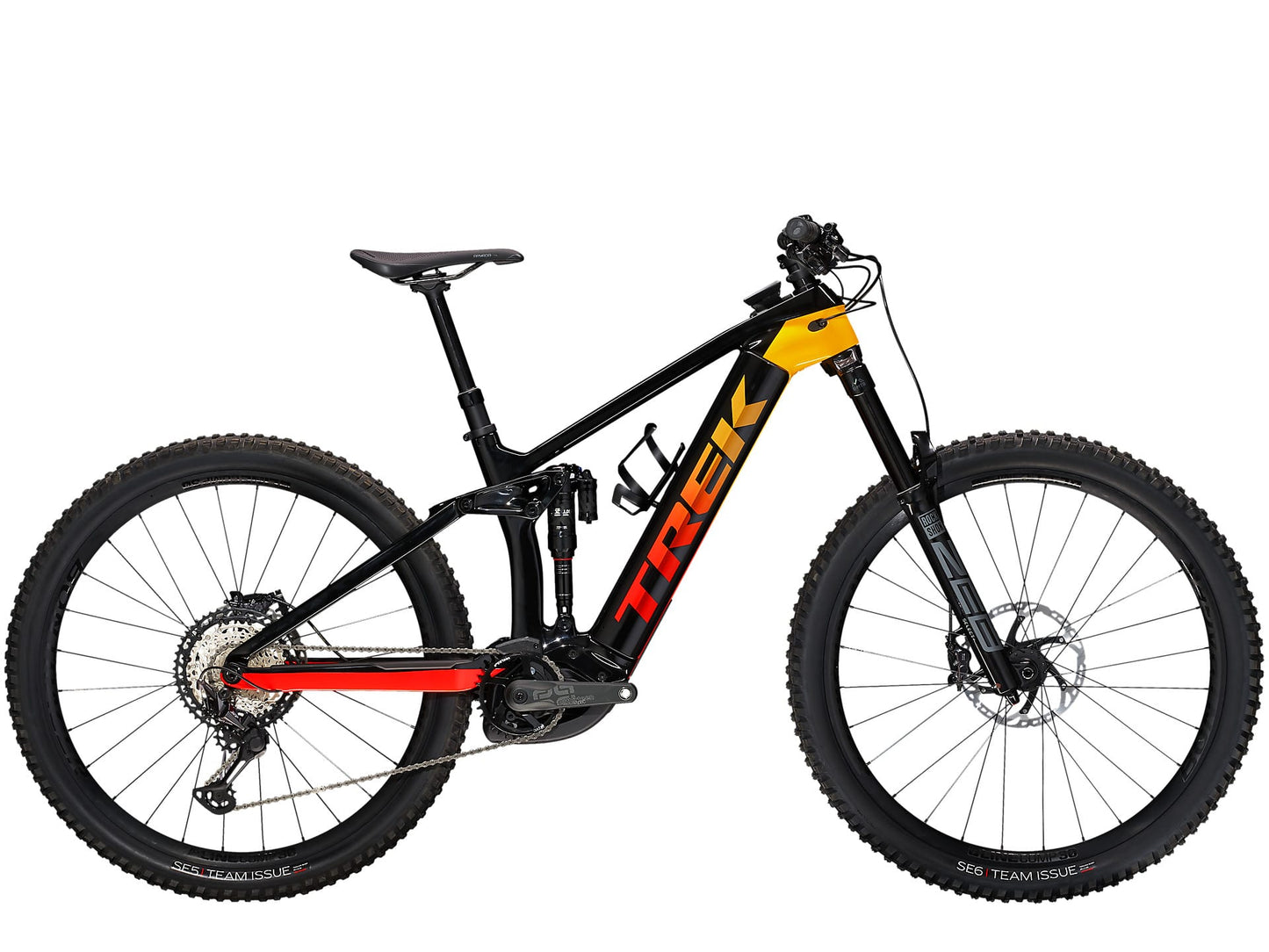

The Rail 9.8 is a long-travel carbon e-MTB that rips like our beefiest trail rigs and powers you right back up the mountain. You get upgraded everything, including the frame for maximum fun on the gnarliest runs. You also get Bosch's latest tech with the new smart system Performance Line CX that has a longer-range 750 Wh battery and cool features that take your ride to the next level like activity tracking, navigation and Bluetooth connectivity.

Key Features

• Display: The full-colour Kiox display shows ride info, connects with your Bluetooth® enabled devices and has a built-in theft prevention feature
• Hydraulic Disc Brakes: Reliable braking performance to keep you in control, whatever the weather.
• RIB: Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage

Full Specification

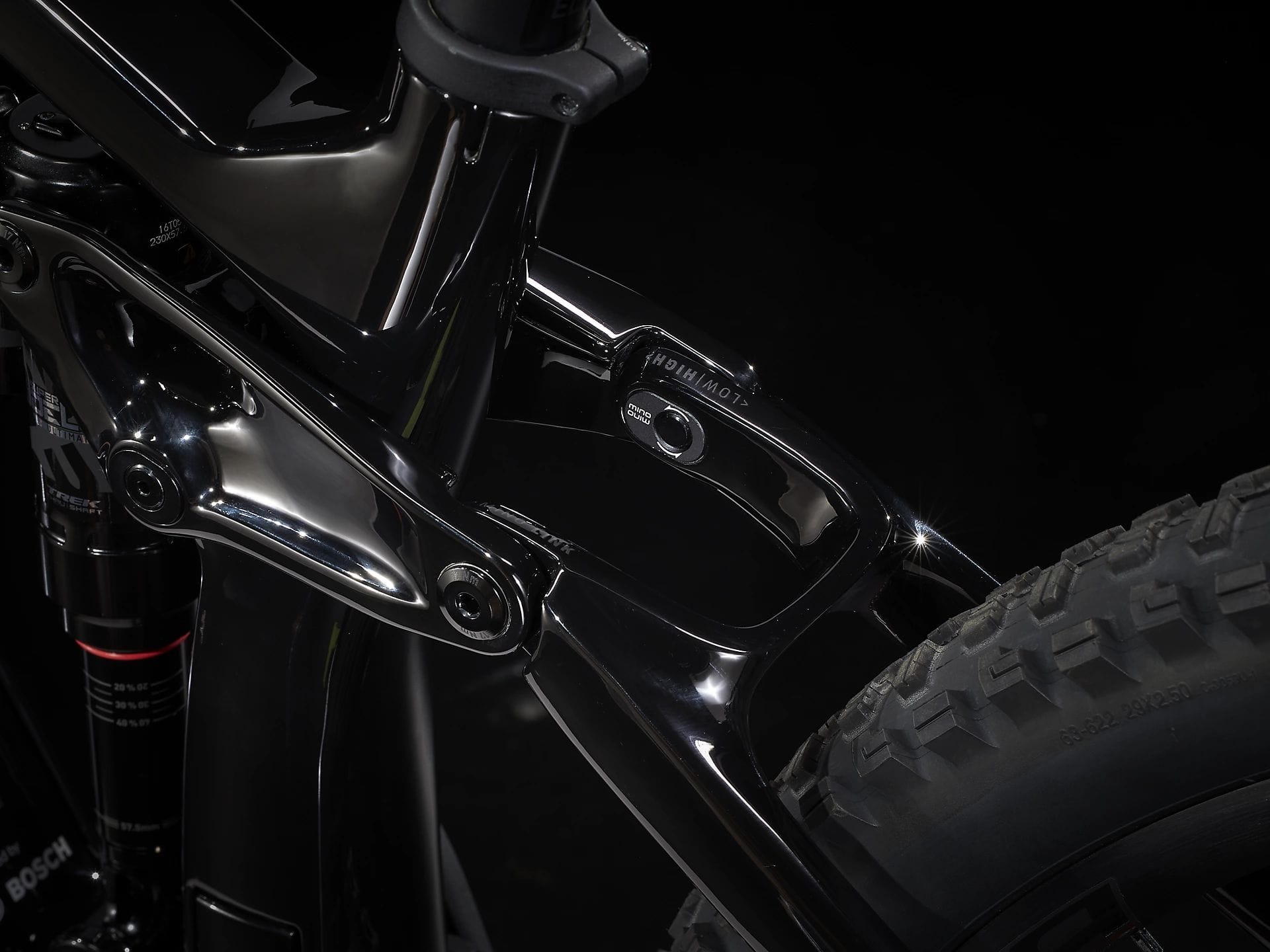

• Frame: NEW OCLV Mountain Carbon main frame, 1.8" lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
• Fork: RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
• Rear Shock: RockShox Super Deluxe Ultimate Thru Shaft shock
• Motor: Bosch Performance Line CX
• Controller: Bosch Kiox with Anti-theft solution
• Battery: Bosch PowerTube 750
• Charger: Bosch standard 4A (230V) BES3 charger
• Number of Gears:12
• Gear Shifters: Shimano XT M8100, 12-speed
• Chainset: E*thirteen E*spec Plus
• Chainrings: 34T
• Rear Cassette: Shimano XT M8100, 10-51, 12-speed
• Chain: Shimano XT M8100, 12-speed

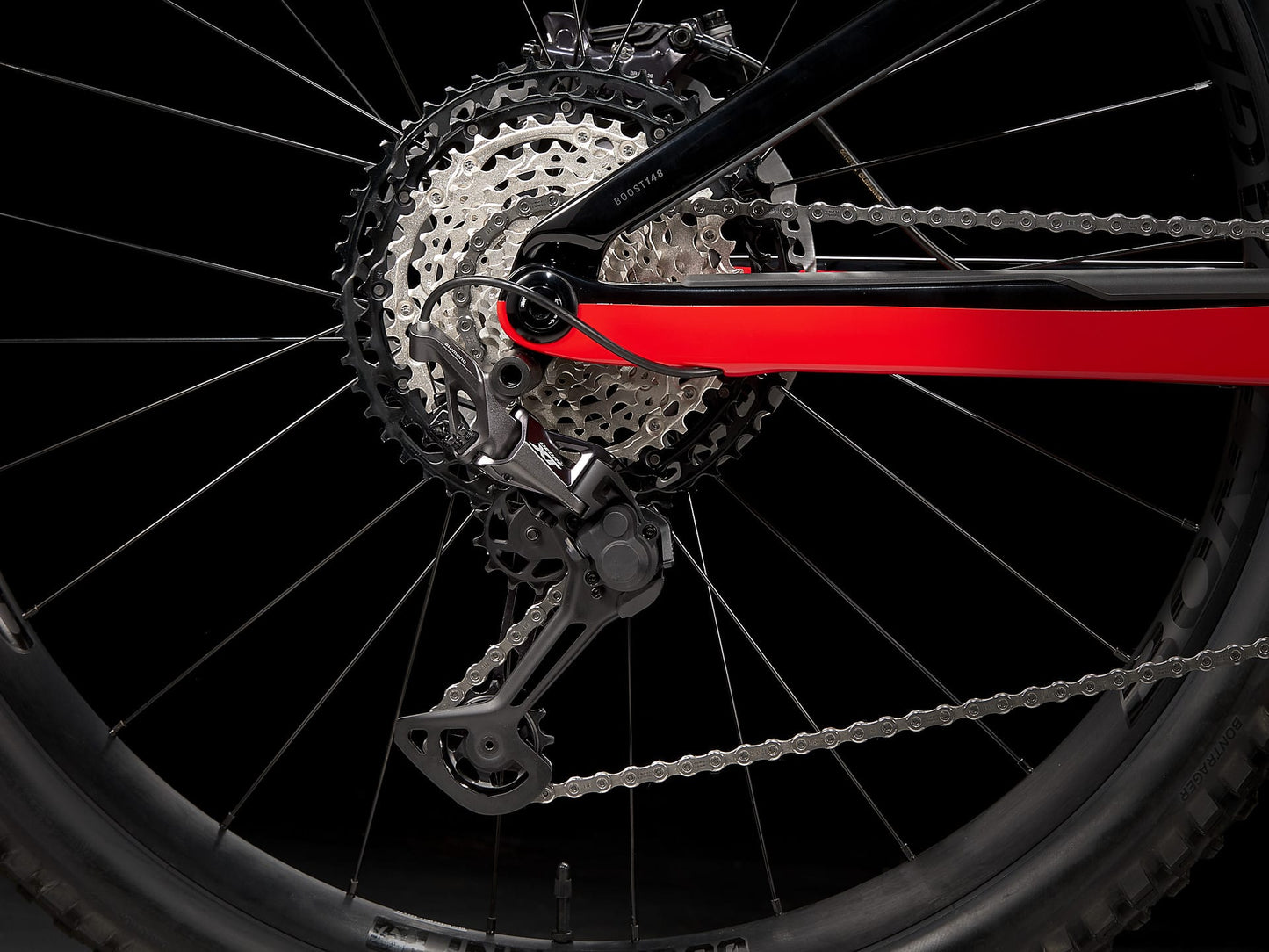

• Rear Derailleur: Shimano XT M8100, long cage, 51T max cog
• Pedals: VP-536 nylon platform
• Wheelset: Bontrager Line Comp 30, G609 alloy, Tubeless Ready, 6-bolt
• Front Tyre: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
• Rear Tyre: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
• Brakes: Shimano XT M8120 4-piston hydraulic dis, 203/203
• Handlebars: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
• Grips: Bontrager XR Trail Elite, nylon lock-on
• Stem: Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
• Saddle: Bontrager Arvada, austenite rails, 138 mm width
• Seatpost: Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm
• Weight: M - 23.40 kg / 51.59 lb (with TLR sealant, no tubes)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
