TREK RAIL 9.5 GEN 4 E-MTB BIKE 2023 HEX BLUE
Product Details - Trek Rail 9.5 Gen 4 E-mtb Bike 2023 Hex Blue
Product Details - Trek Rail 9.5 Gen 4 E-mtb Bike 2023 Hex Blue
eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated.
Minimum personal assembly is required.

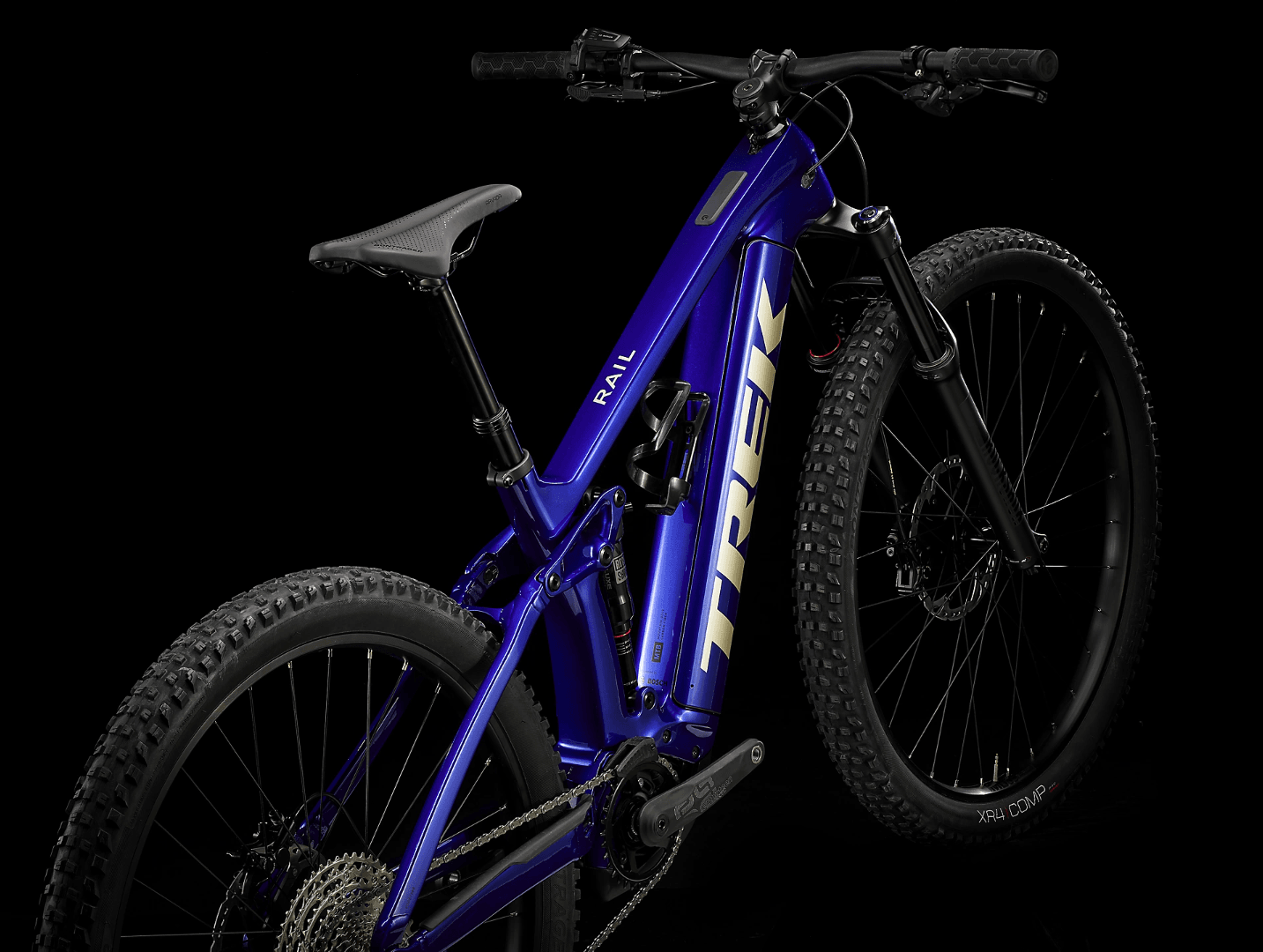

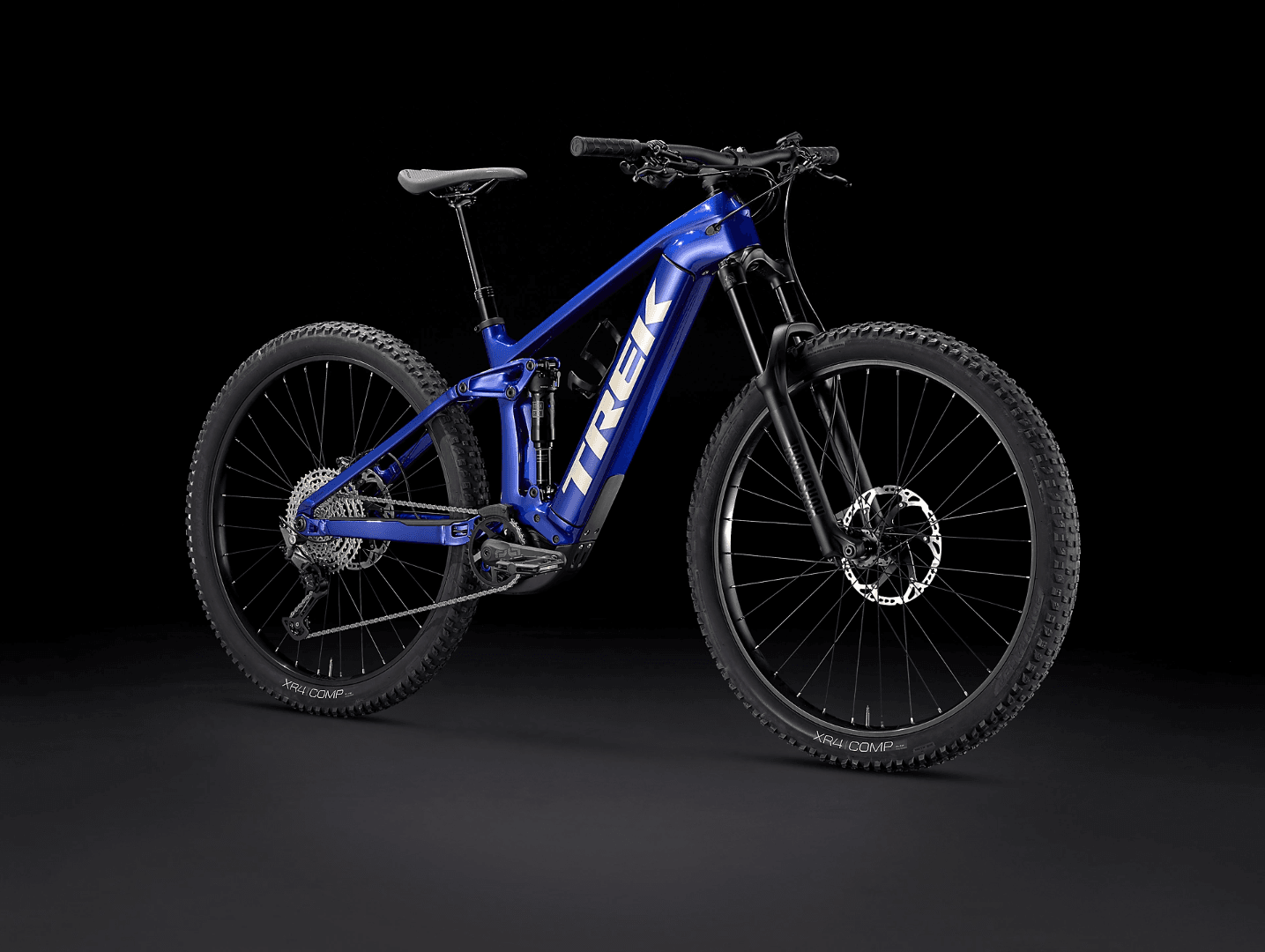

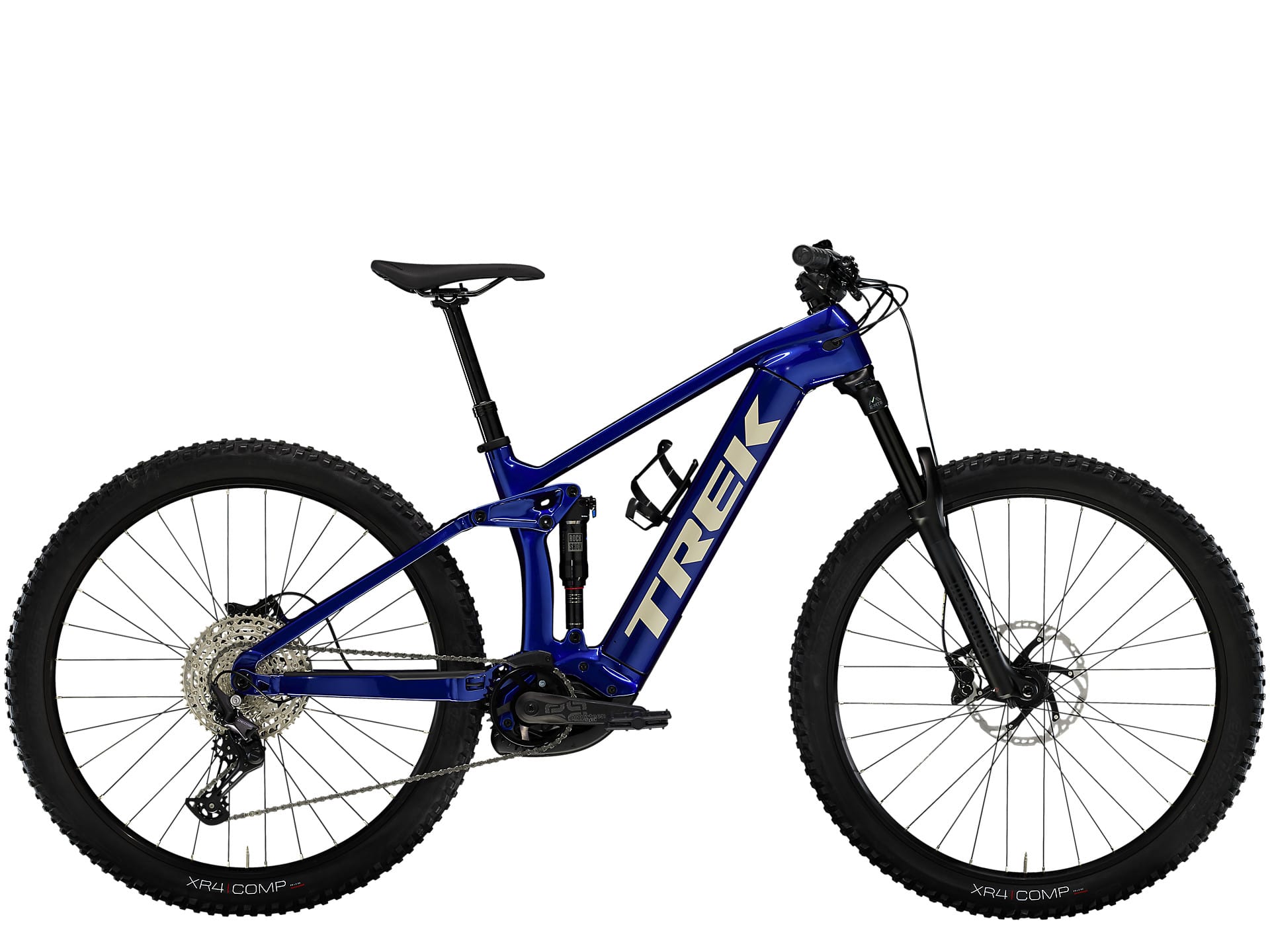

The Rail 9.5 is a carbon electric mountain bike with long-travel suspension.
It features an upgraded frame with longer reach for serious stability on the trail, and a suspension set-up and parts worthy of the gnarliest enduro laps. The powerful Bosch smart system motor will get you back up the mountain faster than you ever thought possible, and the huge 750 Wh battery makes the laps feel endless.
Key Features
- 160mm front and 150mm rear suspension: Eats up the rough stuff.
- New Bosch Performance Line CX motor Lighter and more powerful.
- 625Wh integrated battery: Will keep you riding for longer.
Specification

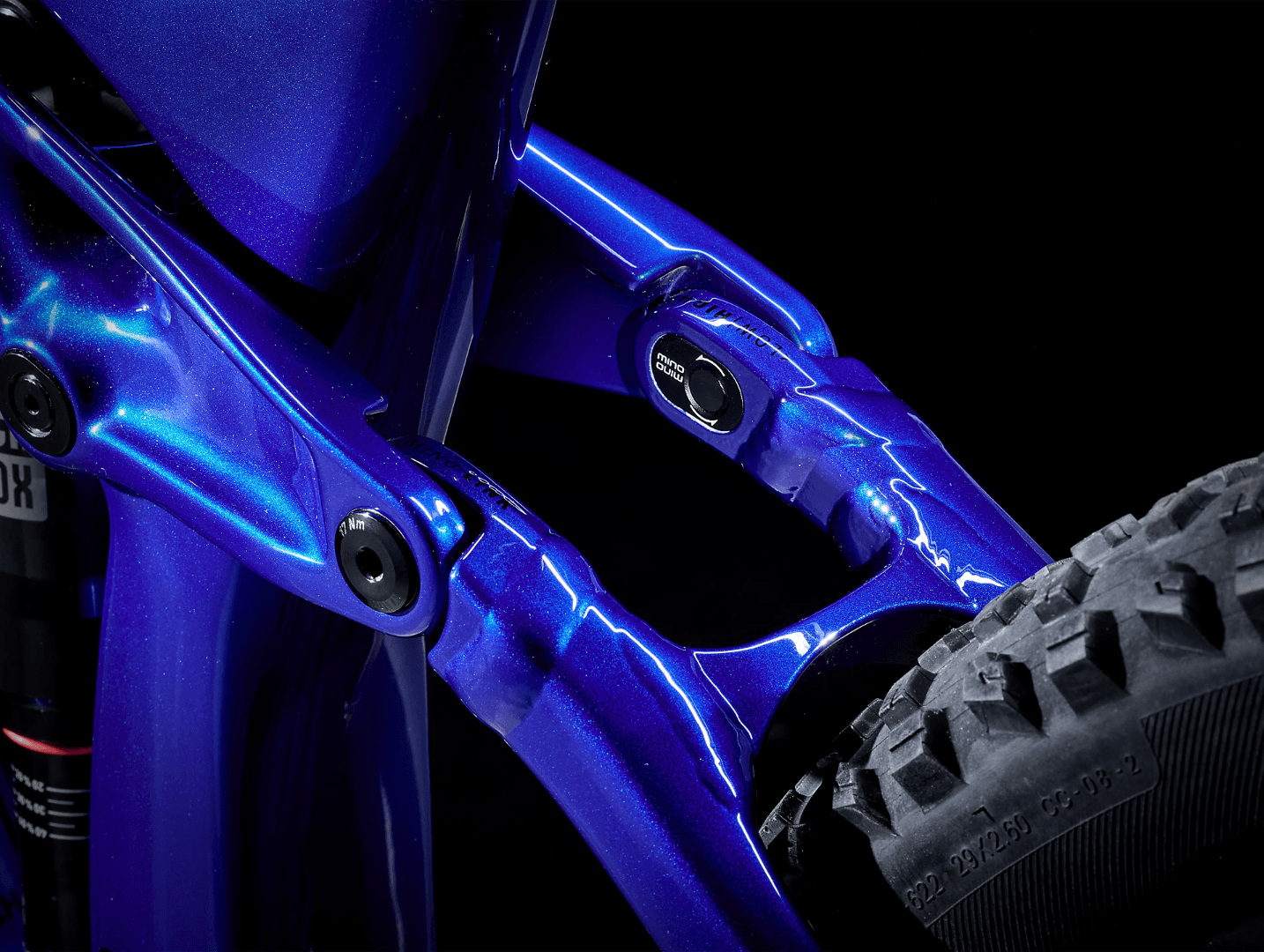

- Frame: OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel

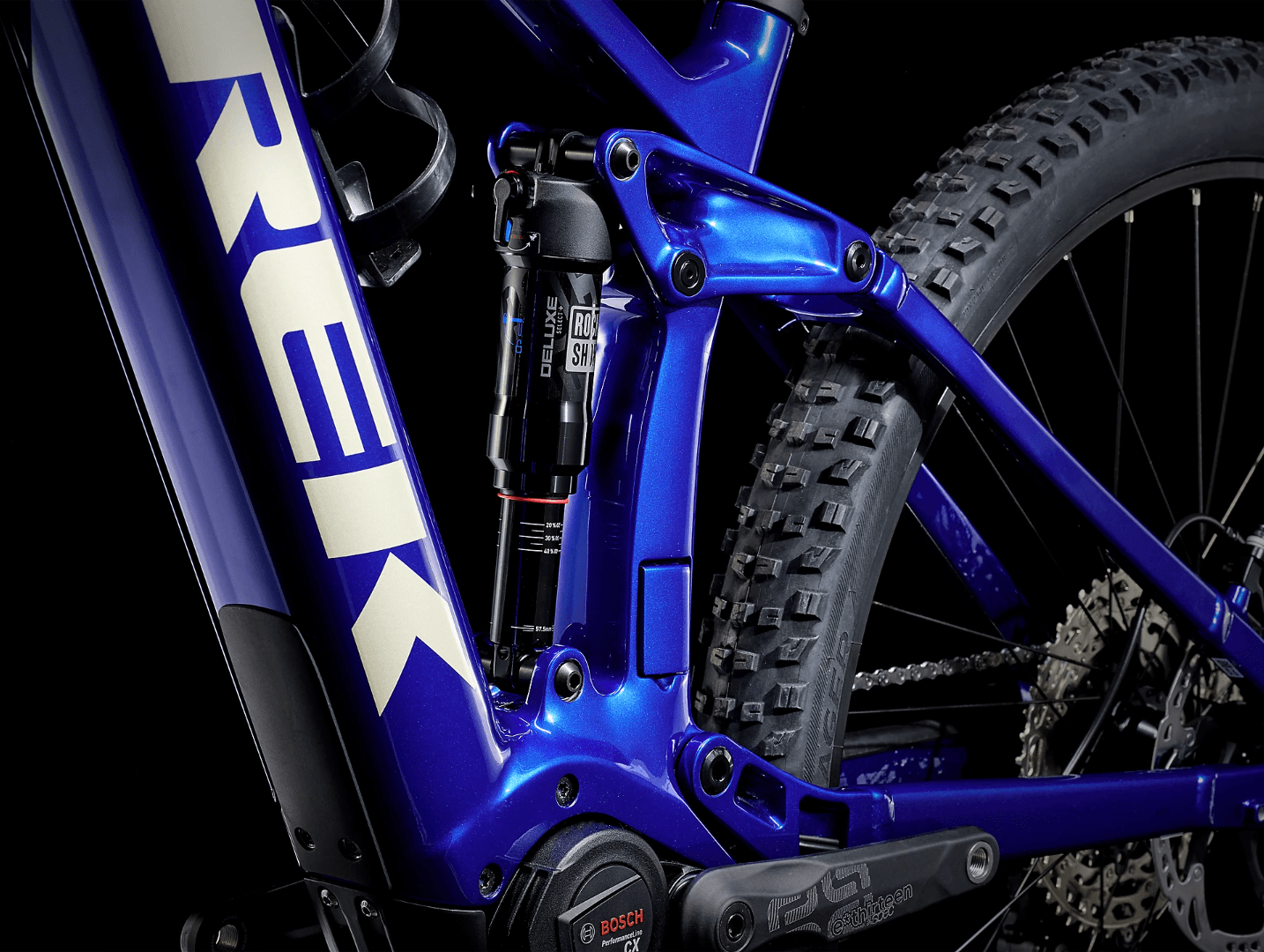

- Rear Suspension: RockShox Deluxe Select+ RT, 230mm x 57.5mm
- Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

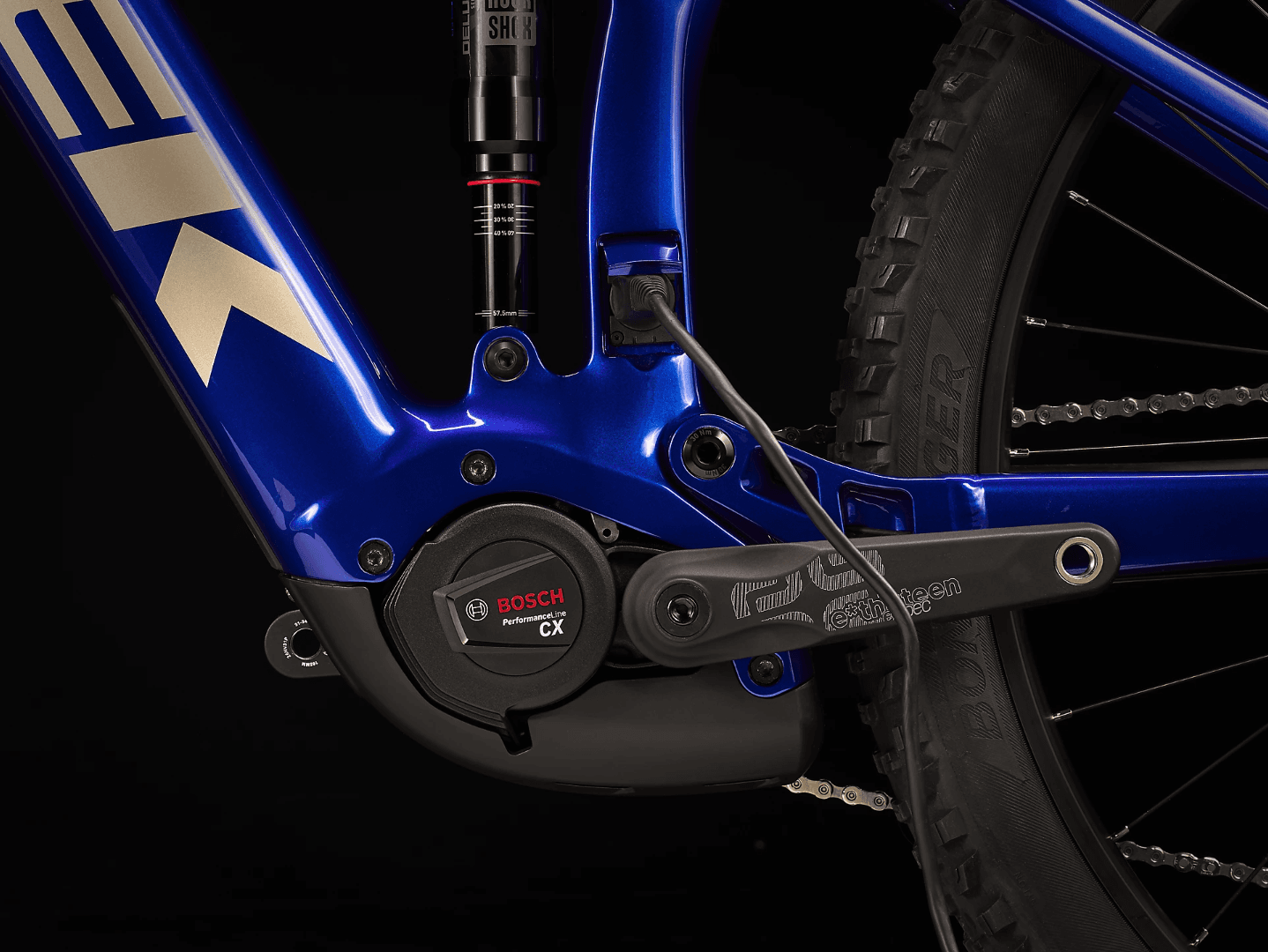

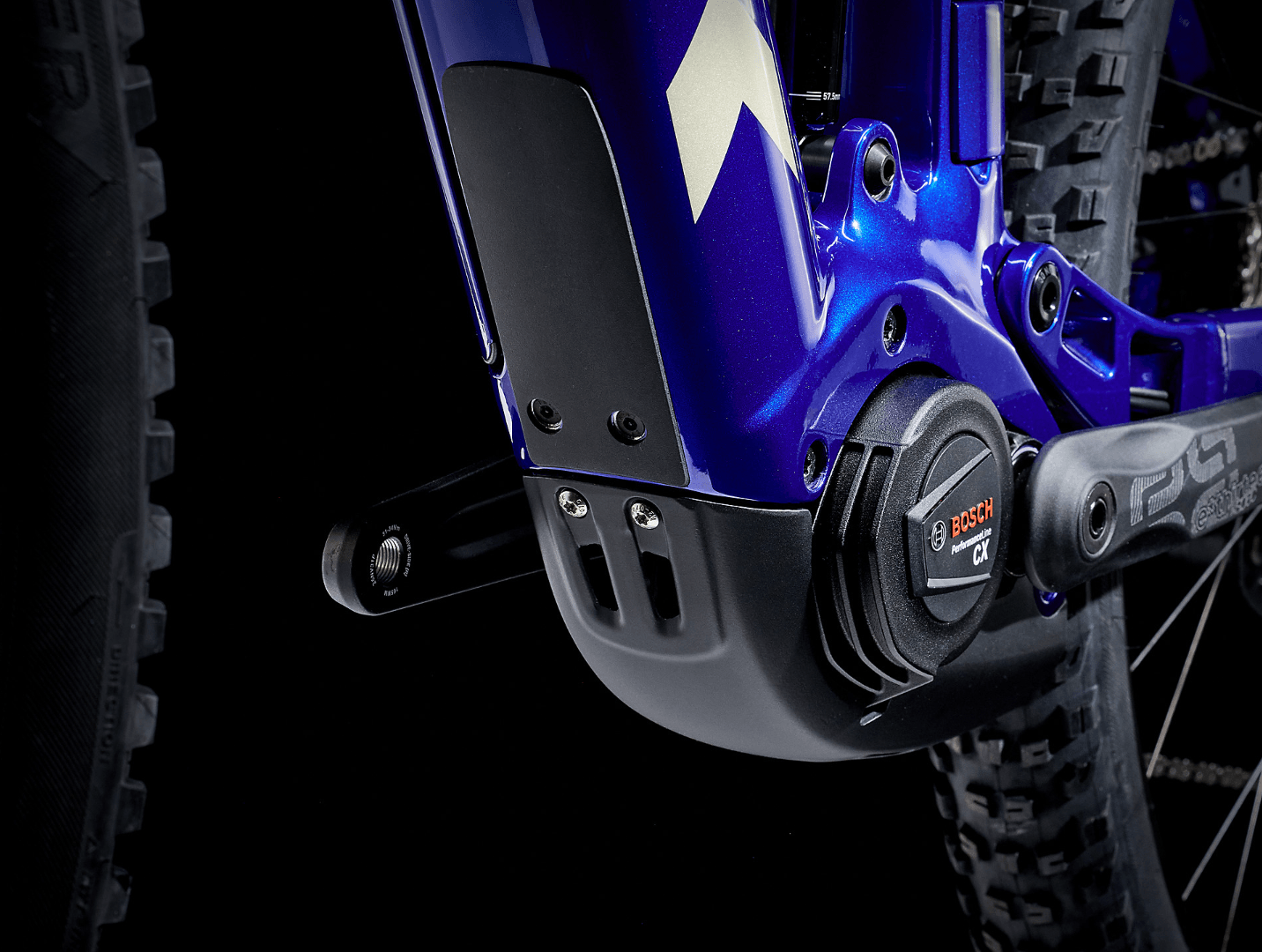

- Motor: NEW Bosch Performance Line CX, 250 Watt, 85Nm, magnesium body, 15.5 mph / 25 km/h max assist

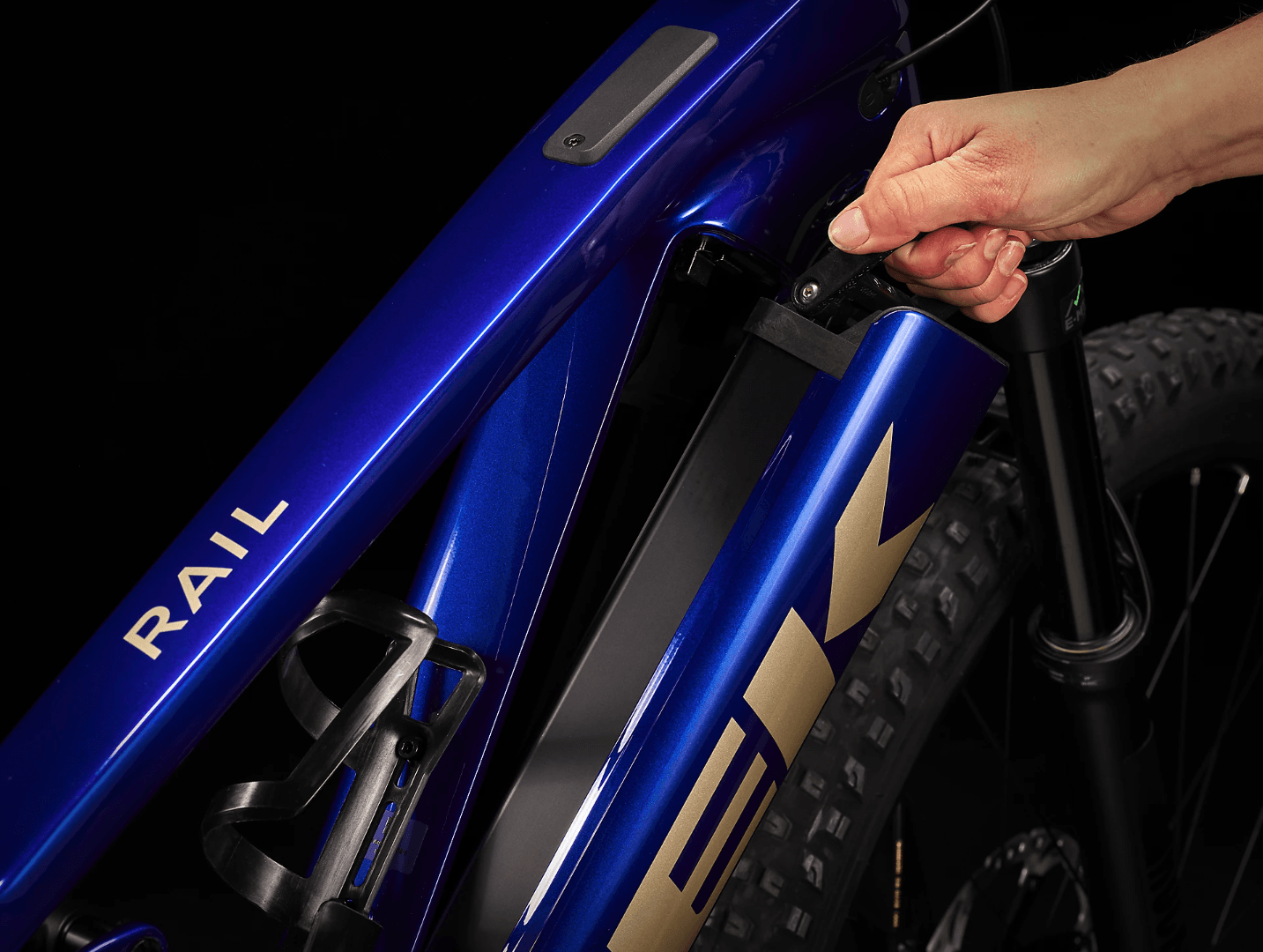

- Battery: Bosch PowerTube 625Wh, smart system

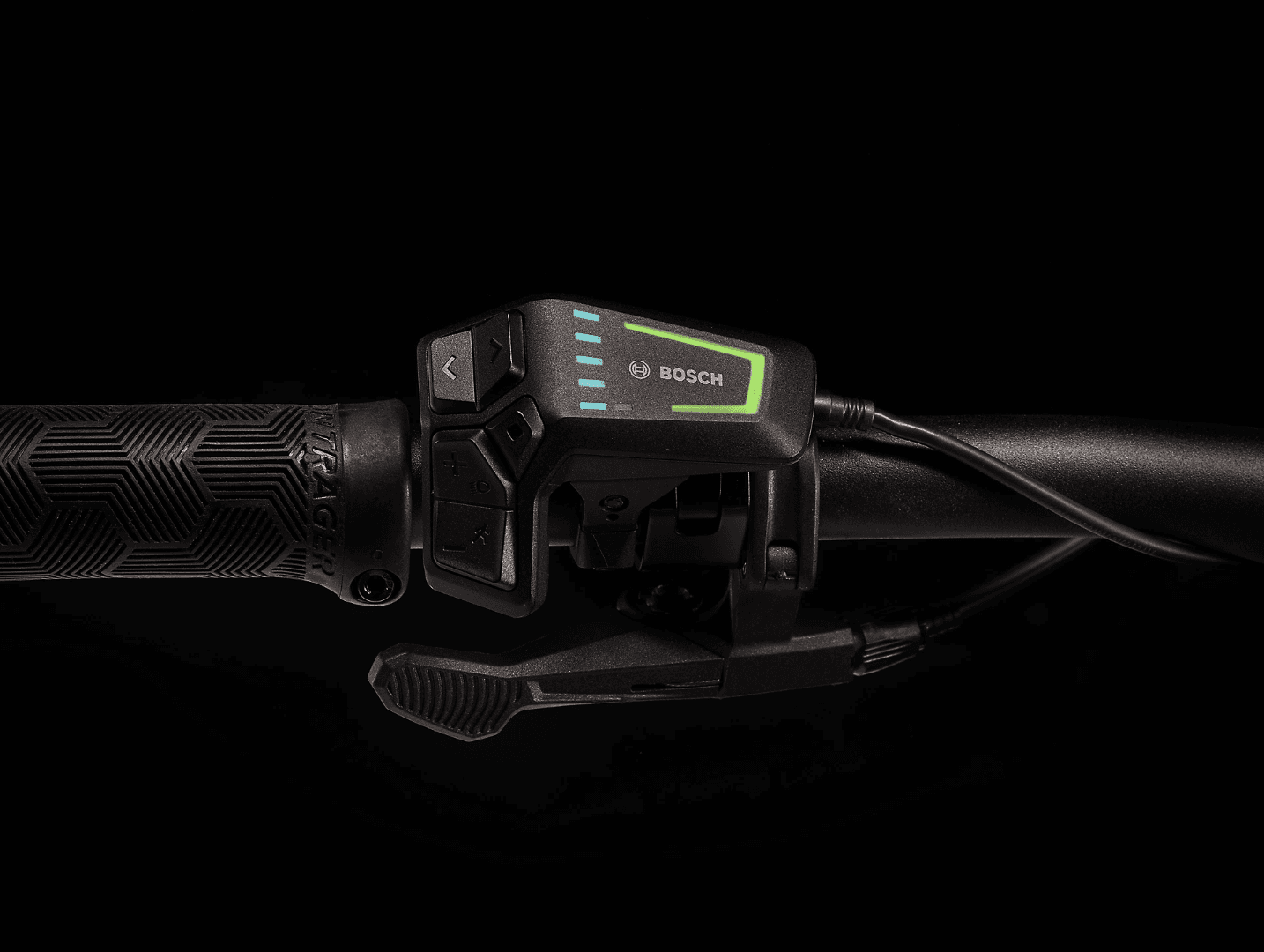

- Controller: BoschLED remote, smart system
- Gear Shifters: Shimano Deore M6100, 12-speed
- Chainset: E*thirteen E*spec Plus, 165 mm length
- Chainrings: E*thirteen E*spec, 34T alloy, 55 mm chainline
- Rear Cassette: SunRace CSMZ800 11-51, 12 speed
- Chain: Shimano Deore M6100
- Front Derailleur: N/A

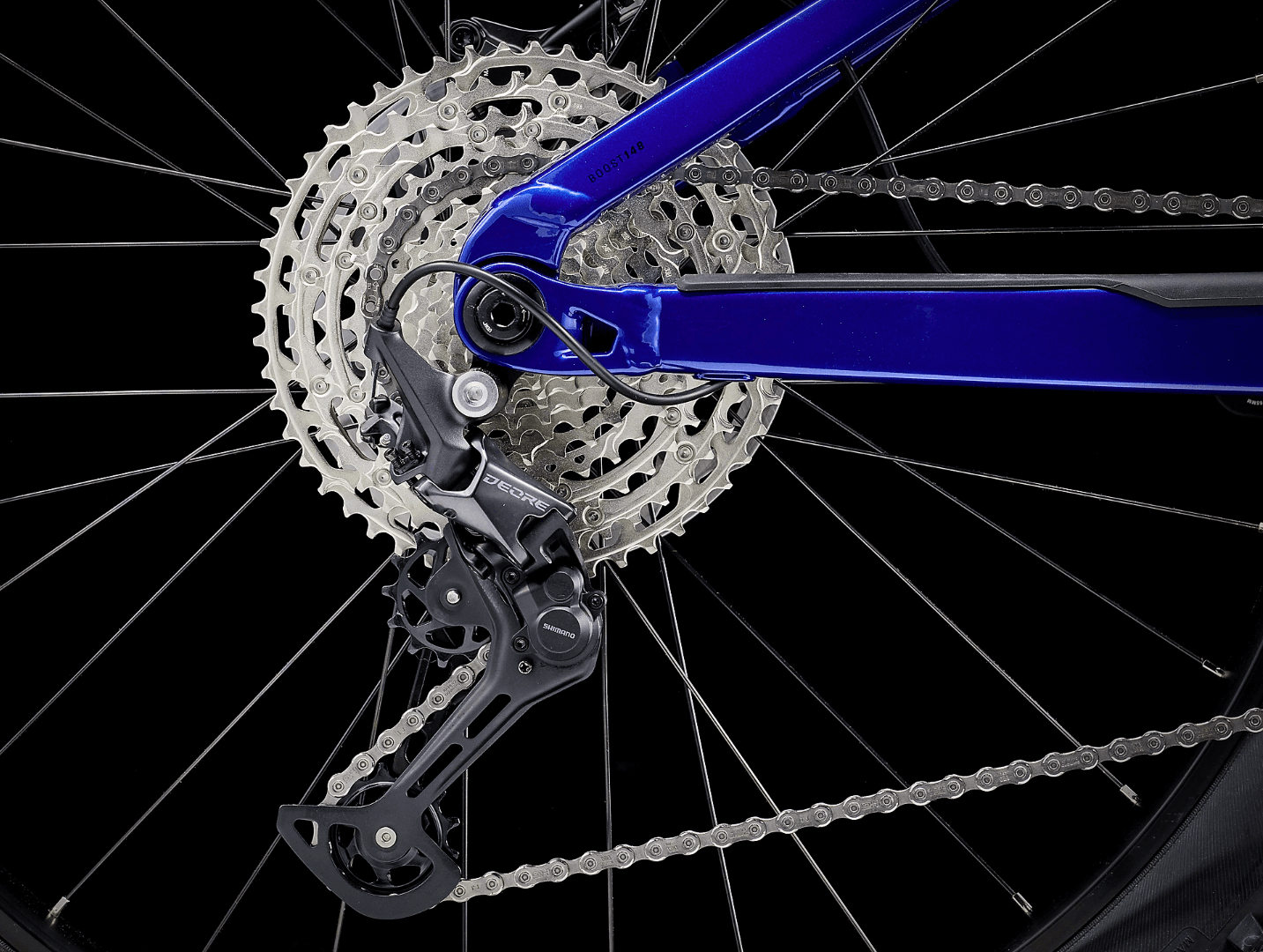

- Rear Derailleur: Shimano Deore M6100, long cage
- Bottom Bracket: N/A
- Pedals: Wellgo VPE-536
- Rims: Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
- Front Hub: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
- Rear Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle

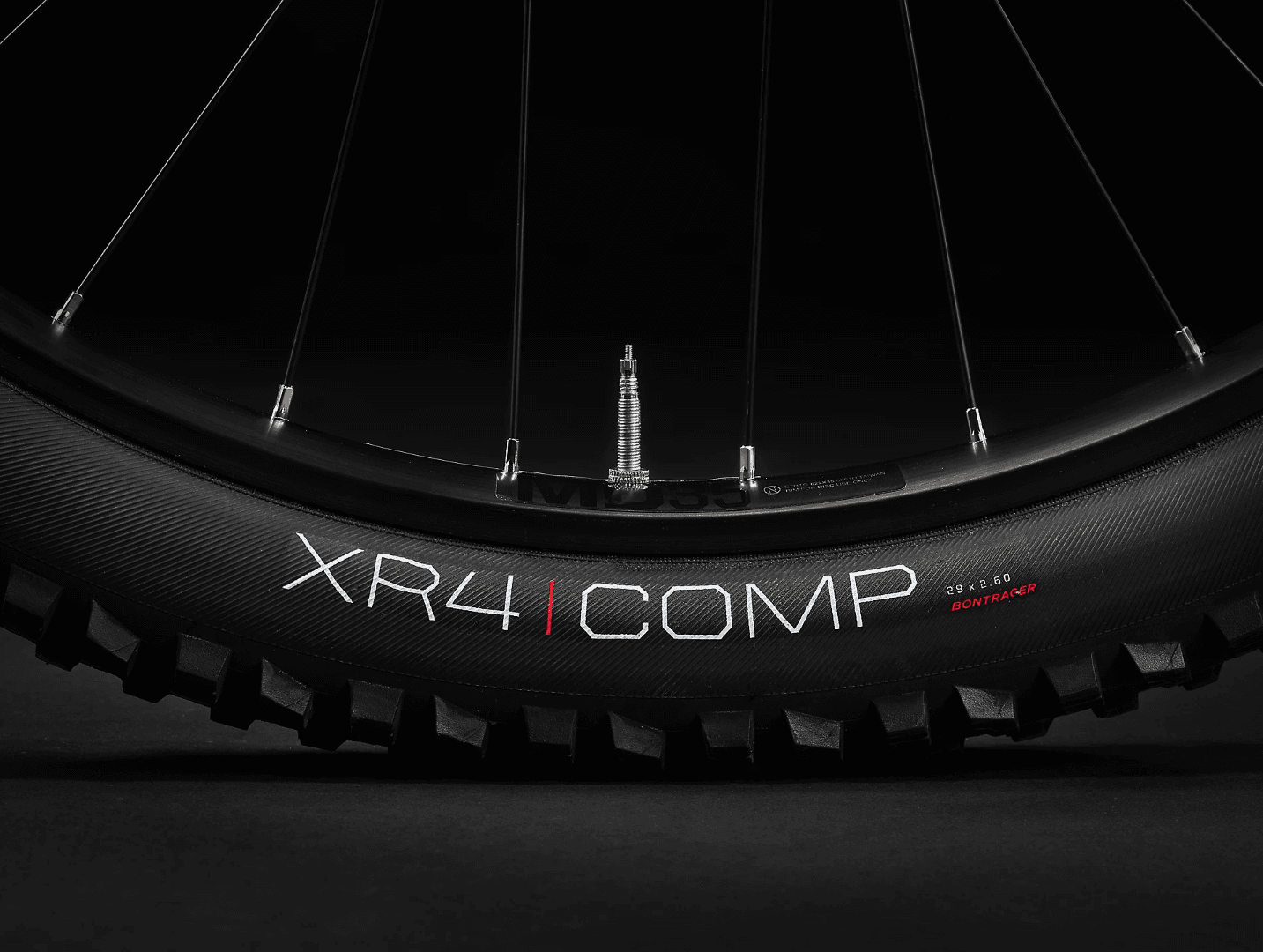

- Tyres: Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
- Brakes: Tektro HD-M745 4-piston hydraulic disc
- Handlebars: Bontrager alloy, 31.8 mm, 15 mm rise 750mm
- Handlebar Grips: Bontrager XR Trail Comp, lock-on
- Headset: Knock Block Integrated, cartridge bearing, 1-1/8" top, 1.5"

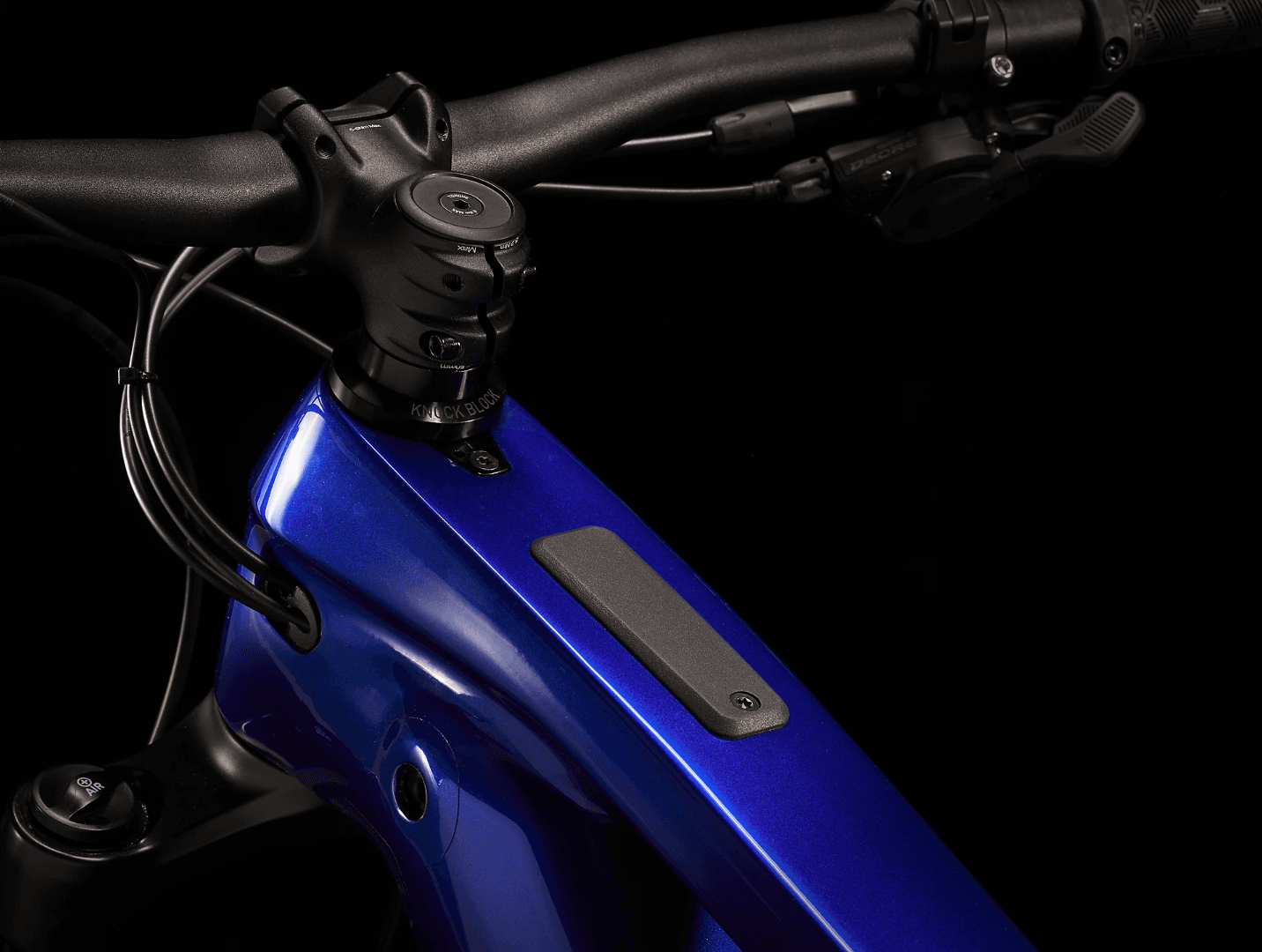

- Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree
- Saddle: Bontrager Arvada, steel rails, 138 mm width
- Seatpost: TranzX JD-YSI-22PLQ, 100 - 150 mm travel, internal routing, 34.9 mm, 346 - 497 mm length
- Accessories: N/A
- Weight: M – 25.35 kg/55.89 lb
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
