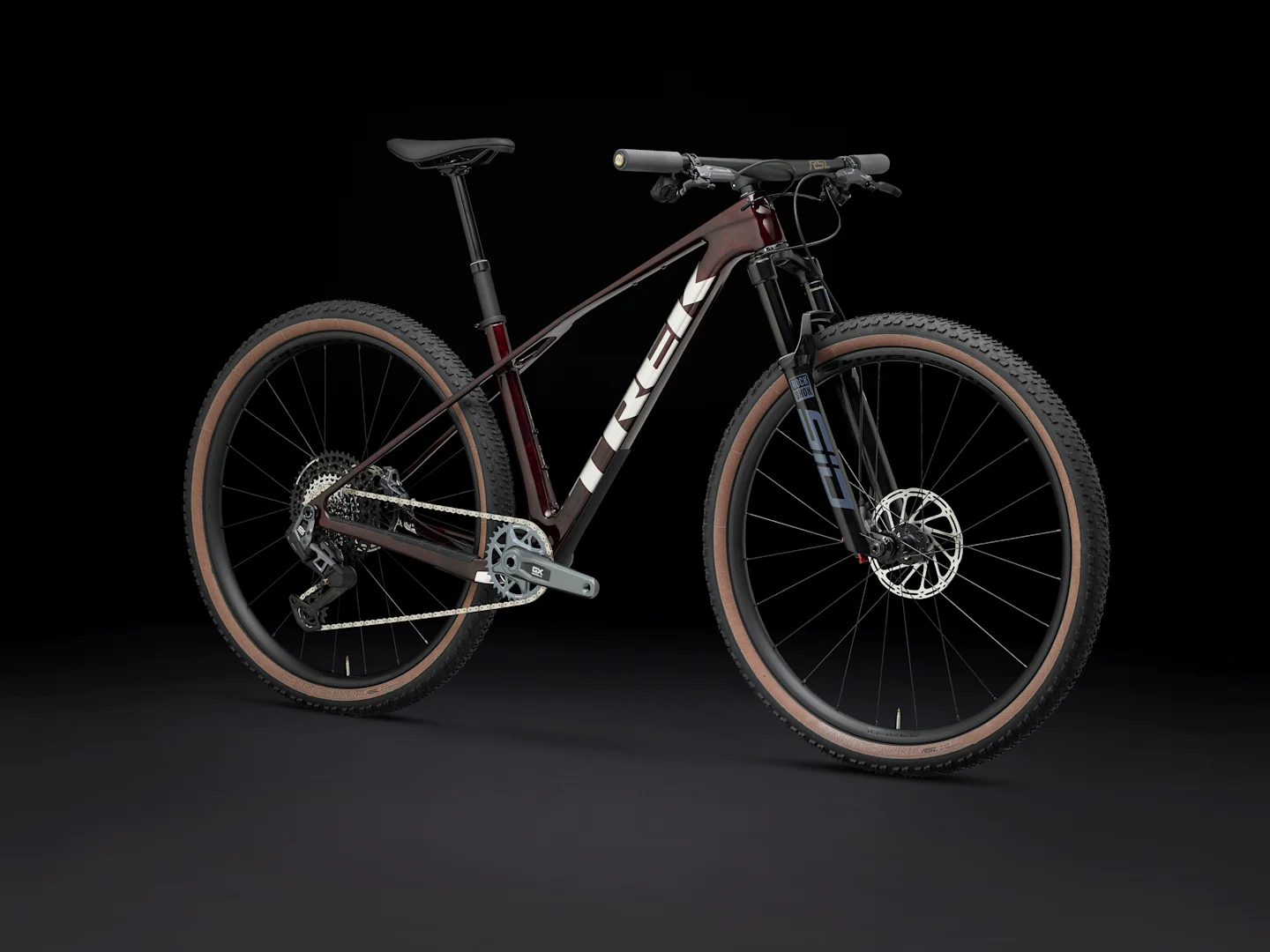

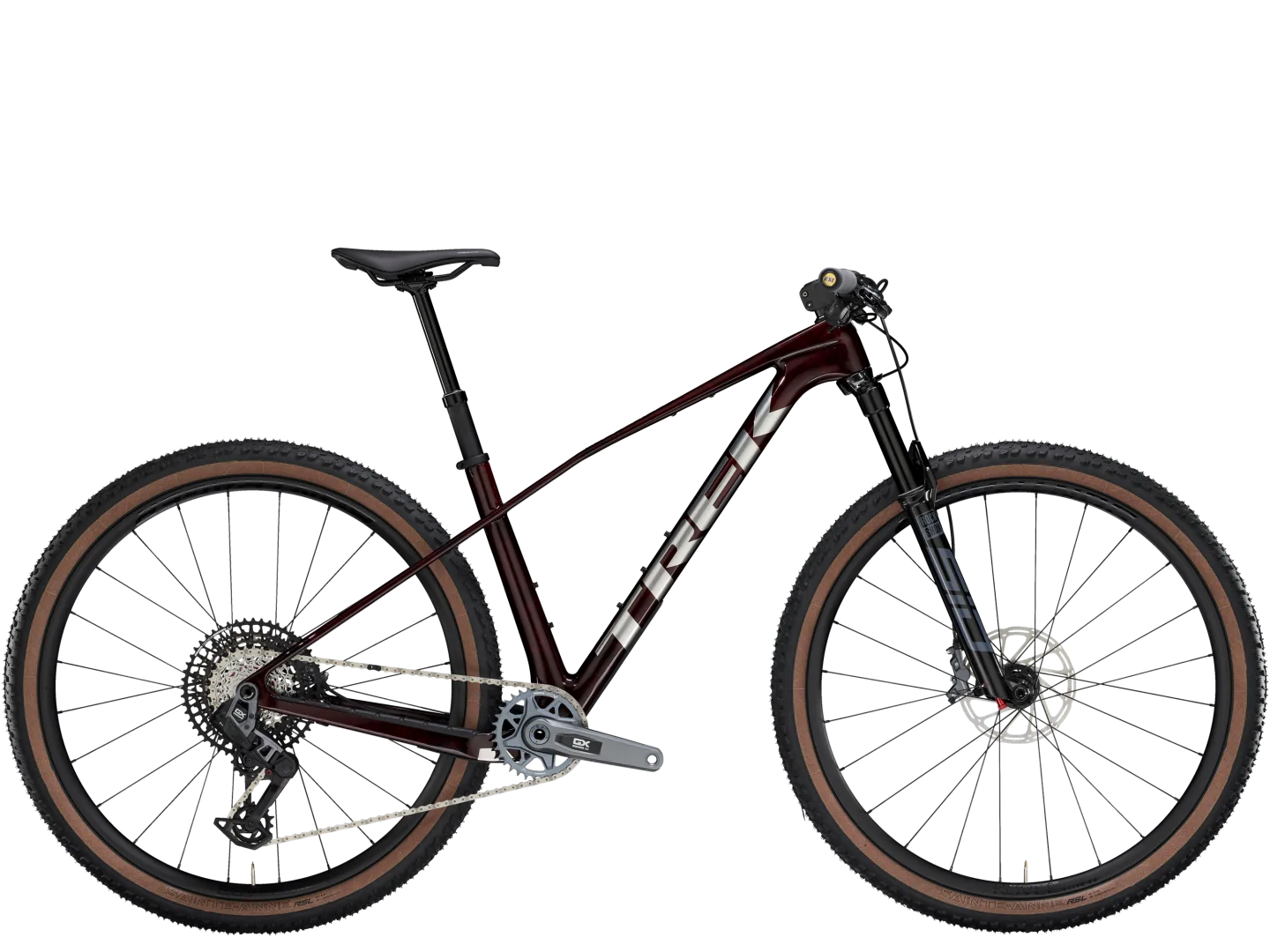

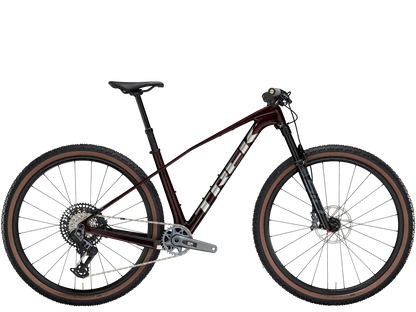

TREK PROCALIBER 9.7 AXS GEN 3 HARDTAIL MTB BIKE 2025 CARBON RED SMOKE

The Procaliber 9.7 Gen 3 is a carbon XC hardtail that's built to race. Its crafted from OCLV Mountain Carbon fibre with IsoBow trail-smoothing tech that not only eats up chatter, but sheds weight too. It's built for speed, with carbon wheels, an upgraded RockShox fork and a wireless SRAM AXS transmission.

Key Features Trek Procaliber 9.7 AXS Gen 3 Hardtail MTB Bike 2025

• IsoBow: Provides added comfort that won't lose any efficiency as you rip cross-country.

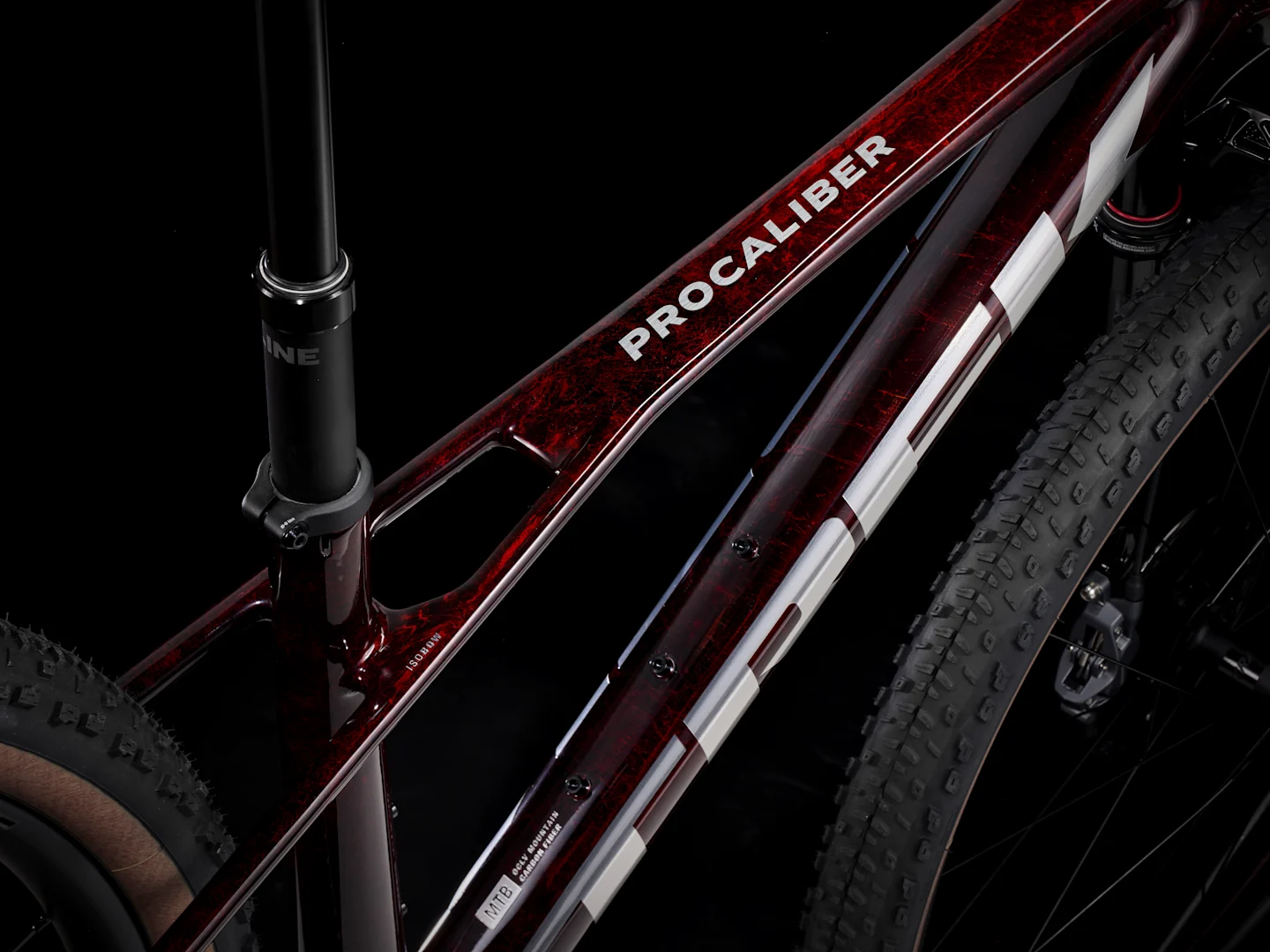

• OCLV Mountain Carbon Frame: Extremely light, stiff and responsive.
• SRAM AXS 12-Speed Deore Drivetrain: A wide range of gears with a fully wireless transmission, so you can ease the ups in the big ring or stomp to the front in the flats.

Full Specification

• Frame: OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148
• Rear Shock: N/A
• Fork: RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
• Shifters: SRAM AXS POD
• Crankset: SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, S/M/ML: 170 mm, L/XL: 175 mm length.
• Cassette: SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
• Chain: SRAM GX Eagle, T-Type, 12-speed
• Rear Derailleur: SRAM GX Eagle AXS, T-Type
• Bottom Bracket: SRAM DUB, 92 mm, PressFit
• Pedals: Not supplied
• Rims: Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
• Front Wheel: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
• Rear Wheel: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29"
• Tyres: Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40"
• Brakes: SRAM Level Bronze 4-piston hydraulic disc

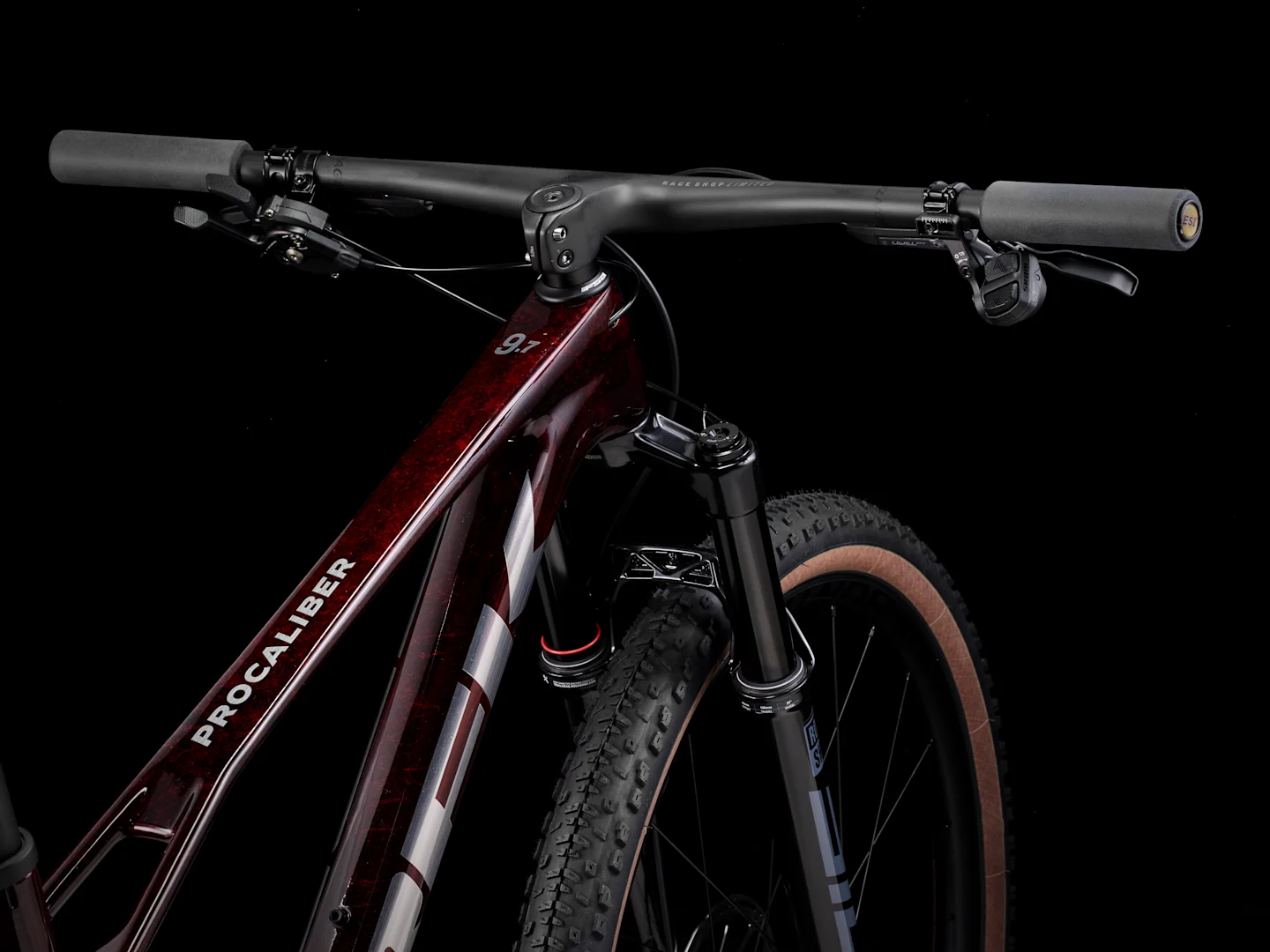

• Handlebars: Size: S , M , ML - Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length, Size: L - Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80 mm length, Size: XL - Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
• Handlebar Grips: ESI Chunky
• Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
• Stem: Integrated
• Saddle: Verse Short Elite, hollow magnesium rails, 145 mm width
• Seatpost: Size: S - Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length, Size: M, ML, L - Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length, Size: XL - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
• Accessories: N/A
• Weight: M - 10.58 kg / 23.33 lbs (with TLR sealant, no tubes), This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
