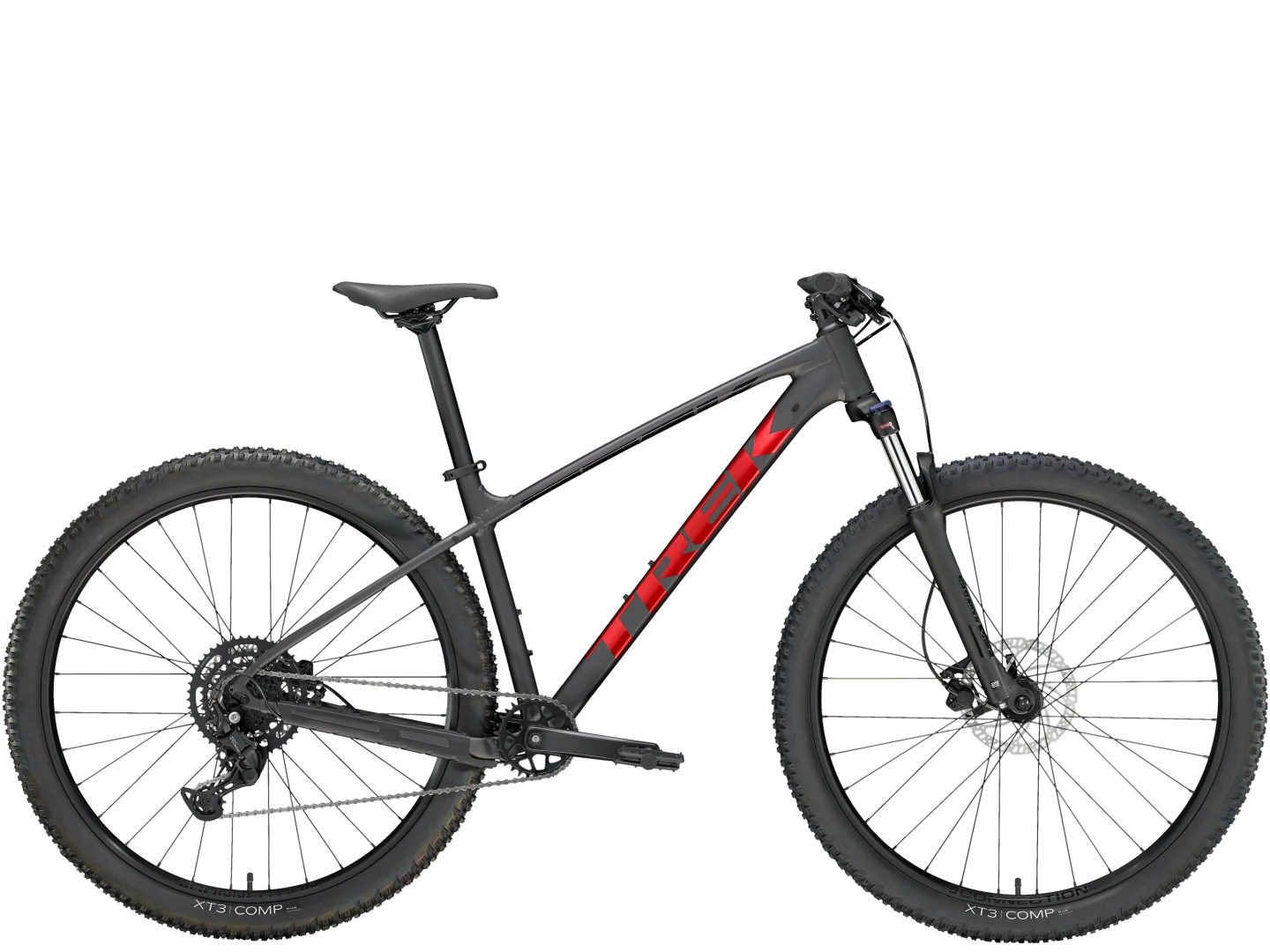

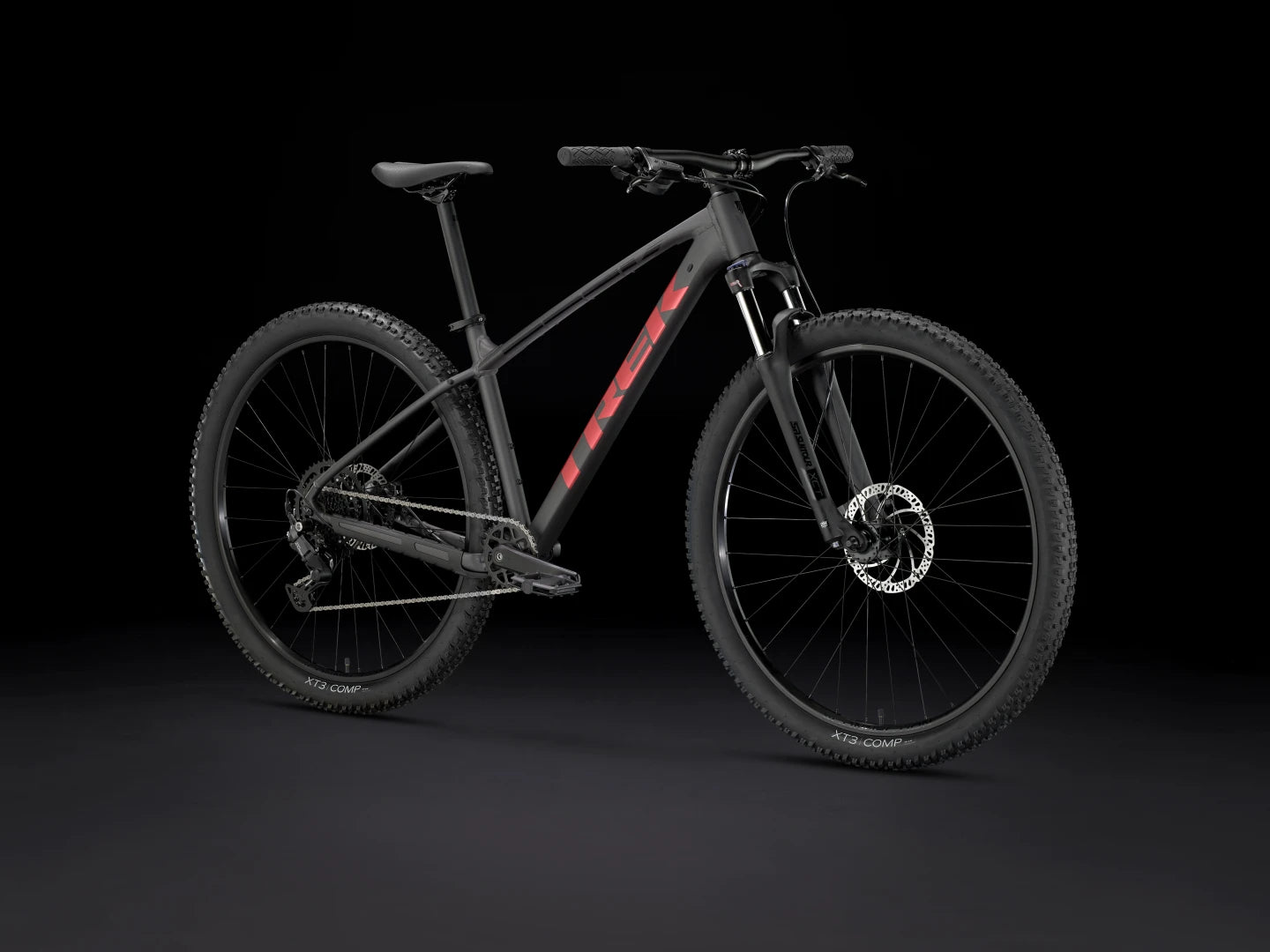

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Features

• SR Suntour suspension fork: For comfort and control.
• Hydraulic disc brakes: For reliable stopping in all conditions.
• Shimano CUES 9 speed gears: Wide range gearing, with the simplicity of a single shifter.

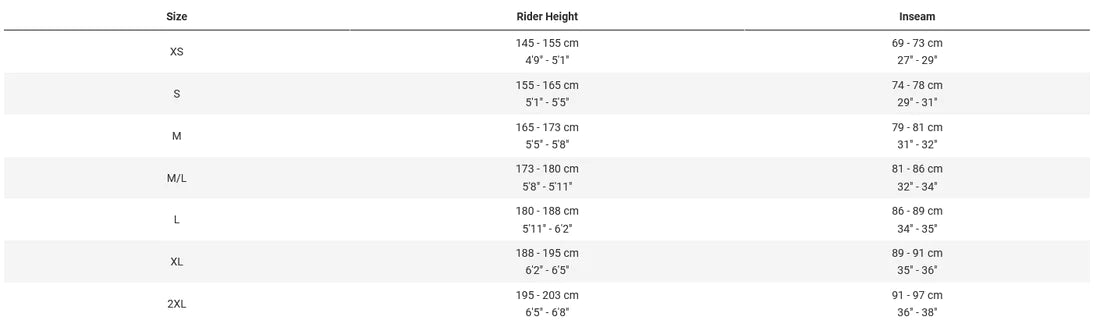

Please Note: Marlin models in XXS and XS frame sizes have a curved top tube and a lower stand over height that makes it easier for smaller riders to mount and dismount.

Full Specification

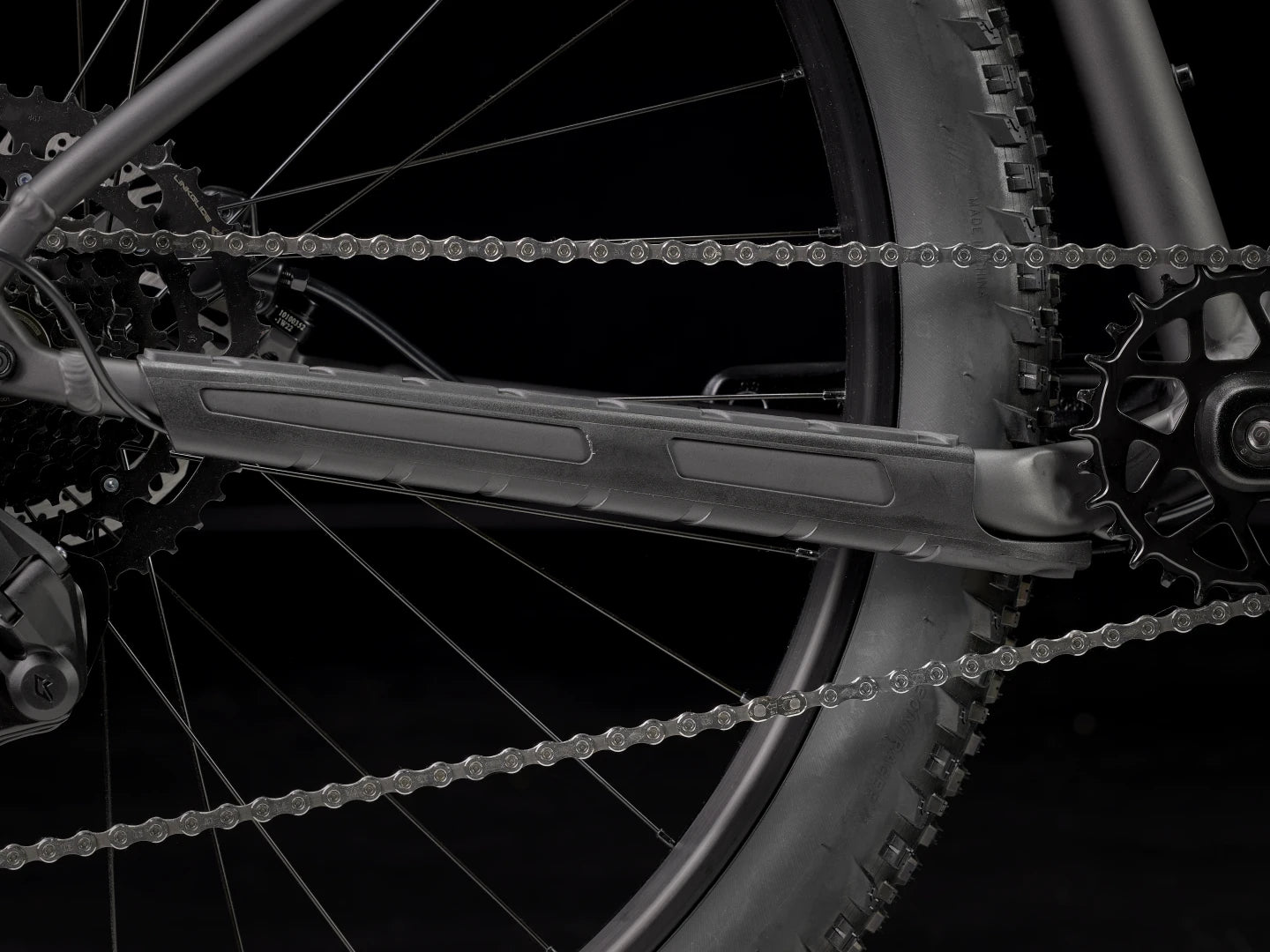

• Frame: Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

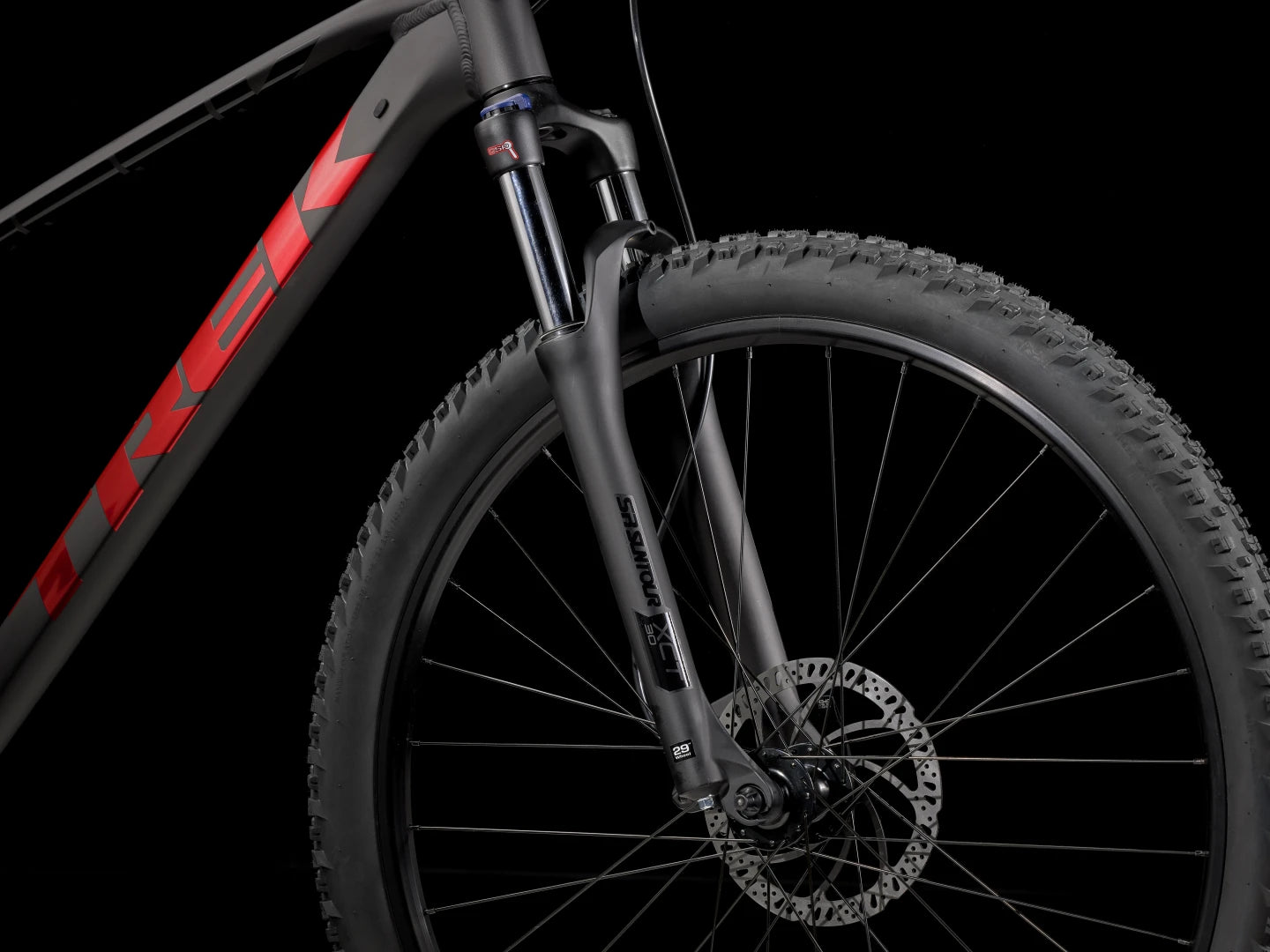

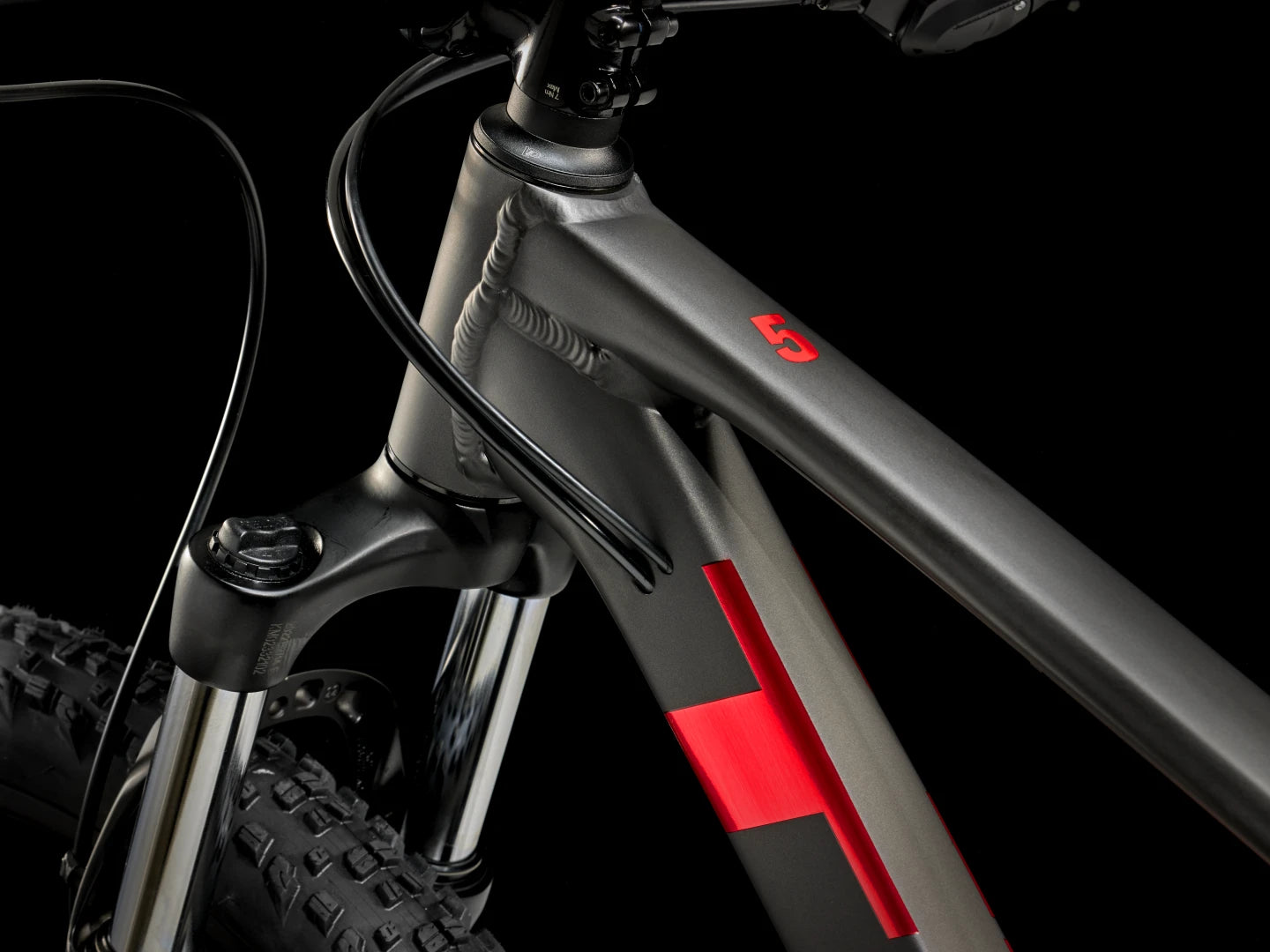

• Fork: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100 mm QR, 100 mm travel
• Gear Shifters: Shimano U4000, 9-speed

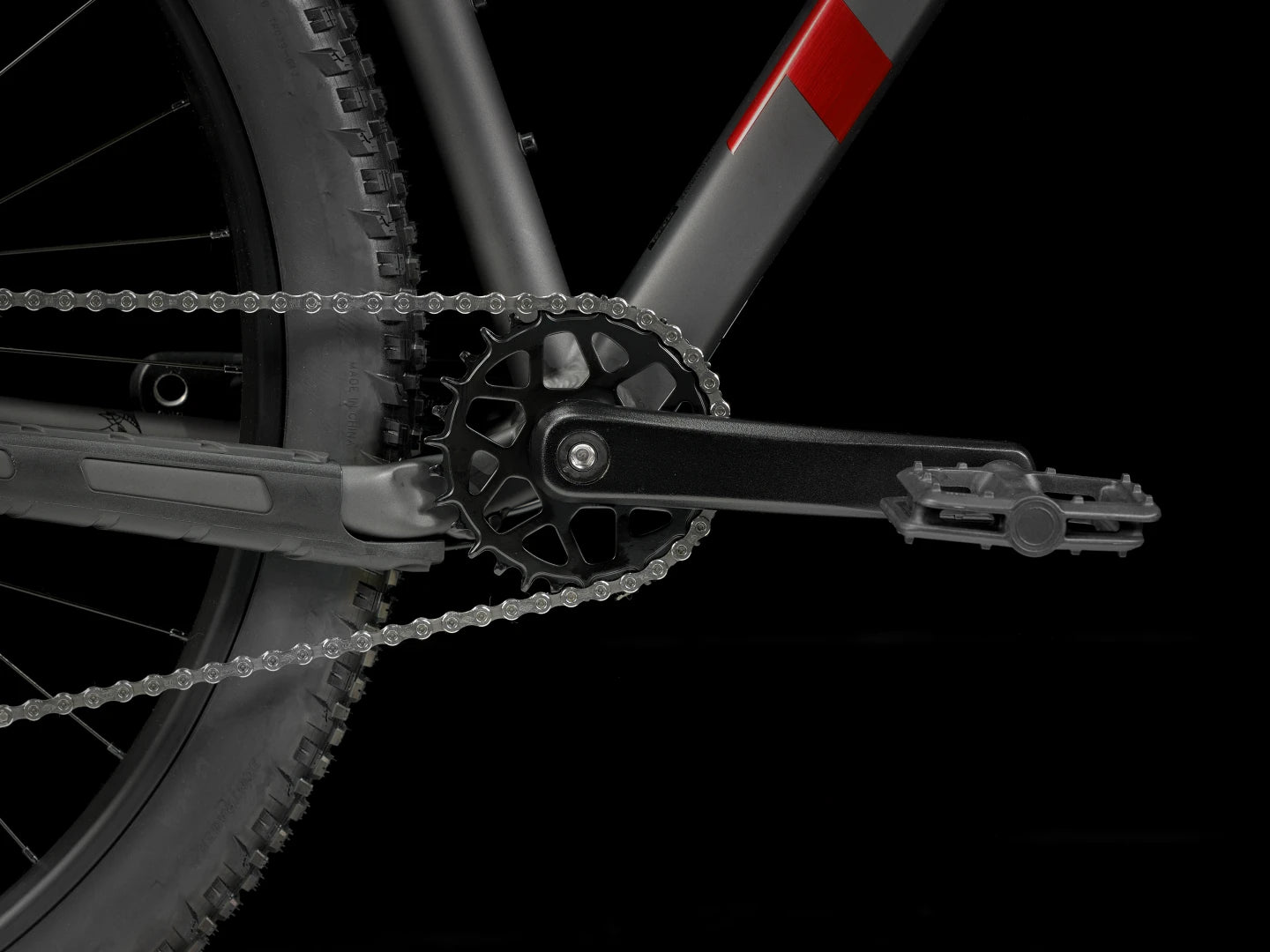

• Chainset: Prowheel C10Y-NW, 30T steel narrow-wide ring, 160 - 170 mm length
• Rear Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
• Chain: Shimano LG500
• Front Derailleur: N/A

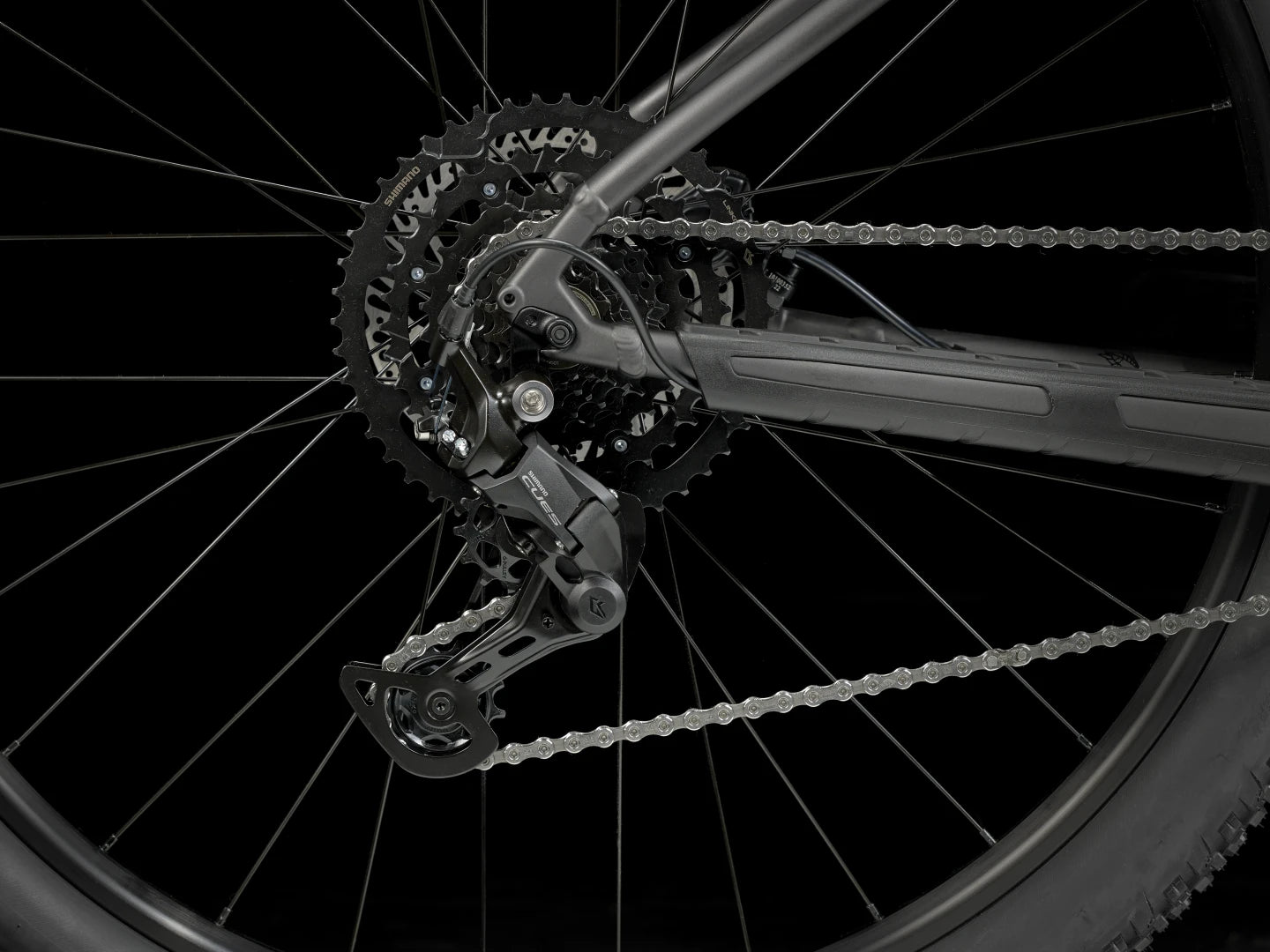

• Rear Derailleur: Shimano CUES U4000
• Bottom Bracket:
• Pedals: VP-536 nylon platform
• Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
• Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
• Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR

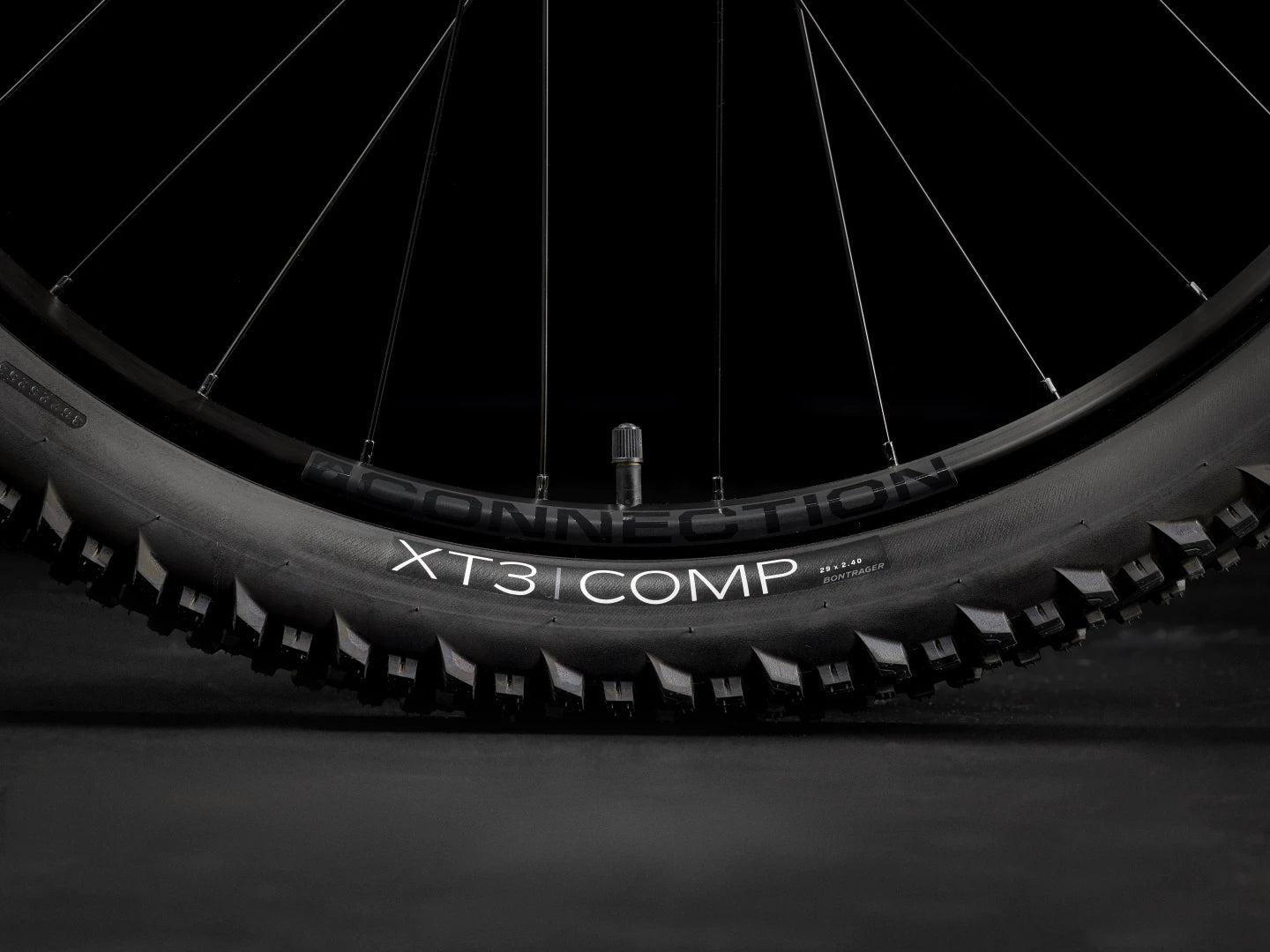

• Tyres: Bontrager XT3 Comp, wire bead, 30 tpi, 26.5 - 29 x 2.35 - 2.40"

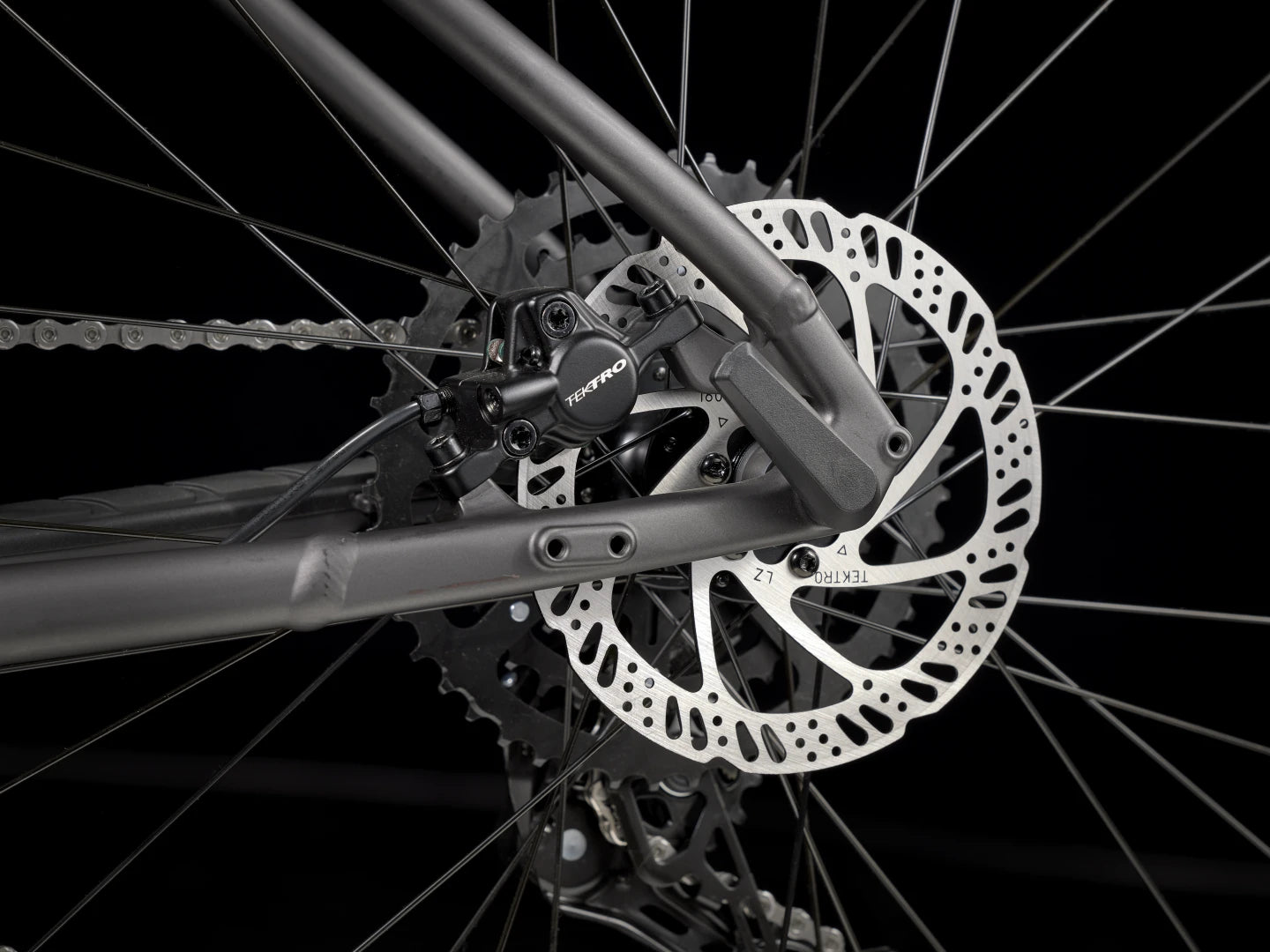

• Brakes: Tektro HD-M275 hydraulic disc (short reach levers on XXS, XS and S sizes)
• Handlebars: Bontrager alloy, 31.8 mm, 5 - 15 mm rise, 690 - 750 mm width
• Handlebar Grips: Bontrager XR Trail Comp, nylon lock-on
• Headset: Semi-integrated, 1-1/8"
• Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 - 70 mm length
• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, 300 - 400mm length
• Accessories: N/A
• Weight: M- 15.10 kg / 33.29 lbs (with tubes)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
