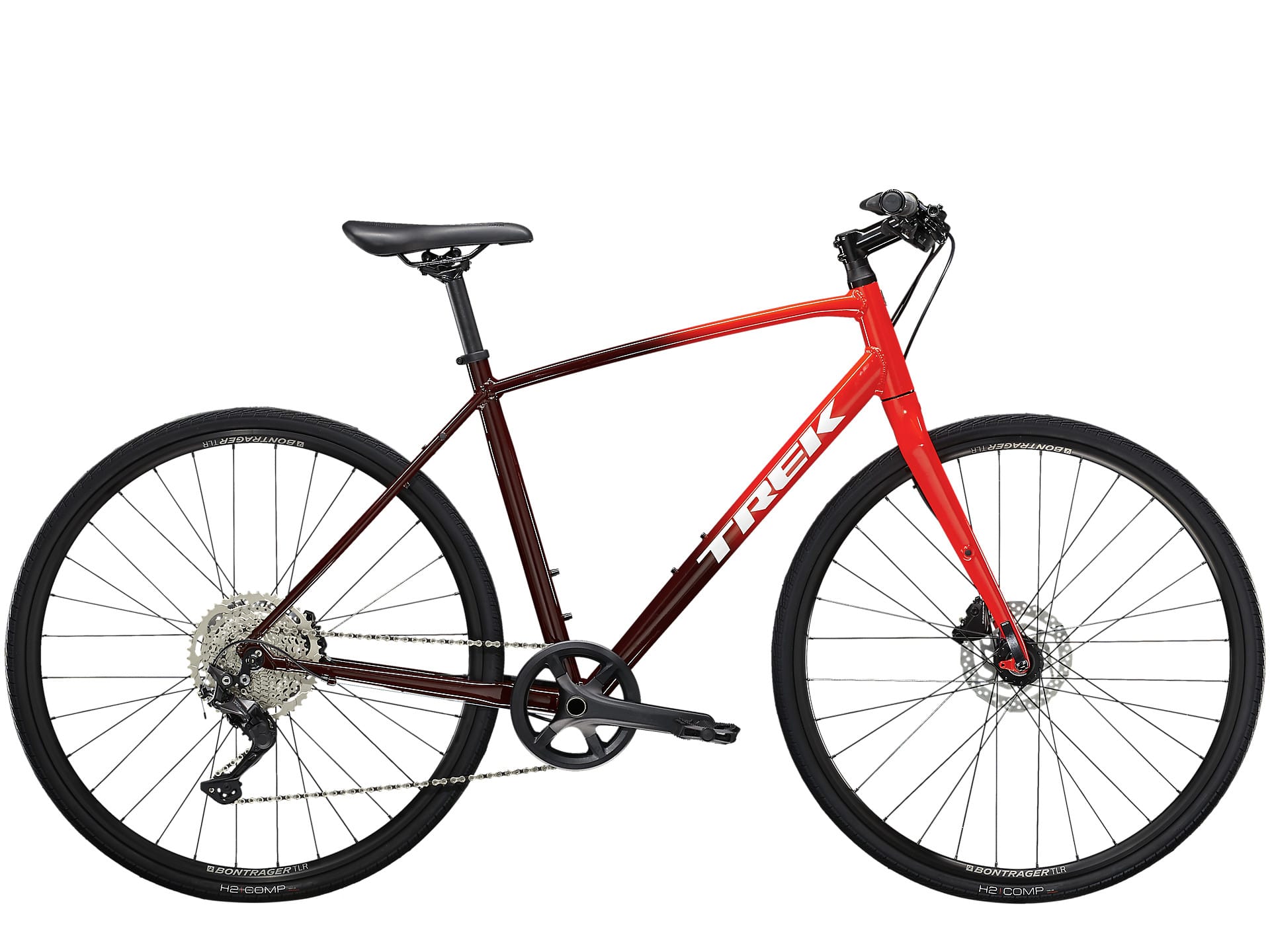

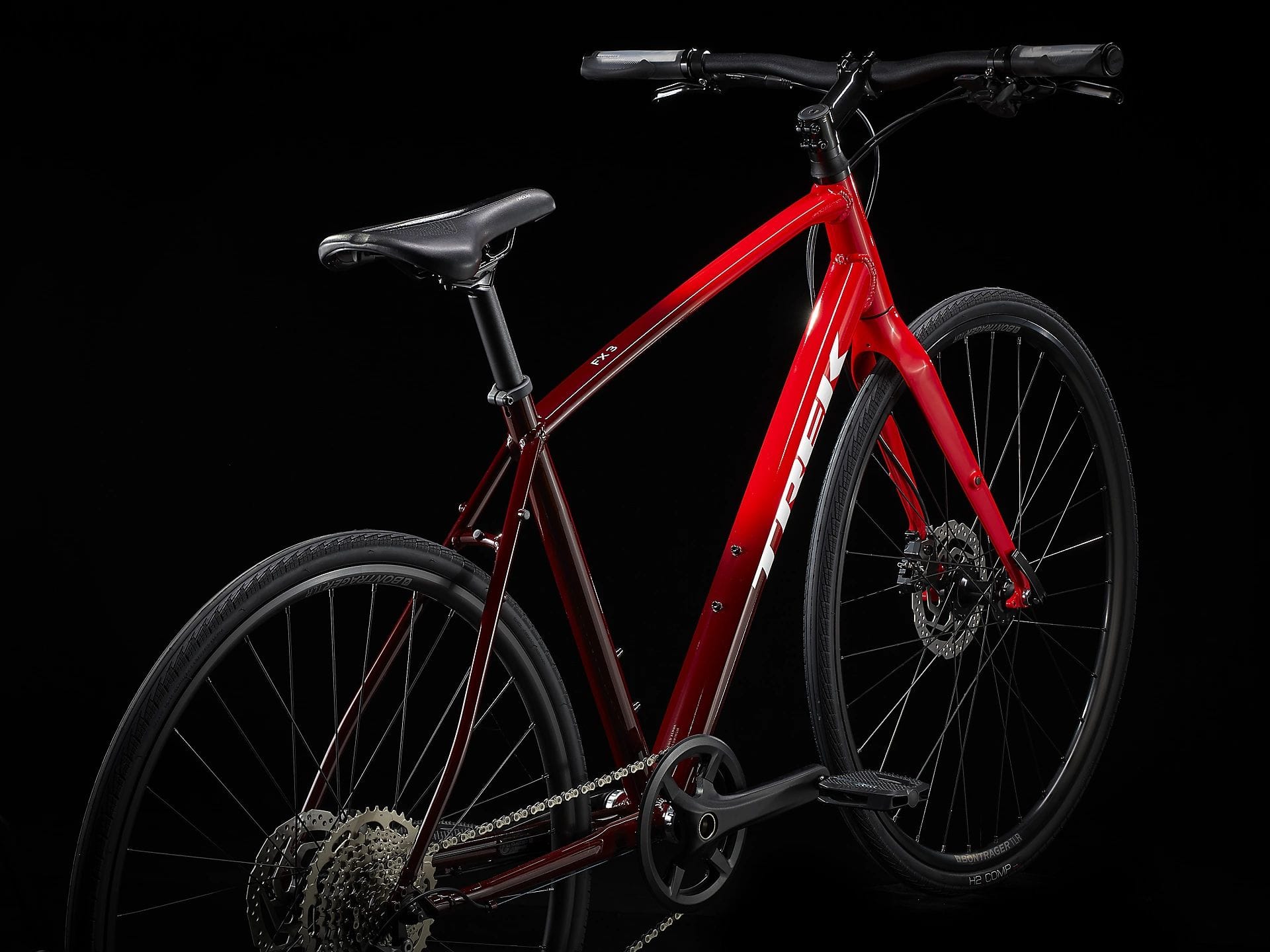

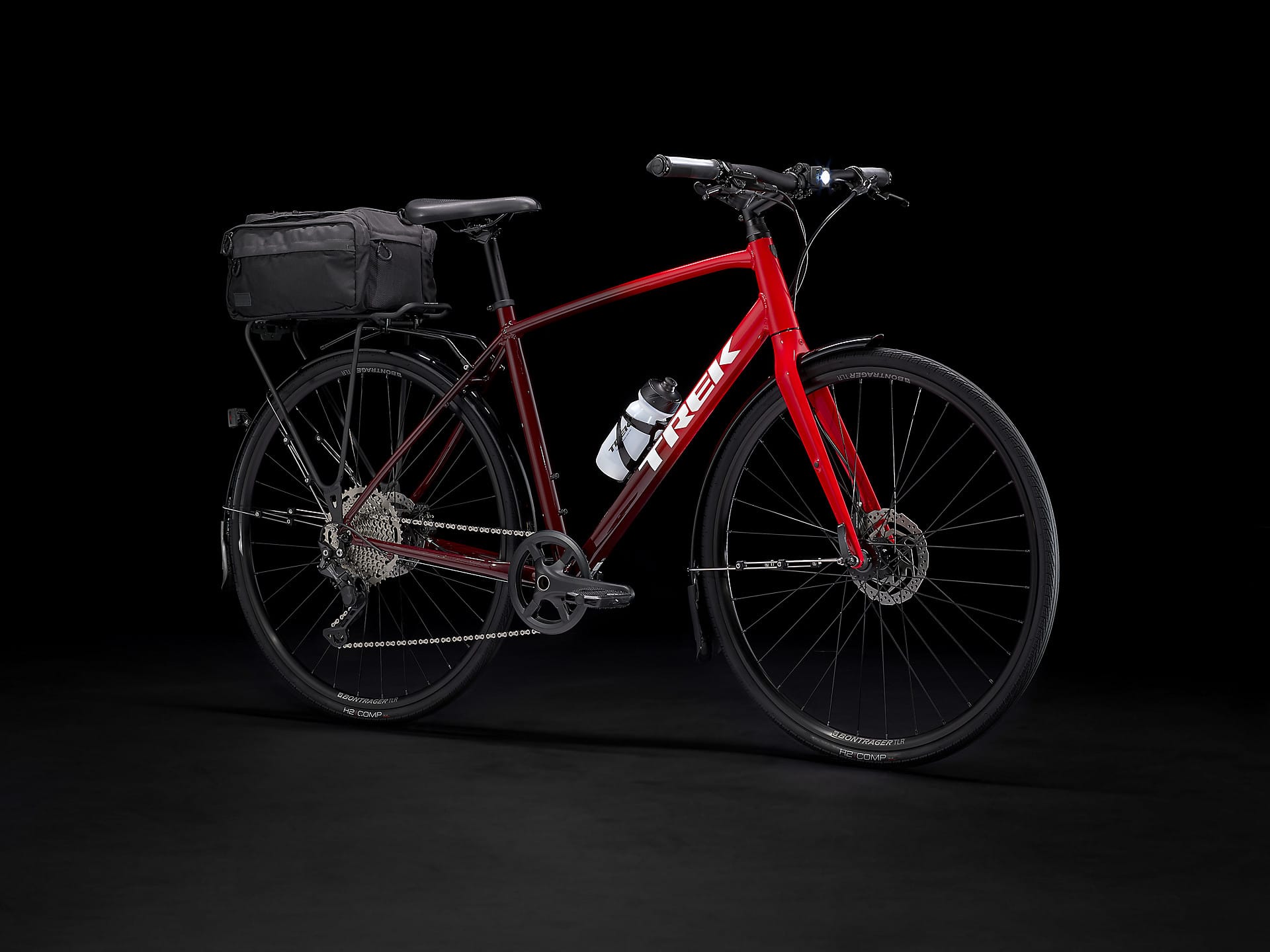

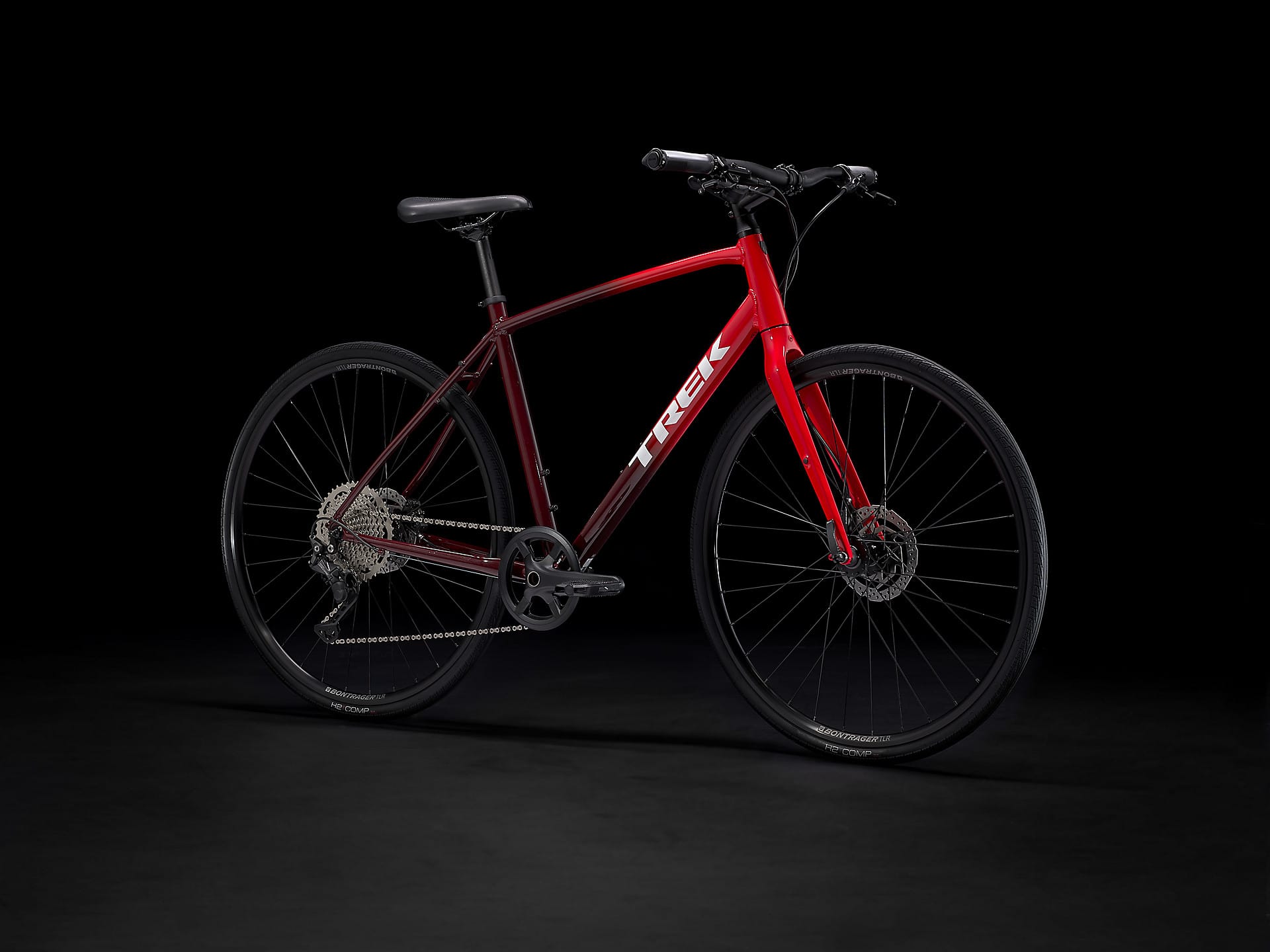

TREK FX 3 DISC HYBRID BIKE 2023 VIPER RED TO COBRA BLOOD FADE
Product Details - Trek Fx 3 Disc Hybrid Bike 2023 Viper Red To Cobra Blood Fade
Product Details - Trek Fx 3 Disc Hybrid Bike 2023 Viper Red To Cobra Blood Fade
FX 3 Disc is a versatile hybrid bike that's primed for performance, comfort and utility.
It has features like a lightweight aluminium frame, a carbon fork, a 1x drivetrain and powerful disc brakes that stop in any weather. It's a commuting pro if you want it to be, or the perfect fitness companion on road and rail trails.
Key Features
- Hydraulic Disc Brakes: Accurate and powerful braking capacity to keep you in control in all weather conditions.
- Aluminium Frame Carbon Fork: Lightweight, durable, comfortable ride
- 10 Shimano Gears: Reliable, light, efficient and built for speed.
Specification

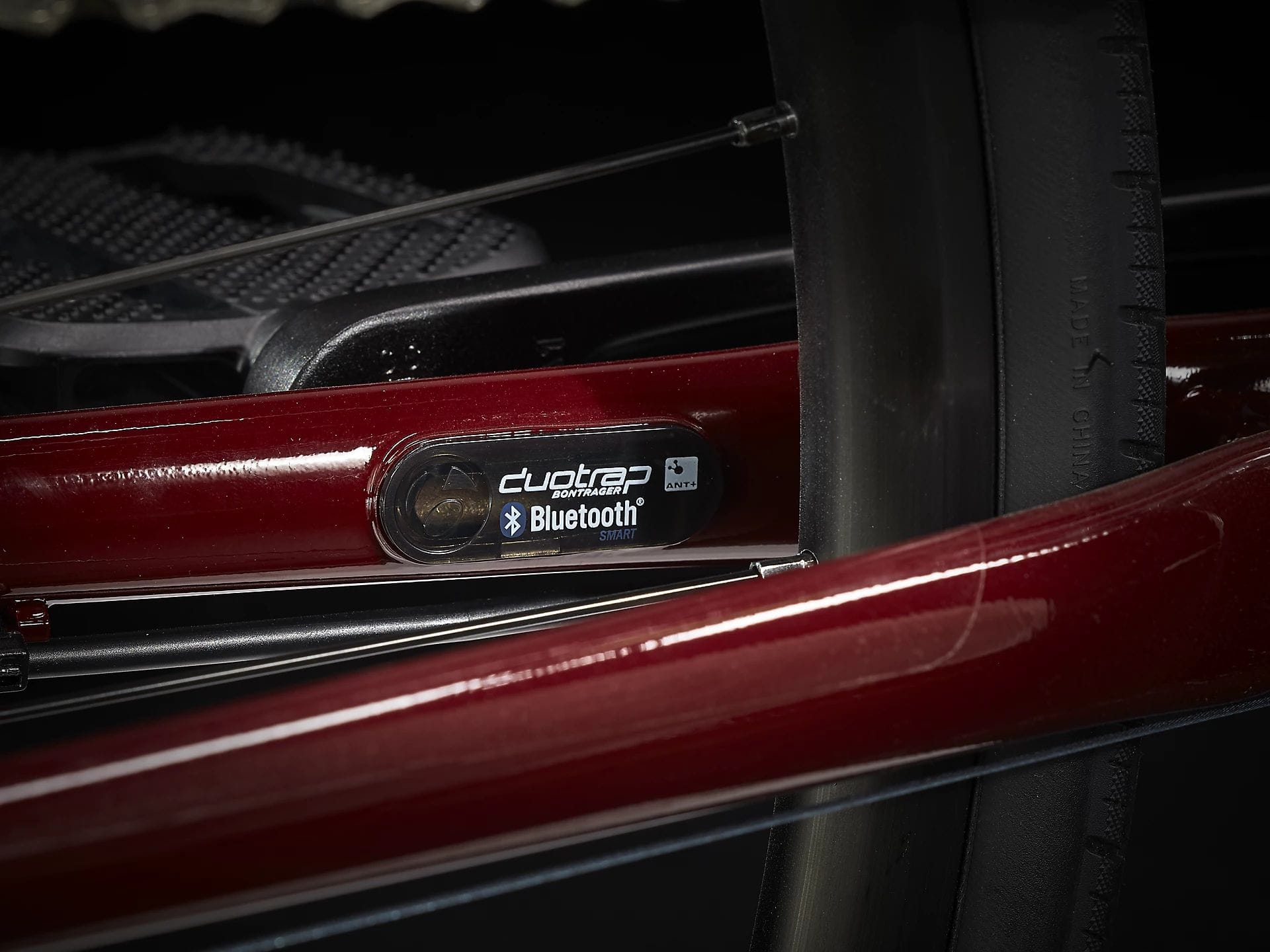

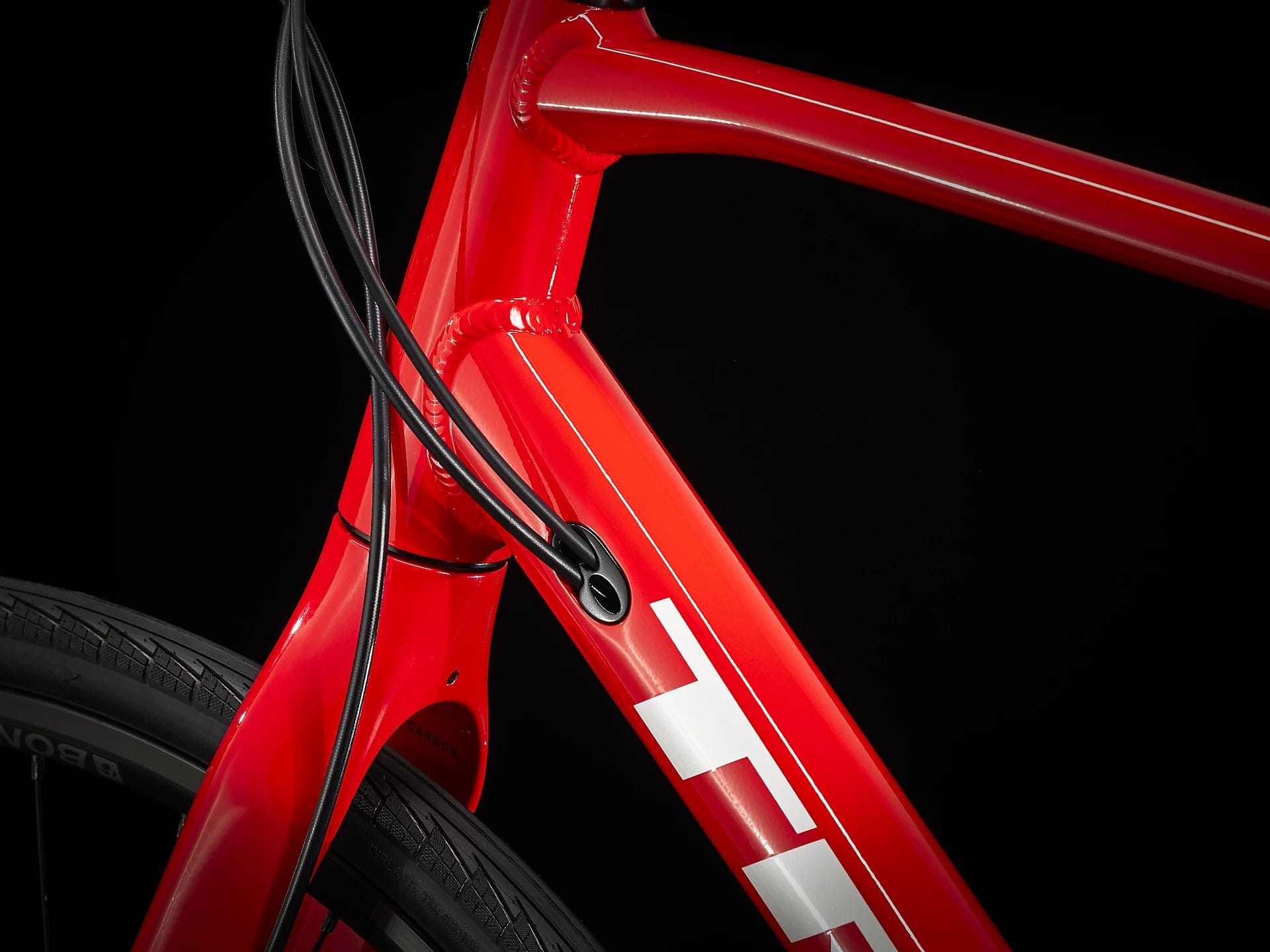

- Frame: Alpha Gold Aluminium, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
- Fork: FX Carbon, rack and fender mounts, flat mount disc, 405mm axle-to-crown. ThruSkew 5mm QR
- Gear Shifters: Shimano Deore M4100, 10 speed
- Chainset: Prowheel Alloy, narrow wide ring, S-M:170mm, L-XL:175mm

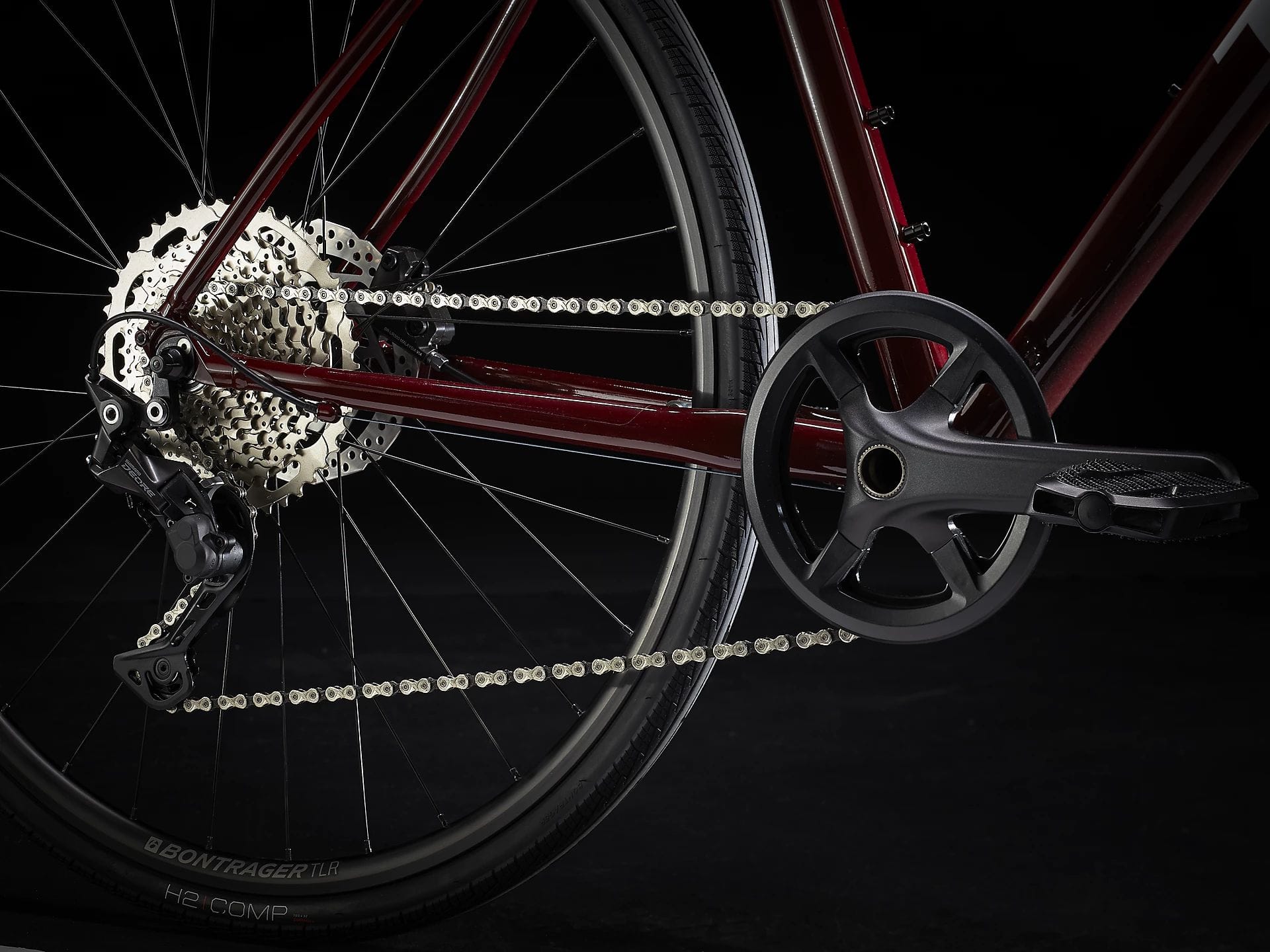

- Rear Cassette: ShimanoDeore M4100, 11-46, 10-speed
- Chain: KMC X10, 10-speed
- Rear Derailleur: ShimanDeore M5120, long cage
- Pedals: Bontrager City pedal

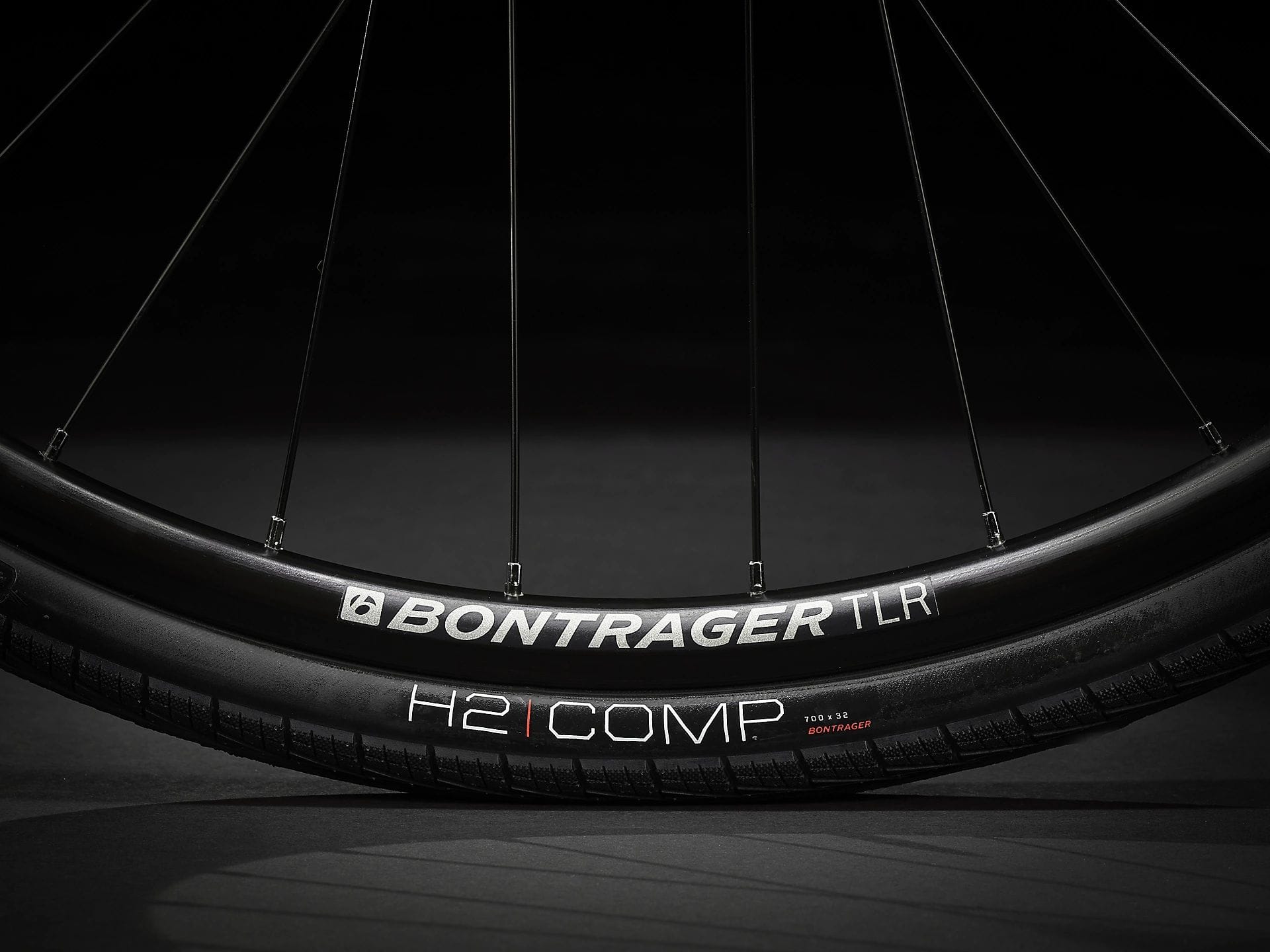

- Rims: Bontrager Tubeless Ready Disc, 32-hole, Presta valve
- Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
- Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
- Front Tyre: Bontrager H2 Hard-Case Lite, wire bead, 30 tpi, 700x32c
- Rear Tyre: Bontrager H2 Hard-Case Lite, wire bead, 30 tpi, 700x32c

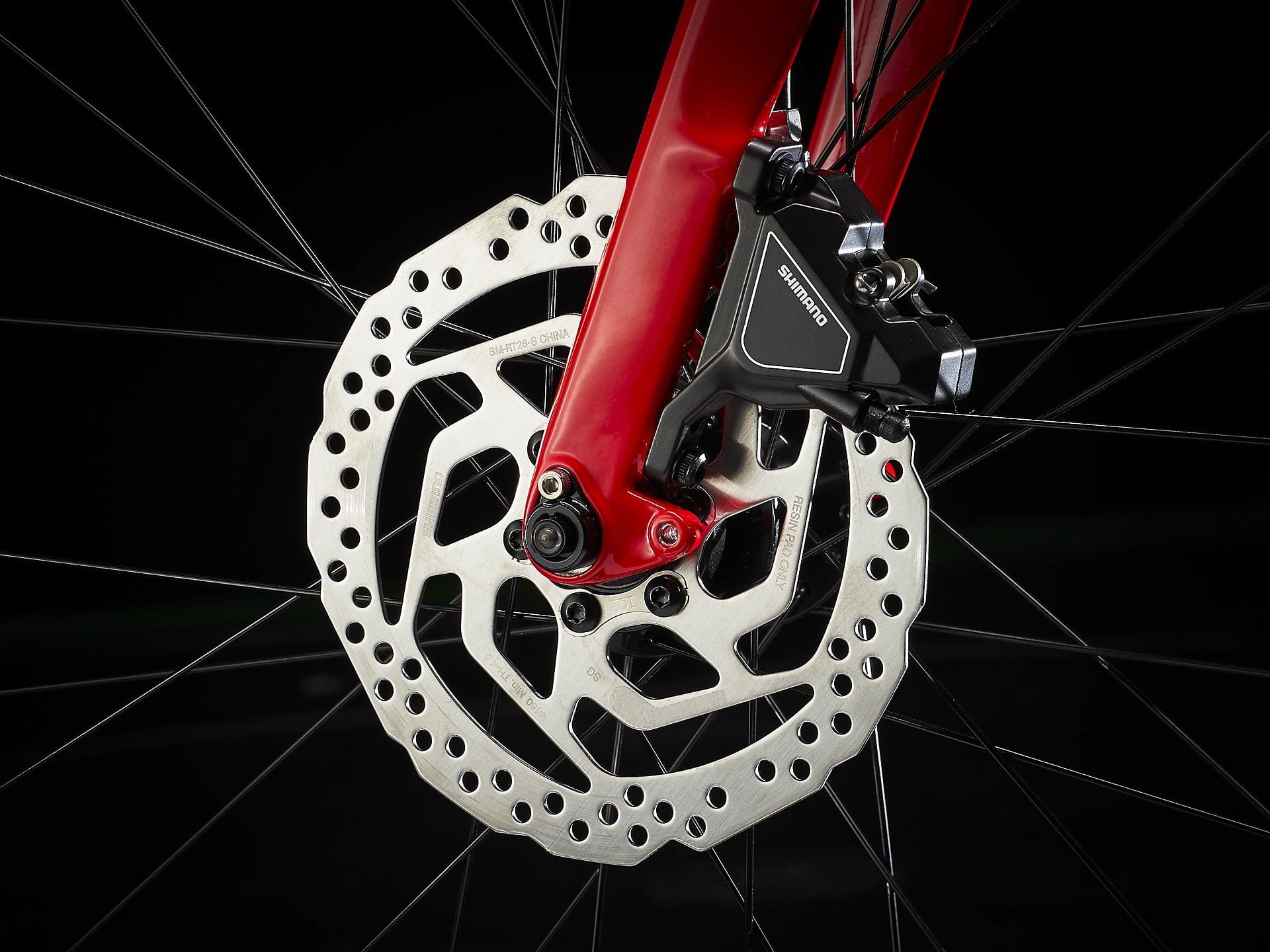

- Brakes: Shimano MT201 hydraulic disc, flat mount, (160/160)

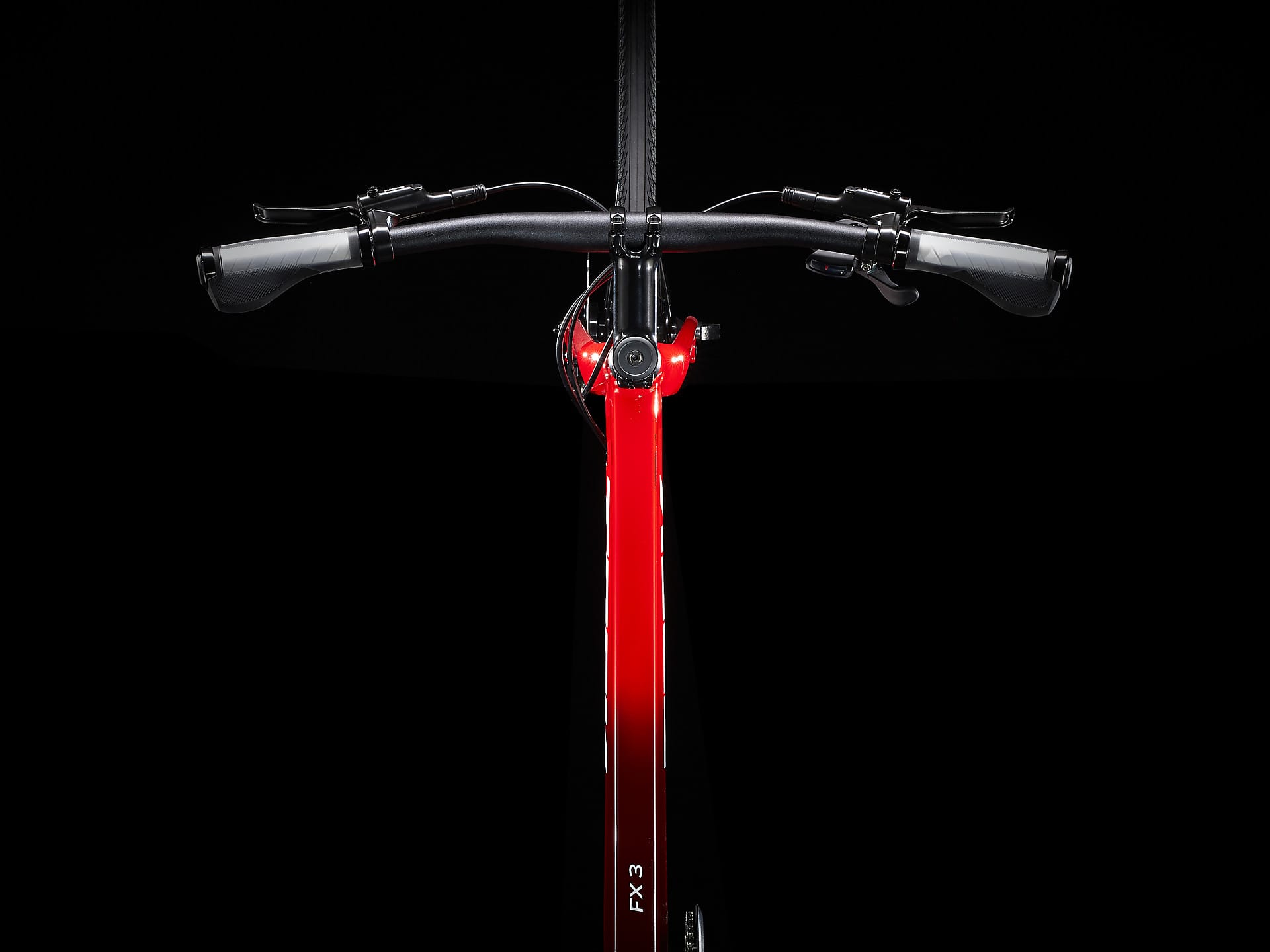

- Handlebars: Bontrager Satellite Plus IsoZone, 31.8mm, 15mm rise,S-M:600mm, L-XL:660mm

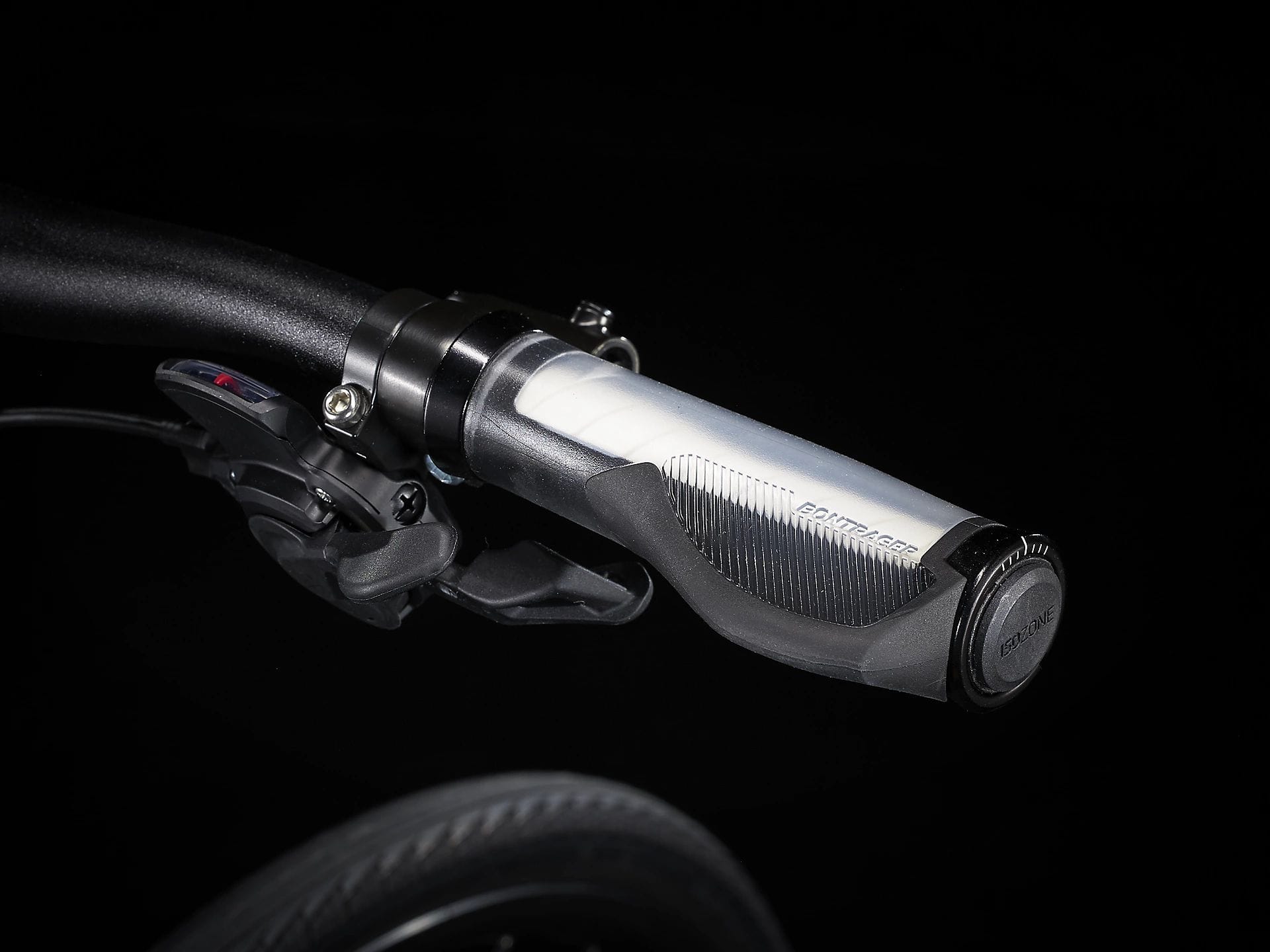

- Handlebar Grips or Tape: Bontrager Satellite IsoZone Plus, lock-on, ergonomic
- Headset: 1-1/8"" threadless, sealed cartridge bearings
- Stem: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree,S-M:90mm, L-XL:100mm

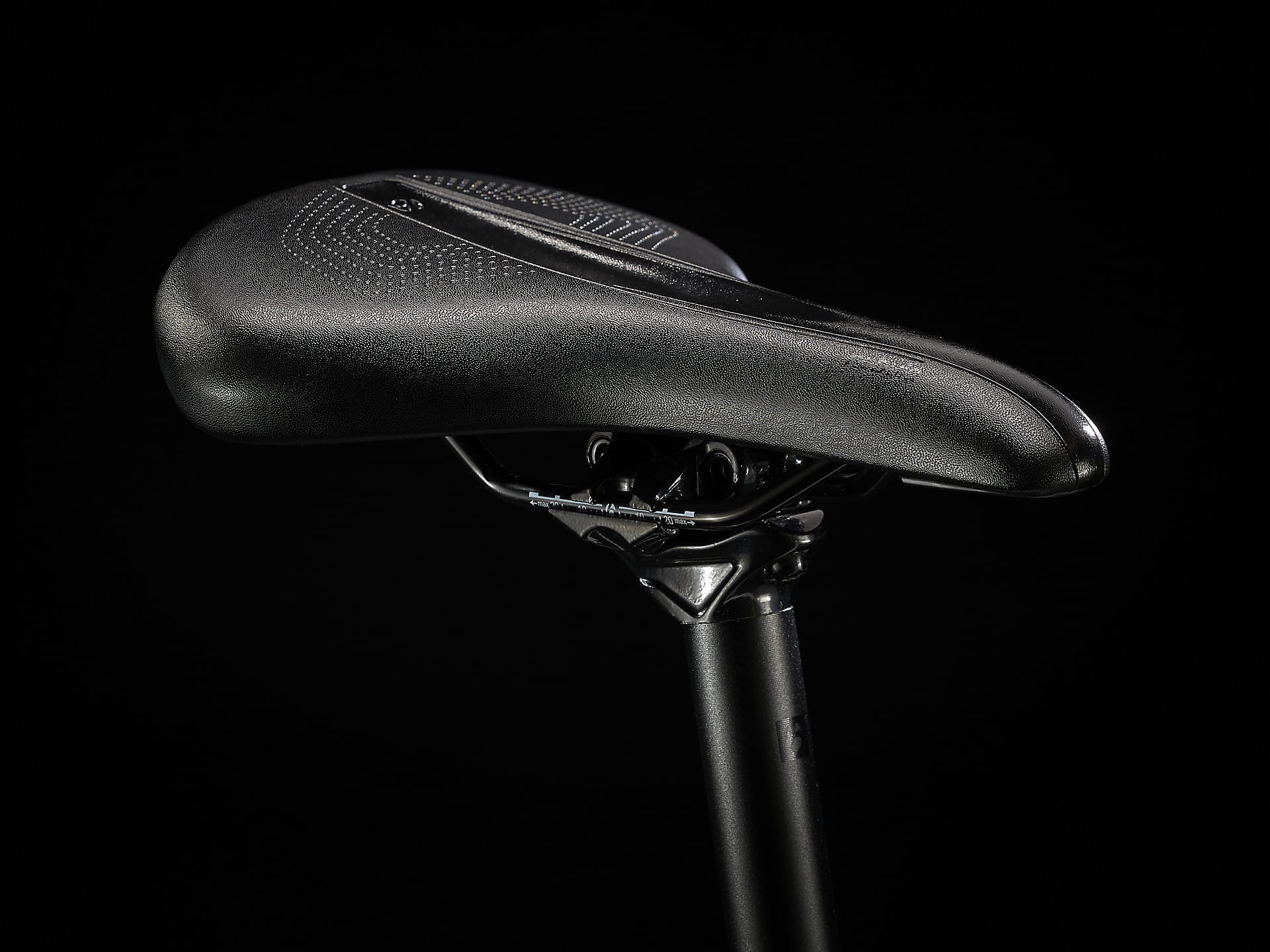

- Saddle: Bontrager H1
- Seatpost: Bontrager alloy, 27.2mm, 12mm offset
- Weight:11,3kg
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

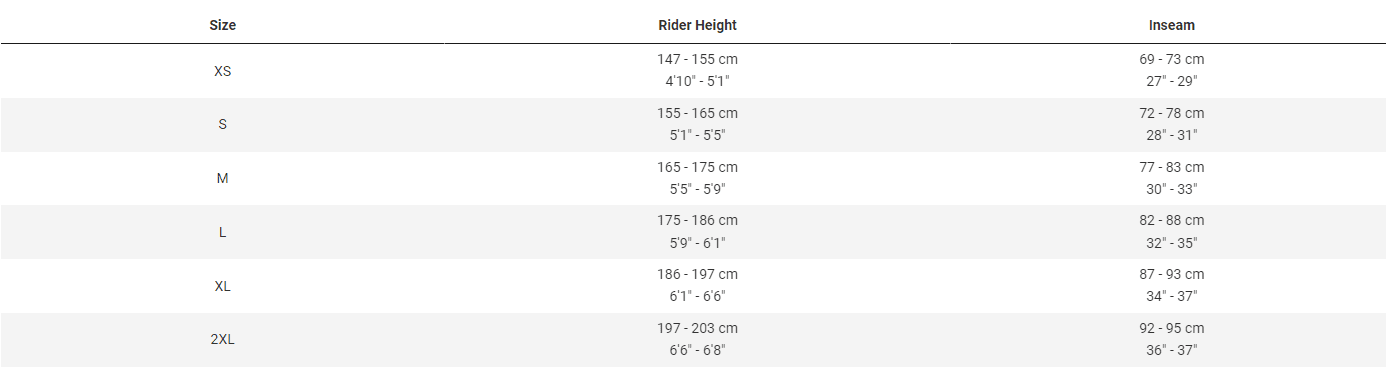

Size Guide
Size Guide

How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
