TREK DUAL SPORT+ 2 STAGGER HYBRID BIKE 2023 GALACTIC GREY
Product Details - Trek Dual Sport+ 2 Stagger Hybrid Bike 2023 Galactic Grey
Product Details - Trek Dual Sport+ 2 Stagger Hybrid Bike 2023 Galactic Grey

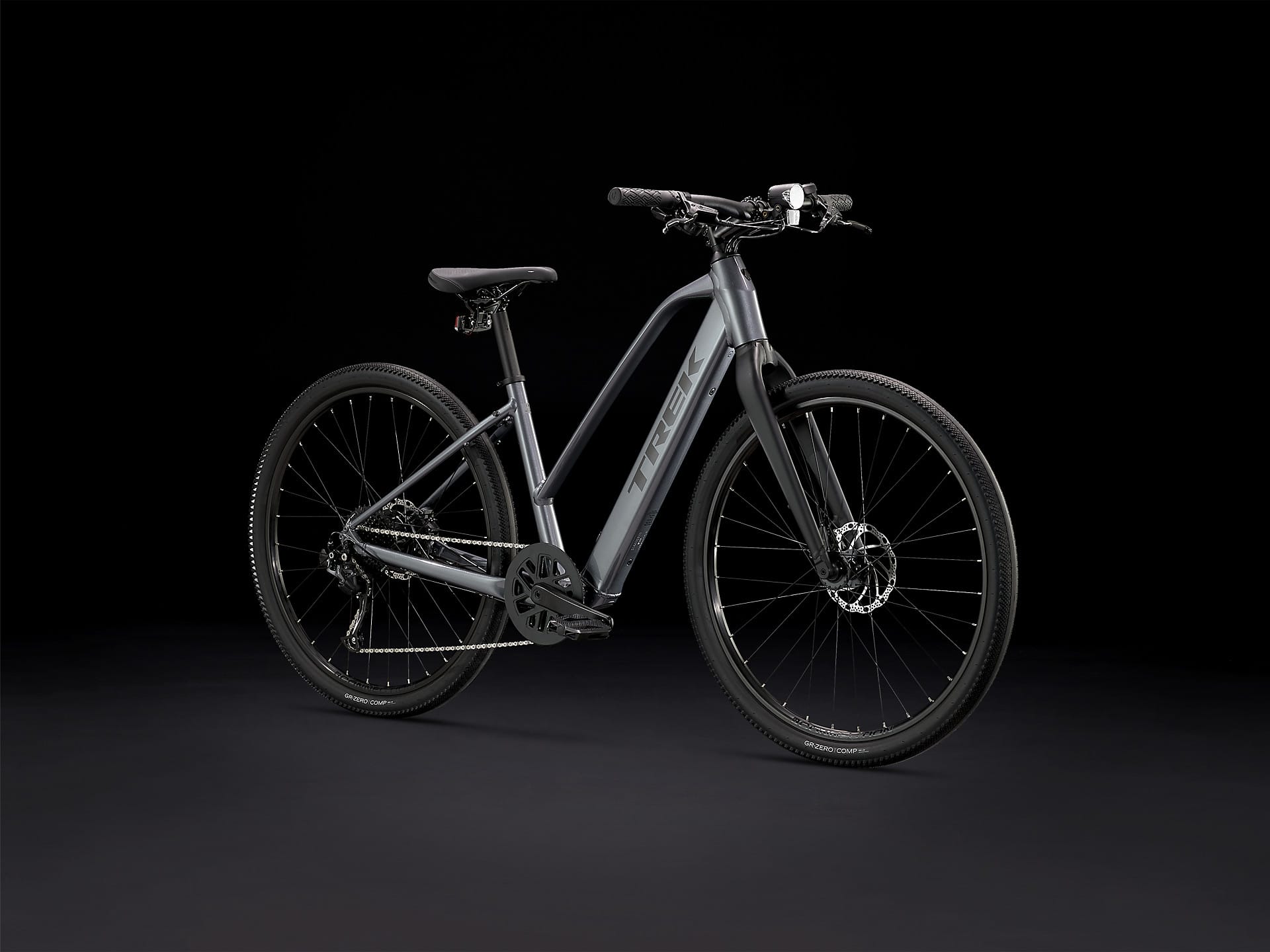

The Dual Sport+ 2 Stagger is a lightweight and capable hybrid electric bike that’s designed for adventure on the road and light trails. It has an intuitive and natural feeling pedal-assist system that makes exploring your surroundings more fun and cruising up hills a breeze. Plus, stiff wheels and wide tyres give you confidence on varied terrain.
Key Features:
- Pedal Assist System: With a hub motor for a more natural ride feel
- Hydraulic Disc Brakes: For greater stopping power
- 9-Speed Shimano Drivetrain: Perfect for a range of terrain
Full Specification:
- Frame: Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, flat-mount disc, kickstand mount, 144.5 mm OLD hub motor spacing
- Rear Shock (If Applicable): N/A
- Fork: DS+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
- Motor: 250 W, 40 Nm Hub Motor
- Battery: 250 Wh battery for a range of up to 55km per charge
- Gear Shifters: Shimano Altus M2010, 9-speed
- Chainset: ProWheel Pro
- Rear Cassette: Shimano HG200, 11-36, 9-speed
- Chain: KMC E9S, 9-speed
- Front Derailleur: N/A
- Rear Derailleur: Shimano Altus M2000, long cage
- Bottom Bracket: Torque sensor, T47 threaded, 122.5mm spindle
- Pedals: N/A
- Tyres: 27.5x2.00"
- Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
- Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
- Rear Hub: G2 hub drive motor
- Brakes: Promax DSK-927 hydraulic disc, flat mount, 160mm rotor

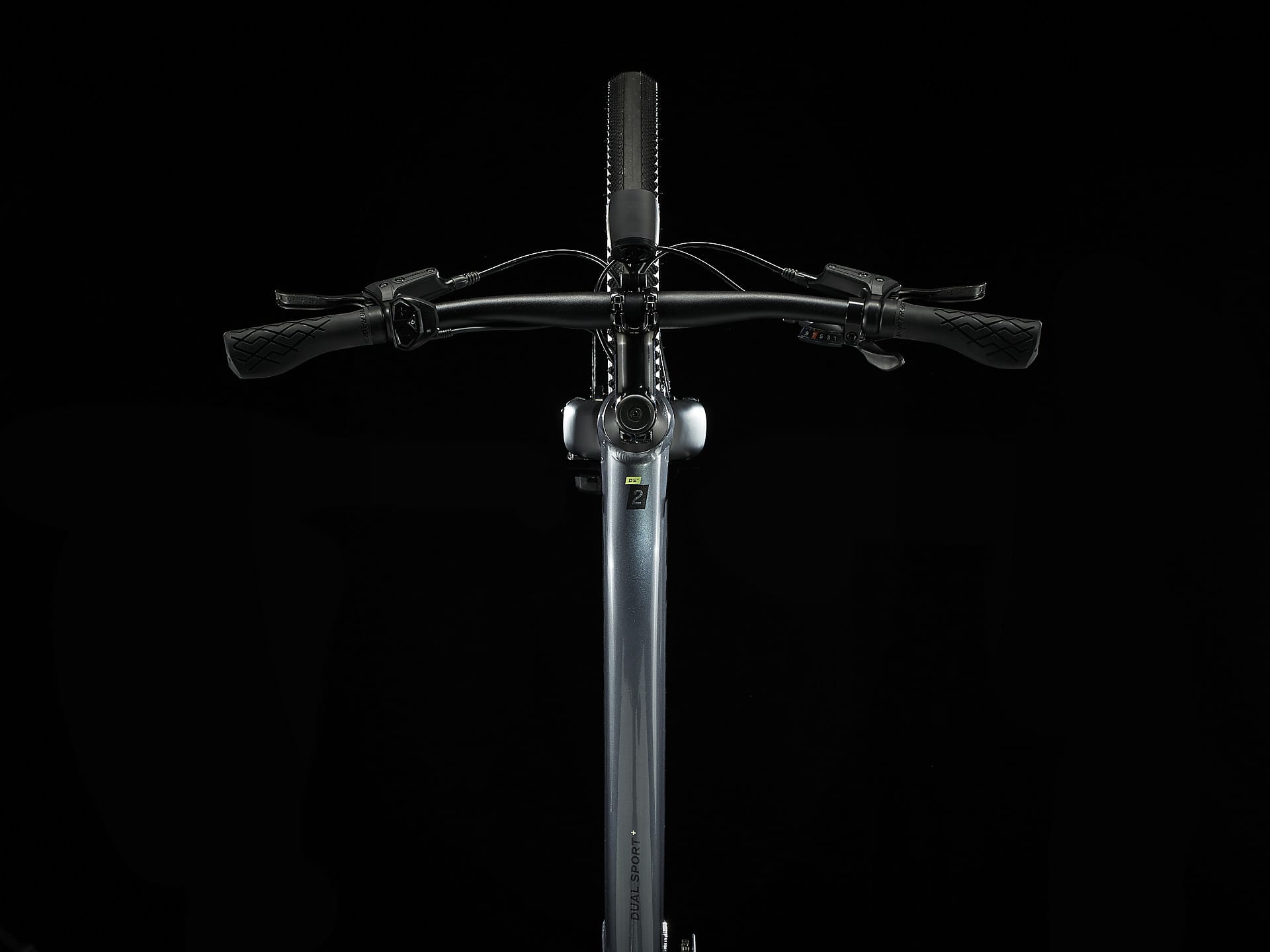

- Handlebars: Bontrager alloy, 31.8 mm, 15 mm rise
- Handlebar Grips: Bontrager XR Endurance Comp, lock-on
- Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree
- Saddle: Bontrager Sport Women's
- Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset,
- Accessories: Lights & Kickstand
- Weight: M - 17.28 kg / 38.1 lbs
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
