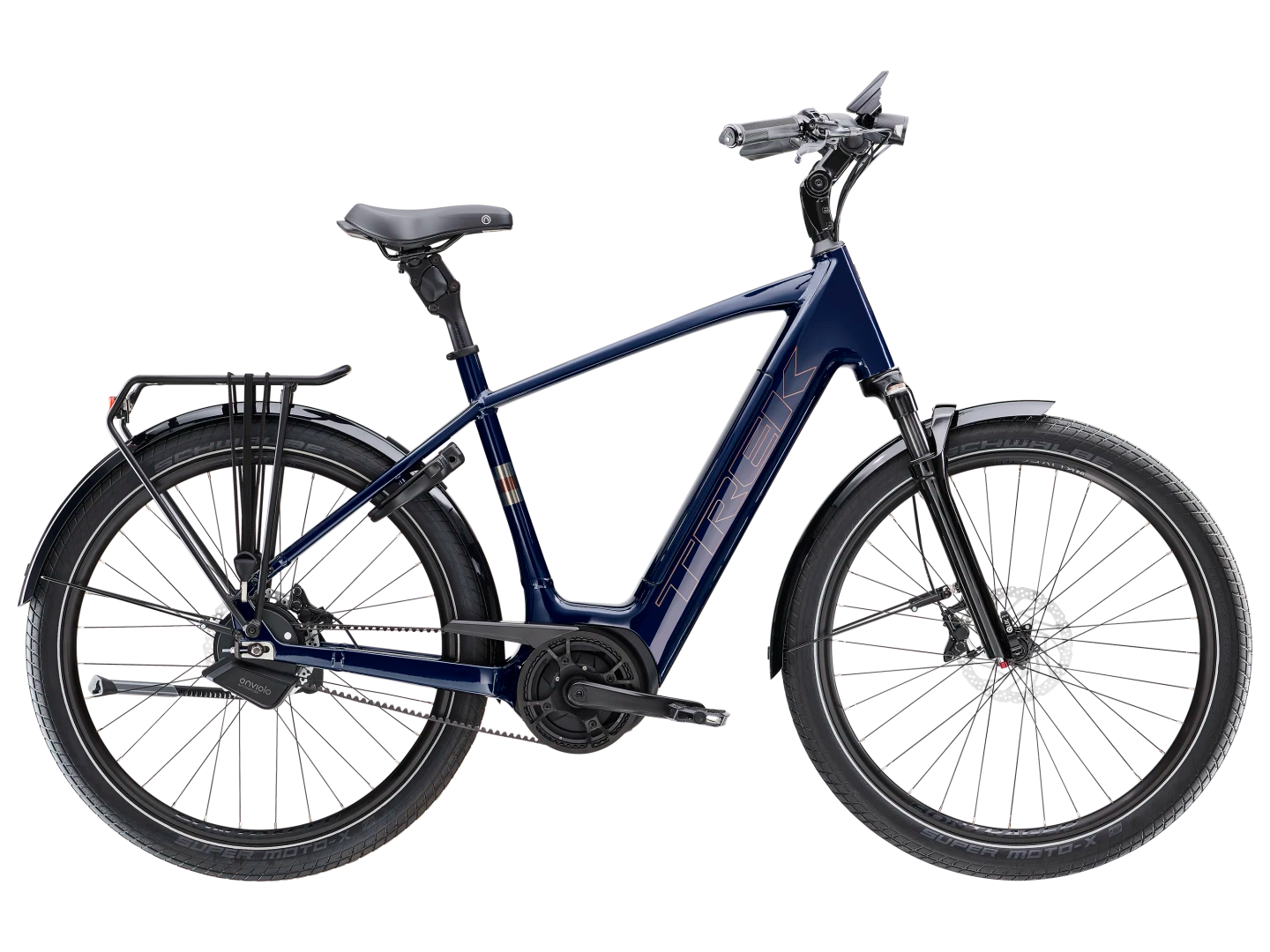

Product Details - Trek District+ 5 545 Wh City Ebike 2025 Deep Dark Blue

The District+ 5 is a rugged city e-bike packed with comfort and features that streamline your city spins. Its frame integrates the batteries inside the down tube and comes with a range of battery capacity options, ranging from 400 Wh to 800 Wh, so you can choose what's right for your commute. Bosch's smart system motor propels you and allows for smart connectivity. A durable belt drive keeps maintenance low, and Enviolo's AUTOMATIQ hub does the shifting for you.

Key Features Trek District+ 5 City eBike 2025

  • 250W Bosch Motor: Smart system integration for seamless communication with your smartphone and customisation at your fingertips.
  • Auto-shifting: You can set it and forget it with Enviolo Automatiq, which automatically shifts for you. All you have to think about is enjoying the ride.
  • Gates CDX drive with Bosch's Performance drive unit: Powerful, long-lasting drivetrain with premium shifting performance.

Full Specification

  • Frame: High-performance hydroformed alloy, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc
  • Fork: SR Suntour Mobie 34, air spring, rebound and compression adjust, tapered alloy steerer, 100x15mm thru axle, 60mm travel
  • Motor: Bosch Performance Line Cruise, 250 W, 75 Nm
  • Controller: Bosch Kiox 500, smart system
  • Battery: Bosch 545Wh
  • Charger: Bosch standard 4A, 230V, smart system
  • Shifters: Enviolo Automatic Controller
  • Crankset: ProWheel alloy, 175 mm length
  • Rear Sprocket: Gates CDX, 22T
  • Chain/Belt: Gates CDX belt
  • Pedals: Bontrager City pedals
  • Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
  • Front Hub: Bontrager sealed bearing, 32-hole 15 mm alloy thru-axle
  • Rear Hub: Enviolo Trekking, 32-hole, 6-bolt disc, 44T
  • Tyres: Schwalbe Super Moto-X, reflective, wire bead, Greenguard protection, 650x62c
  • Brakes: Shimano MT401 / MT420 hydraulic disc, Shimano RT30, CentreLock, 180 mm
  • Handlebars: Alloy, 31.8mm clamp, 25mm rise, 630mm width
  • Grips: Bontrager Satellite Elite, alloy lock-on
  • Headset: Sealed cartridge
  • Stem: Alloy adjustable stem, 110mm length
  • Saddle: Selle Royal ON relaxed
  • Seatpost: Ergotec PM705-N suspension
  • Accessories: Herrmans H-Black MR8-E, 180 Lumen, 60 Lux, LED, headlight, Spanninga SOLO for e-bike rear light, rear light,Pletscher Comp Flex 18 kickstand, Alloy rear rack, SKS plastic mudguards, frame lock
  • Weight: N/A

    We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

    Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.




    Size Guide

    Trek District Sizing Guide Size Guide

    How we Build & Pack Your Bike

    Aftercare

    At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

    Bicycle Safety

    Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

    Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

    Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

    Follow road rules – Ride responsibly and remain aware of your surroundings.

    Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

    Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

    Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

    Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

    Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Routine Maintenance (Every Few Weeks)

    Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

    Brake Safety – Check brake pads and responsiveness before each ride.

    Tyre Inspection – Look for punctures and ensure correct air pressure.

    Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

    Frame Safety Check – Look for any signs of damage or cracks.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Professional Check-Ups

    Have your bike serviced at least once a year, or more frequently if you ride often.

    Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

    Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

    Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Routine e-Bike Maintenance (Every Few Weeks)

    Motor Inspection – Listen for unusual noises and ensure smooth operation.

    Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Seasonal e-Bike Maintenance

    Check Electrical Components – Ensure wires and connections are clean and secure.

    Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

    By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!

    Read our full advice

    If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
