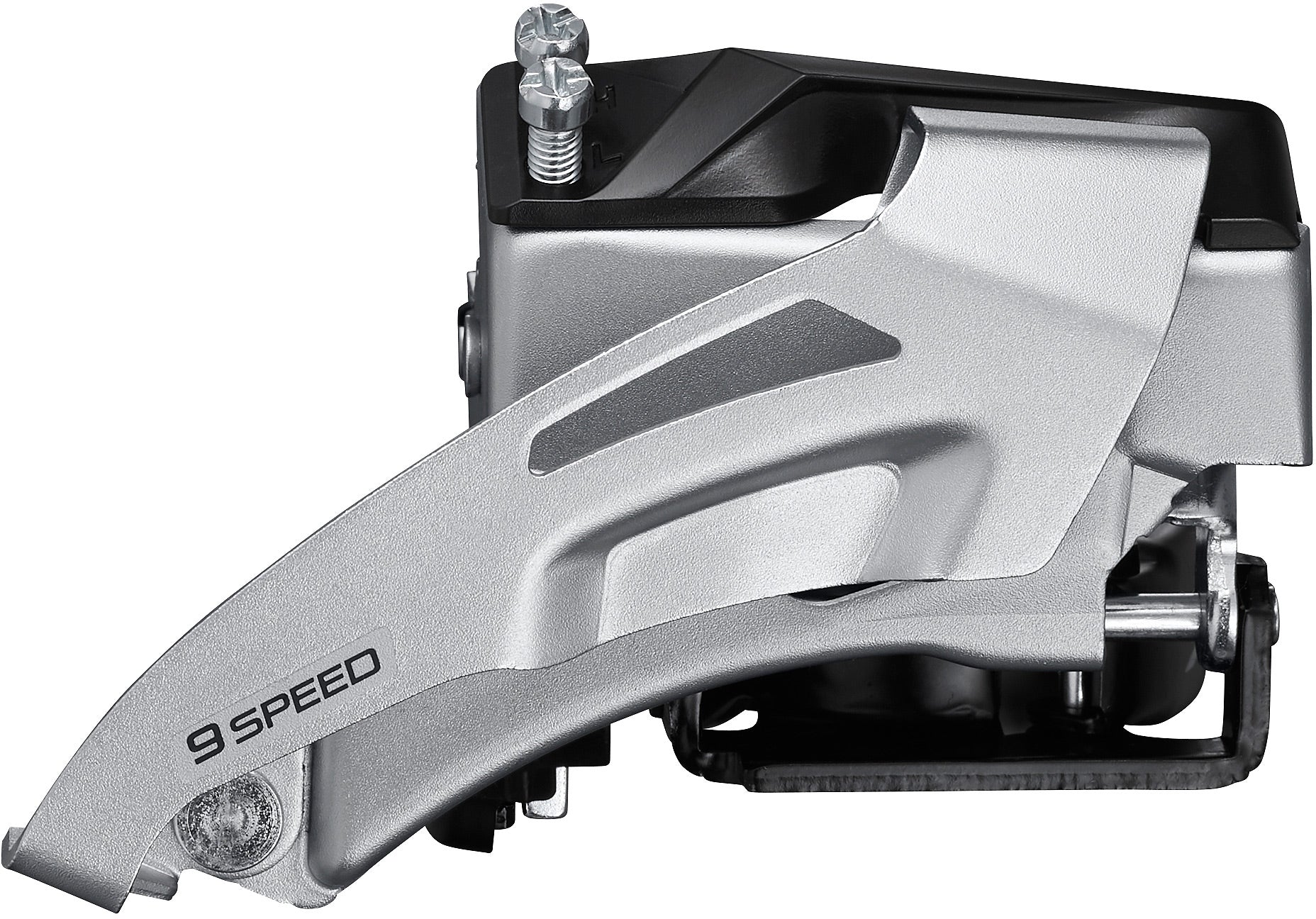

The Shimano ALTUS FD-M2020 top-swing front derailleur is compatible with traditional mounting standards and guarantees precise, superior shifting with 2x9-speed cranksets.
Features Shimano ALTUS FD-M2020 2x9-speed Front Derailleur
- Improved tire clearance
- TOP SWING Front Derailleur
- Precise and reliable shifting
- Wide Link
- Consistent off-road front shifting
- HYPERDRIVE
- Greater compatibility
- One spec for 48.8mm & 51.8mm chainline
- Mounting low clamp
Specification
-
Use: MTB
-
Group: ALTUS M2000
-
Model: FD-M2020-TS
-
Mounting: Top Swing - Low Clamp
-
Multi-Clamp: 34.9mm (28.6mm / 31.8mm w/ Adapter)
-
Cable route type: Dual Pull
-
Gear front: 2-speed
-
Gear rear: 9-speed
-
Top gear teeth: 36T
-
Total capacity: 14T
-
Compatible Chain: HG 9-speed
-
Chain line: 48.8/51.8mm
Chain stay angle
Material
Colour
Contents
- 1 x Shimano ALTUS FD-M2020 2x9-speed Front Derailleur
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
