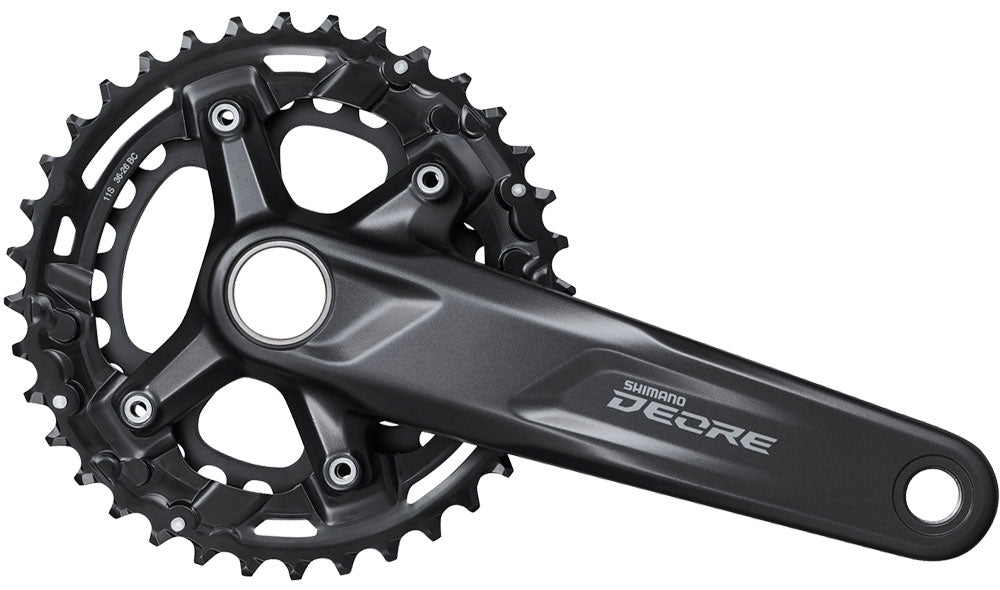

The Shimano DEORE FC-M5100 2 x 11-speed crank with 178.5 mm Q-factor and 48.8 mm chainline offers maximum drive efficiency at low weight. In combination with the 11-42 tooth cassette, it delivers an incredible transmission bandwidth! The perfect set-up for long races and hard climbs.
Features
-
FC-M5100-2 Q-Factor 178.5mm
-
Chain line: 48.8mm
-
O.L.D 135mm / 142mm
-
Compatibility 2x11-speed with CS-M5100 cassettes 11-42
Specification
-
Use: MTB
-
Group: DEORE M5100
-
Model: FC-M5100-2
-
Gradation: 36-26T
-
Q-Factor: 178.5mm
-
Threaded BB shell width: 68 / 73mm
-
Gear front: 2-speed
-
Gear rear: 11-speed
-
Construction: 2-Piece
-
Compatible Chain: HG-X 11-speed
-
Crank arms: 4 arm
-
Bolt Circle Diameter: 96 / 64mm
-
O.L.D: 135mm / 142mm
-
Chain line: 48.8mm
Crank Arm Length
Material
-
Crank arm: Aluminum Anodized
-
Crank axle: Steel Plated
-
Large Chainring: Aluminium
-
Small Chainring: Aluminium
Contents
- 1 x Shimano DEORE FC-M5100-2 11-speed Crank 36/26
Bottom Bracket SM-BB52 / Pressfit BB-MT500-PA not included!
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
