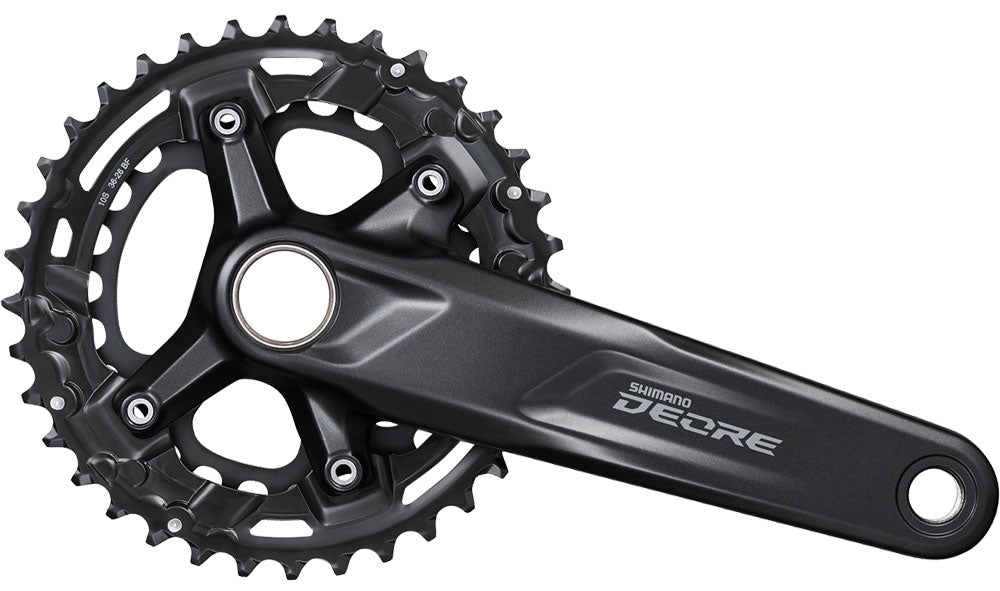

The Shimano DEORE FC-M4100 2x10-speed crank with 178.5 mm Q-factor and 48.8 mm chainline offers maximum drive efficiency at low weight. In combination with the 11-42 tooth cassette, it delivers an incredible transmission bandwidth! The perfect set-up for long races and hard climbs.
Features
-
FC-M4100-2 Q-Factor 178.5mm
-
Chain line: 48.8mm
-
O.L.D 142mm
-
Compatibility 2x10-speed with CS-M4100 cassettes 11-42
Specification
-
Use: MTB
-
Group: DEORE M4100
-
Model: FC-M4100-2
-
Gradation: 36-26T
-
Q-Factor: 178.5mm
-
Threaded BB shell width: 68 / 73mm
-
Gear front: 2-speed
-
Gear rear: 10-speed
-
Construction: 2-Piece
-
Compatible Chain: HG-X 10-speed
-
Crank arms: 4 arm
-
Bolt Circle Diameter: 96 / 64mm
-
O.L.D: 142mm
-
Chain line: 48.8mm
Crank arm length
Material
-
Crank arm: Aluminium Anodized
-
Crank axle: Steel Plated
-
Large Chainring: Aluminium
-
Small Chainring: Aluminium
Contents
- 1 x Shimano DEORE FC-M4100-2 10-speed Crankset 36/26
Bottom Bracket SM-BB52 / Pressfit BB-MT500-PA not included!
