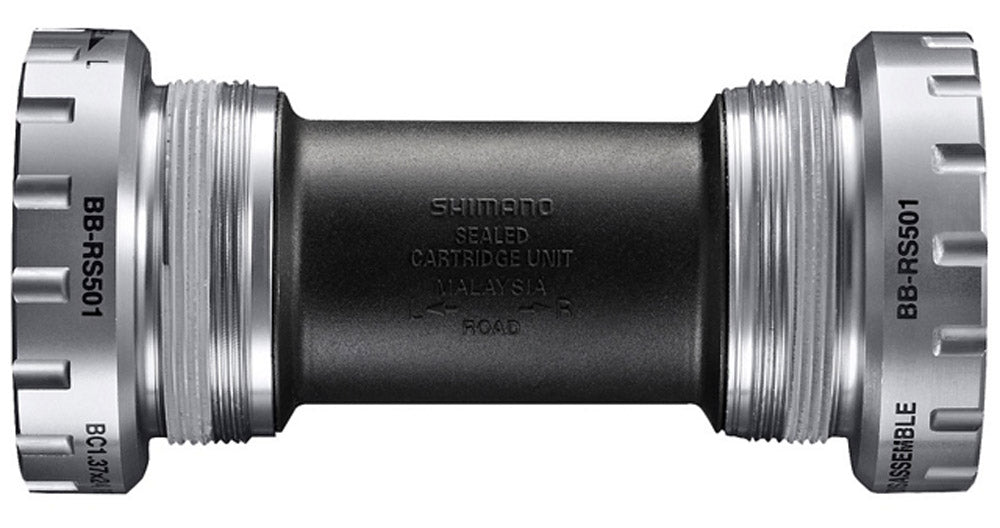

The BB-RS501 from Shimano is a high-quality bottom bracket for frames to BSA standard with 68 mm housing width.
Usable is the Shimano BB-RS501I with BSA thread for Hollowtech II cranksets with 24 mm shaft.
Specification Shimano BB-RS501 Hollowtech II Bottom Bracket BSA
-
Use: Road, Cyclocross, City, Gravel
-
Model: BB-RS501
-
BB-Type: HOLLOWTECH II (24mm)
-
Threaded: BSA
-
Threaded BB shell width: 68mm
-
Shell diameter: BSA (BC 1.37)
-
Mounting: Screwed
Compatibility
- TIAGRA FC-4700, FC-4703
- SORA FC-3550, FC-3503, FC-R3030, FC-R3000
- CLARIS FC-R2000, FC-R2030
- GRX FC-RX600
- FC-RS520, FC-RS510, FC-RS500, FC-RS400 FC-R563, FC-R460, FC-R350 FC-CX50
Material
Weight
Contents
- 1 x Shimano BB-RS501 Hollowtech II Bottom Bracket BSA
