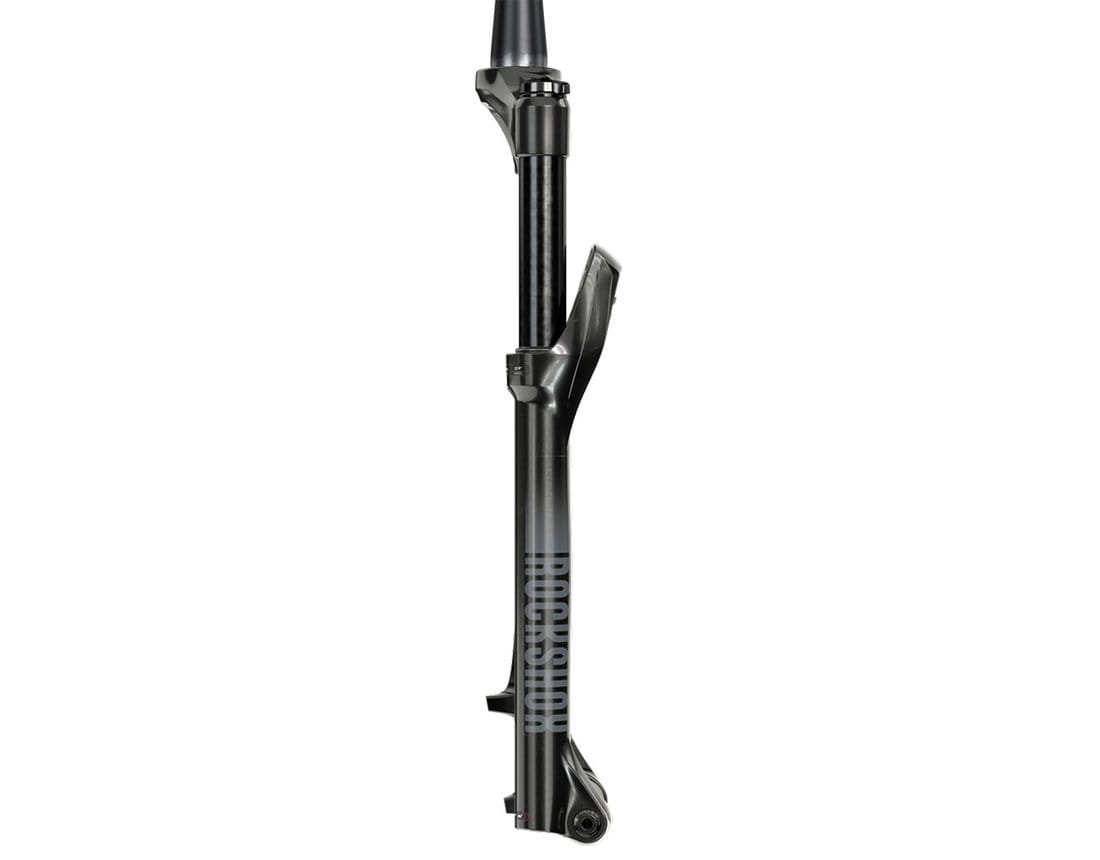

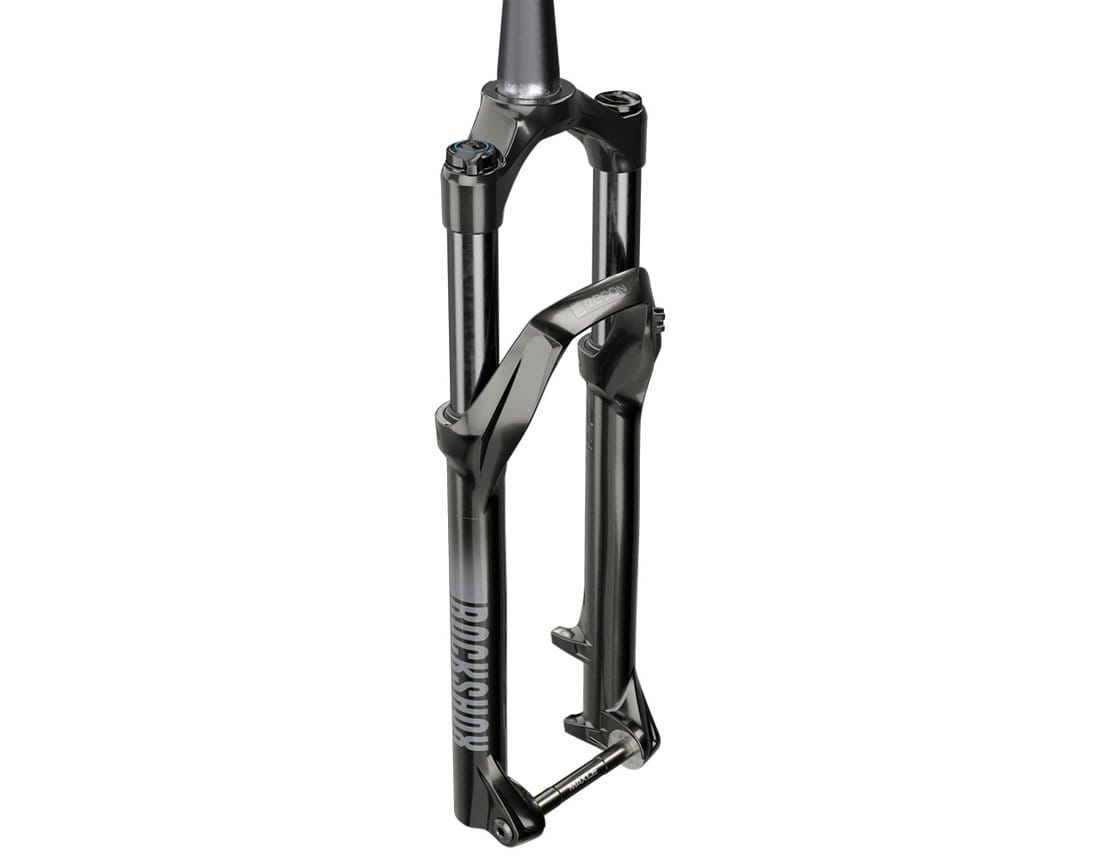

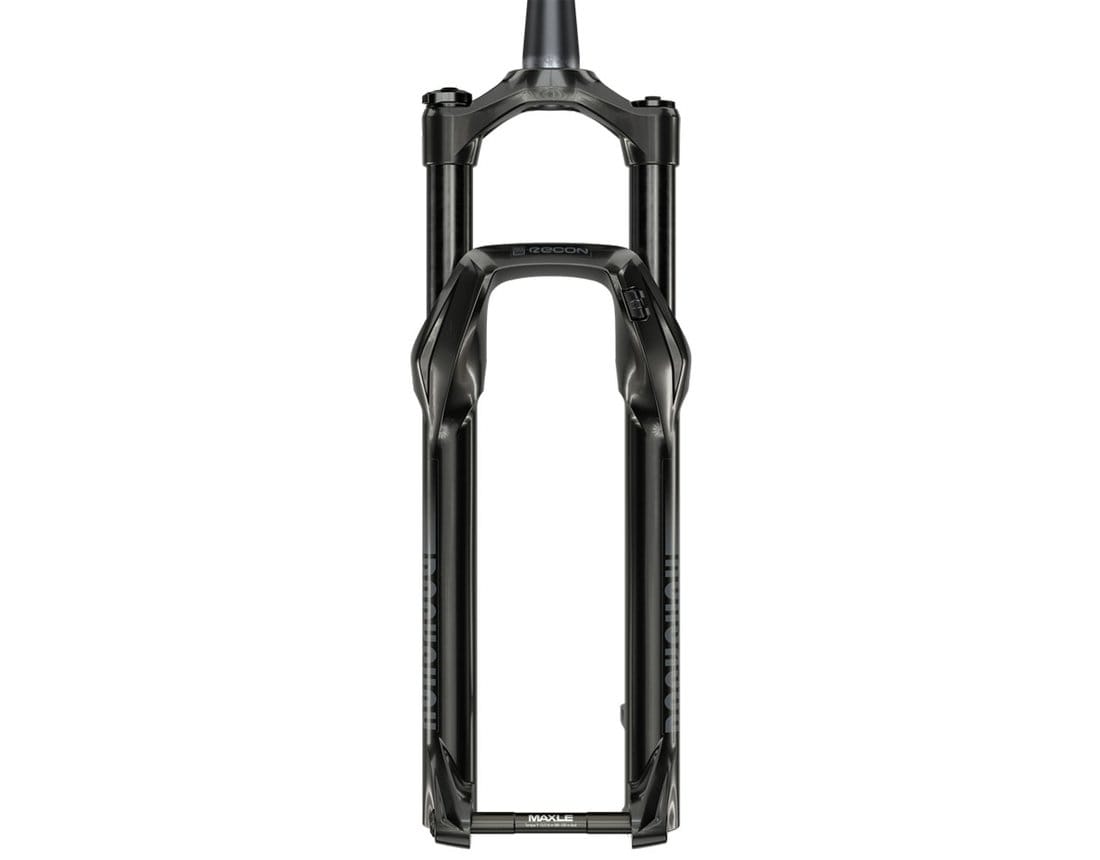

The RockShox Recon represents a perfect partnership between 32mm Revelation’s crowns and lower legs and bombproof new steel Fast Black upper tubes. And with the addition of its now-standard Motion Control™ RL damper, the re-invented Recon is the new gold standard for fun.

Features

• New graphics are easy to read and make a fresh impact
• Motion Control™ damping featuring low speed compression adjustment to lockout
• Fits Tyres up to 2.8"
• Fast Black finished 32mm steel upper tubes couple stiffness with a premium look

Specification

• Use: MTB
• Wheel Size: 29"
• Spring: Solo Air
• Damping: Motion Control RL
• Adjustments: External Rebound, Lockout Threshold - Low Speed Compression to Lock, Air pressure via common Schrader valve
• Steerer: Tapered 1.5" to 1 1/8"
• Steerer Length: 262mm
• Upper Tubes: 32mm
• Disc Brake Mount: Post Mount (PM6 - Direct Mount 160mm)
• Maximum Rotor Size: 220mm
• Drop Out: 15x110mm Maxle Stealth
• Max Tire Diamter: 755mm
• Max Tire Width: 81mm
• Axle To Crown: 513mm (100mm), 533mm (120mm), 543mm (130mm)
• Offset: 51mm
• Crown Outer Diameter: 61mm

Travel

• 100mm (00.4020.557.000)
• 120mm (00.4020.557.001)

Material

• Steerer: Aluminium
• Crown: Forged Aluminum
• Upper Tubes: Straight Wall Aluminum, Fast Black
• Lowers: Magnesium

Colour

• Gloss Black

Weight

• 2353g

Contents

• RockShox Recon Silver RL 29" Solo Air Tapered Boost
• RockShox 15x110mm Maxle Stealth Boost Thru-Axle

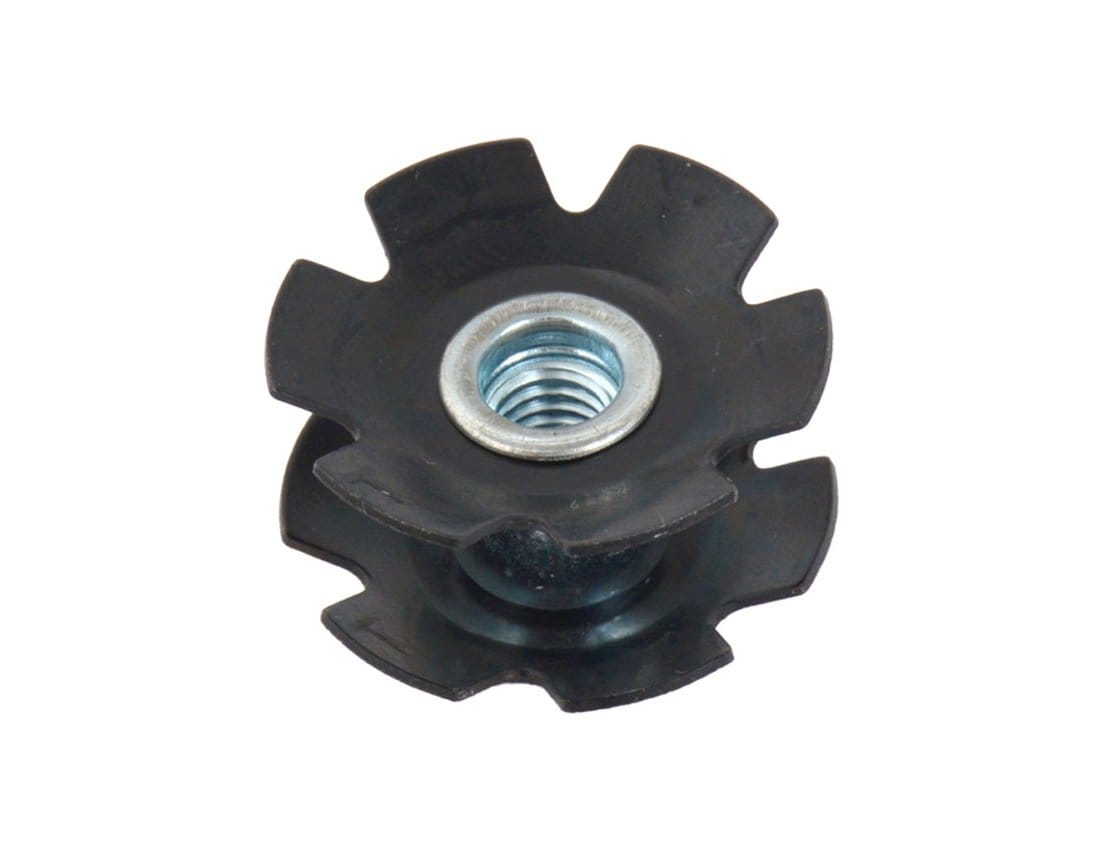

• Starnut
