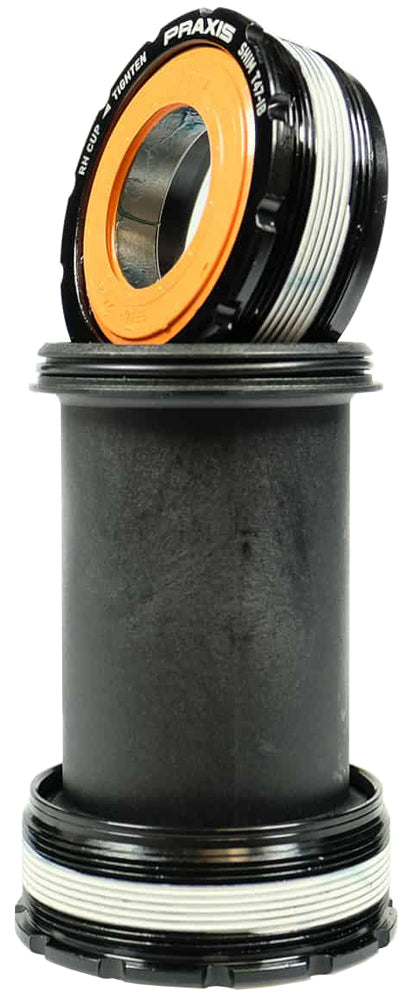

With this T47 bottom bracket from Praxis Works, Shimano Road Bike cranks with Hollowtech II steel axles can be mounted on frames with 85.5mm brackets.
The perfect upgrade for a highly stressed component on your bike. Because the high-end ball bearings from Enduro Bearings installed by Praxis Works are top sealed, ensure smooth running and maximum reliability.
Specification
-
Use: Road
-
BB-Type: T47
-

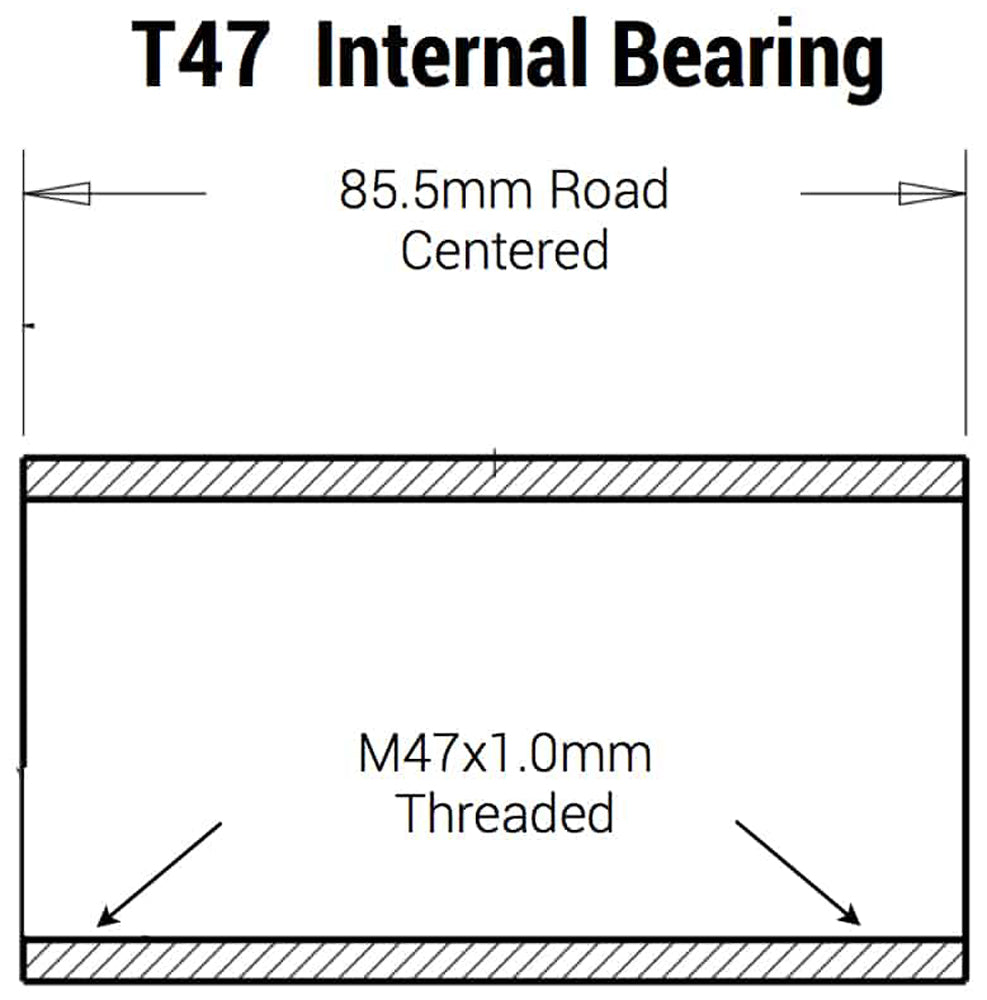

Bearing housing width: 85.5mm
-
Bearing housing diameter: 47mm
-
Crank shaft diameter: 24mm
-
Thread: M47x1.0mm
-
Bearing: Enduro steel bearings 2437
-
Compatibility: Shimano Hollowtech II Road cranks with 24mm shaft
Note: The special Praxis Works T47 I.B. tool (TP-2400) is required for assembly.
Material
-
Bering shell: Aluminium 7075-T6
-
Bearing: Steel
Weight
Contents
- 1 Praxis Works T47 Bottom Bracket
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
