The full gravity-braking power of the 4-pistons is now available as an affordable entry-level model.
The award-winning MT5 combines performance with an affordable price, making it the top retrofit product among MAGURA disc brakes. All the genes of the MT7 are in our MT5 model for downhill and enduro use.
Whether in bike parks, in enduro use or on the home trail, the MT5 is up to all challenges – and it’s also a powerful partner for e-bikes.
Features

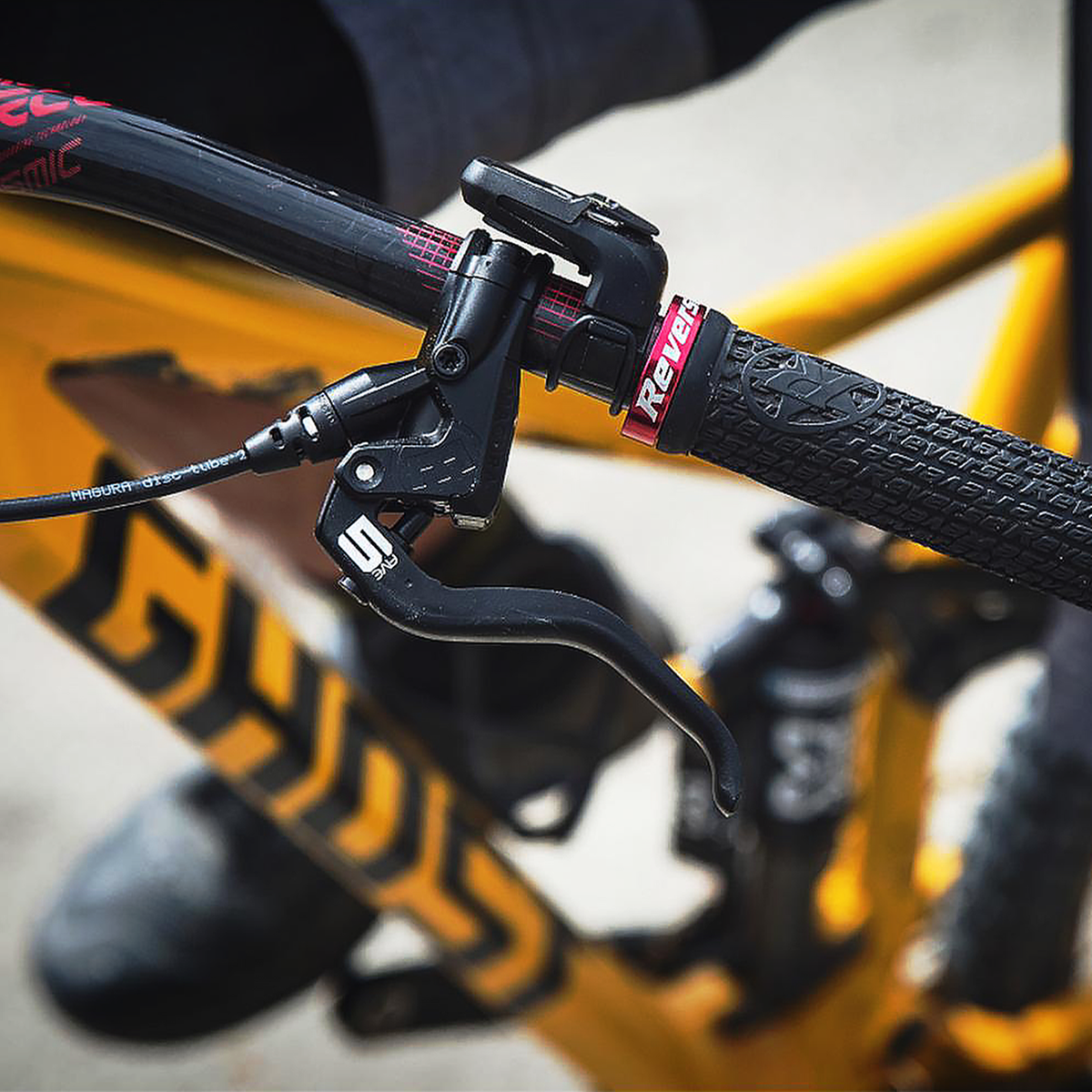

- Ergonomic, 2-finger, aluminium brake lever
- Carbotecture® housing & handlebar clamp
- Adjustable lever reach All-in-one,

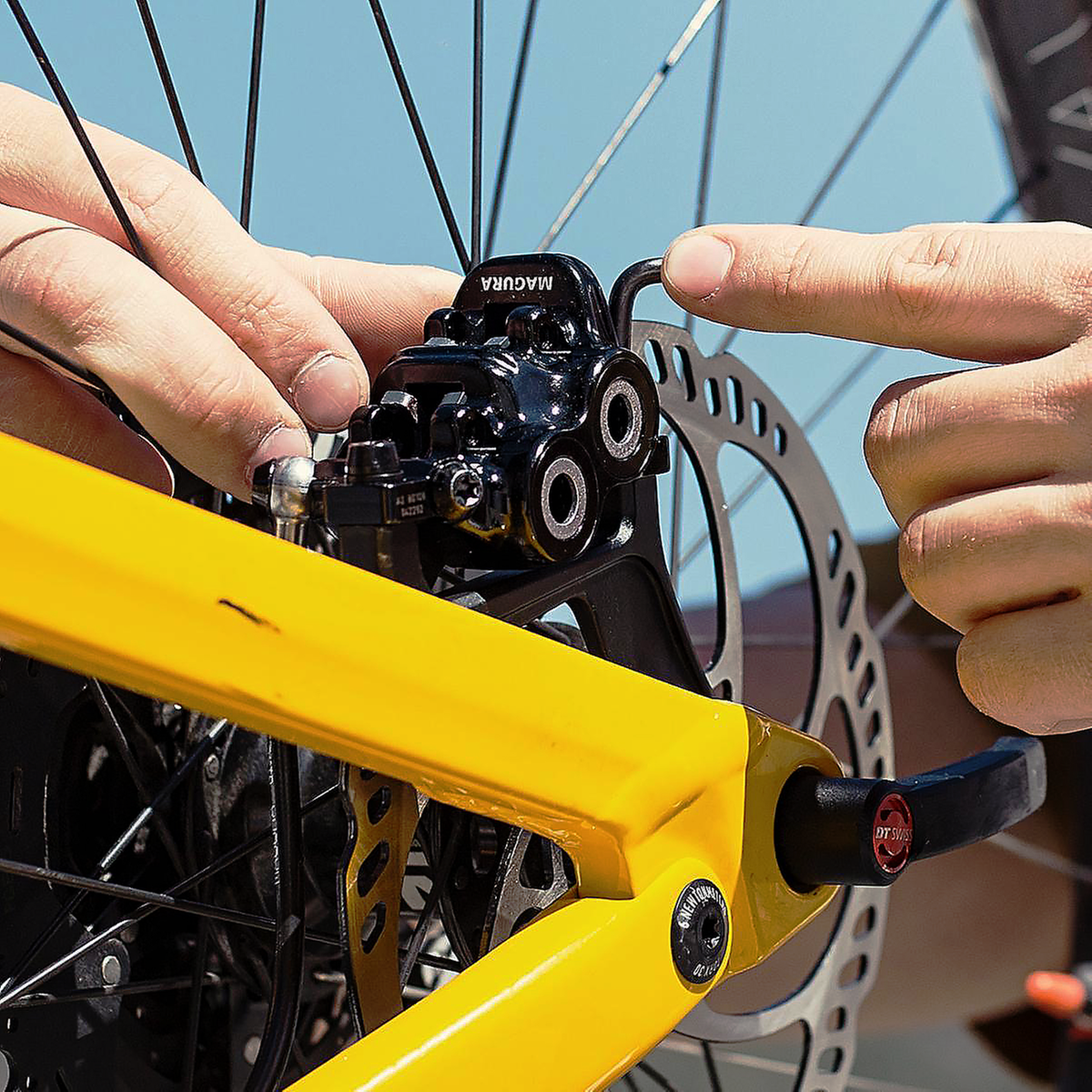

- 4-piston brake calliper with banjo
- MagnetiXchange brake pistons for easy brake pad replacement
- Compatible with all MAGURA Storm and Storm SL discs
Specification
-
Use: MTB
-
Technical features: Full hydraulic dual piston floating caliper
-
Hydraulic system: Open, with expansion chamber
-
Mounting: Postmount
-
Postmount mounting (PM) only front: Yes, direct mount
-
Disc diameter (mm): Front 203/8, 180/7, 160/6 Rear 203/8, 180/7, 160/6, 140/5 (ONLY Storm SL)
-
Transmission medium: MAGURA Royal Blood mineral oil
-
Brake hose: MAGURA disc tube easily shortened
-
Hose fitting caliper: RHR - Rotateable house routing
-
Brake pads: Organic 9.1 Performance (4 Pistons 2 Pads) 8.1 Performance (4 Pistons 4 Single Pads)
-
Material fitting bolts: Steel
-
Brake lever and caliper: Carbotecture SL (Master), Aluminium forged (Caliper)
-
Lever blade: Aluminium
-
Reach adjust: Yes
-
OPD (caliper in one-piece design): Yes
-
BAT (bite point adjuster): No
-
EBT (Easy Bleed Technology): Yes
-
2-Piece Lever Clamp: Yes
-
Dual Docking for trigger shifters: Yes
-
magnetiXchange: Yes
-
Feel-Safety-Ergonomic: Yes
-
Brake hose length: 2200mm (shortable)
Colour
- Black (Master)
- Black (Calliper)
Weight
- ~380g (with 160 mm Storm SL-Rotor)
Contents

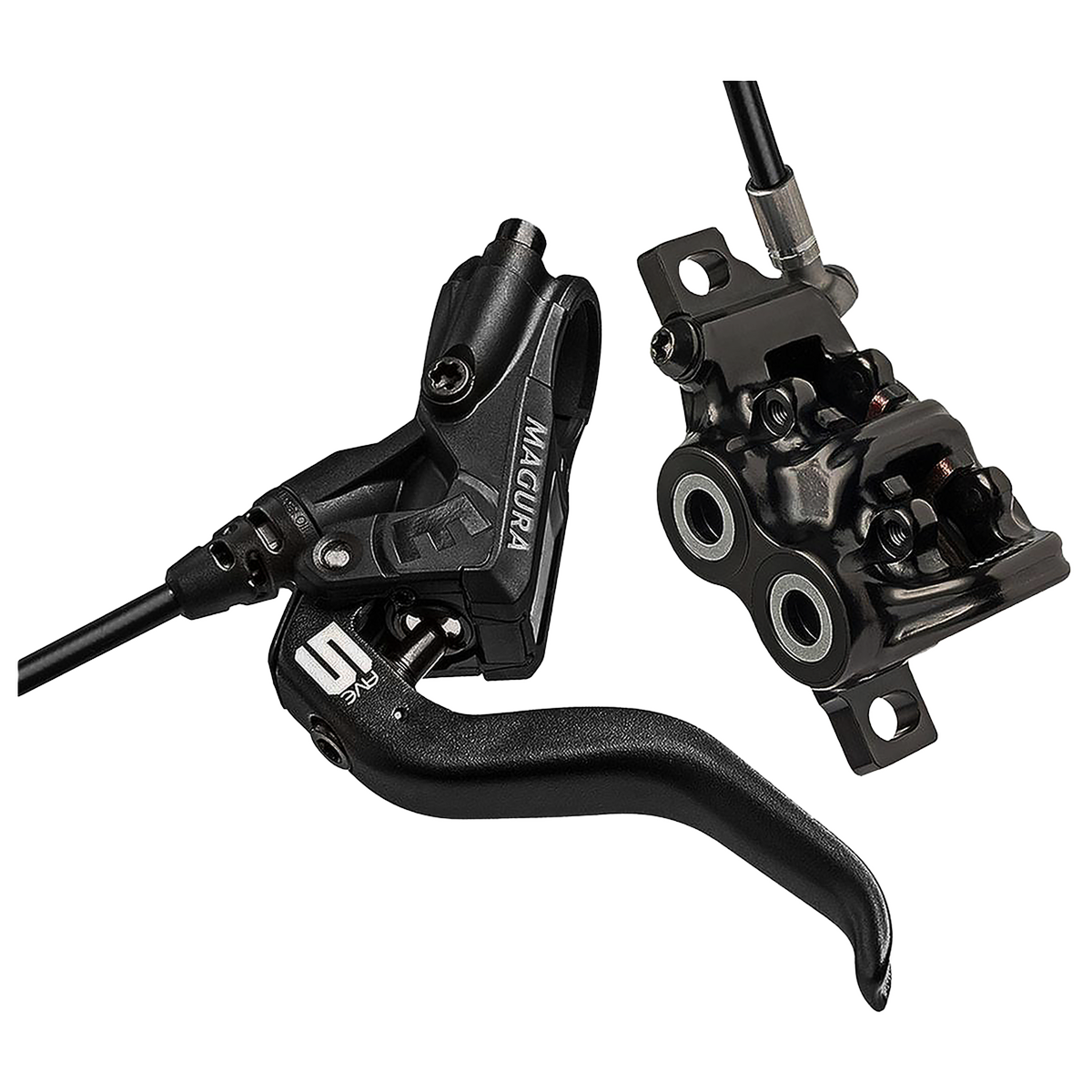

- 1 x MT5 Carbotecture® Disc Brake
- 1 x Brake Pads 9.1 Performance
- 2 x Fastening screw
- 1 x Insertpin
- 1 x Olive
- 1 x Transport safety
- Disc brake is ready for installation, completely assembled and bleeded!
Rotor and Adapter not included!
