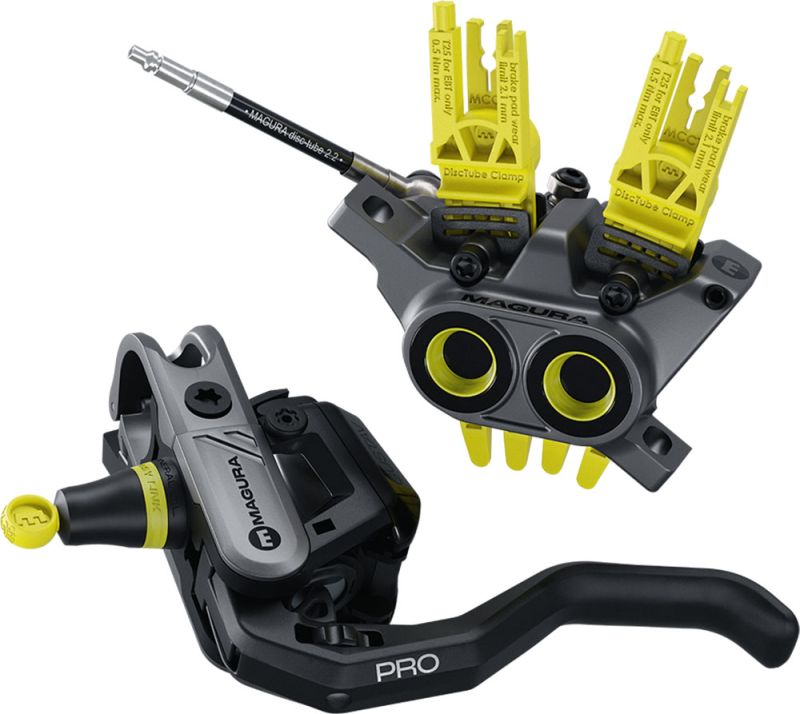

MAGURA GUSTAV PRO FIRST EDITION DISC BRAKE SET

Maximum power, perfect modulation and uncompromising safety - the Gustav Pro is the brake for those who really mean business!

First choice for gravity pilots. The Magura MT7 Pro has proven itself in countless competitions – and most recently on the bike of DH world champion Loic Bruni. With four pistons, the MT7 Pro offers the best possible braking performance, while the ergonomically-optimised 1-finger HC lever blade gives you the ideal braking feel.

The Magura Gustav Pro First Edition sets new standards in terms of performance, durability and ease of maintenance. With 40 % more brake pad volume, 2.5 mm thick brake rotors and double the oil volume in the reservoir, the brake remains maintenance-free for longer and decelerates even the heaviest e-bikes and gravity bikes with ease.

Thanks to MAGURA EASY LINK, the lines can be disconnected quickly and without tools, while the new bleeder valve ensures particularly easy maintenance. The enlarged 12 & 19 mm pistons guarantee unprecedented stability and sensitivity, combined with a precise pressure point.

Features

• Pre-filled spare parts - The brake calliper and the brake lever are supplied separately, completely filled and closed. If the inevitable happens and you need to replace a component, you can easily swap it without bleeding.
• ABS ready - Like a Bosch? Yes, we like a Bosch! Thanks to the long-standing partnership with Bosch and their own motorcycle ABS know-how, the GUSTAV PRO is optimized for use with the innovative Bosch eBike ABS like no other brake.
• Crafting Magic - Thanks to innovative composite production, Magura can shape the sensors into any conceivable form. They are particularly proud of the GUSTAV master cylinder, as it combines details such as a 12 mm piston, bolted lever bearing, 7 ml oil volume and, above all, invisible EASY LINK integration in the smallest possible space. This is not possible with any other material!
• ASTHETIC DESIGN - Your bikes are too beautiful for ugly brakes! That's why the GUSTAV integrates perfectly into modern cockpits with a 0-degree hose outlet. And unnecessary kilos have also been dispensed with. Despite its features, it is the lightest brake of its kind.
• Easy Link - Brake hose rethought! The new MAGURA EASY LINK technology allows you a simple plug'n play connection between the hose and brake master. This means you can install or remove your hose as often and as quickly as you like. Even shortening the hose is now even quicker!
• EASY BLEED - The new bleed valve and a circumferential oil channel without dead ends make bleeding the GUSTAV PRO child's play.

Specification

• Range of use: Gravity, eMTB, SUV
• Number of pistons: 4
• Brake calliper mount: Postmount
• Brake fluid: MAGURA Royal Blood mineral oil
• Brake hose: MAGURA Disc Tube can be easily shortened
• Brake caliper cable connection: rotatable banjo
• Clamp clip: integrated Shiftmix option
• Brake pads: Organic Sport 13.S
• Reach adjust: Yes (tool-free)
• BAT (individual pressure point adjustment): No
• Flip-flop brake lever: Yes
• Cable lengths: 2200 mm each (can be shortened)
• Brake master cable connection: EASY LINK
• Adapter: QM44 (included)
• Disc rotor: MDR-S 2.5 203 mm (included)
• ABE: No

Materials

• Caliper: one-piece forged, aluminum
• Brake master: Carbotecure
• Brake lever: PRO brake lever, aluminum
• Bolts: steel

Colour

• Black / Grey

Weight

• 348 g each (manufacturer information)

Contents

• 2 x Magura Gustav Pro
• 2 x Magura MDR-S 2.5 203 mm Disc rotors
• 2 x Magura QM44 adapters
• incl. accessories for shortening the cables
