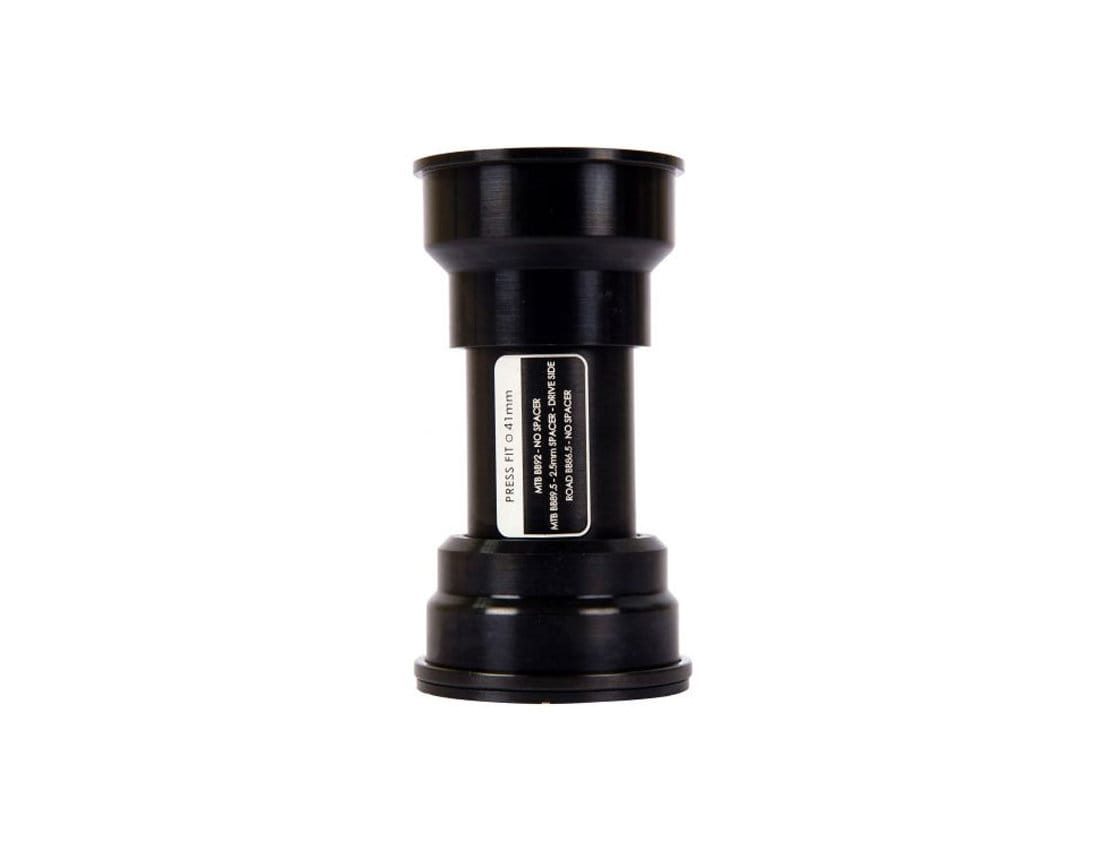

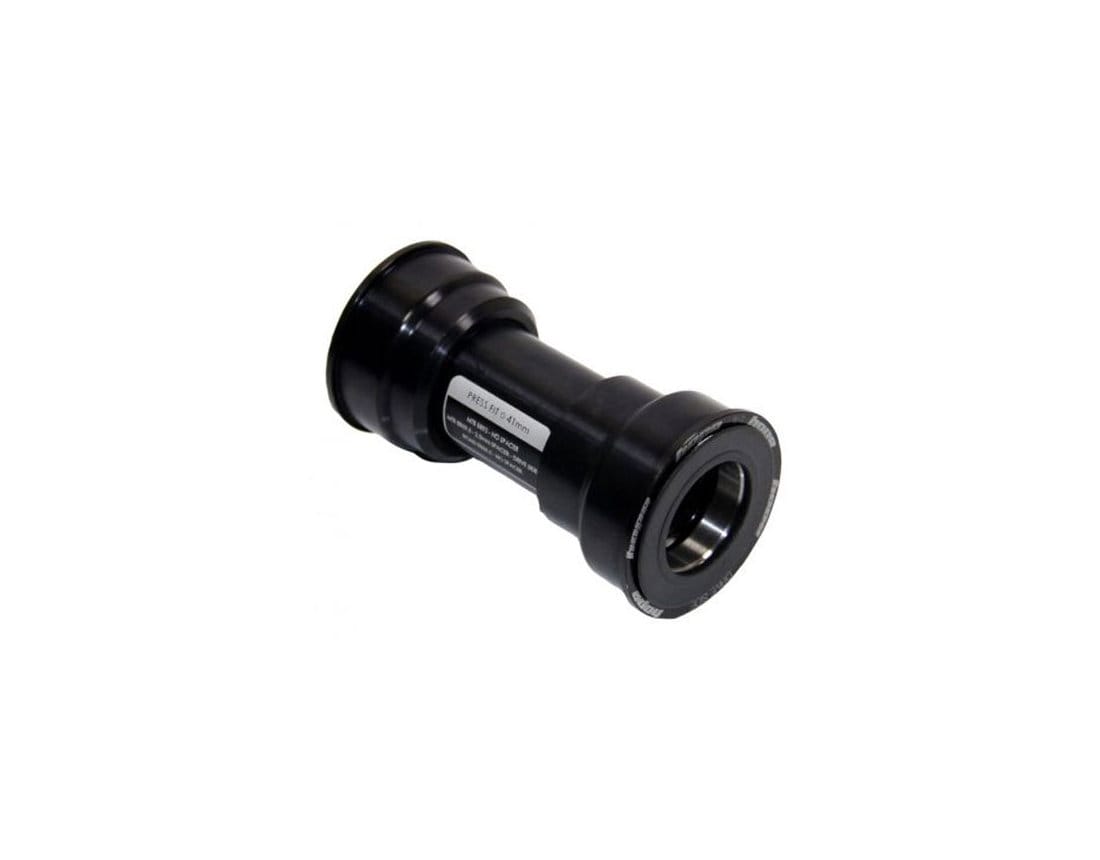

Our press-fit bottom brackets feature high quality sealed cartridge bearings, providing a solution to the press-fit bottom bracket minefield.
"Secure mounting pressfit bottom brackets"
Features
- PF bottom brackets are designed to fit bikes with a threadless bottom bracket cup

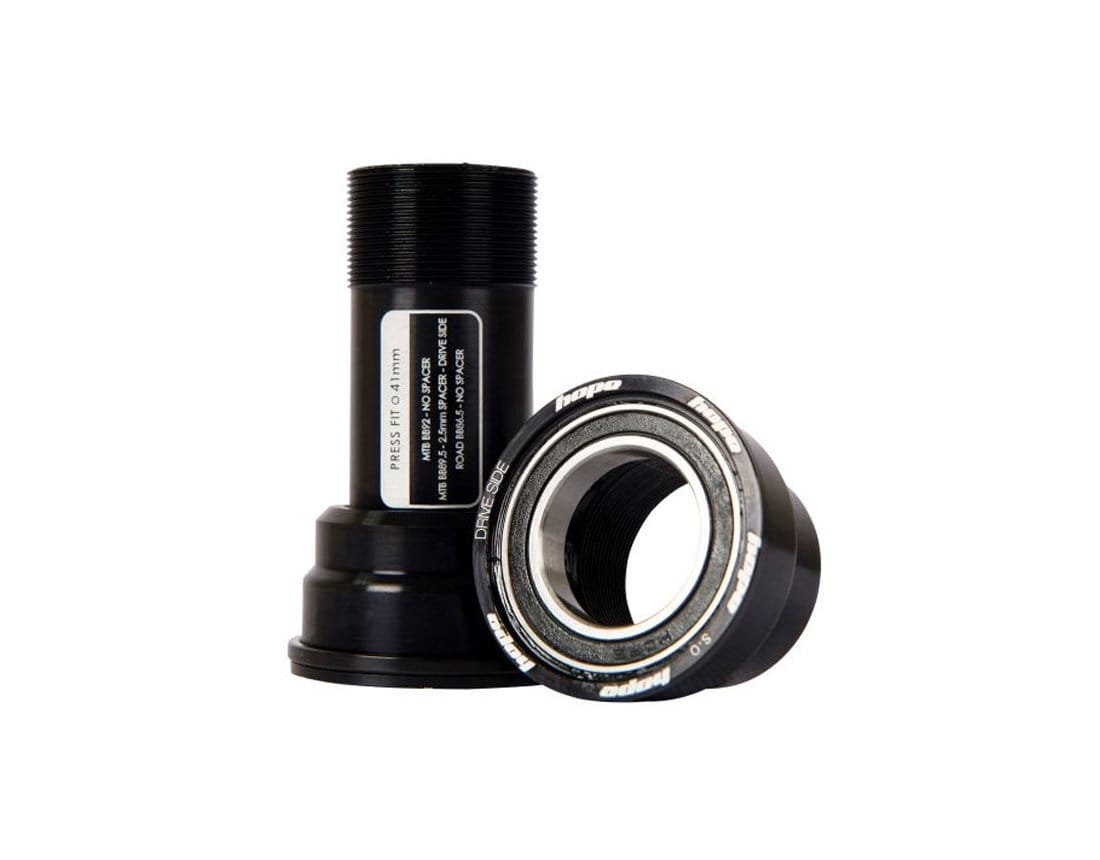

- The bearing cups thread into a centre tube to give a very secure, safe fit (24mm axle version only)
- Choice of stainless or ceramic cartridge bearings
- Ability to convert the bottom bracket to fit Truvativ GXP cranks with a simple shim adaptor
- Specific fitting tool required - purchased separately
Specification
- Options to suit either 24mm or 30mm crank axles
- 24mm crank axle versions available to suit BB92, BB89.5, BB86.5 and 100mm bottom bracket width for Fat bikes
- 30mm crank axle version available to suit 89.5, 92, 104.5, 107 and 121mm bottom bracket widths
- Available with replaceable stainless or ceramic bearings for less friction and greater durability
- Truvativ conversion kit available separately
- Cups pressed in and held in place by a screw-in centre tube to prevent slipping and play ***note: No centre tube on 30mm axle option***
- Easy to service and replaceable parts
Weight
