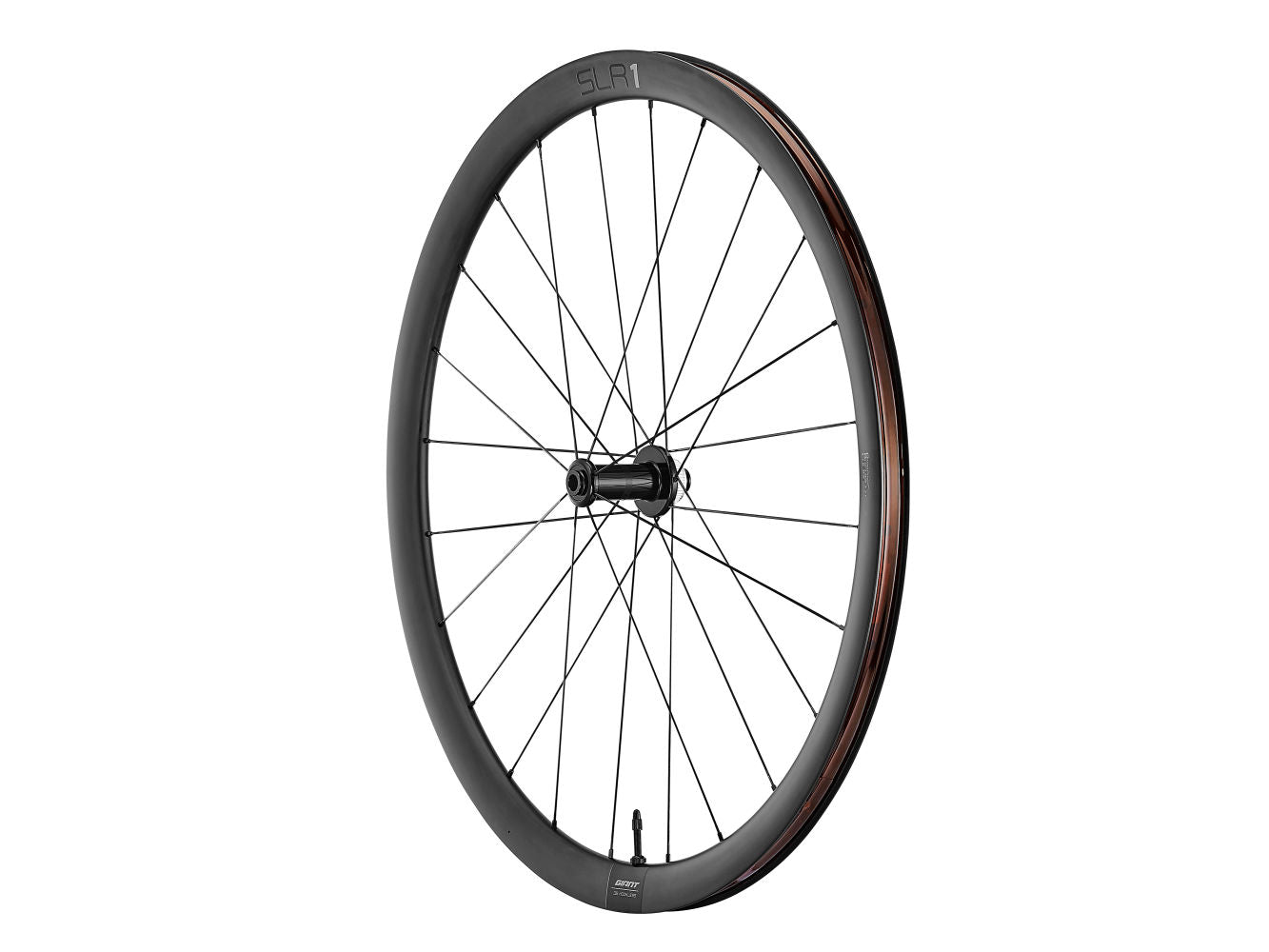

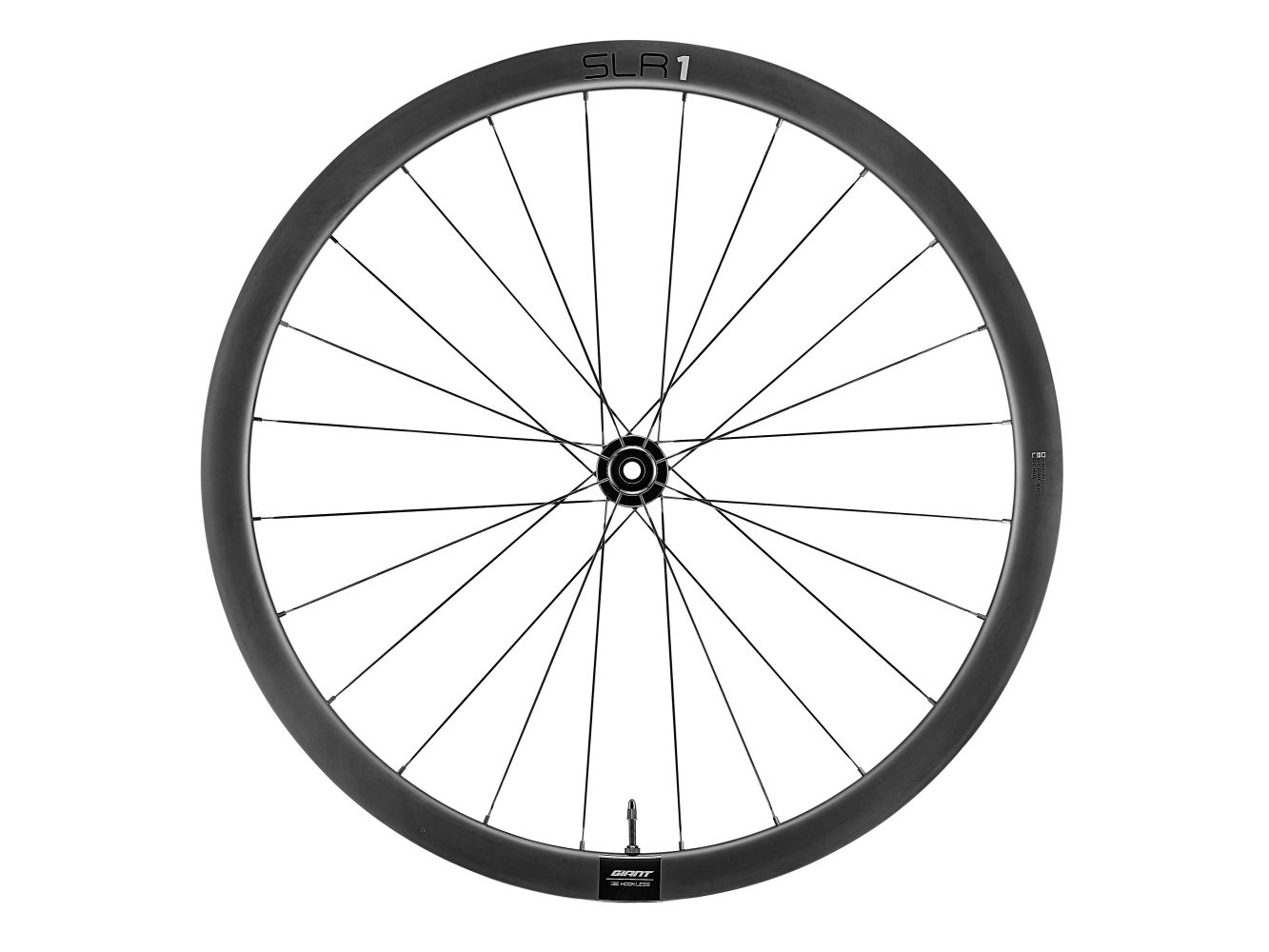

The all-new SLR 1 36 Disc WheelSystem provides high-performance versatility, combining maximum power transmission with optimal stiffness, efficiency and weight savings to make it as quick on the climbs as it is confident on the descents.
Features
- Hookless rim design enhances overall durability and offers a wide 22.4mm inner rim width without adding weight
- Optimized carbon layup features high tensile strength carbon fibre placed at the most crucial points for a stiff, strong but lightweight wheel
- Low friction hub with precision machined internals eliminates excessive bearing load, reducing bearing friction, lowering rolling resistance and minimizing power loss
- Dynamic Balanced Lacing (DBL) ensures spokes are set for optimal tension when pedalling, resulting in enhanced durability and transmission efficiency
- The enlarged DBL hub flange increases spoke bracing angles, boosting overall torsional/transmission and lateral stiffness for better power transfer
- 36mm rim profile with a wide inner width offers better support for today’s higher volume road tires and provides outstanding stability in shifting winds
Specification
-
-
Rim Type: Hookless Clincher
-
Tubeless: Giant Tubeless System (rim tape and valve kit included)
-
Tyre Size: 700 x 25C – 700 x 32C
-
Rim Height: 36mm
-
Rim Outer Width: 26mm
-
Rim Inner Width: 22.4mm
-
ETRTO: 622-22
-
Front Hub: Low Friction Hub, Centerlock
-
Rear Hub: Low Friction Hub, Ratchet Driver, Centerlock
-
Hub Compatibility: Shimano 11 / SRAM XDR 12 / Campagnolo
-
Bearing: Sealed Cartridge
-
Front Axle: 100x12 Thru Axle
-
Rear Axle: 142x12 Thru Axle
-
Spokes (Front): SAPIM CX-Ray
-
Lacing (Front): 24H DBL Disc
-
Spokes (Rear): SAPIM CX-Ray
-
Lacing (Rear): 24H DBL Disc
-
Nipple Type: Alloy
-
Warranty: 2 Years
- Weight (Pair): 1442g with Shimano freehub
- WheelSystem Weight Limit: 285 lbs / 129 kg
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
