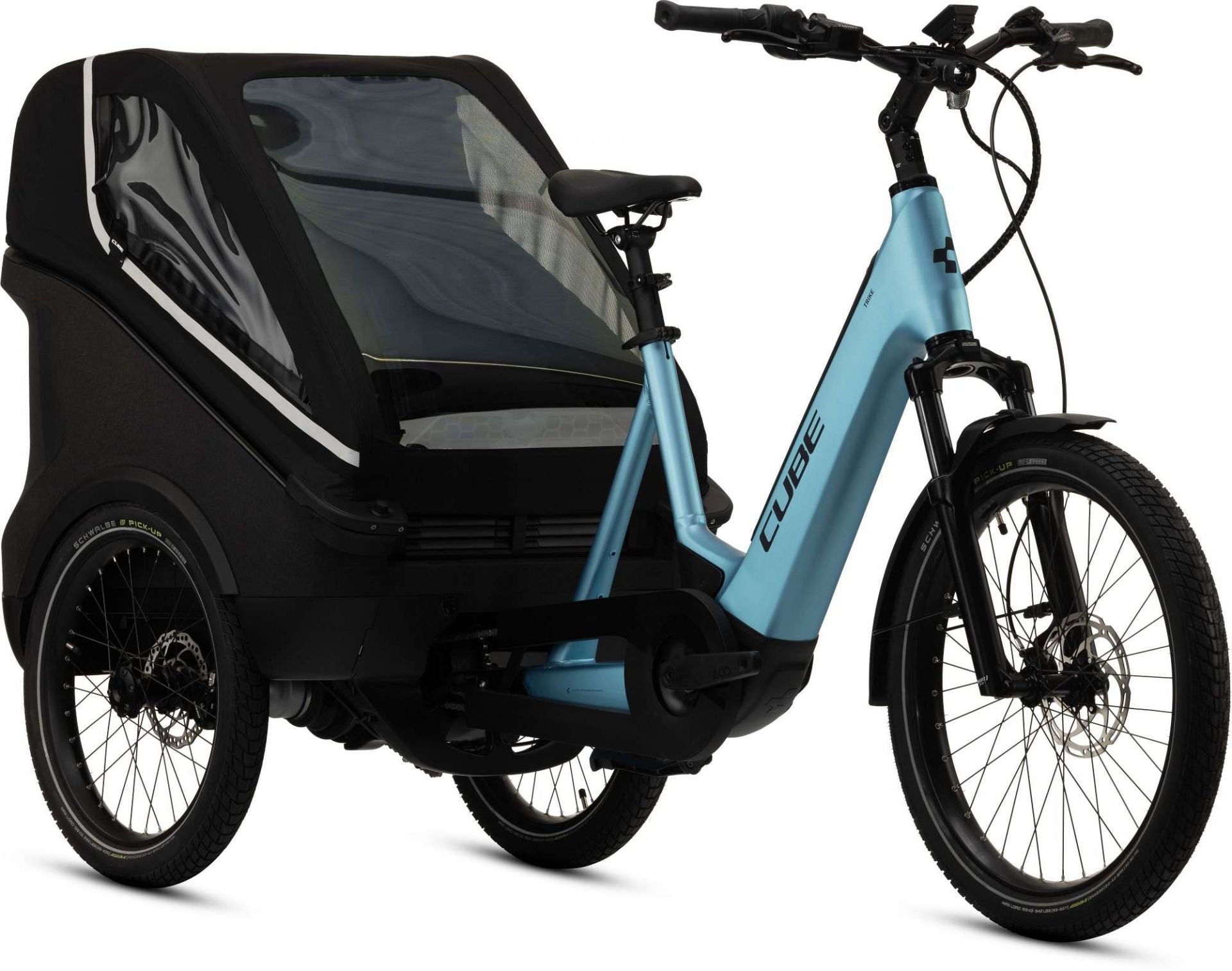

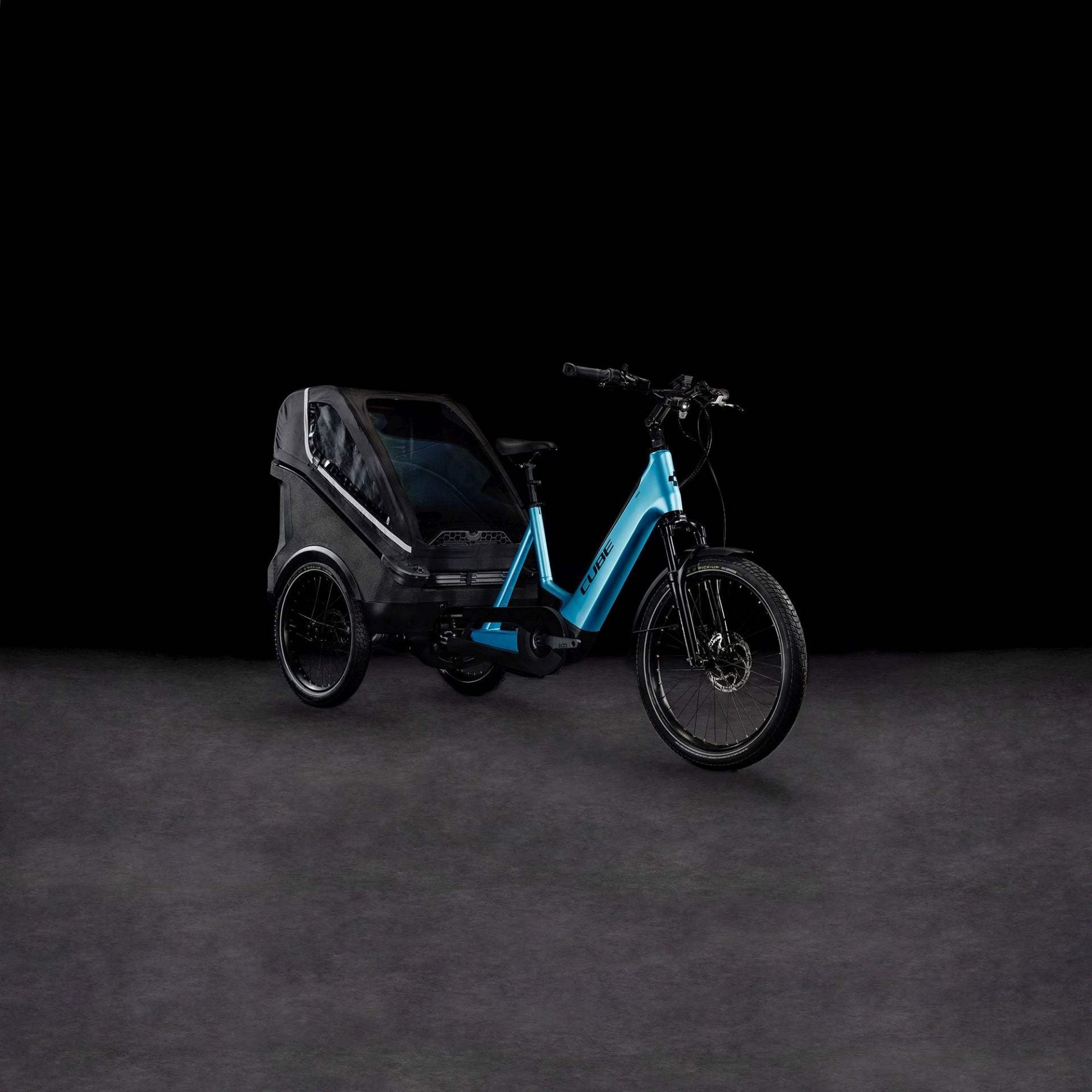

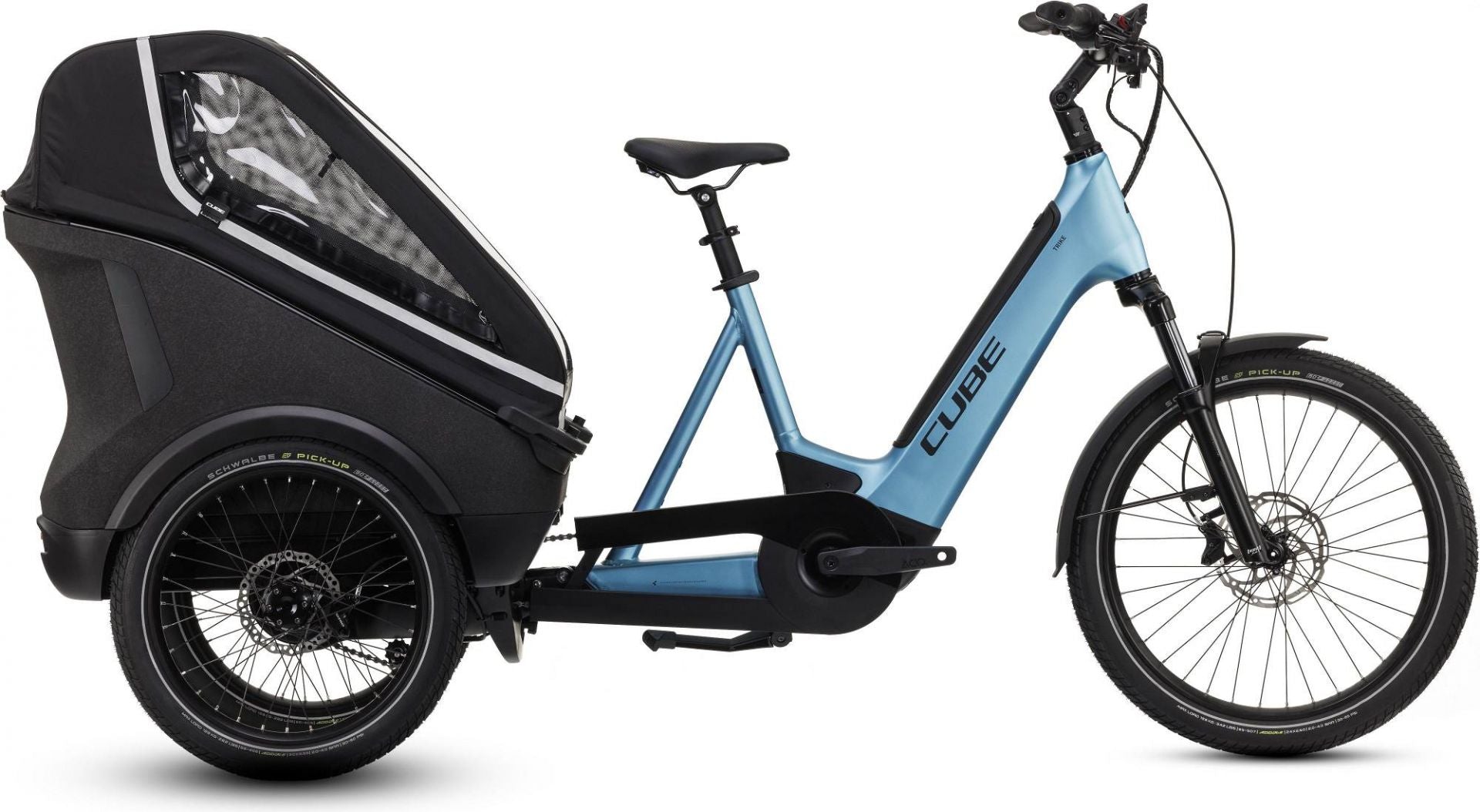

CUBE TRIKE FAMILY HYBRID 750 eBIKE 2024 BLUE 'N' REFLEX

eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated.

Minimum personal assembly is required.

This is it: the CUBE hybrid bike that could, perhaps, replace a car.

The CUBE Trike Family Hybrid 750 combines safety, ease of use and practicality in one easy-to-handle package, thanks to innovative design in collaboration with BMW and the power of Bosch's fourth-generation CX Line drive system.

Only available at the Salts Mill Bike Store, Saltaire, BD18 3LA
Shipping is not possible!
You can get more information at: 01274 588-488 or sales@allterraincycles.co.uk

Open 360° view

Key Features Cube Trike Family Hybrid 750 eBike 2024

• Comfort Ride Geometry: As you might expect, the Comfort Ride Geometry delivers maximum comfort on two wheels. Because after all, who doesn't want a comfortable ride? CUBE has sweated the details of frame angles and dimensions to create a natural-feeling ride position and the ideal combination of stability and agility, so you not only feel comfortable but safe, too.
• Tilting Technology: To give the Trike Hybrid its exceptional stability and natural ride feel, CUBE has given it an innovative tilting mechanism. The front of the bike leans naturally into corners with the rider, leaving the load area upright with both rear wheels giving maximum grip. The result is that it feels like riding a regular bike, even if you're carrying a cargo load or bringing your kids along in the child seats.

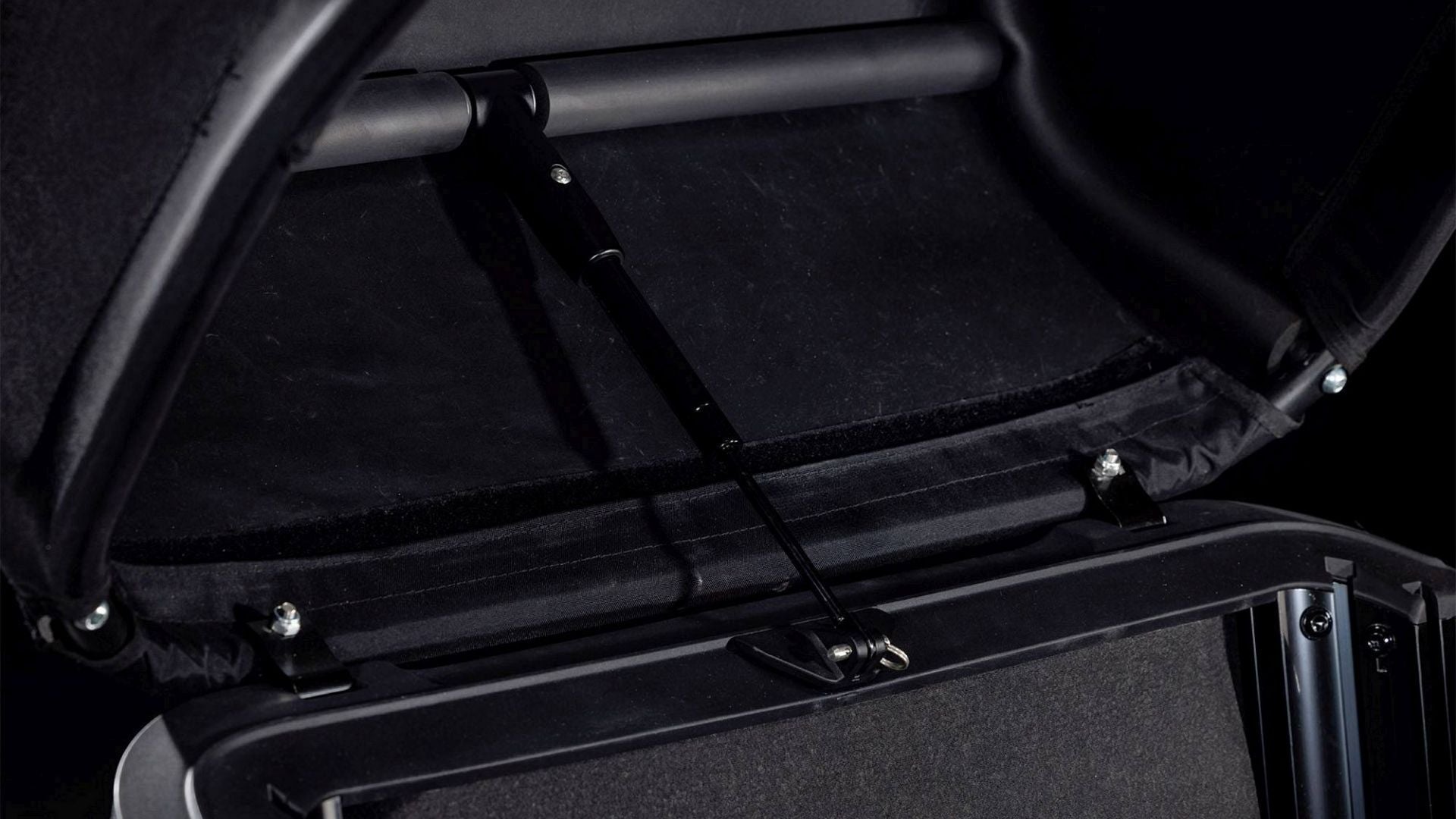

• Rain Cover and Seats for Children: Kids love bikes, and they love it even more when they can come along for the ride and just enjoy the view. We developed our child seat – with safety harnesses – with exactly this thought in mind. Safe, snug and secure, your kids can watch the world go by. The rain cover will even keep them dry if it rains...

Full Specification

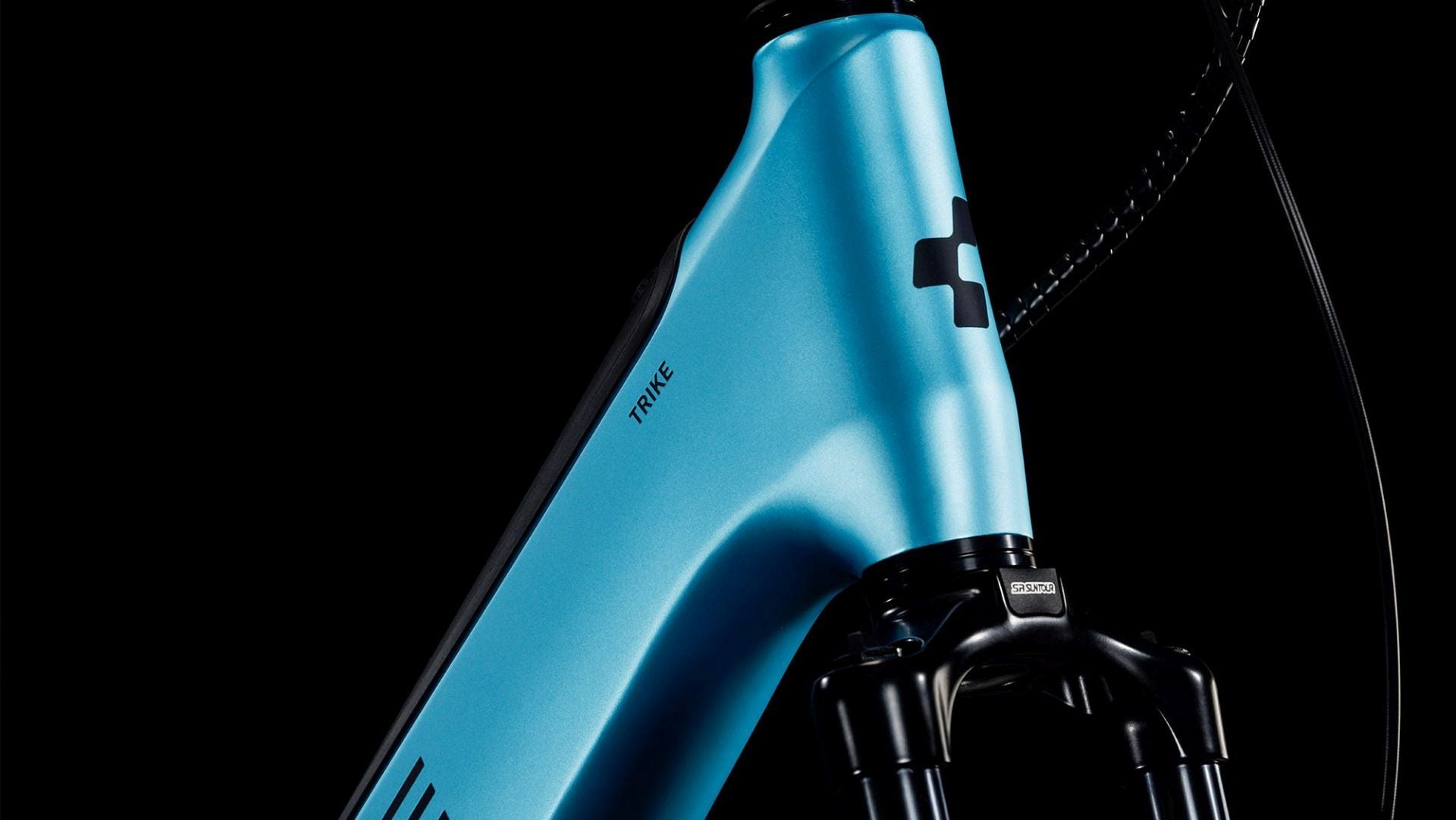

• Frame: Aluminium Cube Cargo, One Size
• Fork: SR Suntour MOBIE 34 CARGO 24", 100mm
• Motor: Bosch Drive Unit Cargo Line Generation 4 (85Nm) Cruise (250Watt), Smart System
• Battery: 1 x Bosch PowerPack 500 (expandable to 2 x PowerPack 500)

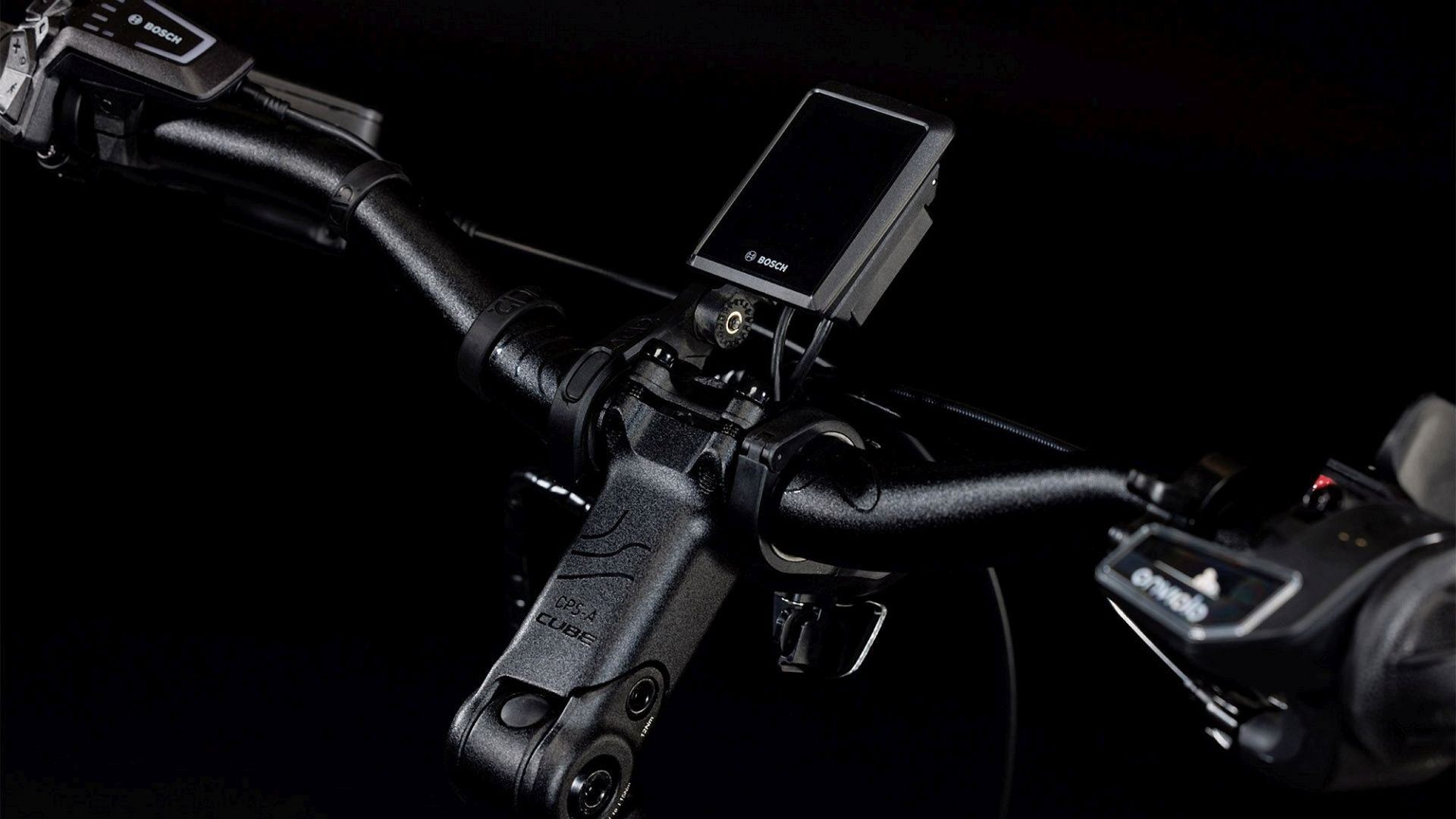

• Controller: Bosch Kiox 300 display
• Charger: Bosch 4A

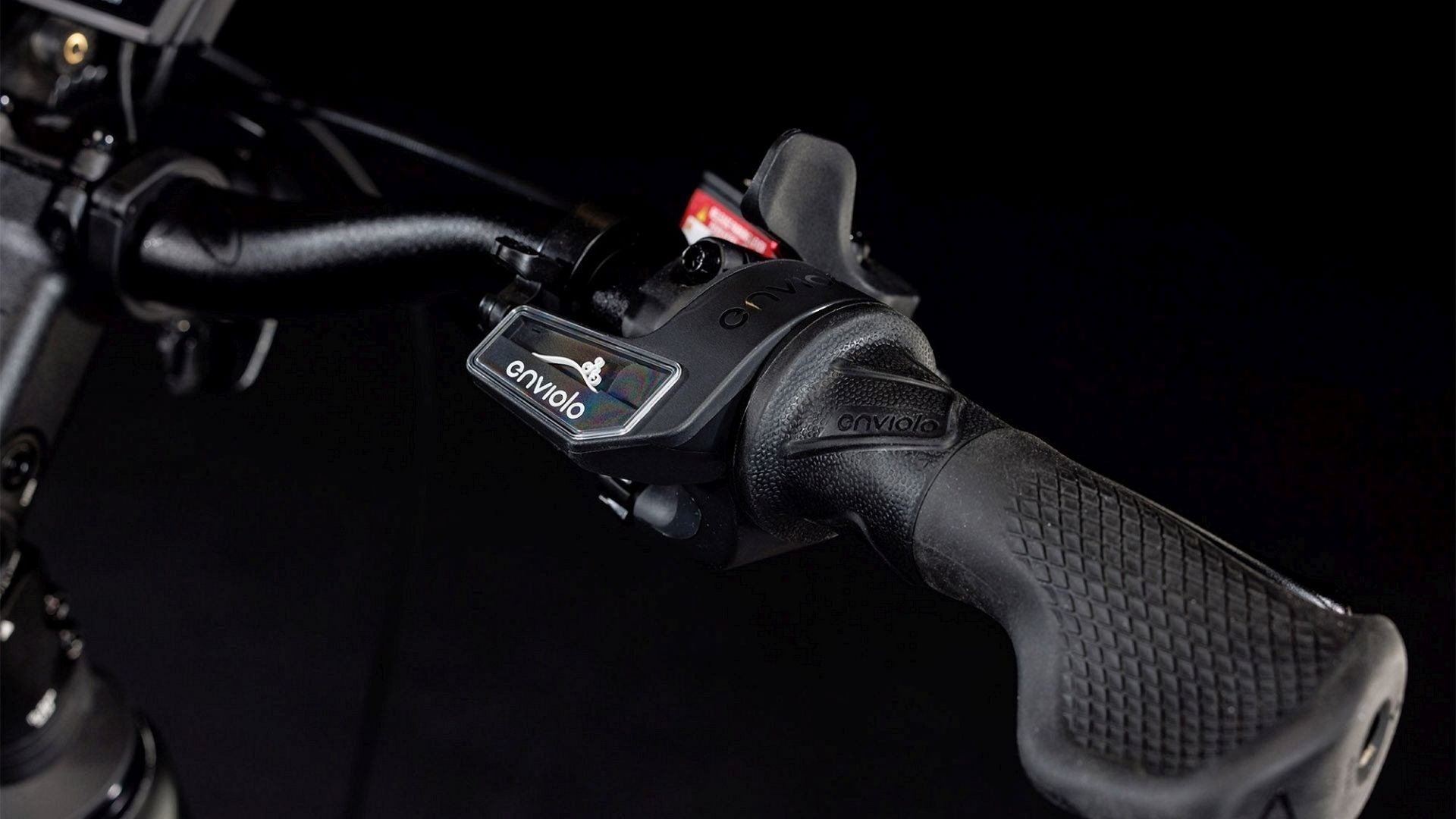

• Gear Shifters: Enviolo Cargo manual
• Chainset: ACID E-Crank, 170mm, 42T
• Rear Cassette: KMC 3mm, 18T
• Chain: KMC e101 EP
• Pedals: ACID PP MTB
• Rims: CUBE EX40, 507 x 36H / 406 x 32H, DISC, Tubeless Ready
• Front Hub: Cube Cargo Hub, 36H, Straightpull, 110x15mm Boost
• Rear Hub: Cube Trike Hub, Straightpull
• Front Tyre: Schwalbe Pick-Up, Super Defense, 65-507
• Rear Tyre: Schwalbe Pick-Up, Super Defense, 65-406
• Brakes: Tektro Auriga Twin+ HD-E745 with parking lock mechanism (180/160)
• Handlebars: CUBE Comfort Trail Bar, 700mm
• Grips: ACID Travel Comfort Gripshift
• Headset: ACROS FI-Link, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
• Saddle: Natural Fit Sequence Comfort
• Seatpost: Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
• Front Light: ACID Front Light PRO-E 110, 5-16V, DC
• Rear Light: Supernova T-M99
• Other Details : Mud guard, stand, bell
• Weight: 75 Kg

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
